Transaxle Case: Assembly

  1. 1.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD38025Courtesy of FORD MOTOR COMPANY

  1. 2.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD38026Courtesy of FORD MOTOR COMPANY

  1. 3.

    Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.
GFD38027Courtesy of FORD MOTOR COMPANY

  1. 4.

    Special Tool(s): Bearing Cup Installer 307-576 General Equipment: Shop Press
GFD38028Courtesy of FORD MOTOR COMPANY

  1. 5.

    Special Tools(s): Bearing Cup Installer 307-689
GFD38029Courtesy of FORD MOTOR COMPANY

  1. 6.

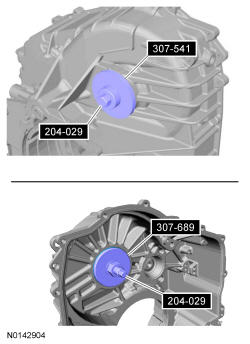

    Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
GFD38030Courtesy of FORD MOTOR COMPANY

  1. 7.

GFD38024Courtesy of FORD MOTOR COMPANY

  1. 8.

GFD38023Courtesy of FORD MOTOR COMPANY

  1. 9.

GFD38022Courtesy of FORD MOTOR COMPANY

  1. 10.

    • Tighten to 12 Nm (106 lb-in).
GFD38021Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to Torque Converter Housing .
