Multifunction Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Multifunction Switch

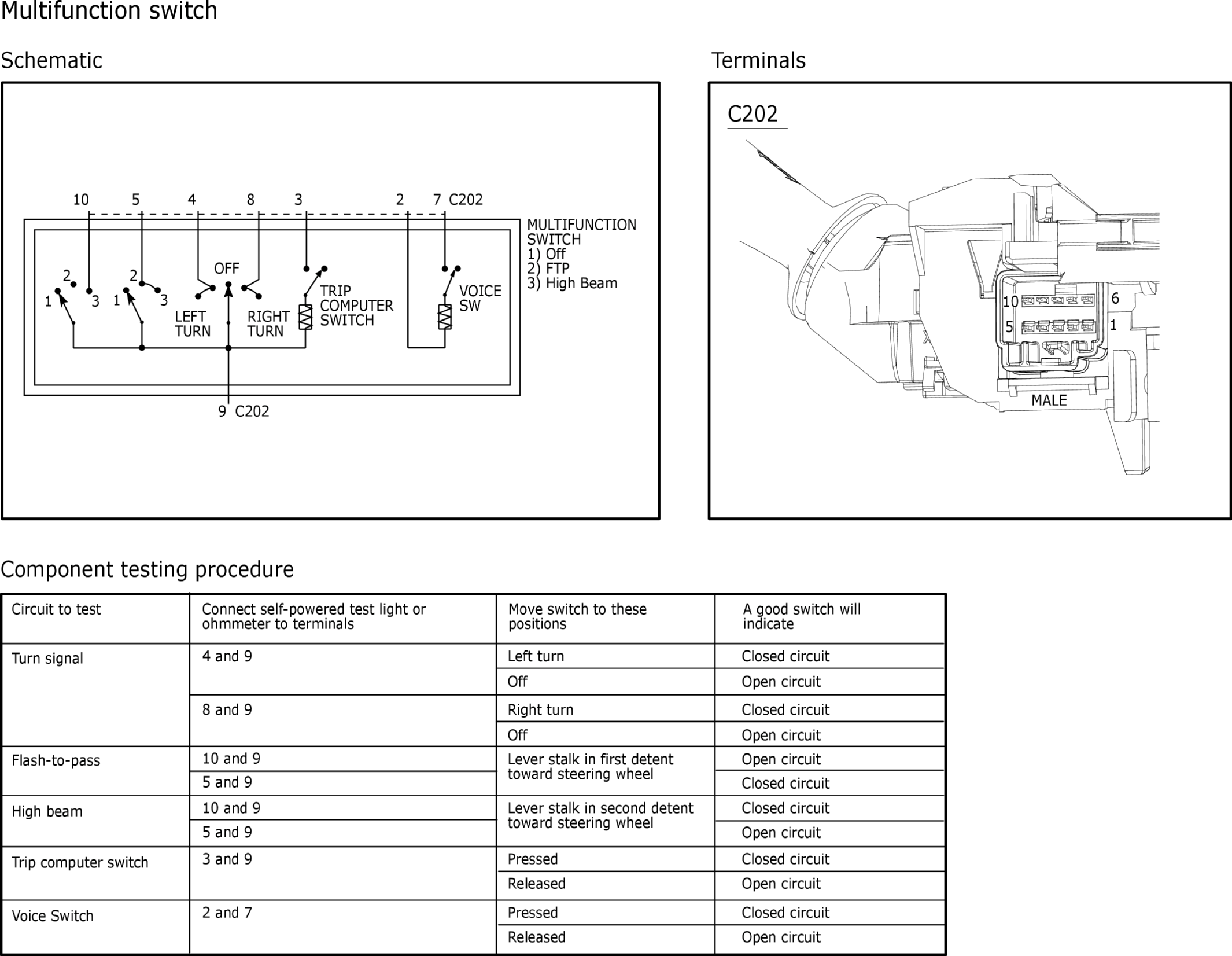

Fig 1: Multifunction Switch
Courtesy of FORD MOTOR COMPANY
