Powertrain Control Module (PCM): Removal

    NOTE: This step is only necessary when installing a new component.
    NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.

  1. 1.
    Download the module information to the diagnostic tool using the PMI routine. Refer to: MODULE CONFIGURATION .

  1. 2.

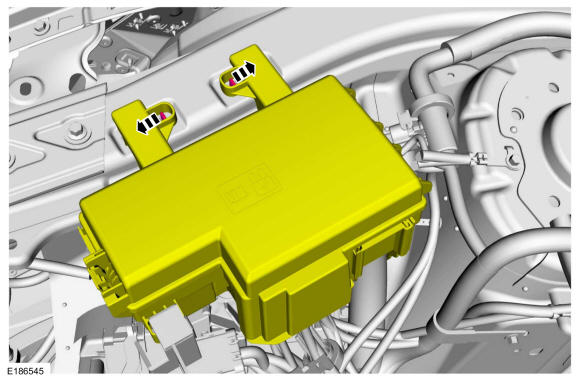

    Unclip and position aside the BJB.
GFD7842Courtesy of FORD MOTOR COMPANY

  1. 3.

    1. 1.

      Disconnect the PCM electrical connectors.

    1. 2.

      Remove the retainers and the PCM.
GFD7843Courtesy of FORD MOTOR COMPANY
