Front Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the wheel and tire. REFER to: Wheel and Tire
.
- 2.

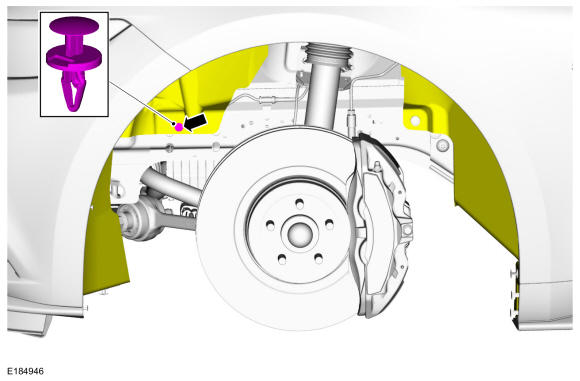

Remove the retainer and position aside the fender splash shield.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

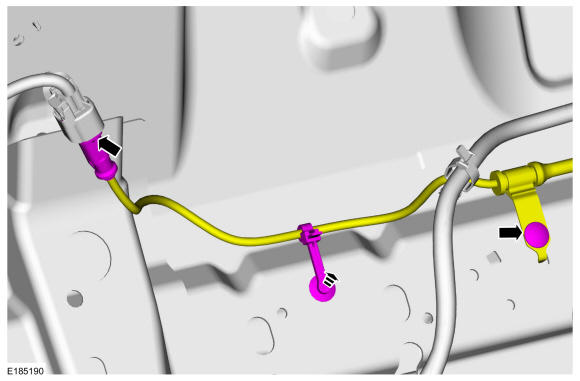

Disconnect the front wheel speed sensor electrical connector and detach the 2 harness retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

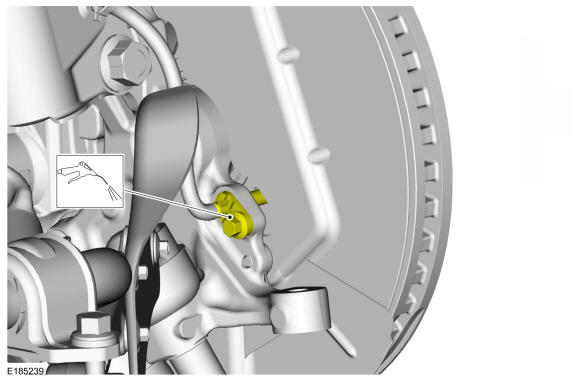

Using compressed air, clean the area surrounding the front wheel speed sensor.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
- 1.

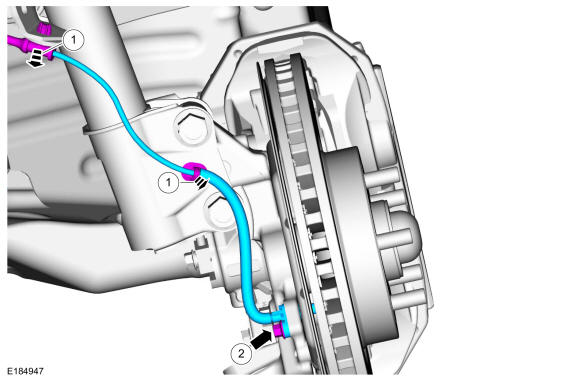

Detach the 2 sensor harness retainers.
- 2.
Remove the bolt and the front wheel speed sensor.Torque
: 133 lb.in (15 Nm)
 Courtesy of FORD MOTOR COMPANY
|
