OEM Ground Distribution: Grounds

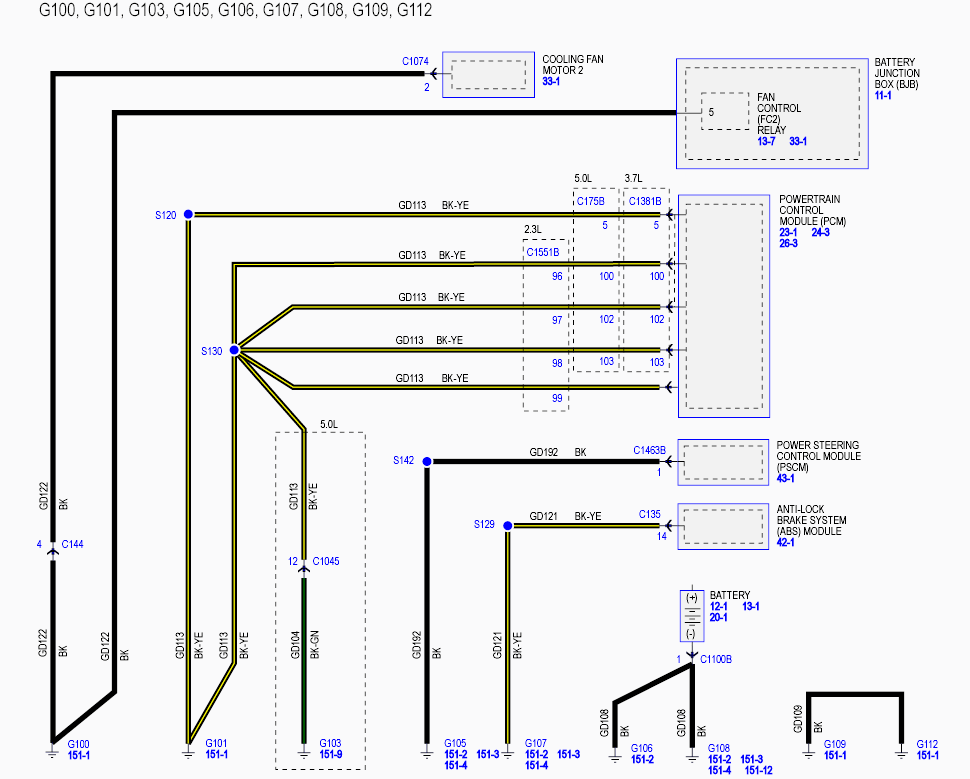

G00555389Courtesy of

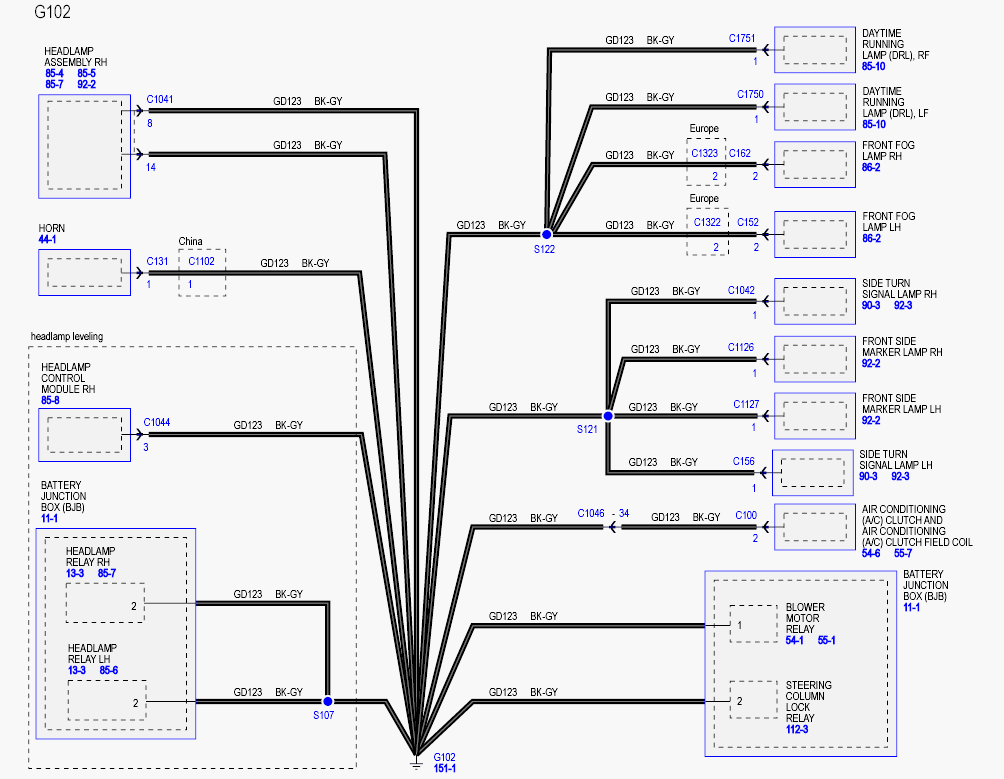

G00555390Courtesy of

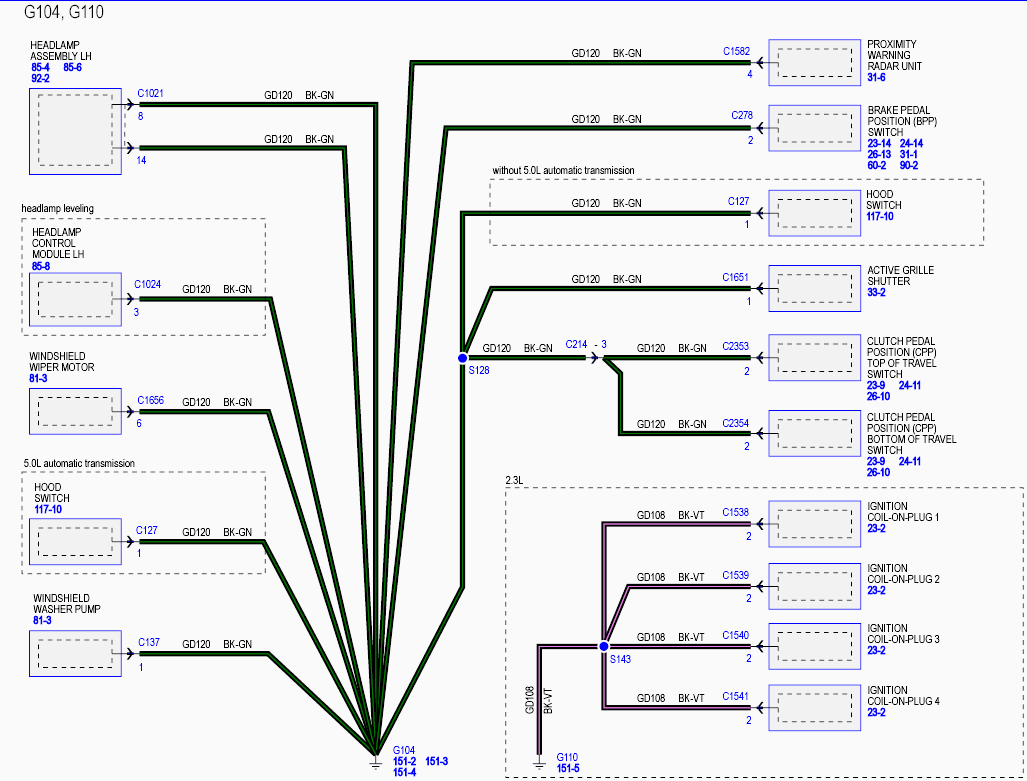

G00555391Courtesy of

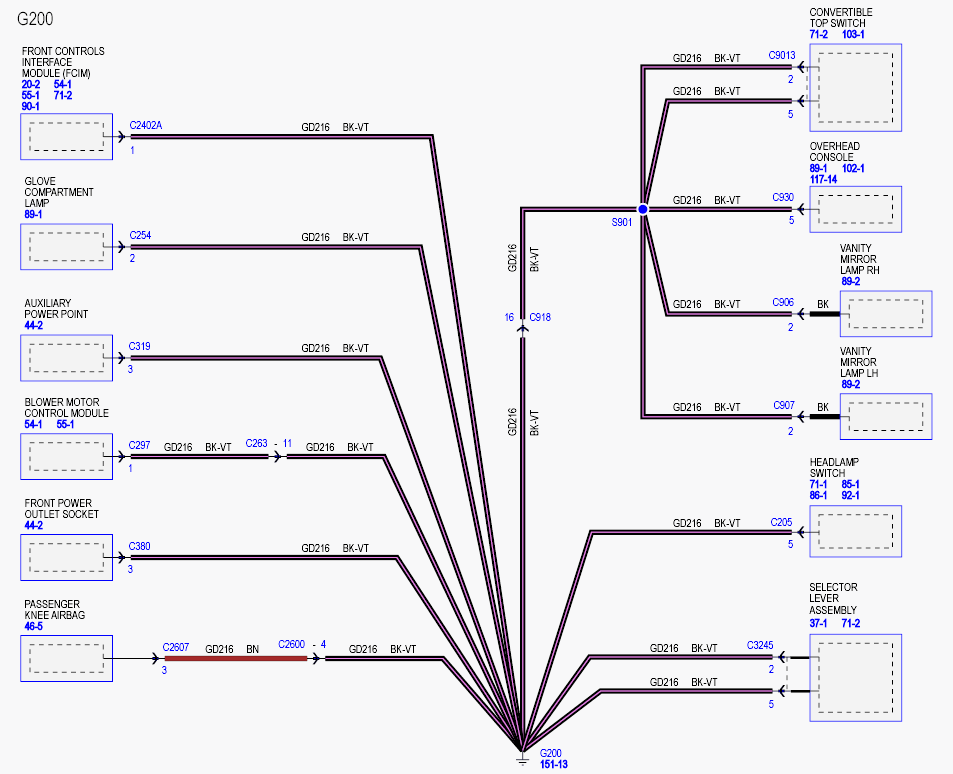

G00555392Courtesy of

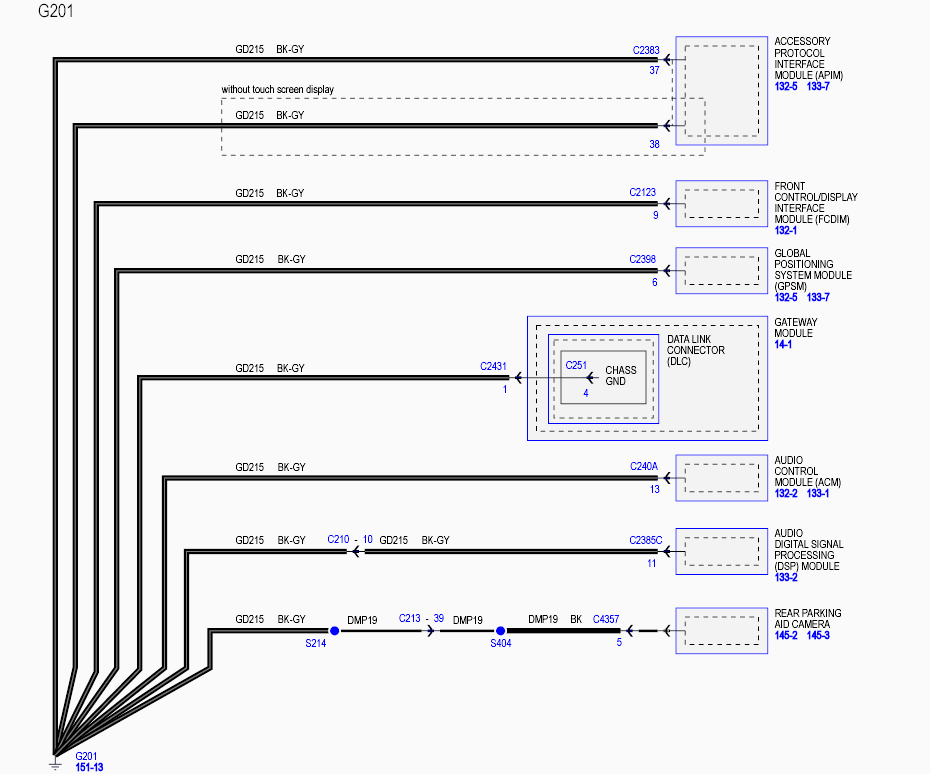

G00555393Courtesy of

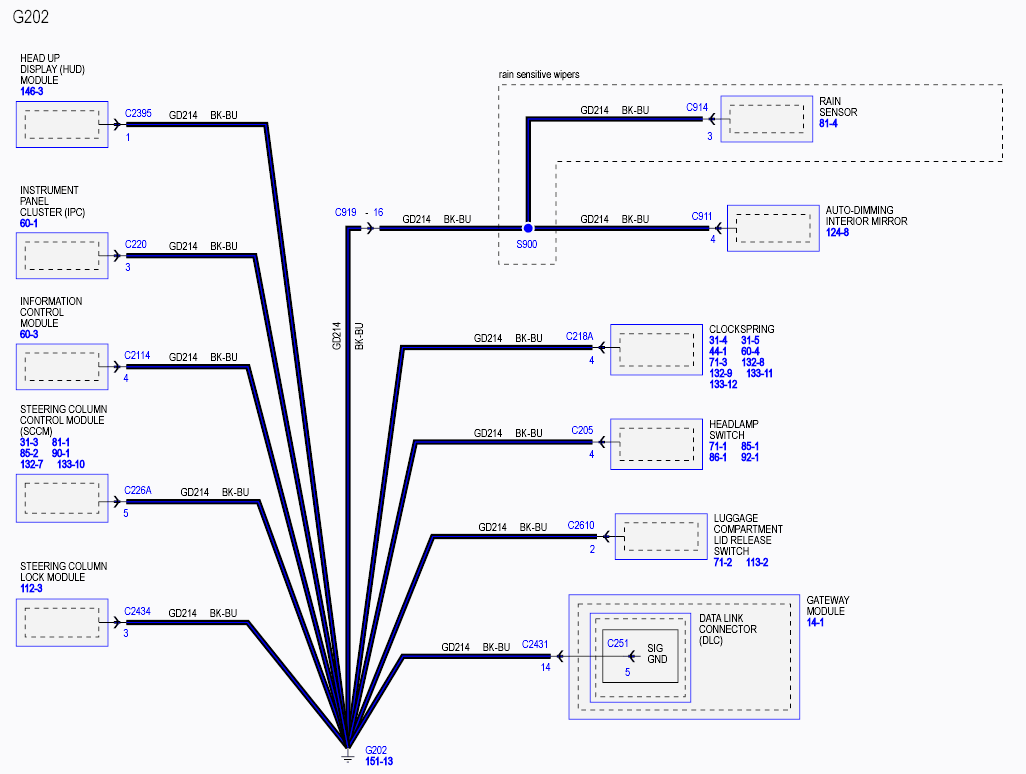

G00555394Courtesy of

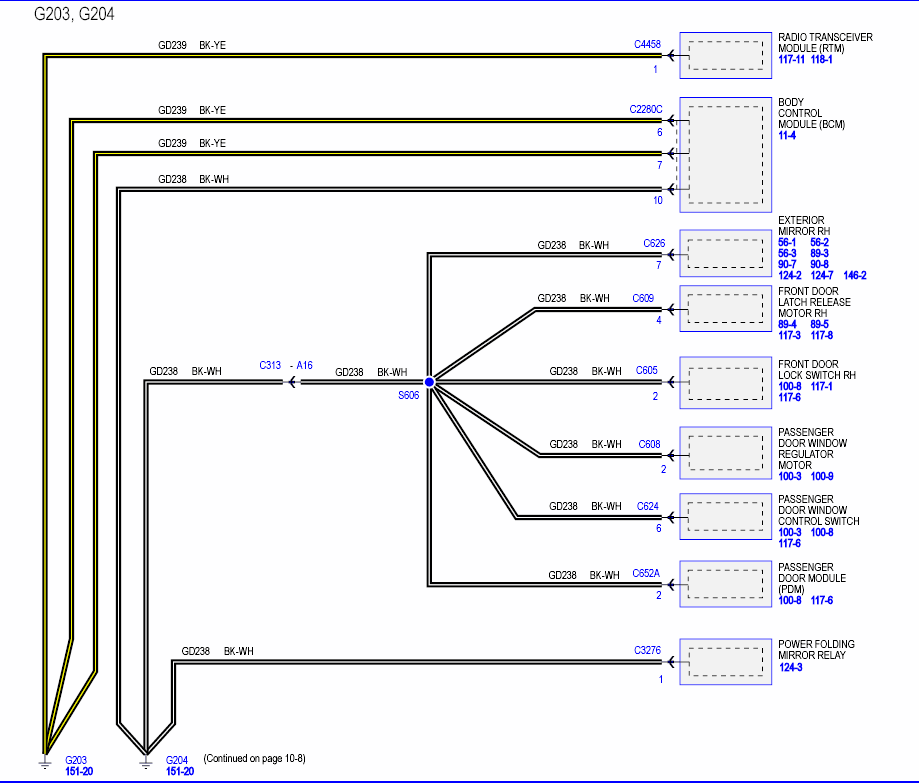

G00555395Courtesy of

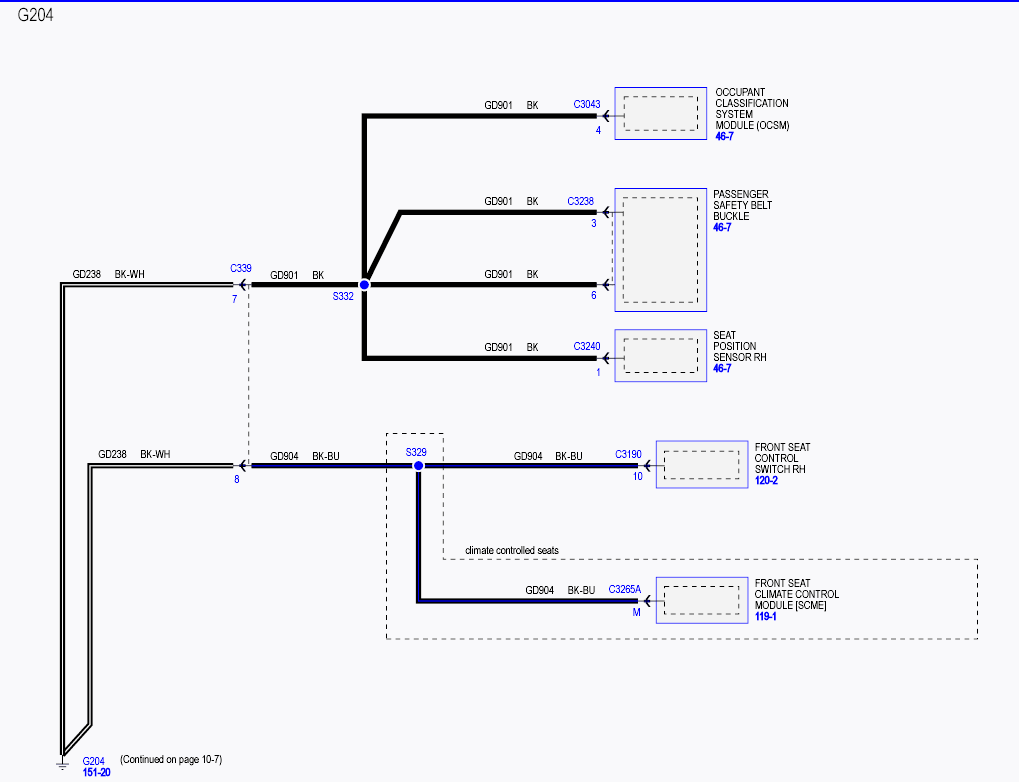

G00555396Courtesy of

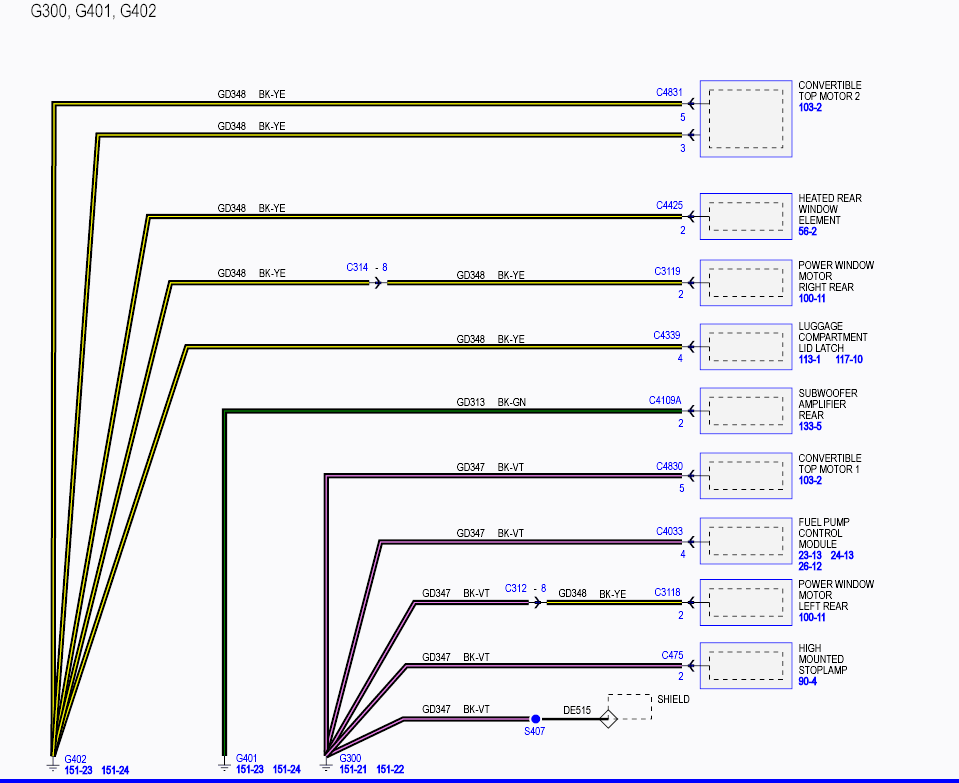

G00555397Courtesy of

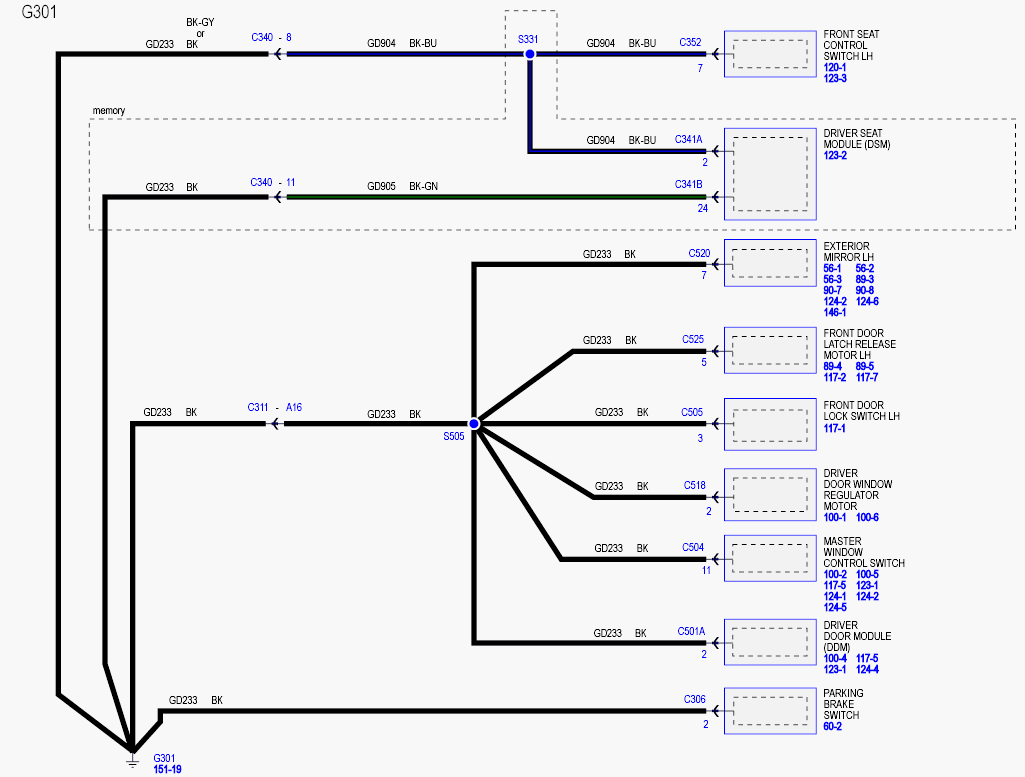

G00555398Courtesy of

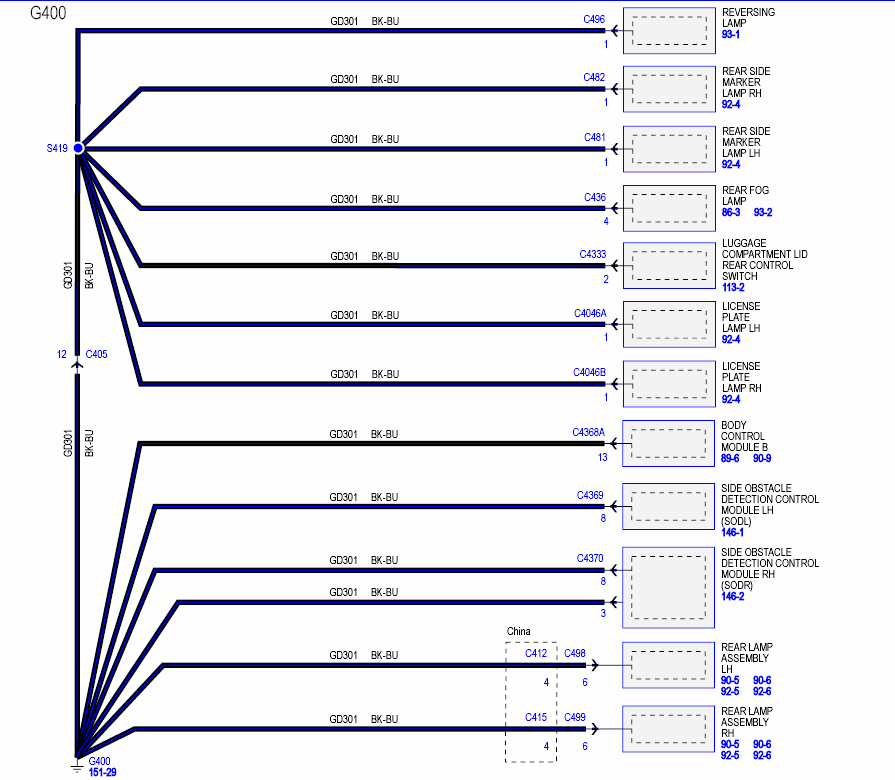

G00555399Courtesy of
