Front Seat Control Switch: Removal

1.

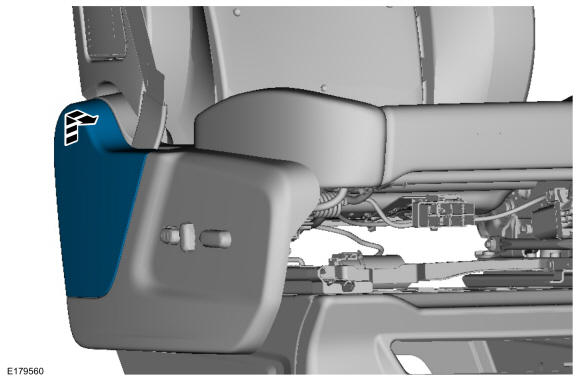

Lift and slide the safety belt cover forward to remove.

GFD76824

Courtesy of FORD MOTOR COMPANY

2.
- 1.

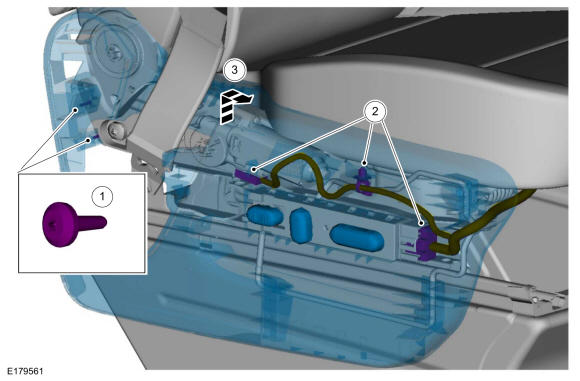

  Remove the side shield fasteners.
- 2.

  Disconnect the electrical connectors. Release the wire harness fastener and position the harness aside.
- 3.

  Lift and slide the side shield forward to remove.

GFD76825

Courtesy of FORD MOTOR COMPANY

3.
- 1.

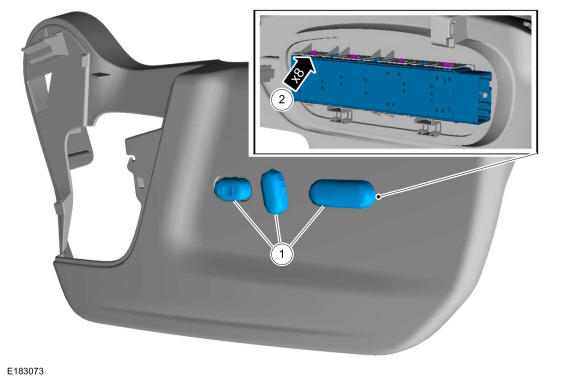

  Remove the seat control switch knobs.
- 2.

  Release the seat control switch locking tabs. Remove the control switch.

GFD76826

Courtesy of FORD MOTOR COMPANY
