Trailer Brake Control Module (TBM): Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

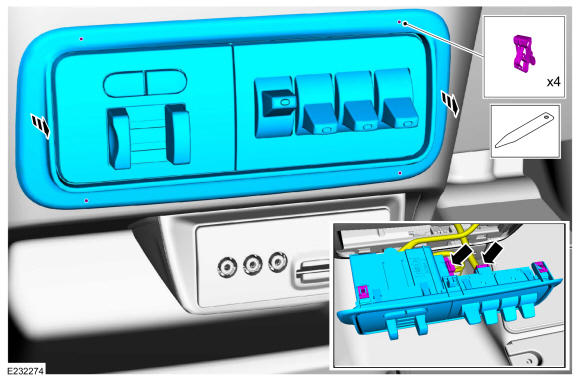

- 1.NOTE: Vehicle equipped with accessory switches shown, vehicle with coin holder similar
Detach the clips, disconnect the electrical connector(s) and remove the bezel, the TBM and the accessory switches (or coin holder) as an assembly. Use the General Equipment: Interior Trim Remover

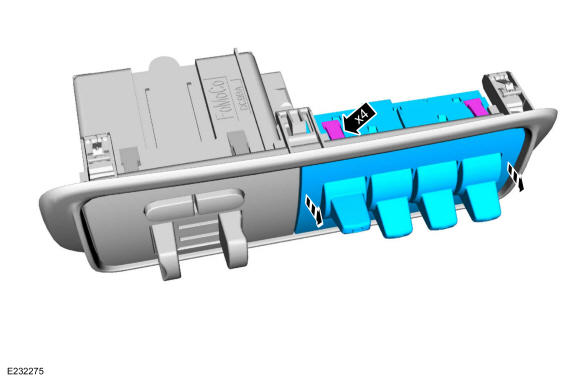

- 2.NOTE: Vehicle equipped with accessory switches shown, vehicle with coin holder similar
Release the 4 tabs and remove the accessory switches (or coin holder).
