Front Strut and Spring Assembly: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Both Sides

1.

Remove the wheel knuckle. Refer to: Wheel Knuckle .

2.

NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

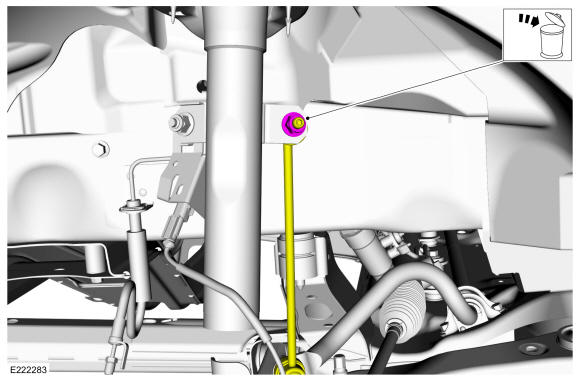

Remove and discard the stabilizer bar link upper nut and position the stabilizer bar link aside.

Torque: 76 lb.ft (103 Nm)

GFD142601

Courtesy of FORD MOTOR COMPANY

3.

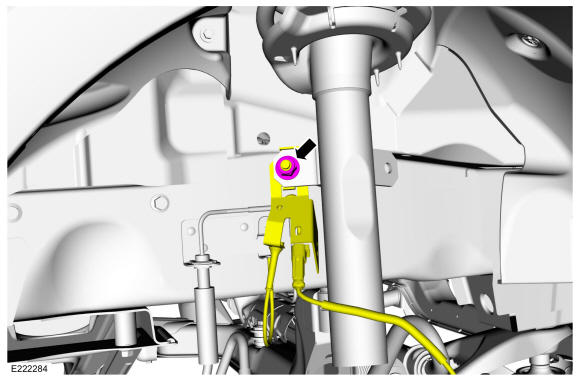

Remove the nut and position the brake wiring support bracket aside.
Torque: 22 lb.ft (30 Nm)

GFD142602

Courtesy of FORD MOTOR COMPANY

4.

Remove the instrument panel console. Refer to: Instrument Panel Console .

Driver Side

5.

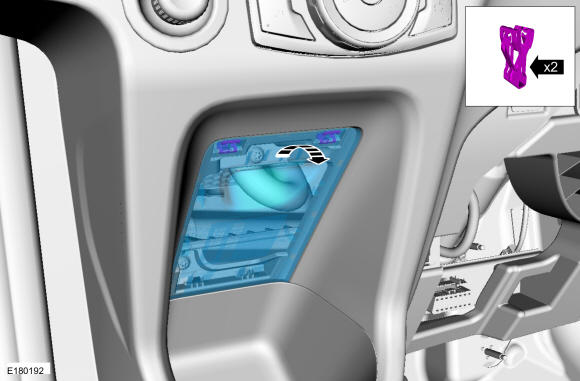

Release the 2 clips and remove the LH side access panel.

GFD142603

Courtesy of FORD MOTOR COMPANY

6.

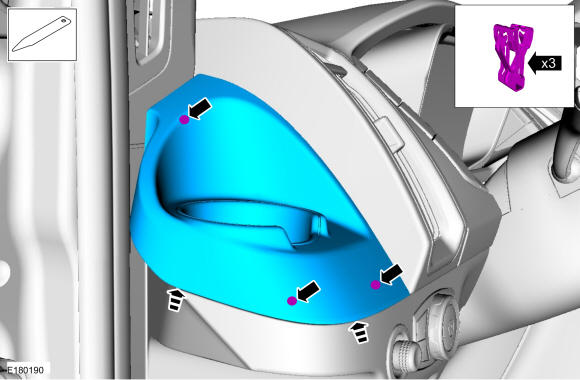

Release the 3 clips and remove the LH cup holder. Use the General Equipment: Interior Trim Remover

GFD142604

Courtesy of FORD MOTOR COMPANY

7.

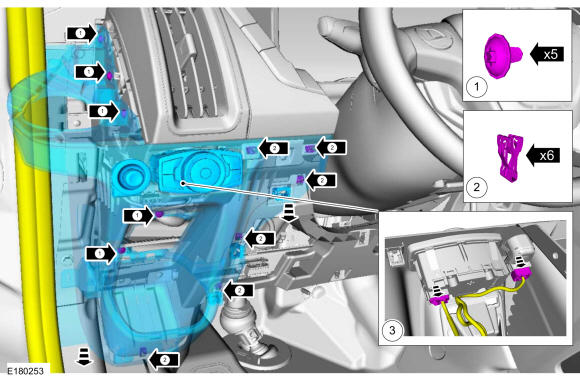

- 1.

  Remove the 5 screws.
  Torque: 18 lb.in (2 Nm)
- 2.

  Release the 6 clips and remove the LH instrument panel finish panel.
- 3.

  Disconnect the 2 electrical connectors.

GFD142605

Courtesy of FORD MOTOR COMPANY

8.

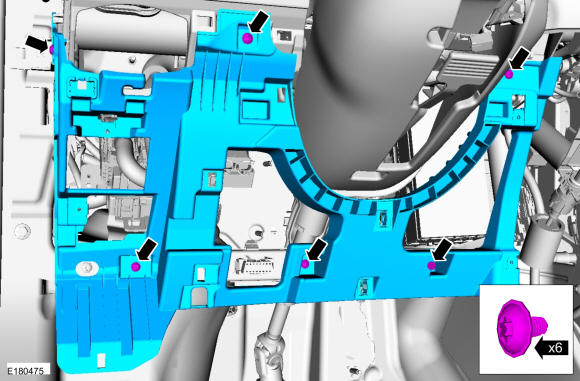

Remove the 6 screws and the lower LH instrument panel close out panel.

GFD142606

Courtesy of FORD MOTOR COMPANY

9.

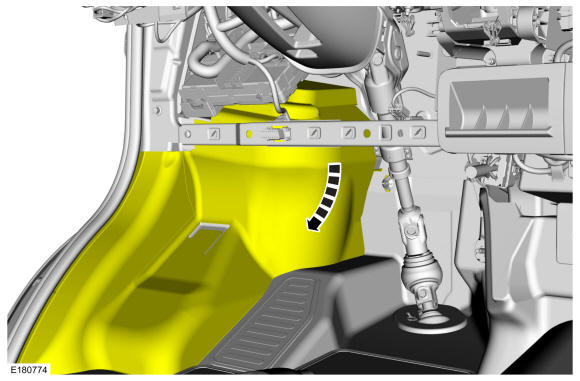

Position aside the LH strut tower sound insulator.

GFD142607

Courtesy of FORD MOTOR COMPANY

10.

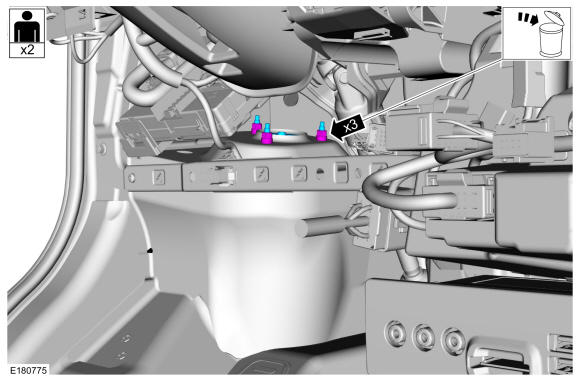

With the help of an assistant, remove the driver side front upper strut and spring assembly nuts and remove the strut and spring assembly.
Torque: 22 lb.ft (30 Nm)

GFD142608

Courtesy of FORD MOTOR COMPANY

Passenger Side

11.

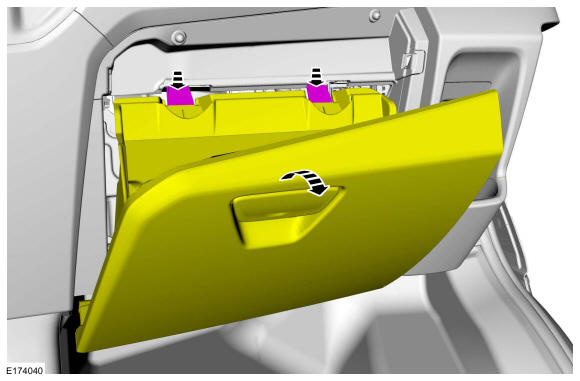

Press the stop tabs downward and fully lower the glove compartment.

GFD142609

Courtesy of FORD MOTOR COMPANY

12.

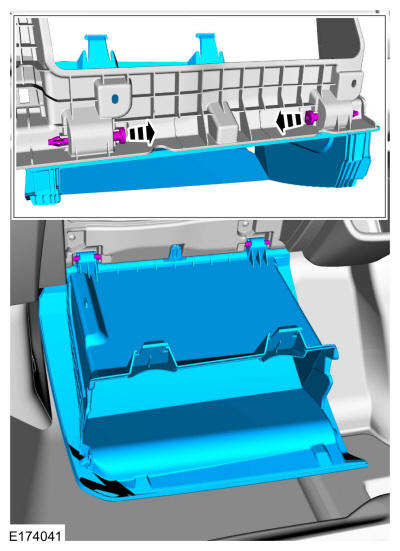

Remove the 2 hinge pins and remove the glove compartment.

GFD142610

Courtesy of FORD MOTOR COMPANY

13.

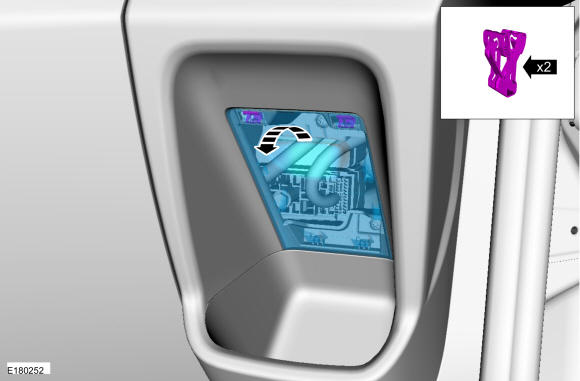

Release the 2 clips and remove the RH side access panel.

GFD142611

Courtesy of FORD MOTOR COMPANY

14.

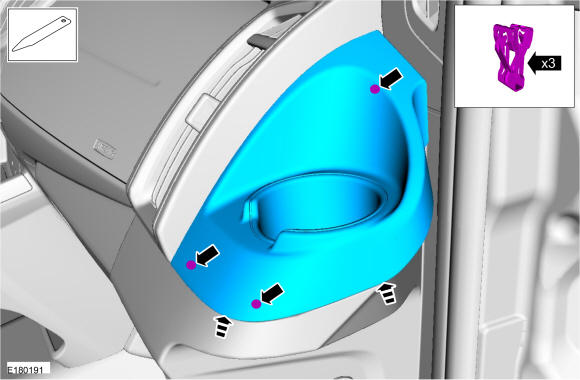

Release the 3 clips and remove the RH cup holder. Use the General Equipment: Interior Trim Remover

GFD142612

Courtesy of FORD MOTOR COMPANY

15.

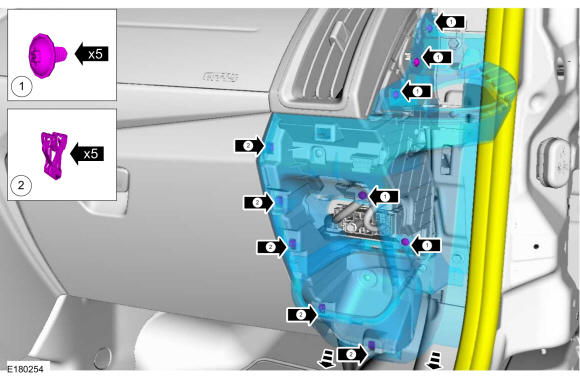

- 1.

  Remove the 5 screws.
  Torque: 18 lb.in (2 Nm)
- 2.

  Release the 5 clips and remove the RH instrument panel finish panel.

GFD142613

Courtesy of FORD MOTOR COMPANY

16.

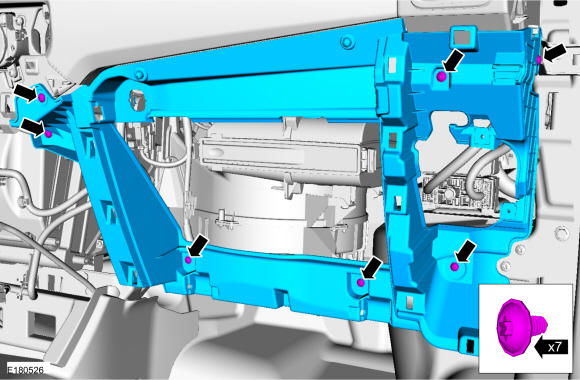

Remove the 7 screws and the lower RH instrument panel close out panel.

GFD142614

Courtesy of FORD MOTOR COMPANY

17.

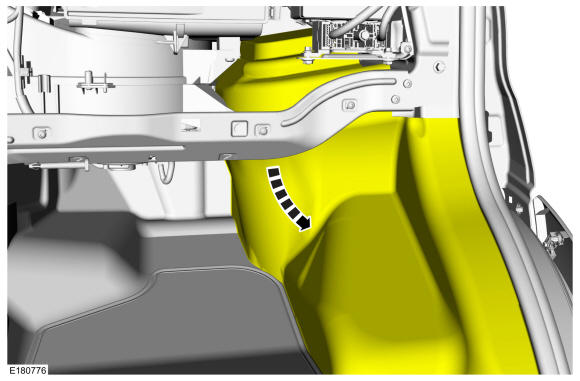

Position aside the RH strut tower sound insulator.

GFD142615

Courtesy of FORD MOTOR COMPANY

18.

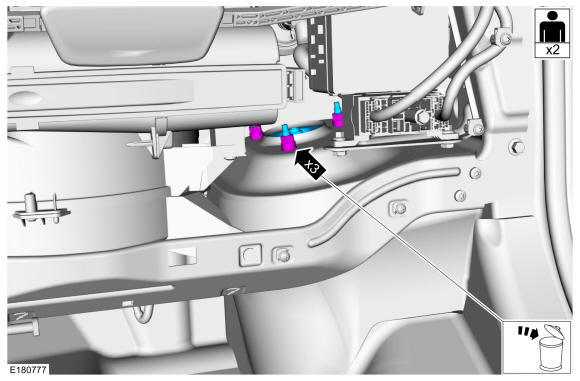

With the help of an assistant, remove the passenger side front upper strut and spring assembly nuts and remove the strut and spring assembly.
Torque: 22 lb.ft (30 Nm)

GFD142616
