Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

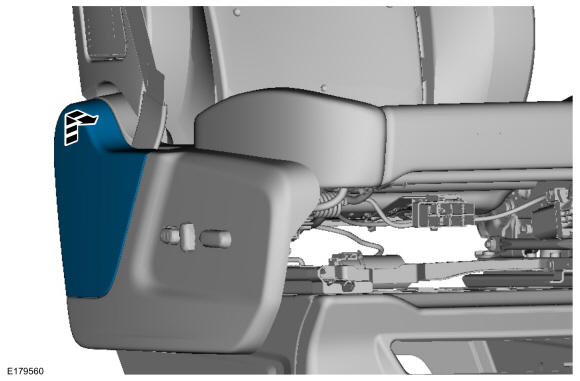

1.

Lift and slide the safety belt cover forward to remove.

Courtesy of FORD MOTOR COMPANY

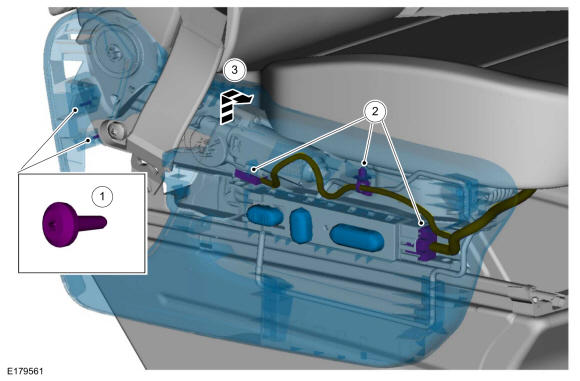

2.
1. 1.

  Remove the side shield fasteners.
1. 2.

  Disconnect the electrical connectors. Release the wire harness fastener and position the harness aside.
1. 3.

  Lift and slide the side shield forward to remove.

Courtesy of FORD MOTOR COMPANY

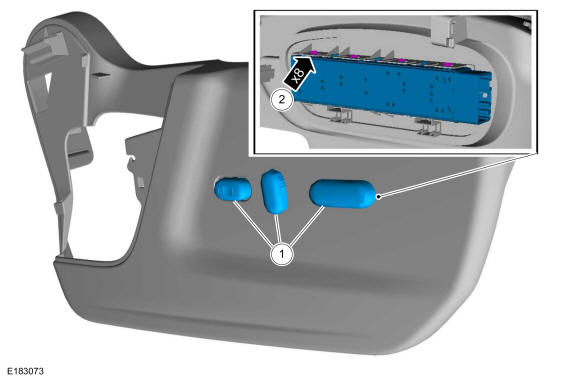

3.
1. 1.

  Remove the seat control switch knobs.
1. 2.

  Release the seat control switch locking tabs. Remove the control switch.

Courtesy of FORD MOTOR COMPANY
