Component Location Views

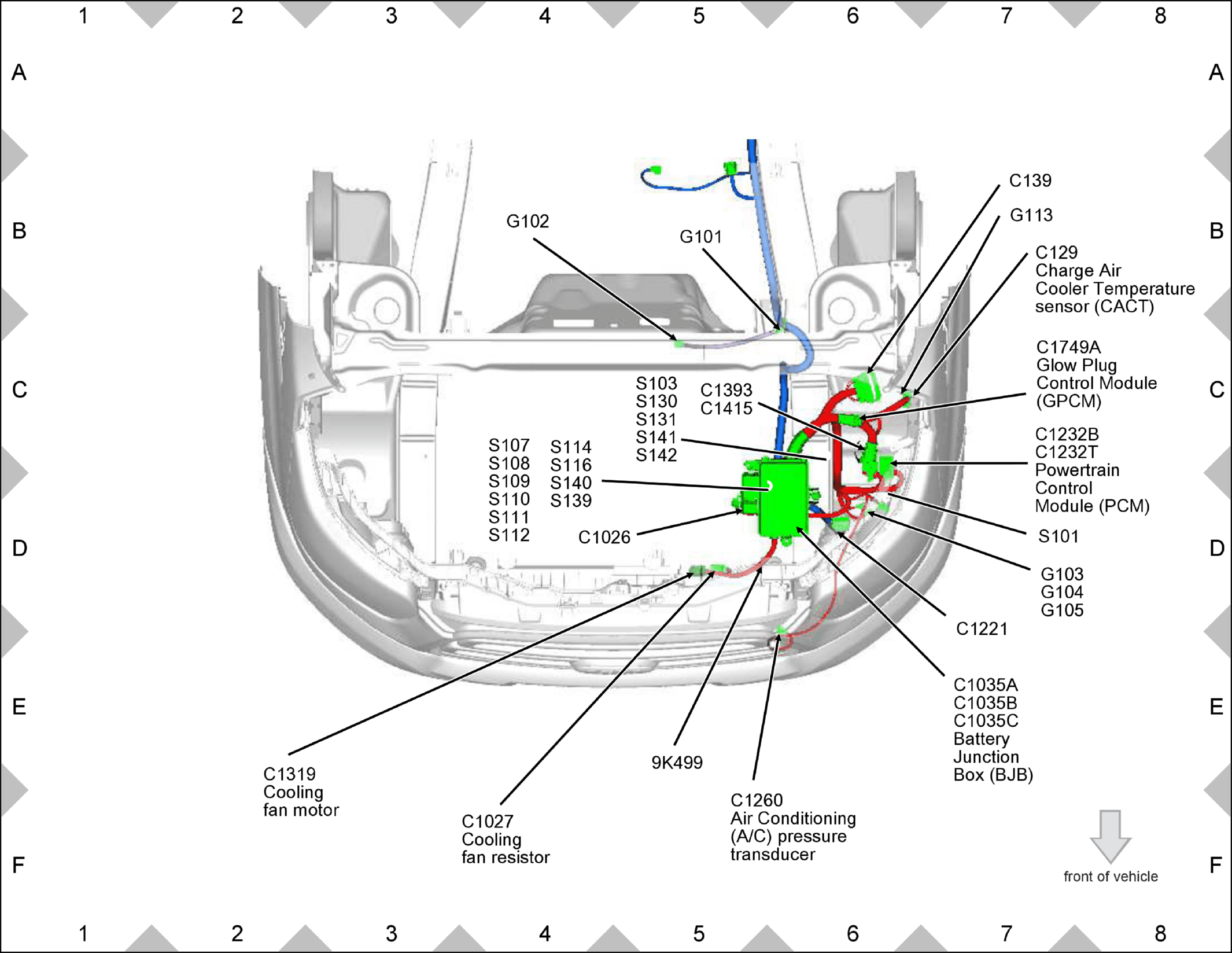

GFDW28811Courtesy of FORD MOTOR COMPANY

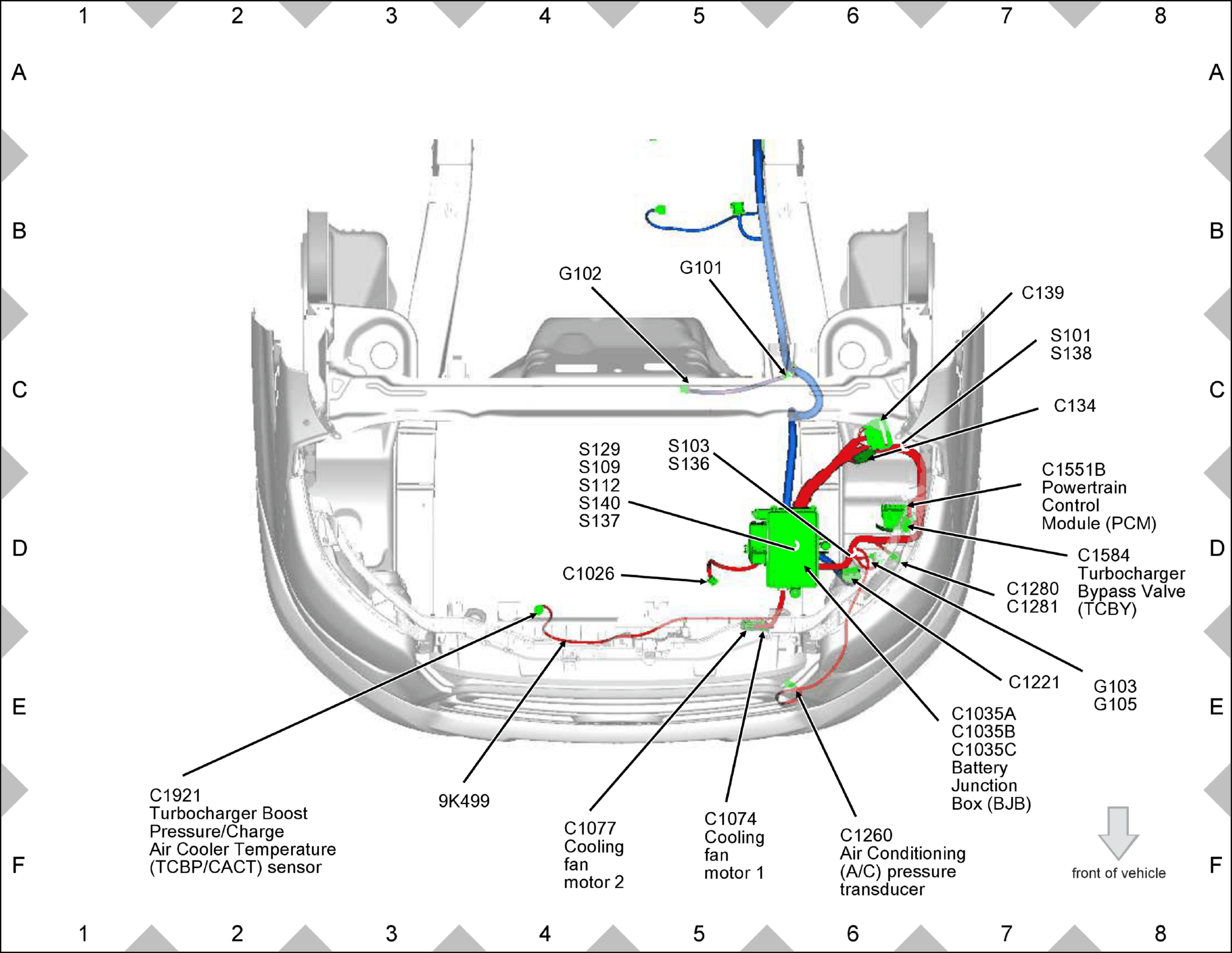

GFDW28812Courtesy of FORD MOTOR COMPANY

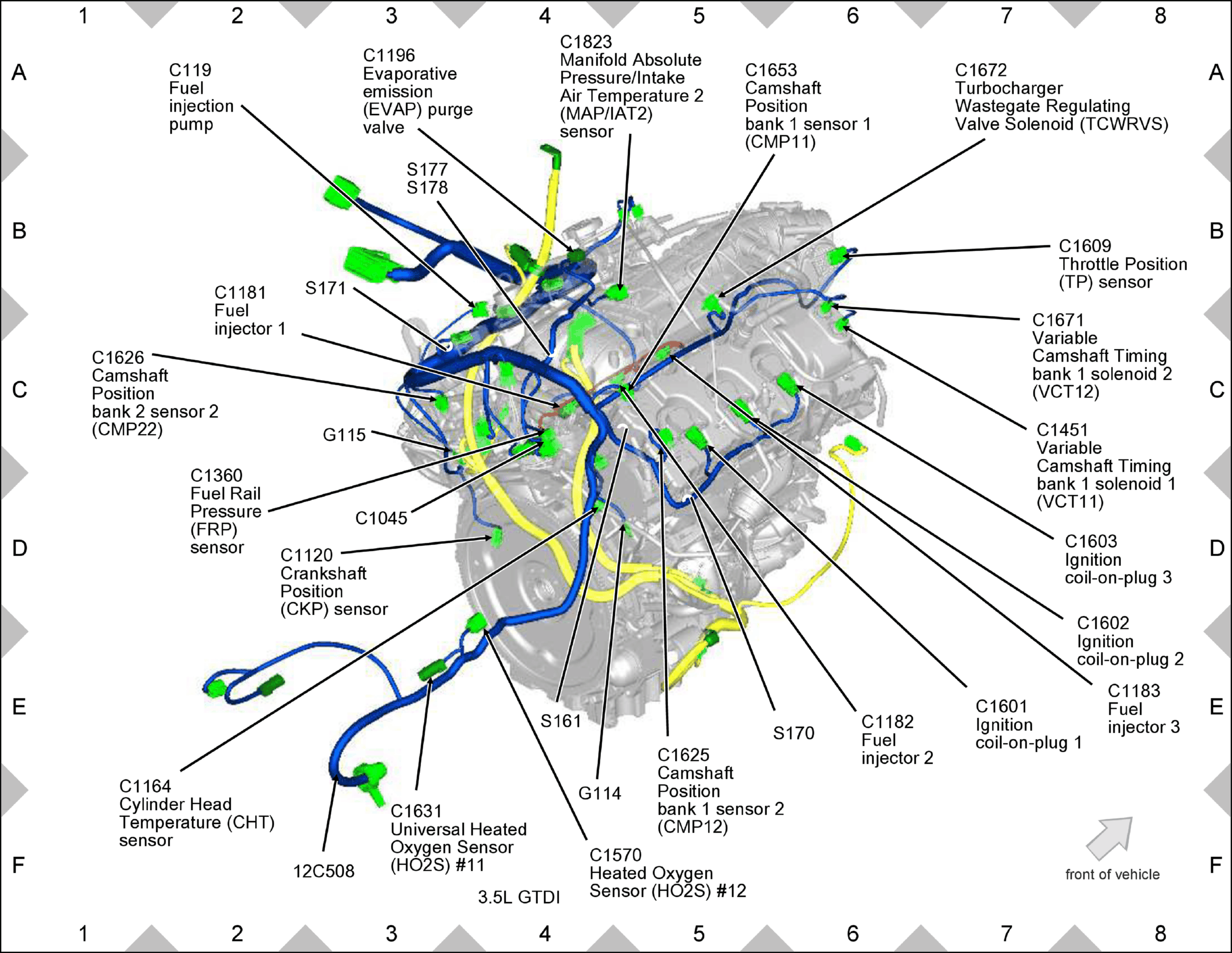

GFDW28813Courtesy of FORD MOTOR COMPANY

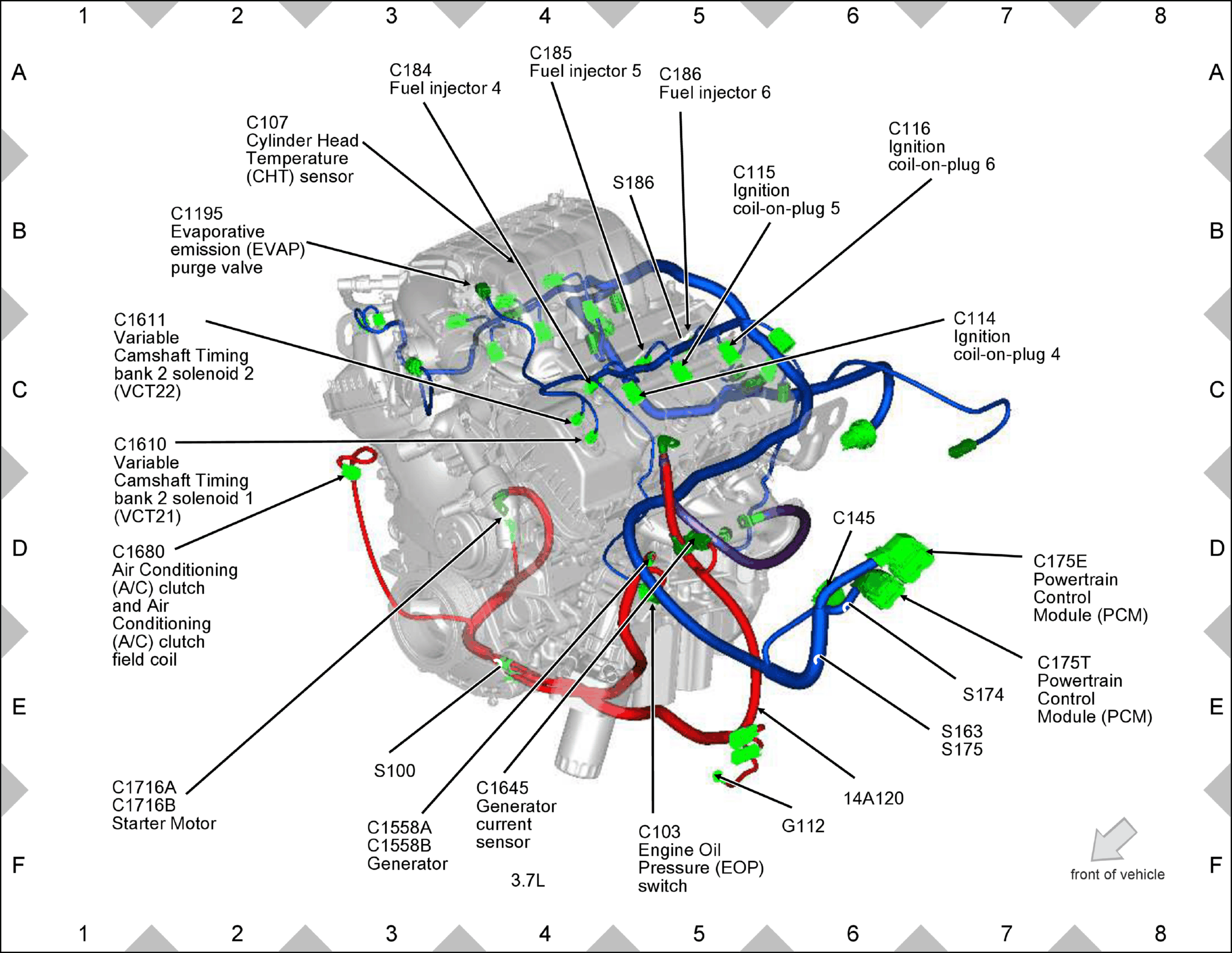

GFDW28814Courtesy of FORD MOTOR COMPANY

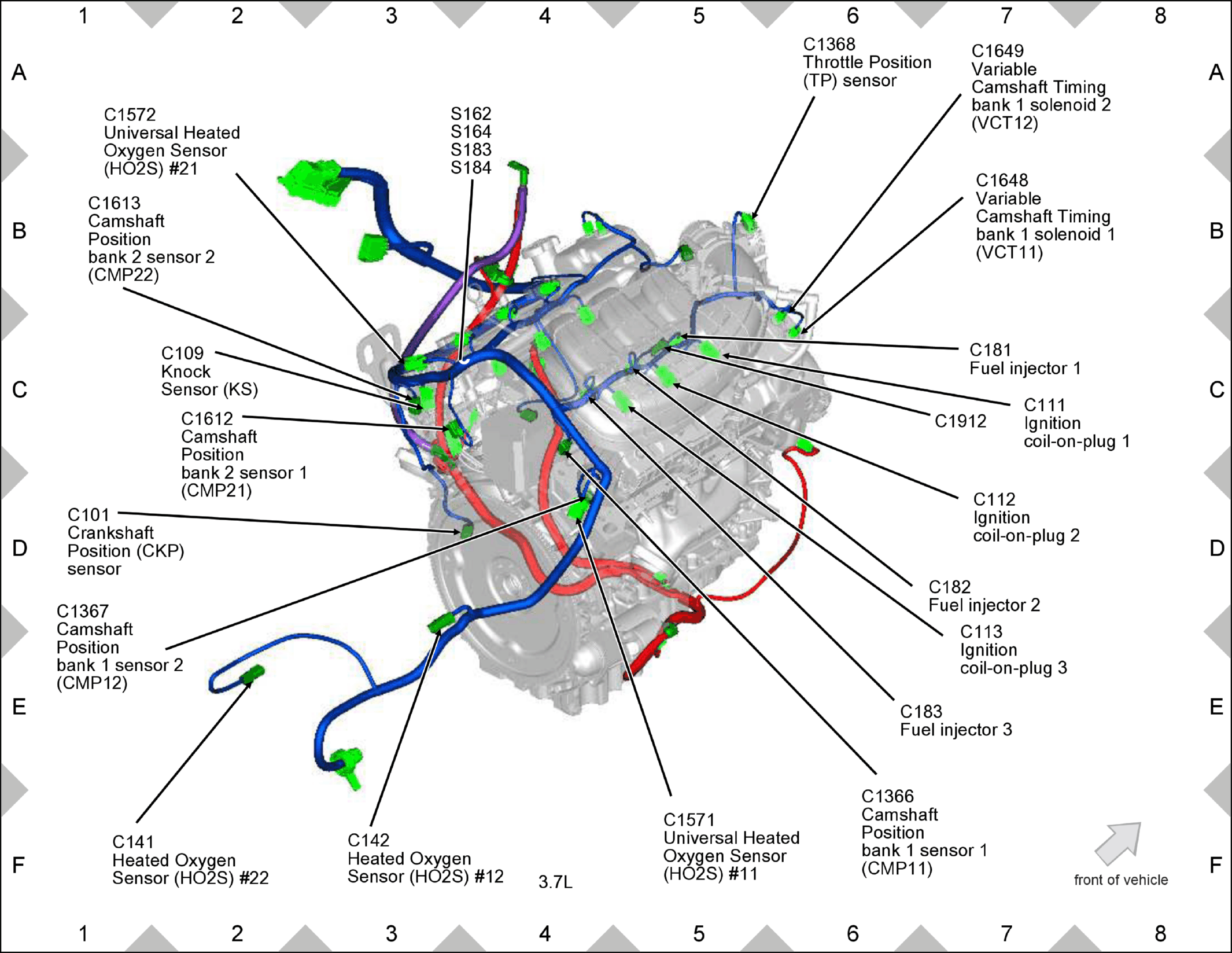

GFDW28815Courtesy of FORD MOTOR COMPANY

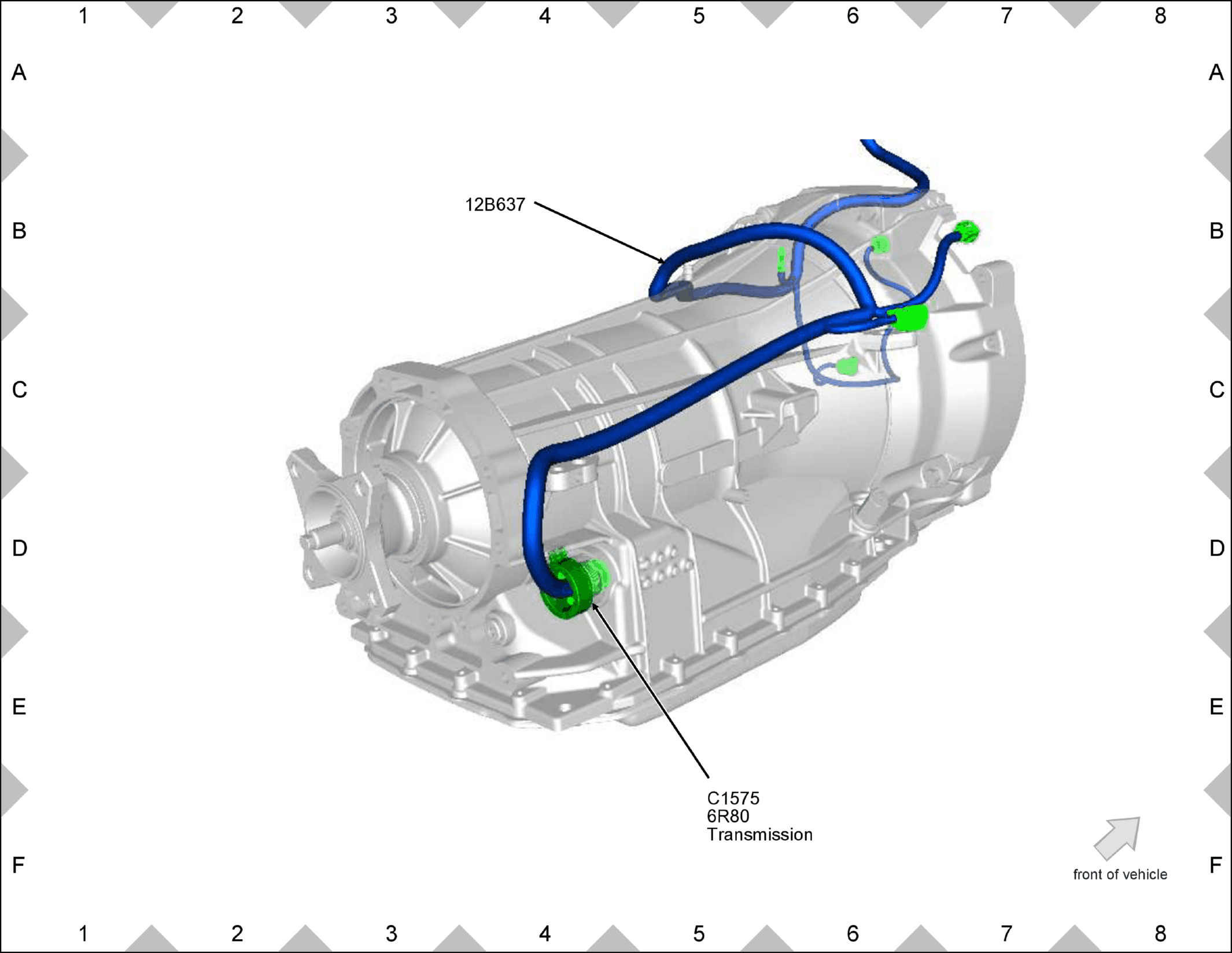

GFDW28816Courtesy of FORD MOTOR COMPANY

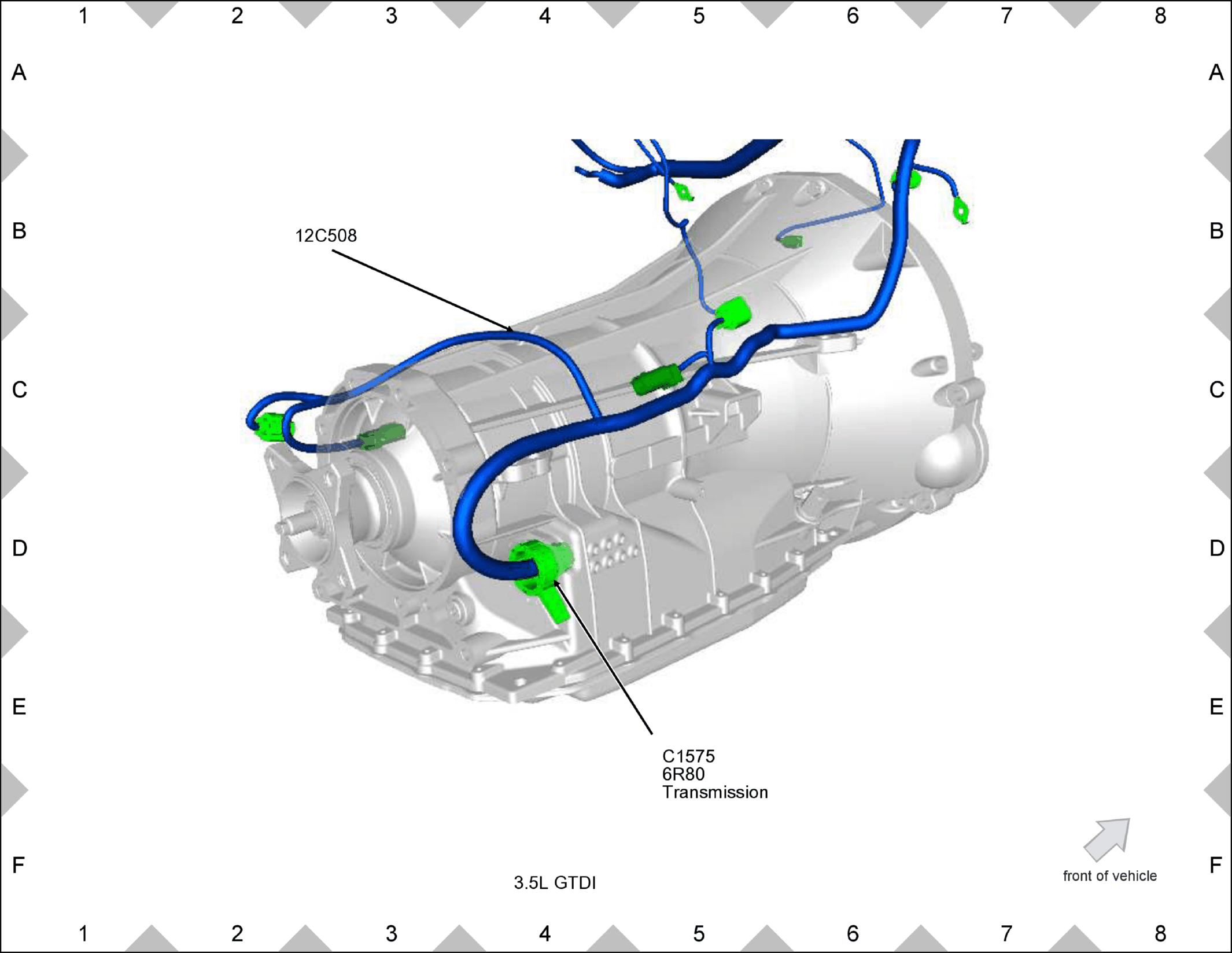

GFDW28817Courtesy of FORD MOTOR COMPANY

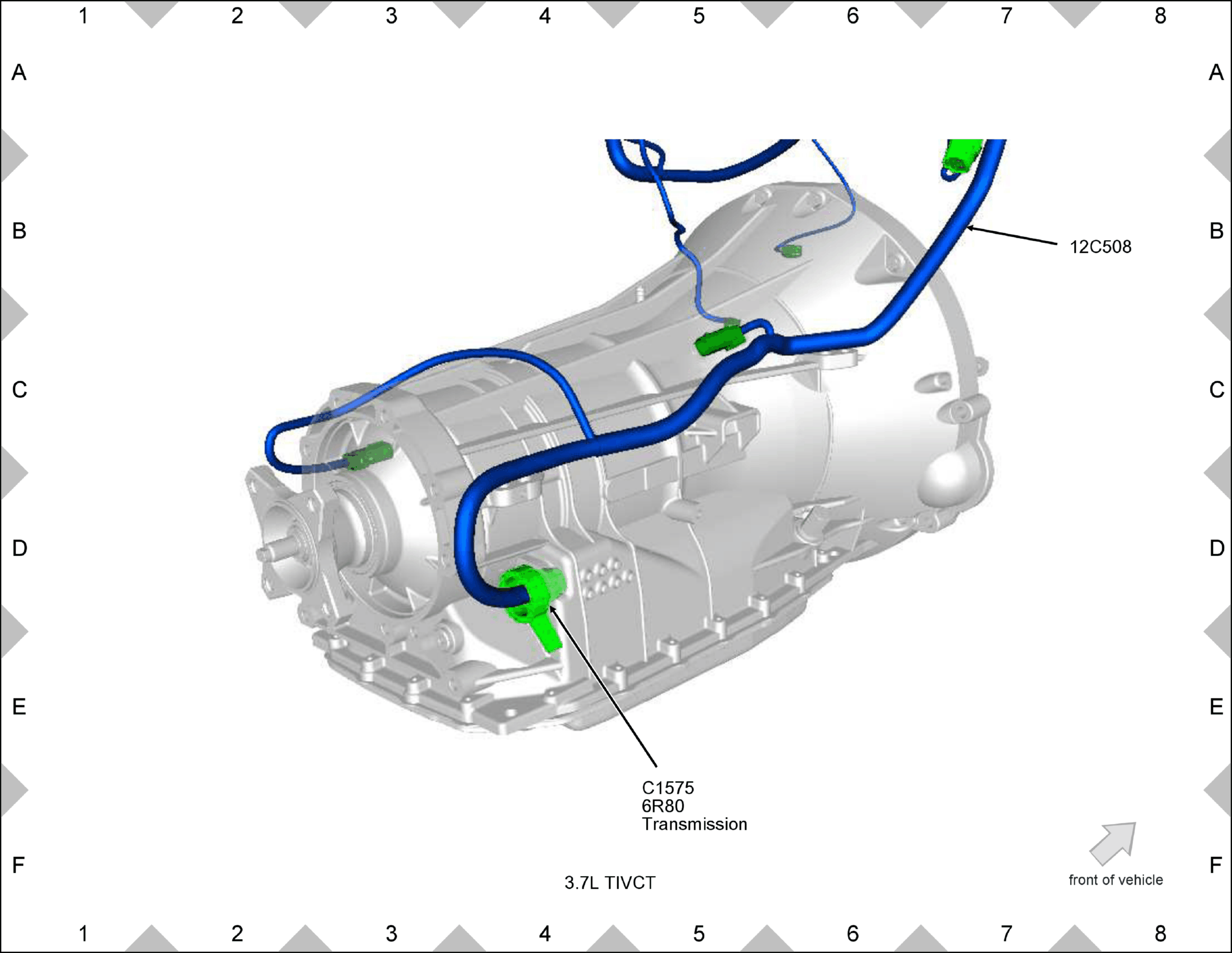

GFDW28818Courtesy of FORD MOTOR COMPANY

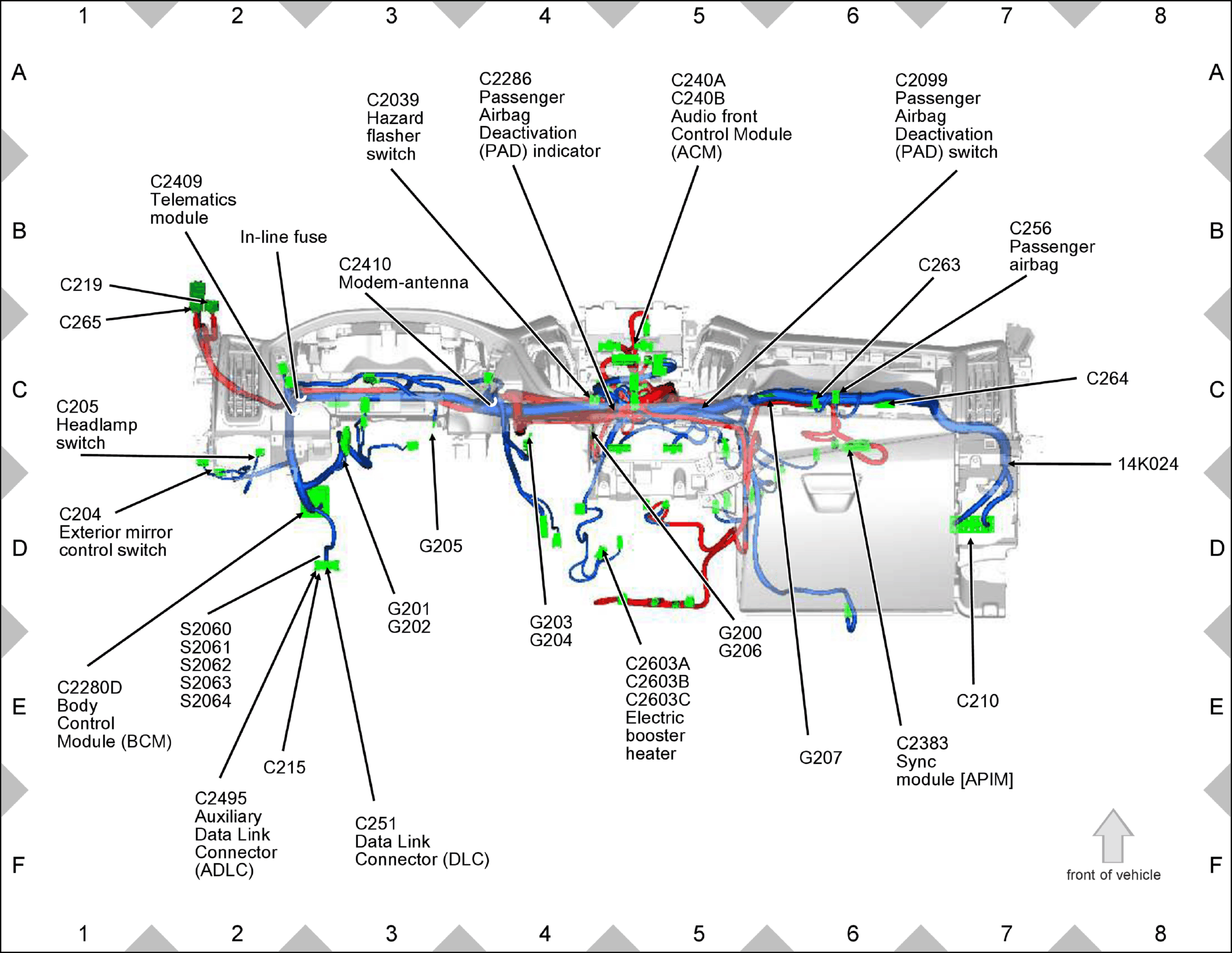

GFDW28819Courtesy of FORD MOTOR COMPANY

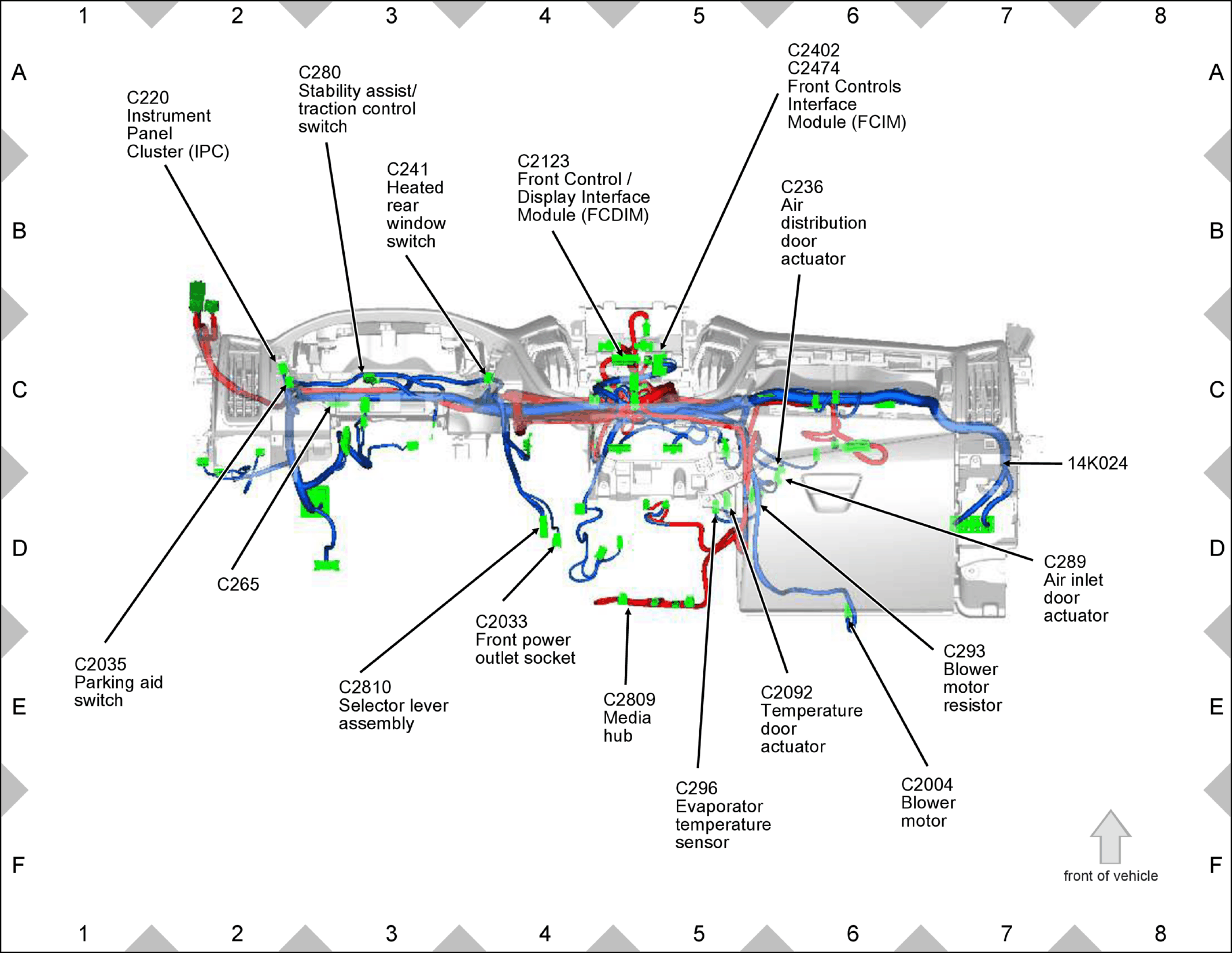

GFDW28820Courtesy of FORD MOTOR COMPANY

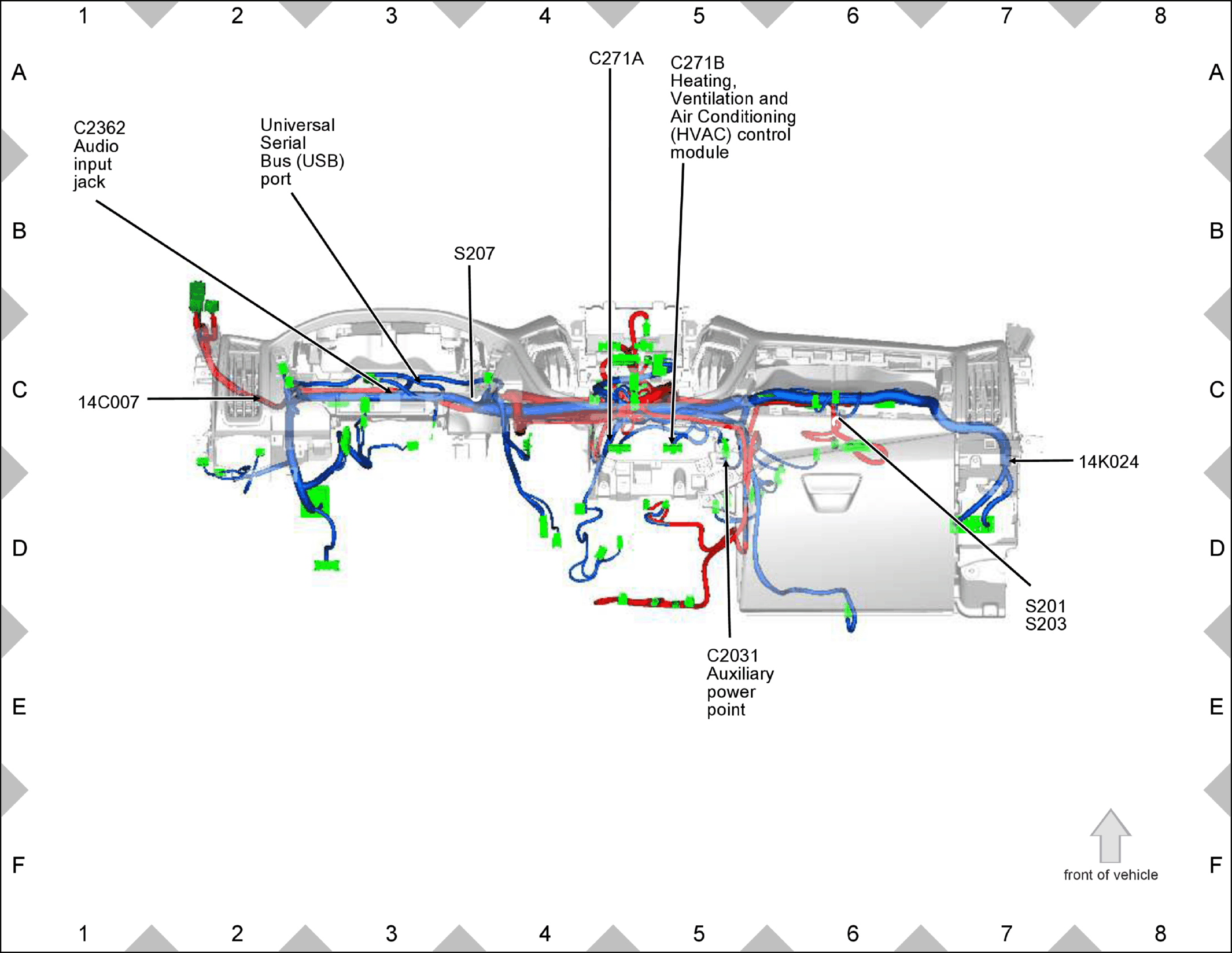

GFDW28821Courtesy of FORD MOTOR COMPANY

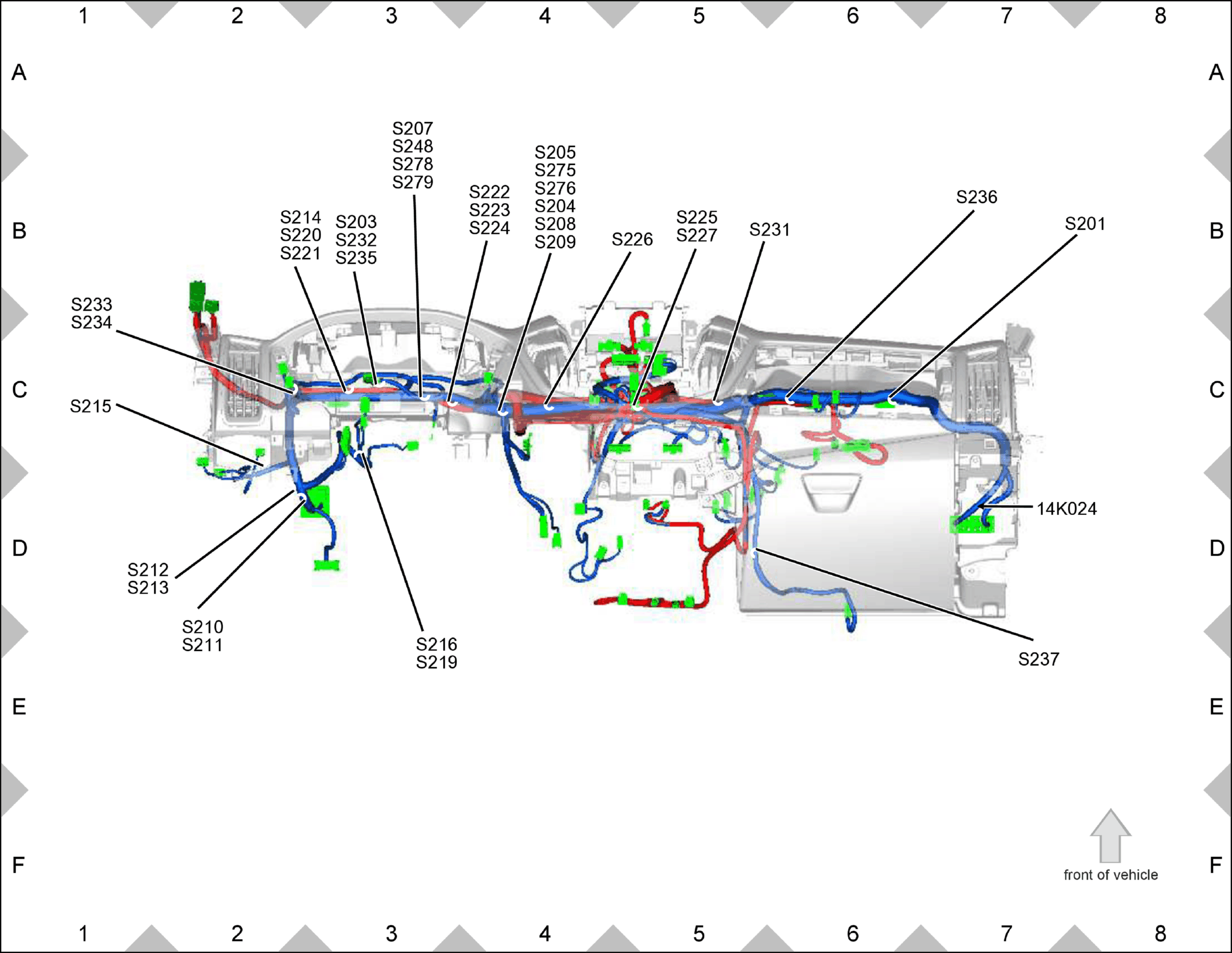

GFDW28822Courtesy of FORD MOTOR COMPANY

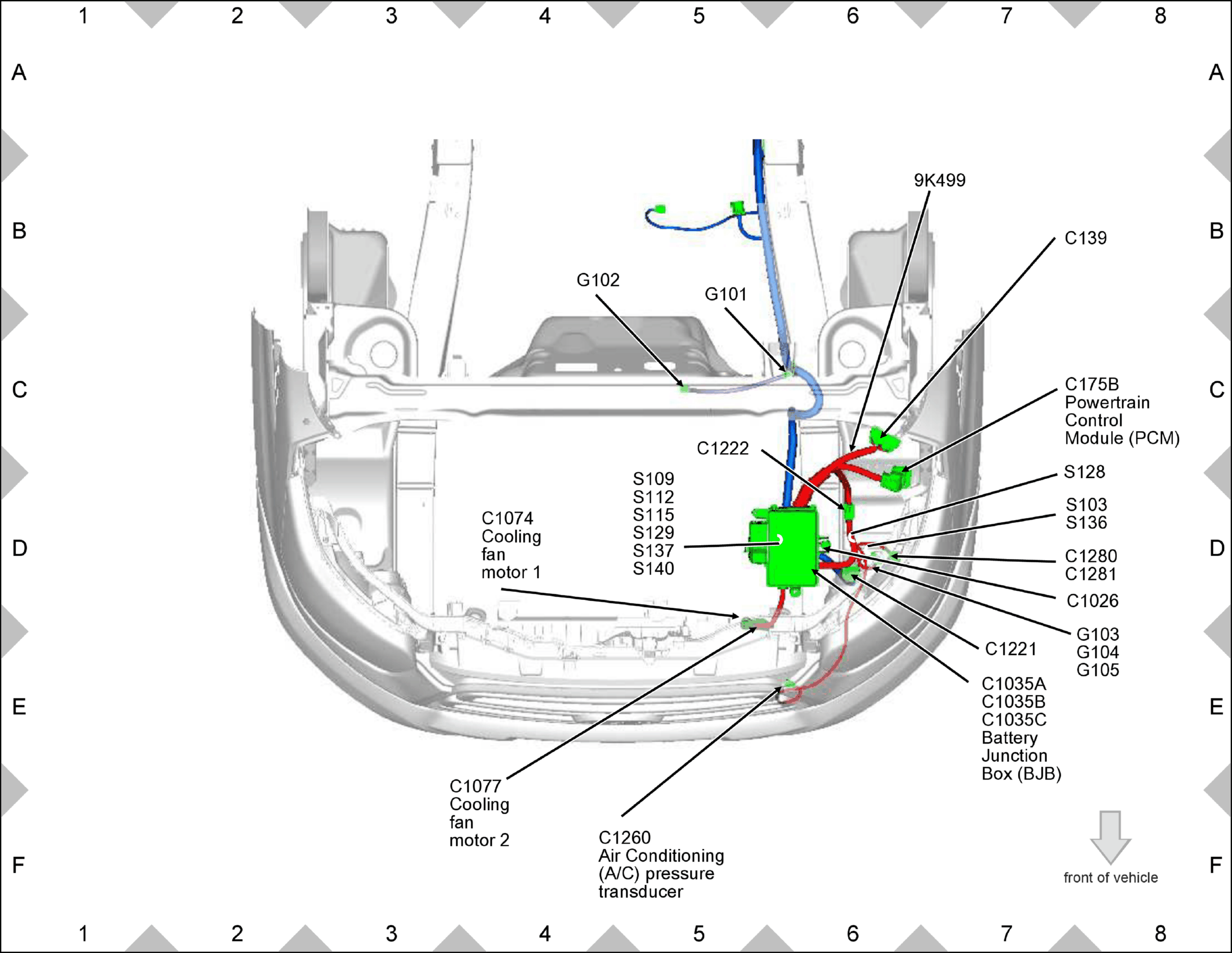

GFDW28823Courtesy of FORD MOTOR COMPANY

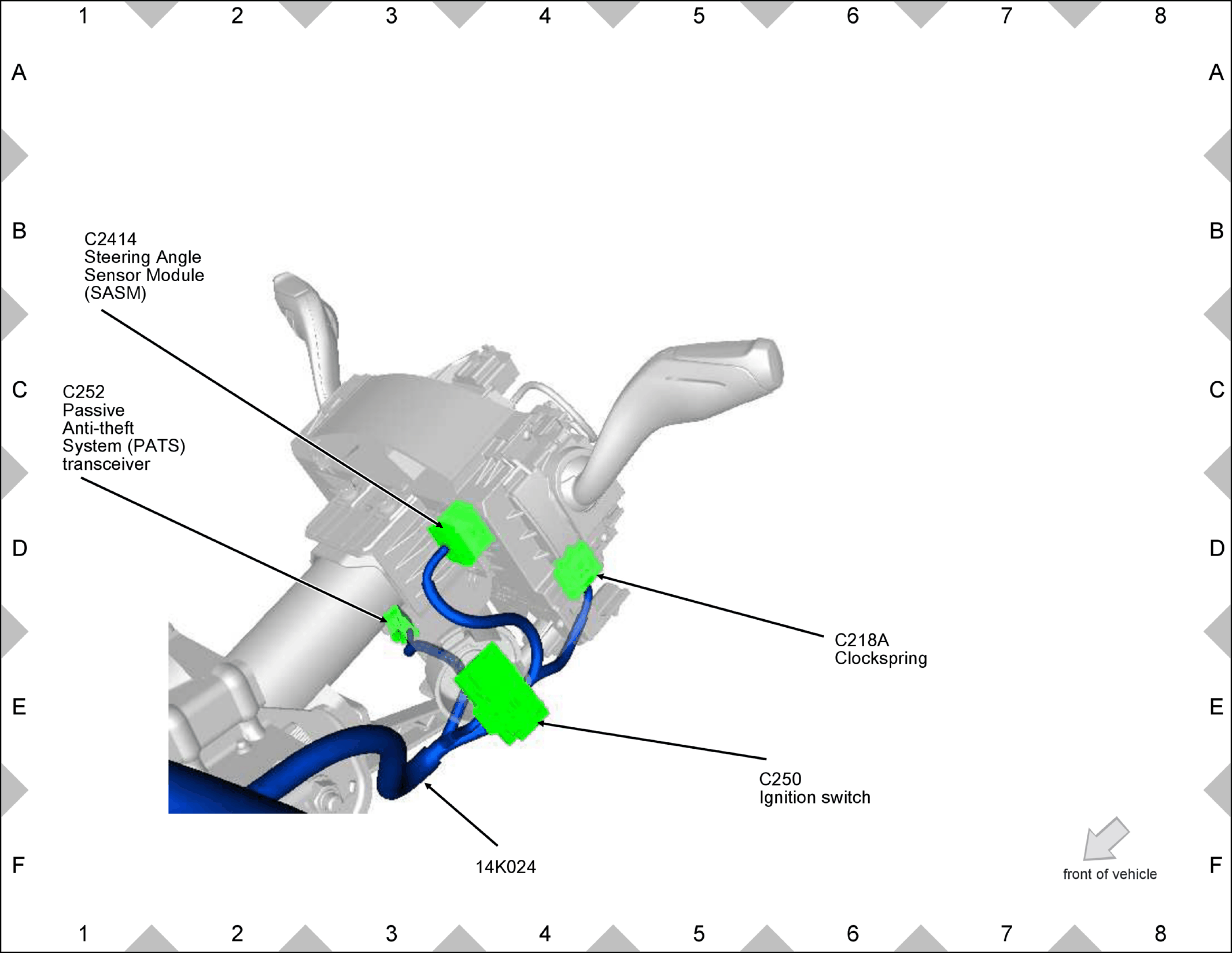

GFDW28824Courtesy of FORD MOTOR COMPANY

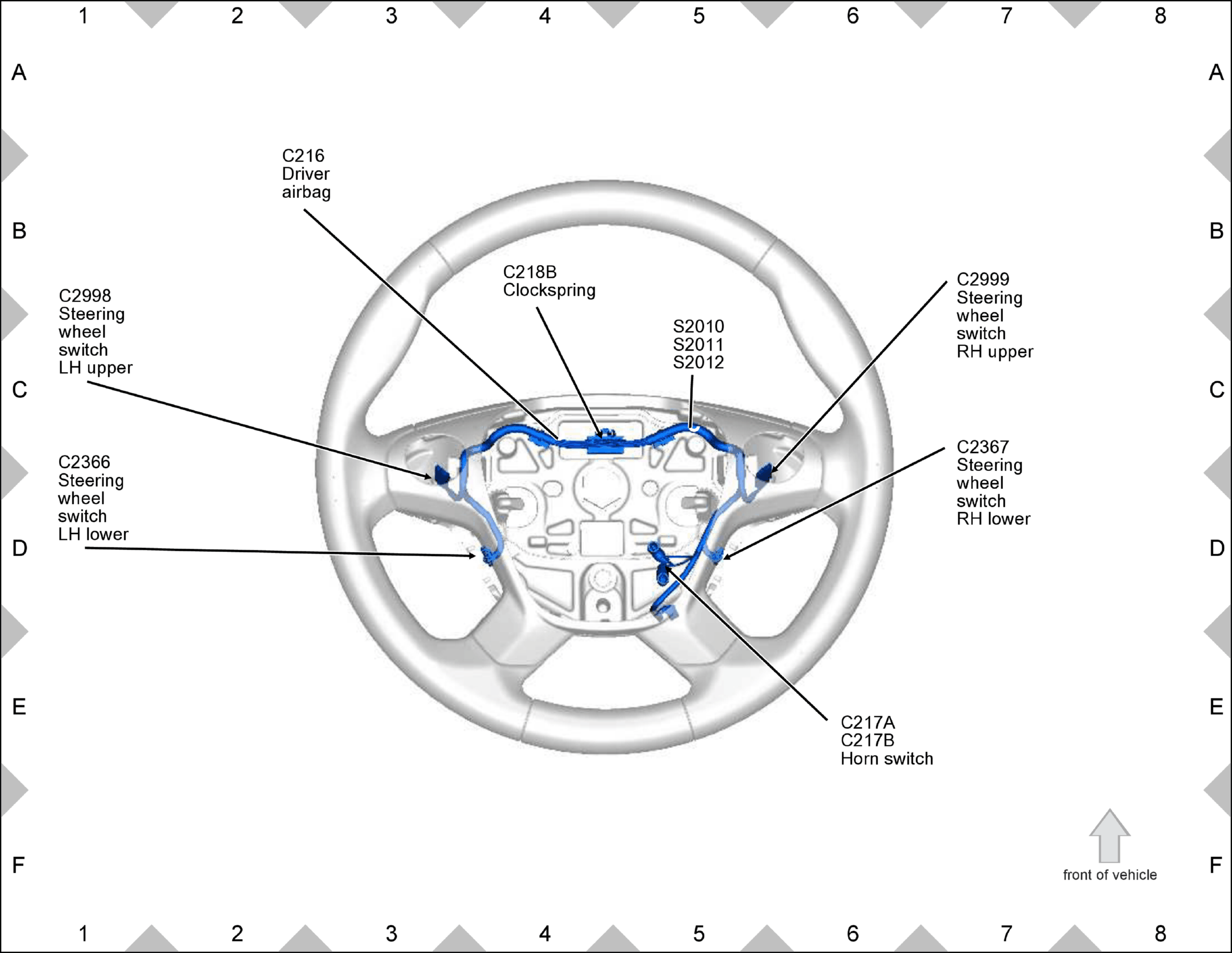

GFDW28825Courtesy of FORD MOTOR COMPANY

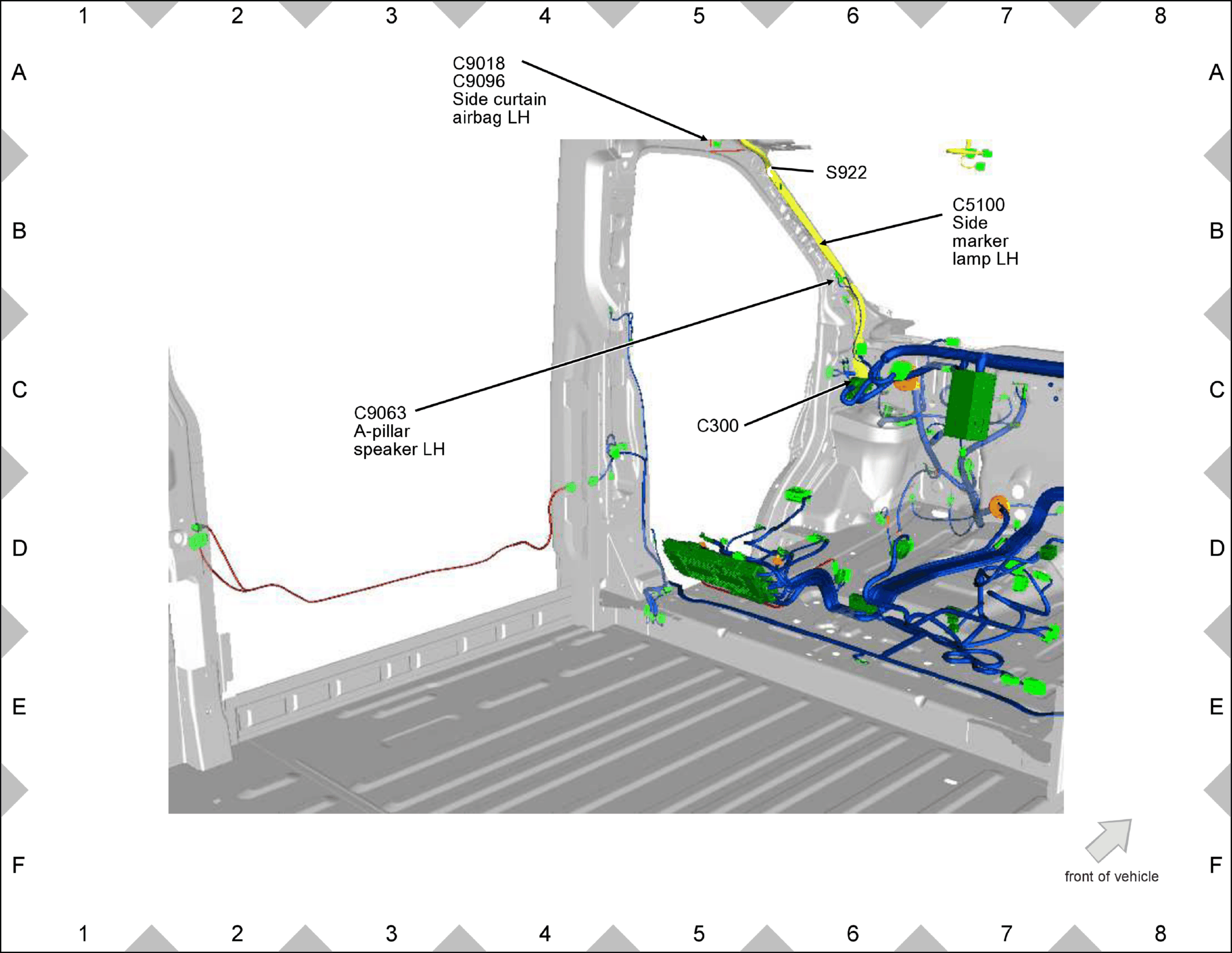

GFDW28826Courtesy of FORD MOTOR COMPANY

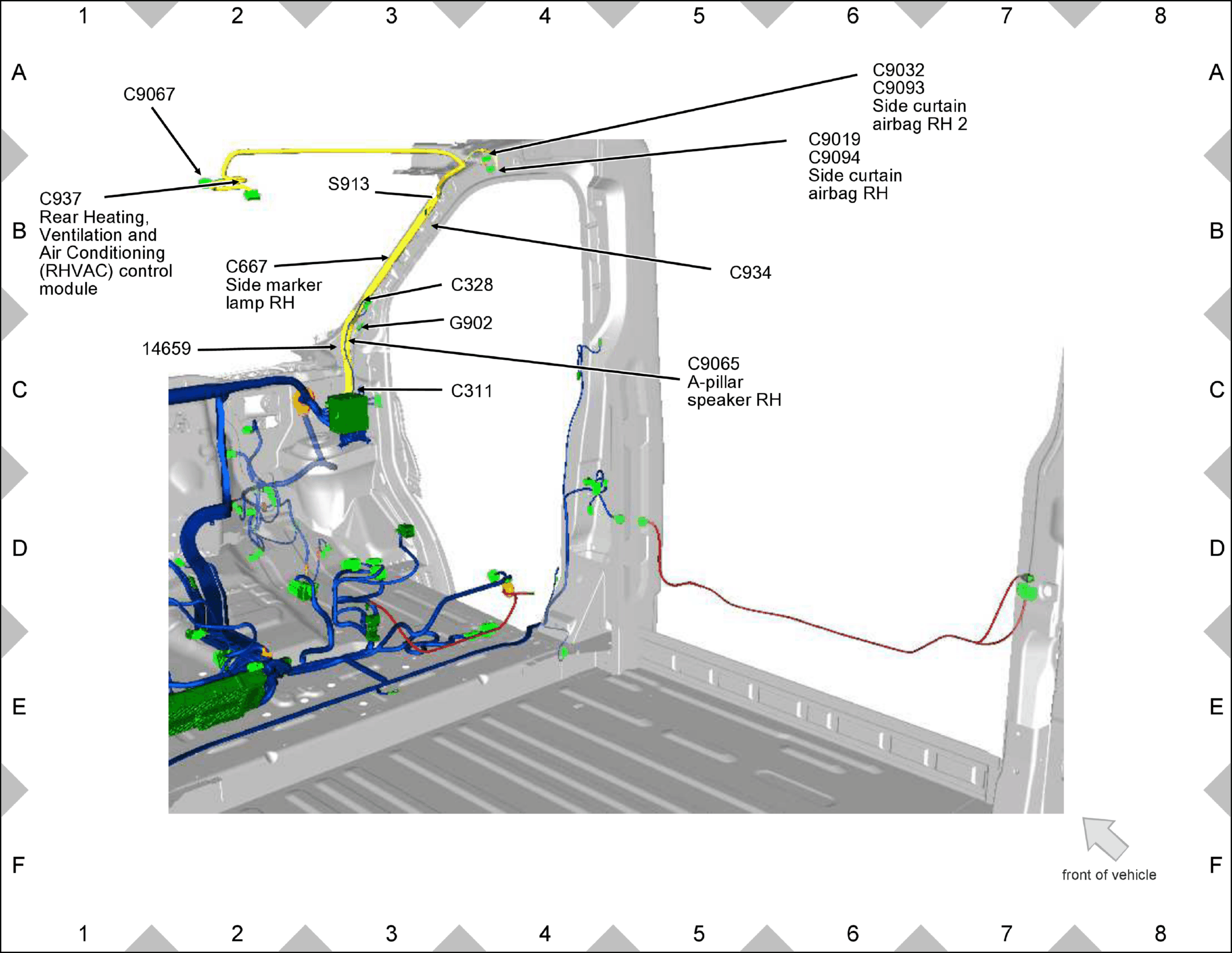

GFDW28827Courtesy of FORD MOTOR COMPANY

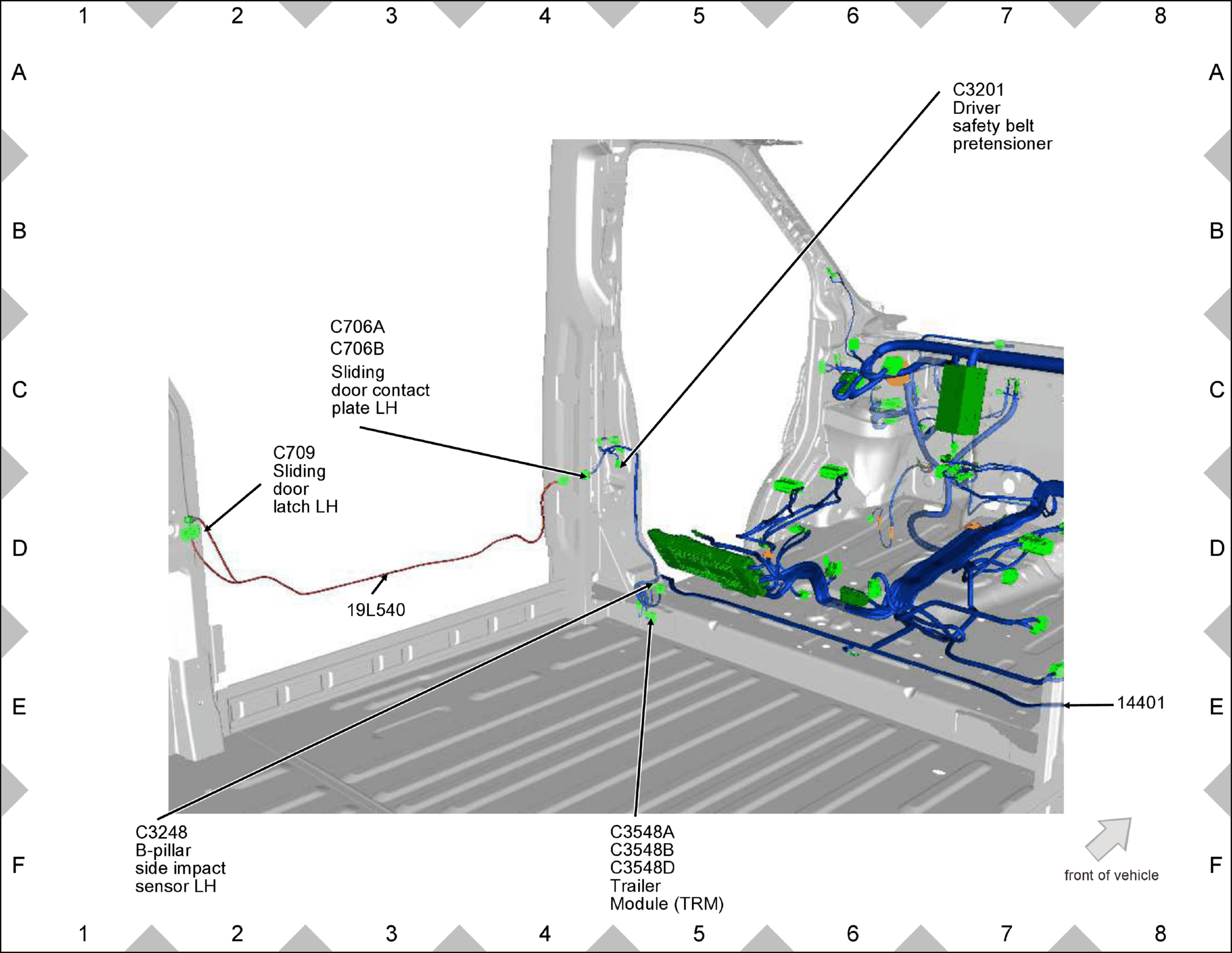

GFDW28828Courtesy of FORD MOTOR COMPANY

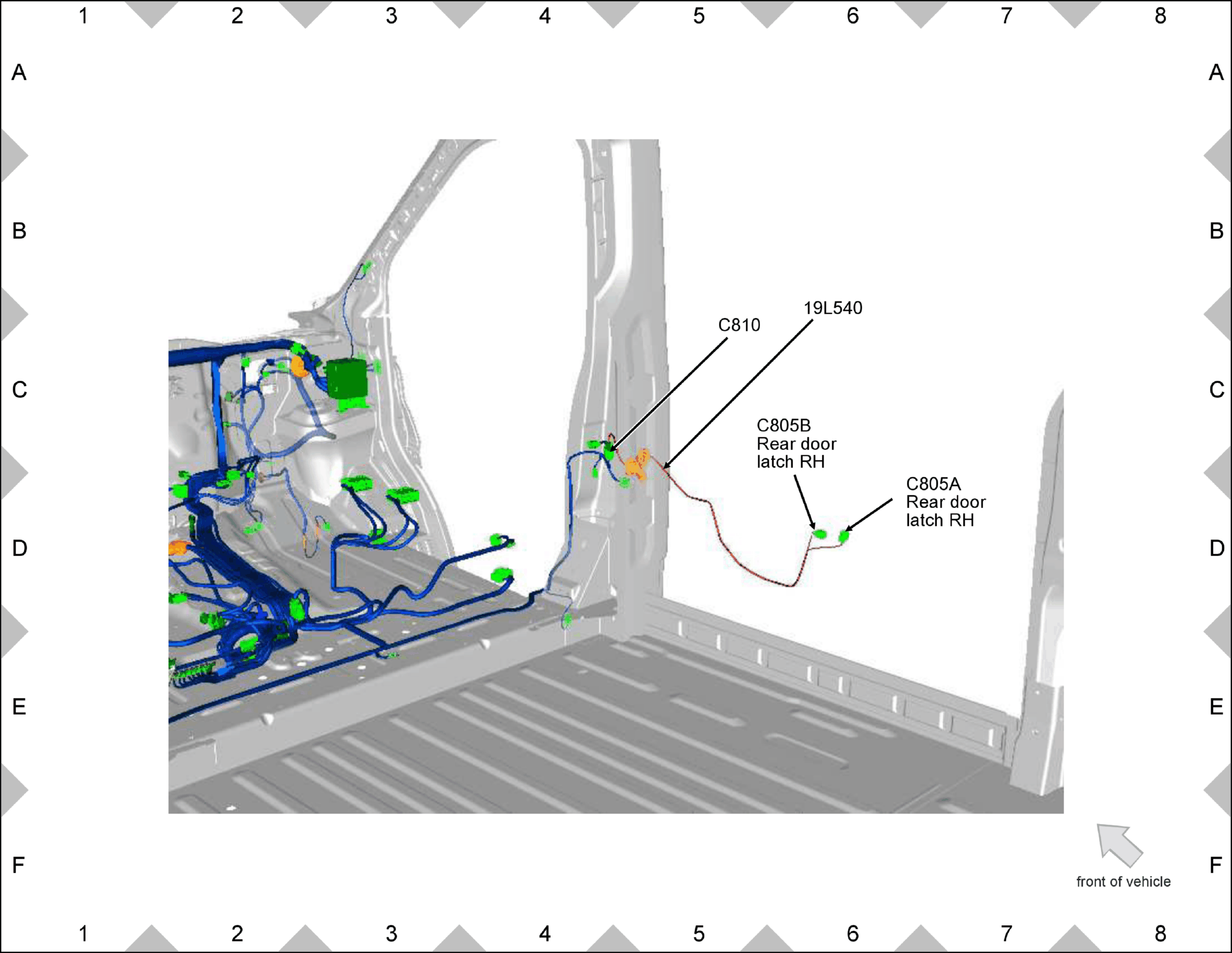

GFDW28829Courtesy of FORD MOTOR COMPANY

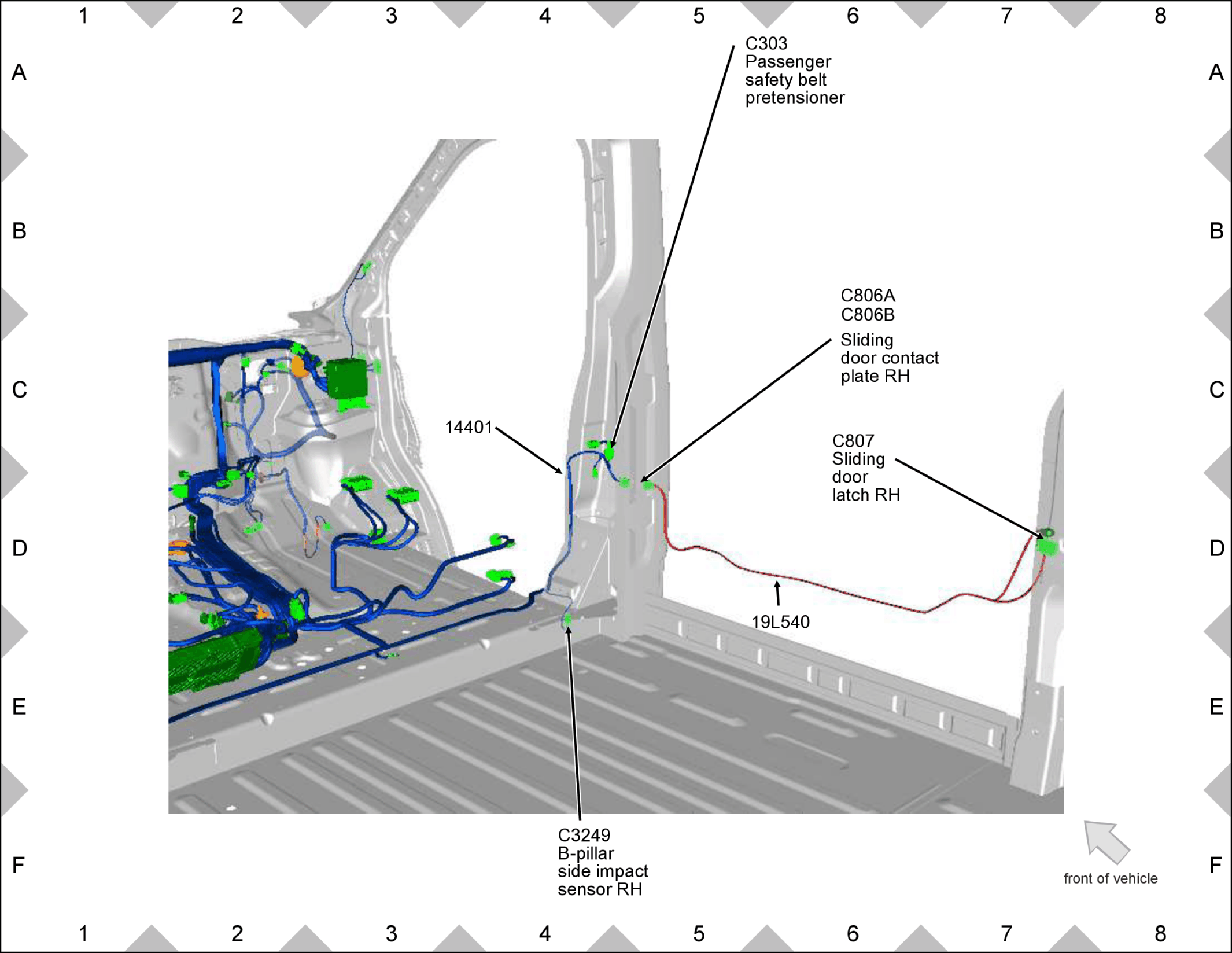

GFDW28830Courtesy of FORD MOTOR COMPANY

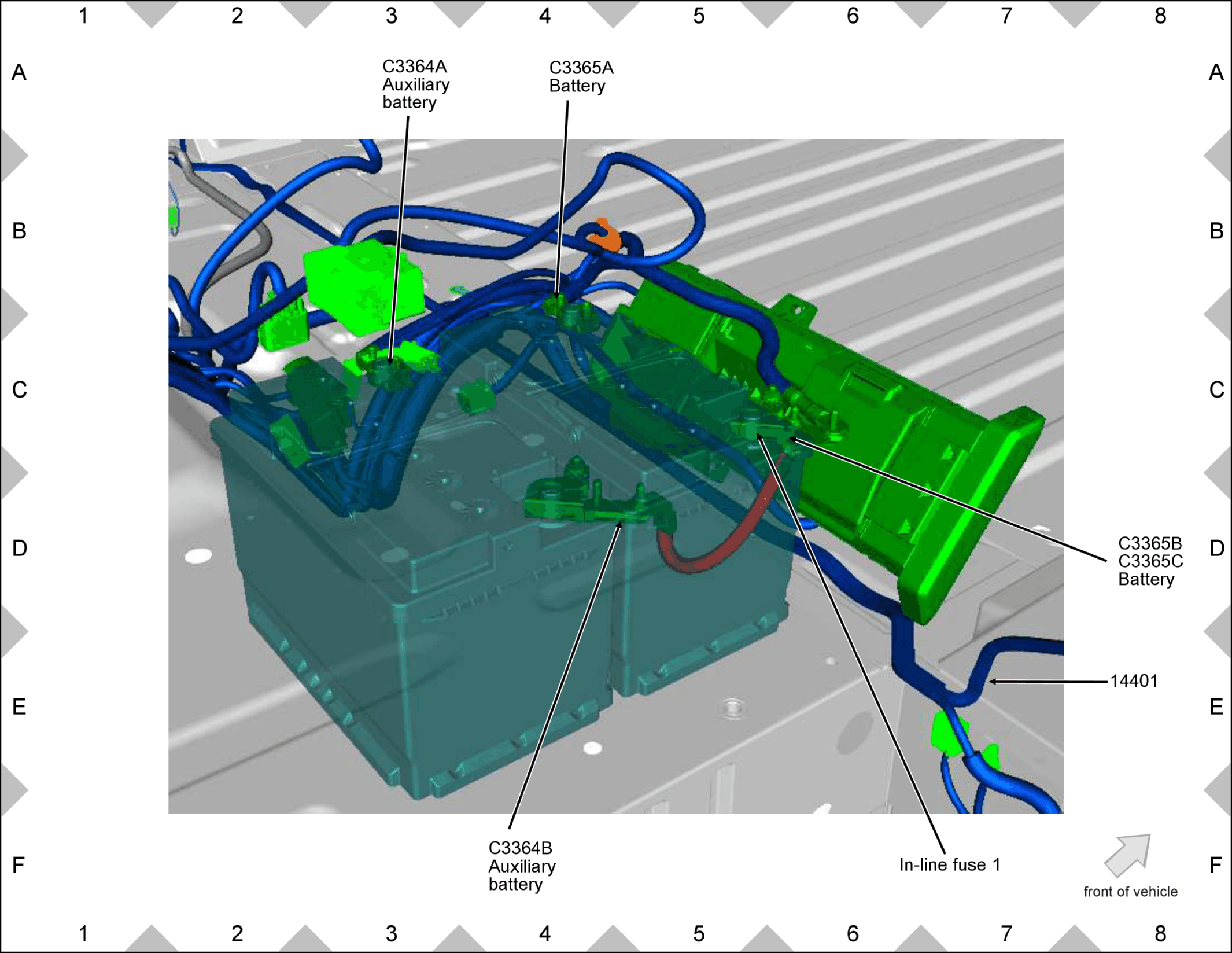

GFDW28831Courtesy of FORD MOTOR COMPANY

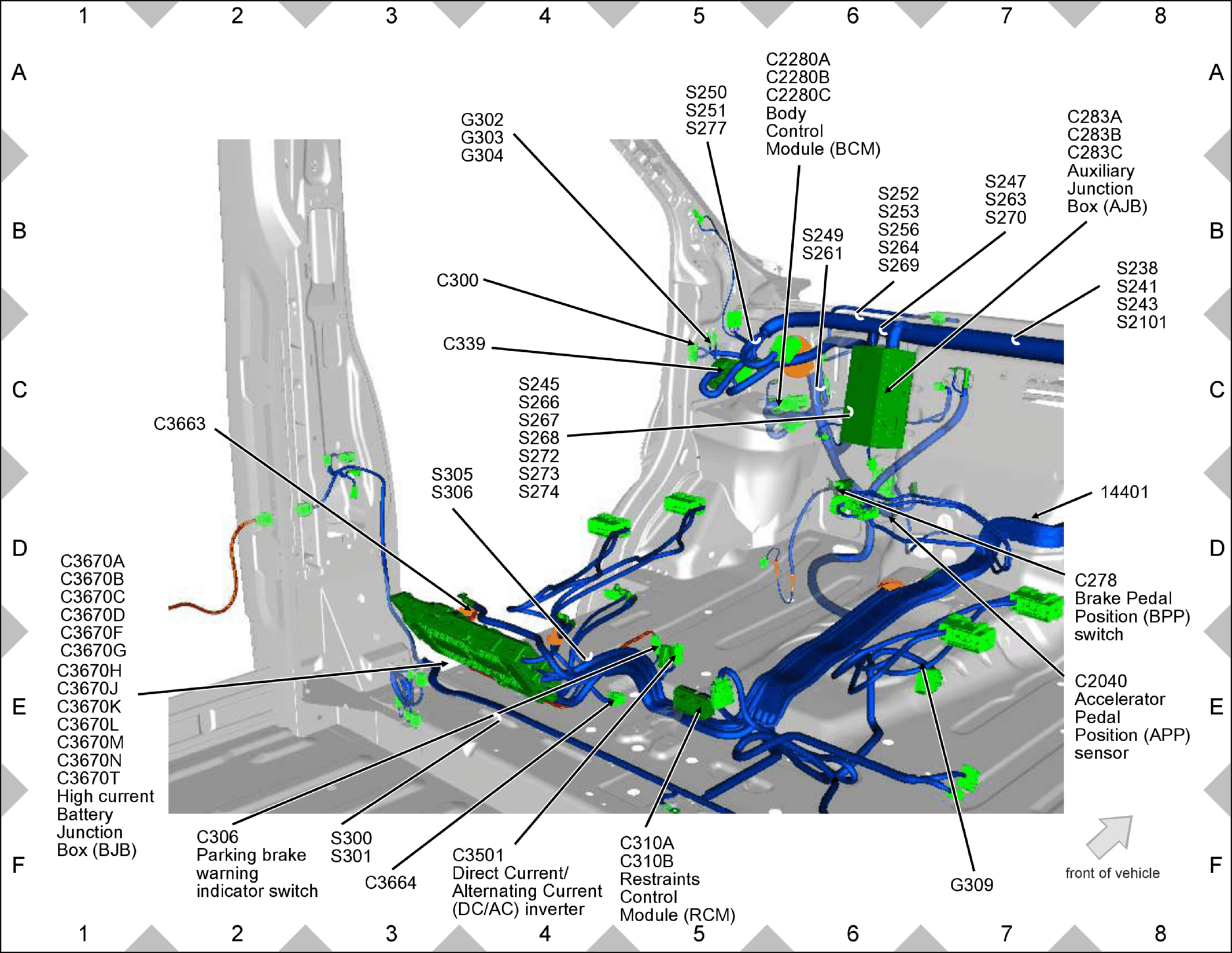

GFDW28832Courtesy of FORD MOTOR COMPANY

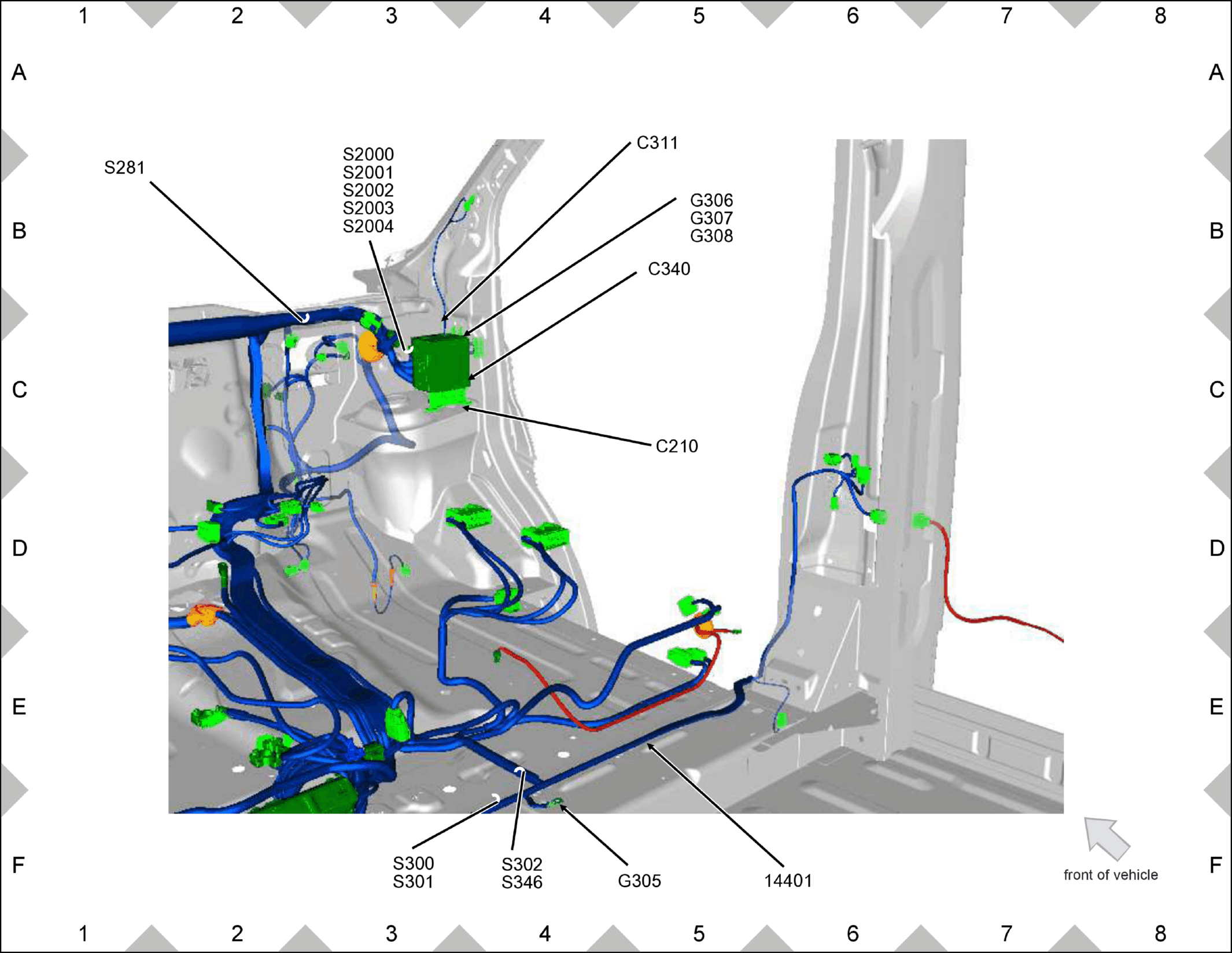

GFDW28833Courtesy of FORD MOTOR COMPANY

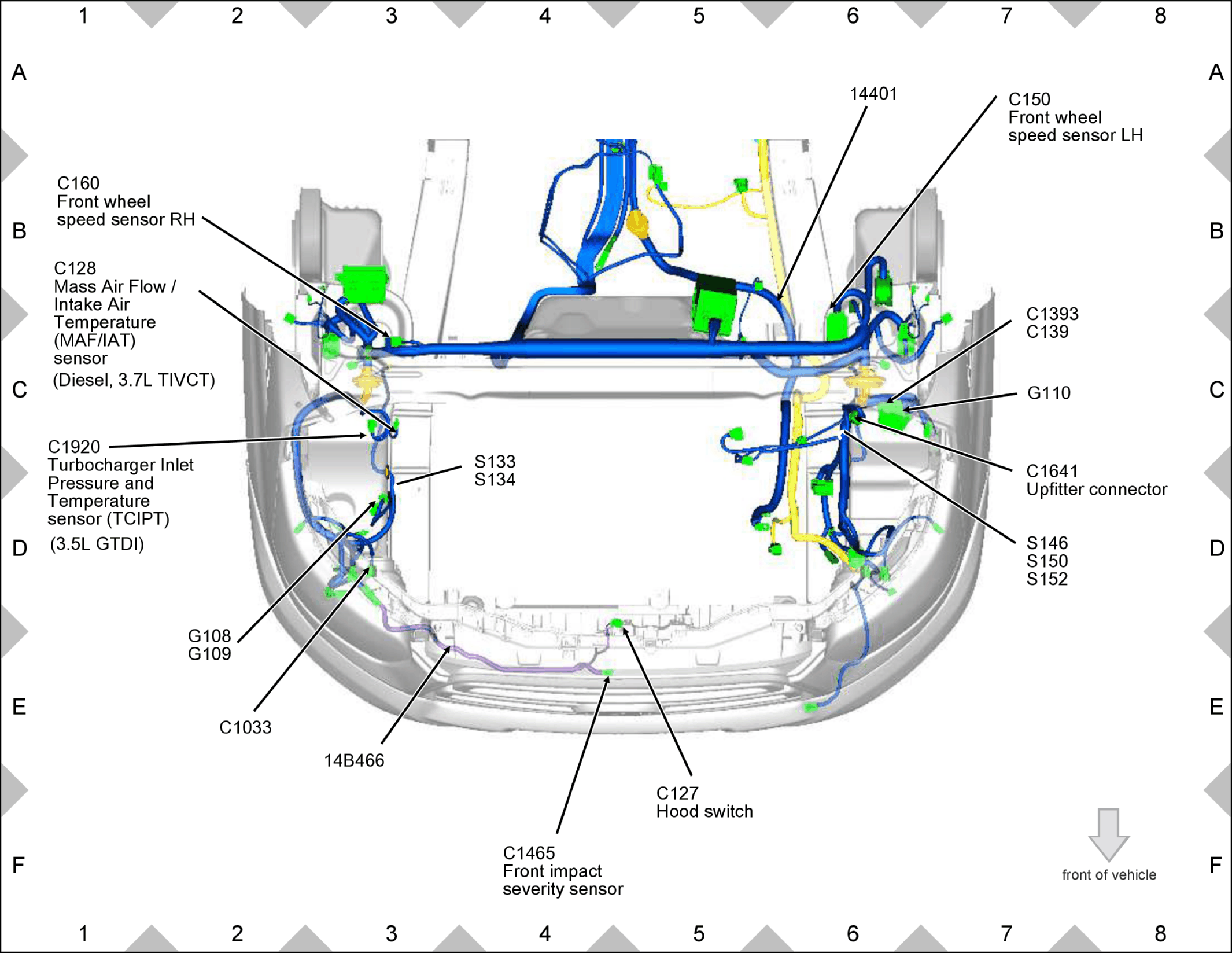

GFDW28834Courtesy of FORD MOTOR COMPANY

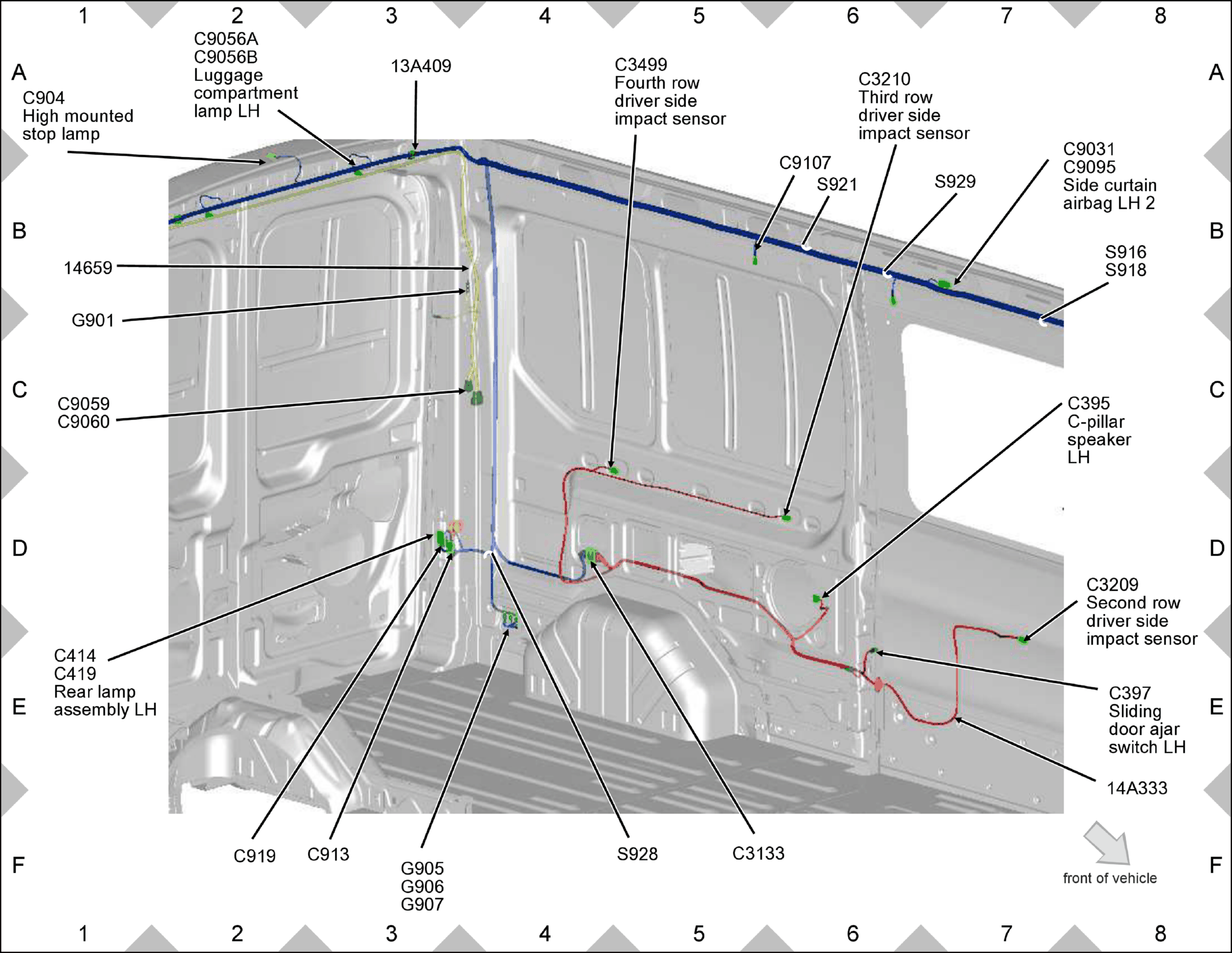

GFDW28835Courtesy of FORD MOTOR COMPANY

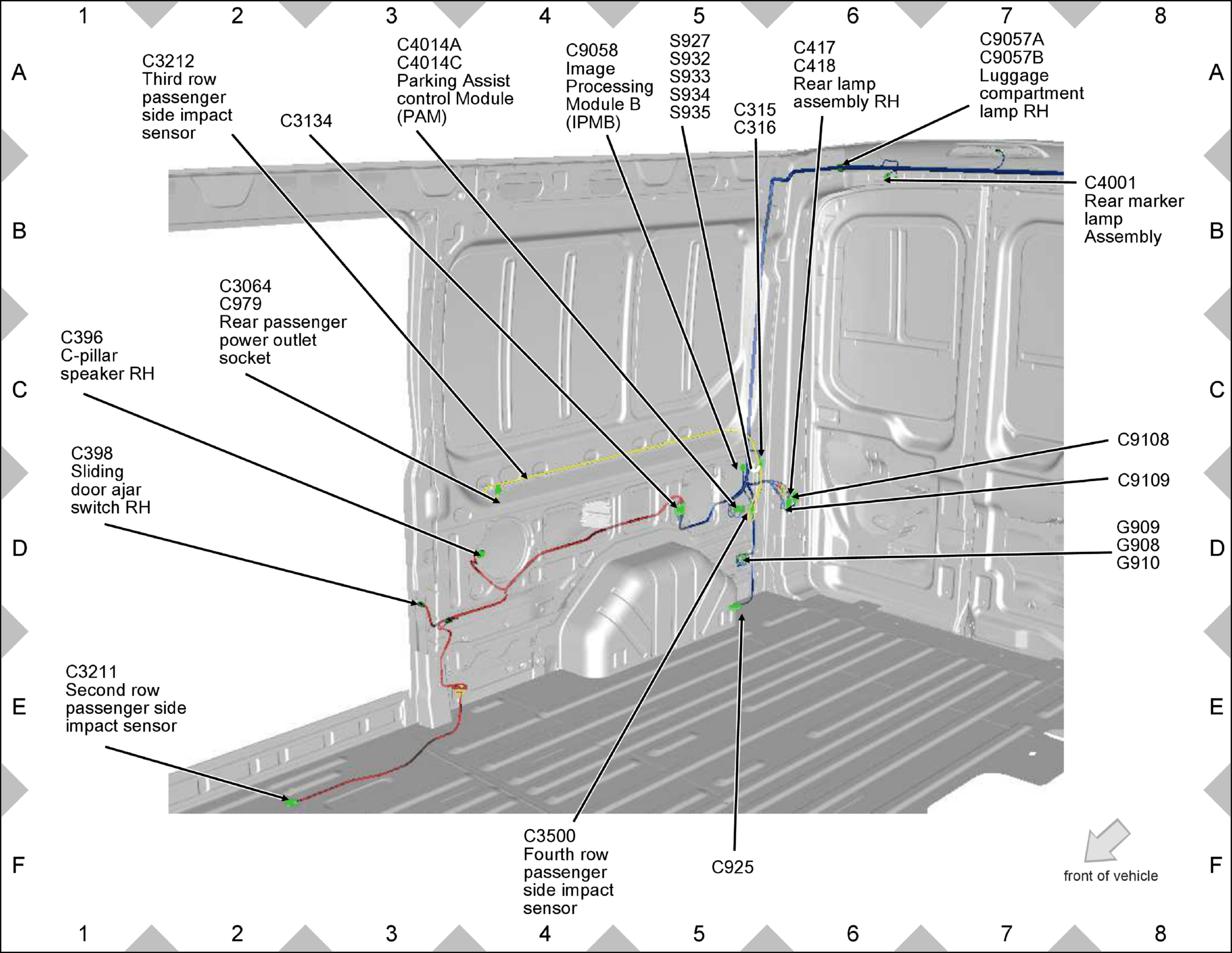

GFDW28836Courtesy of FORD MOTOR COMPANY

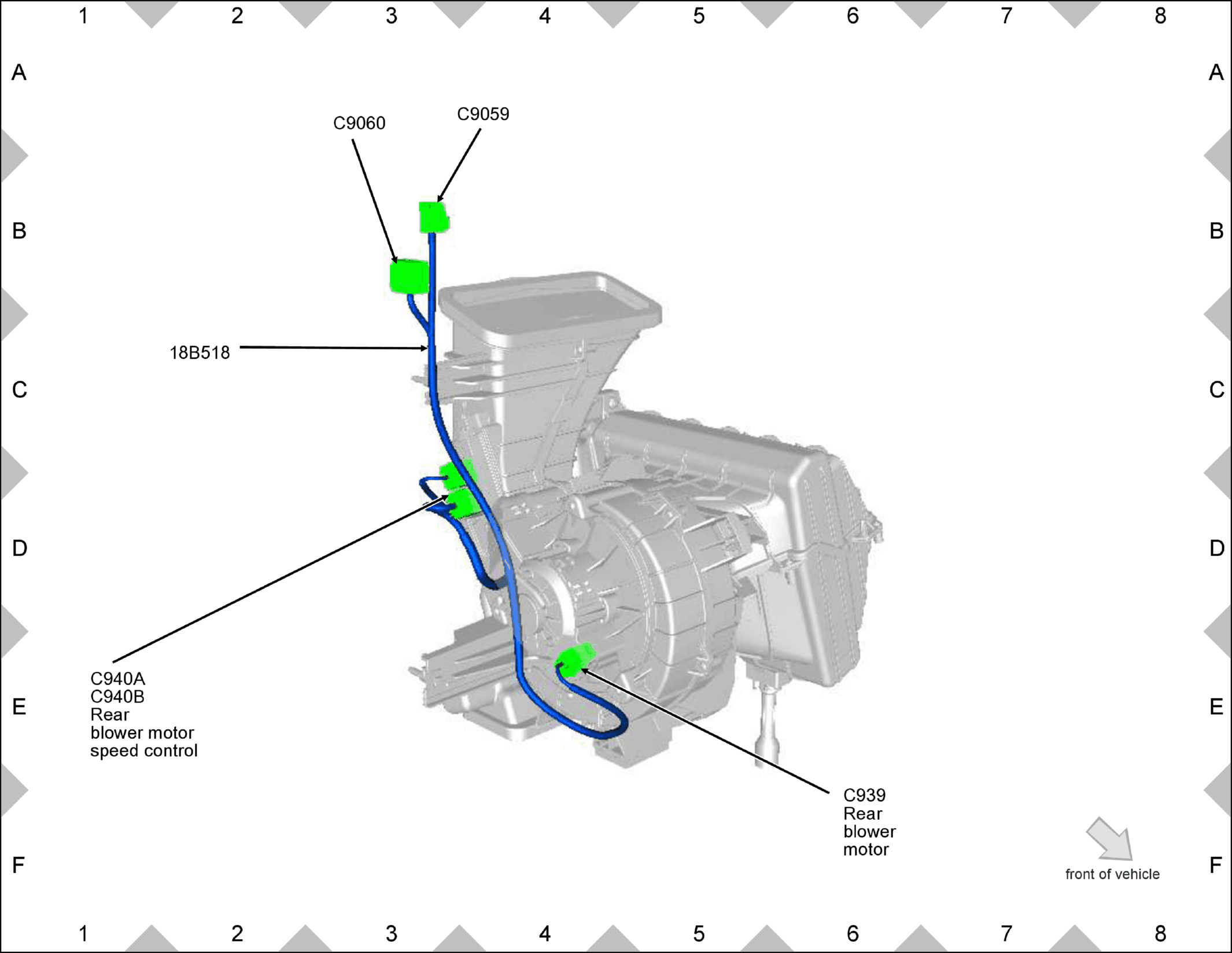

GFDW28837Courtesy of FORD MOTOR COMPANY

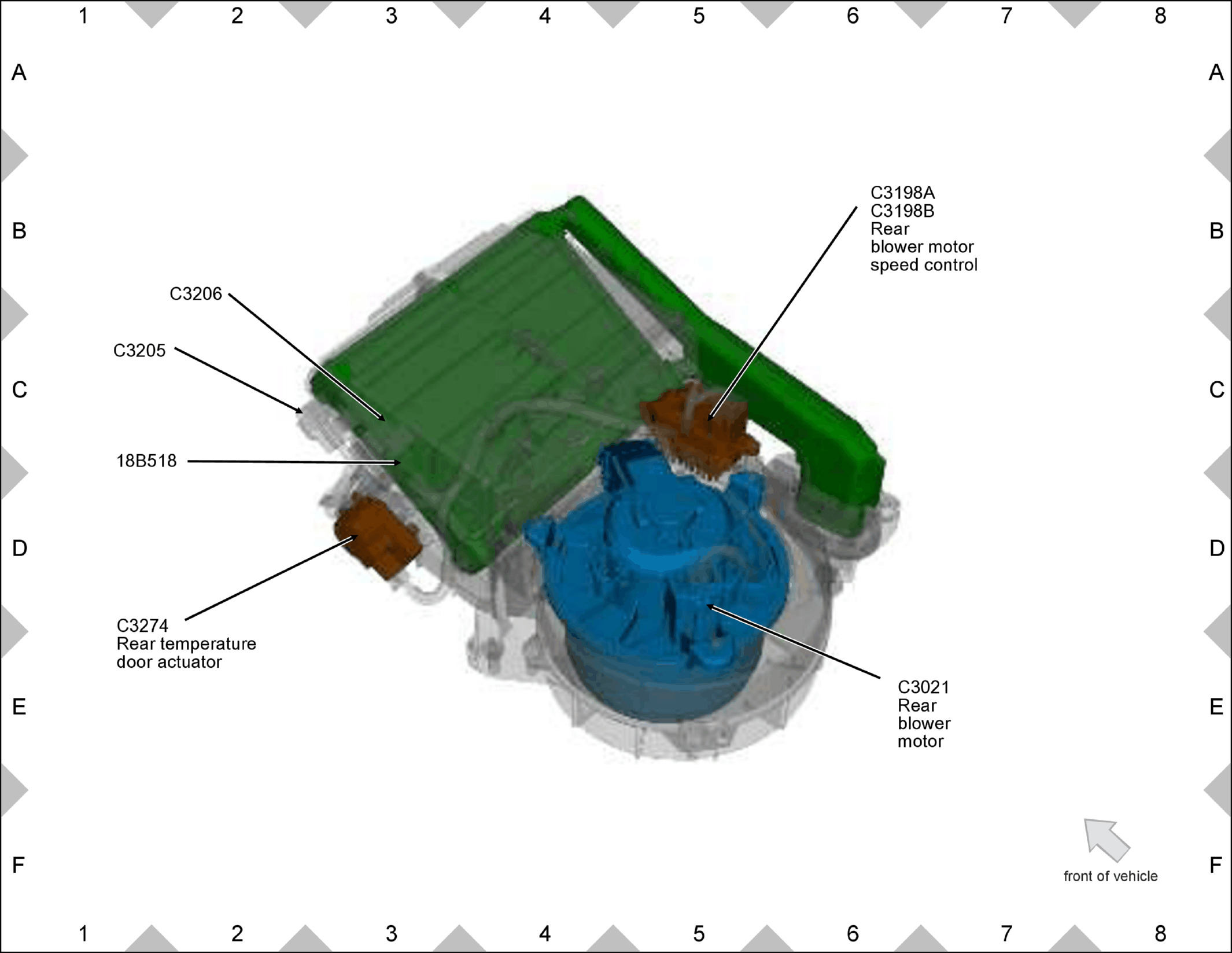

GFDW28838Courtesy of FORD MOTOR COMPANY

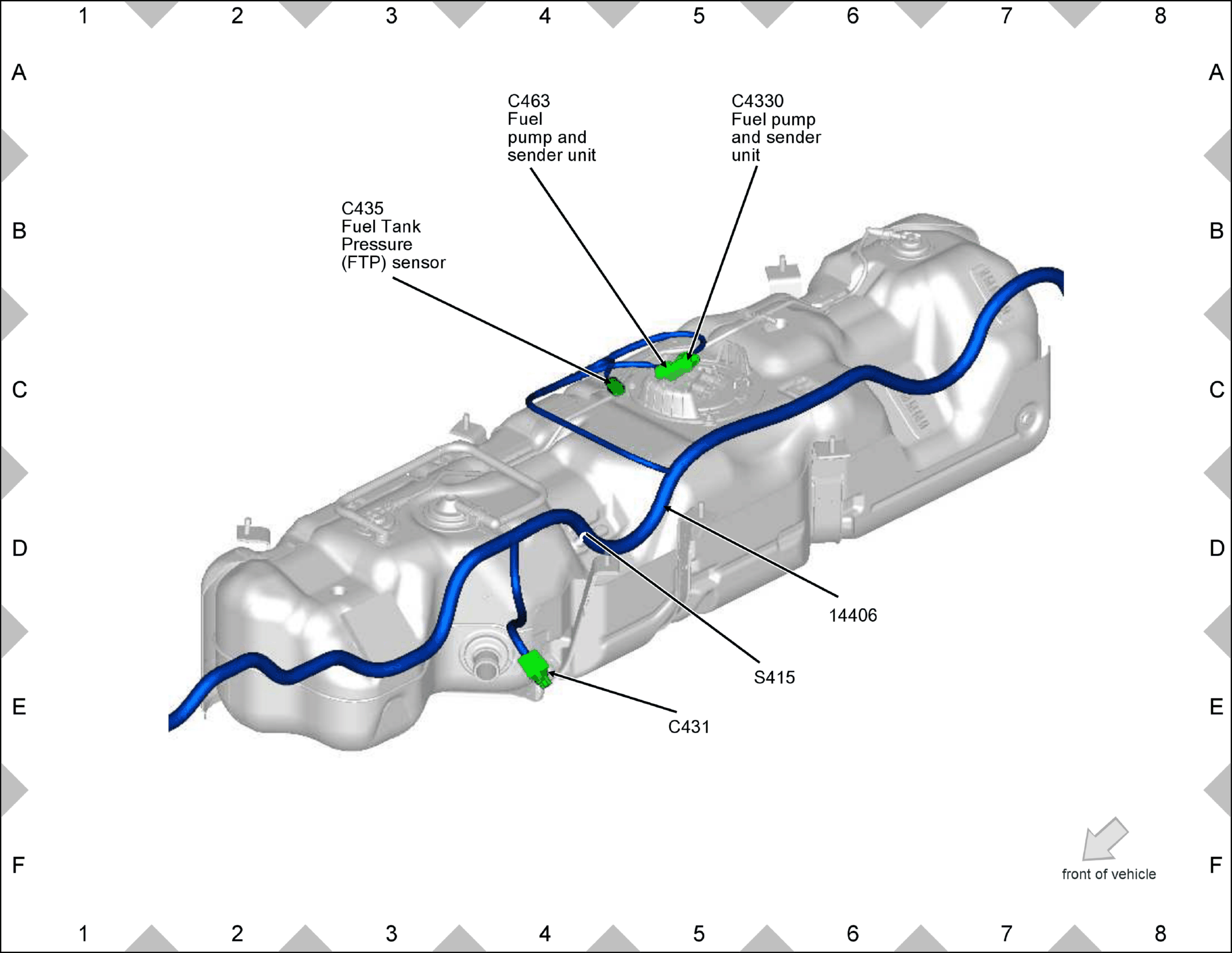

GFDW28839Courtesy of FORD MOTOR COMPANY

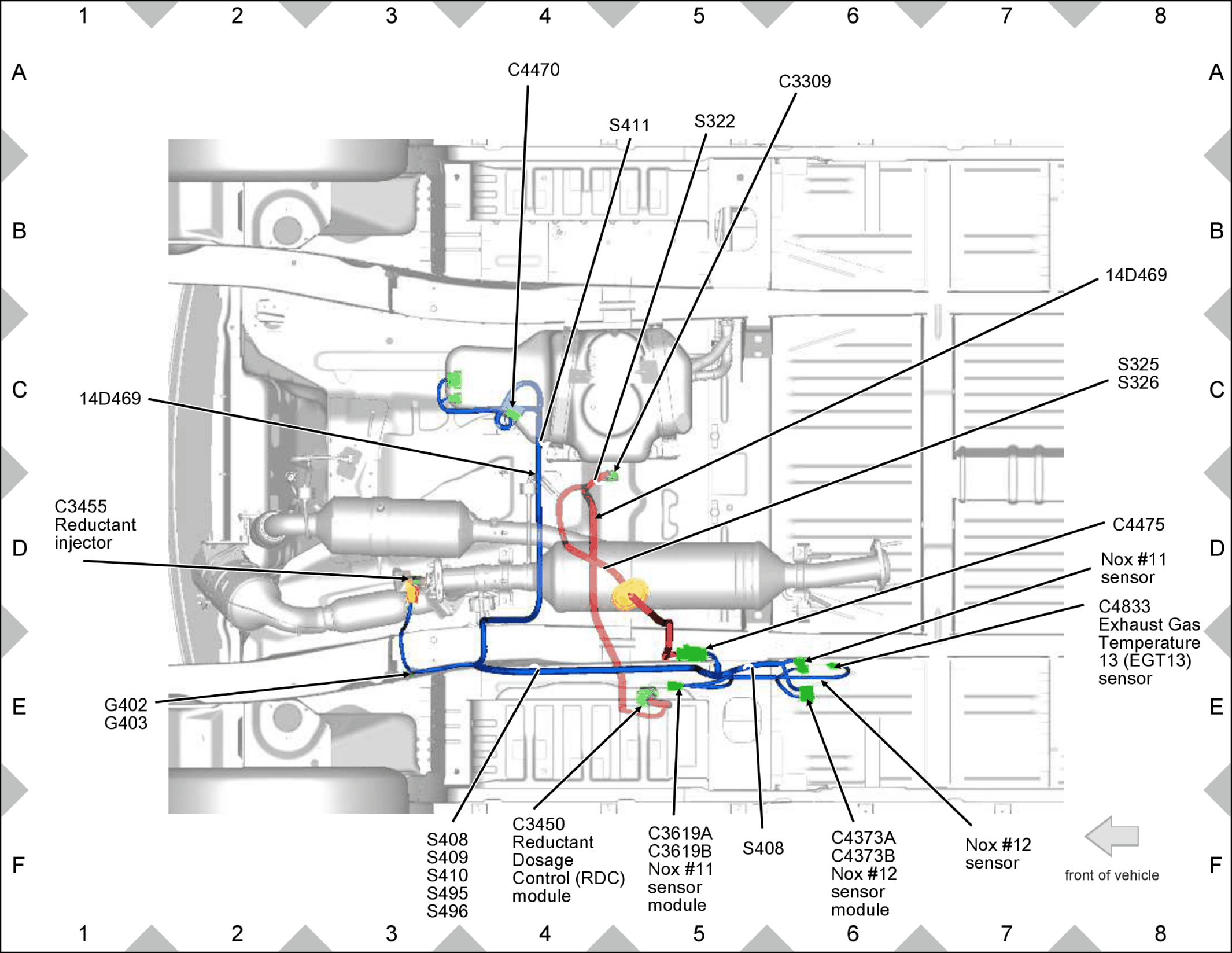

GFDW28840Courtesy of FORD MOTOR COMPANY

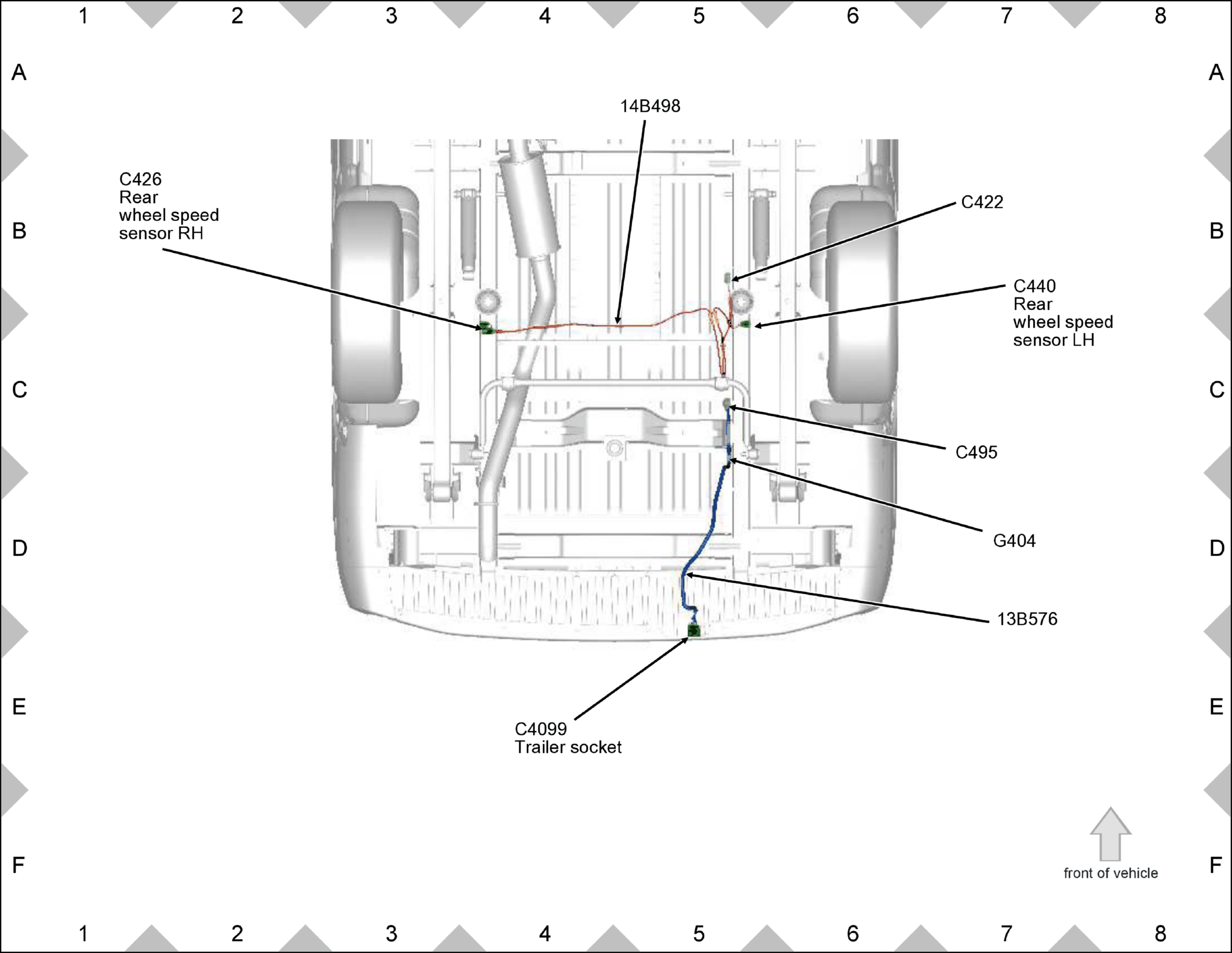

GFDW28841Courtesy of FORD MOTOR COMPANY

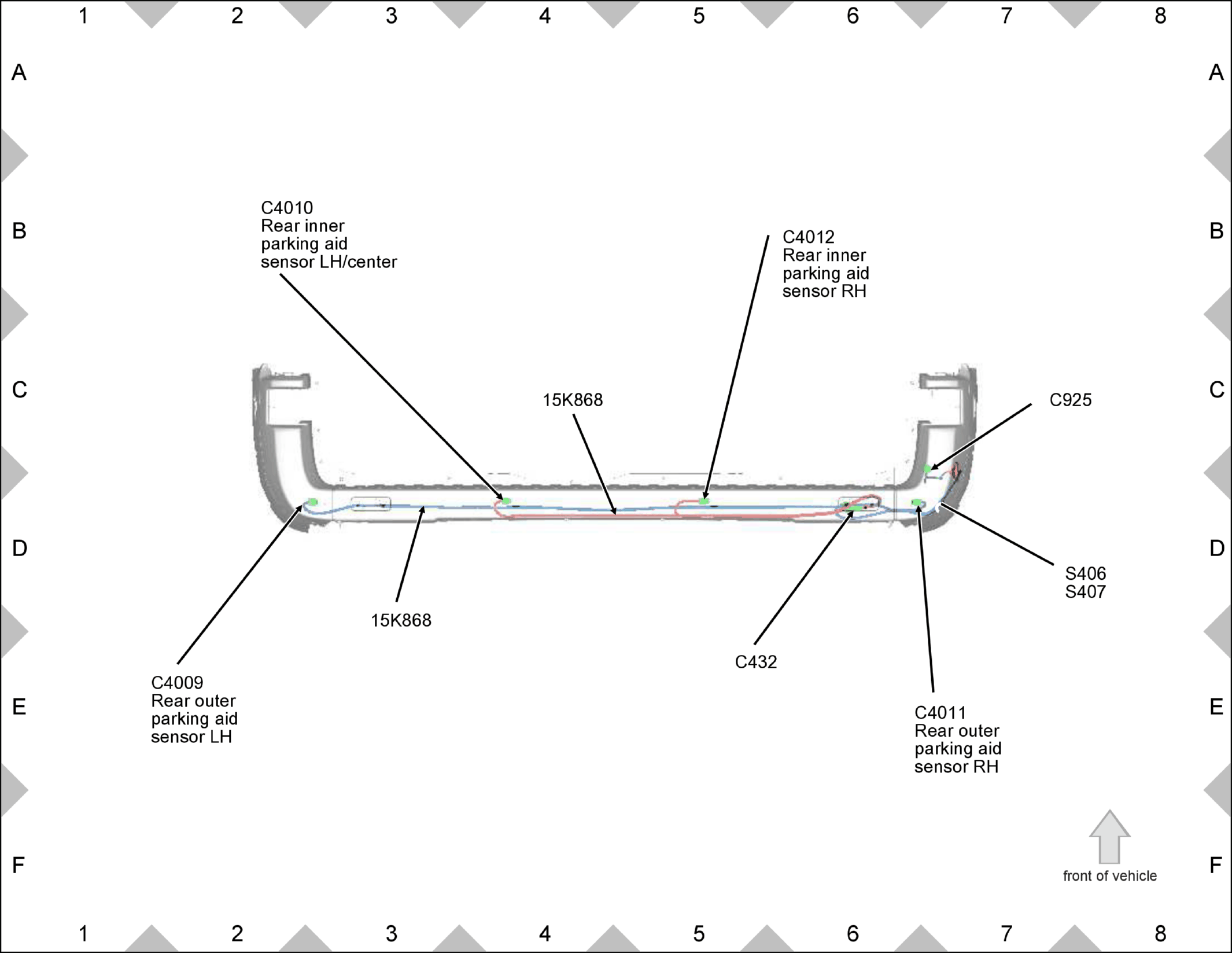

GFDW28842Courtesy of FORD MOTOR COMPANY

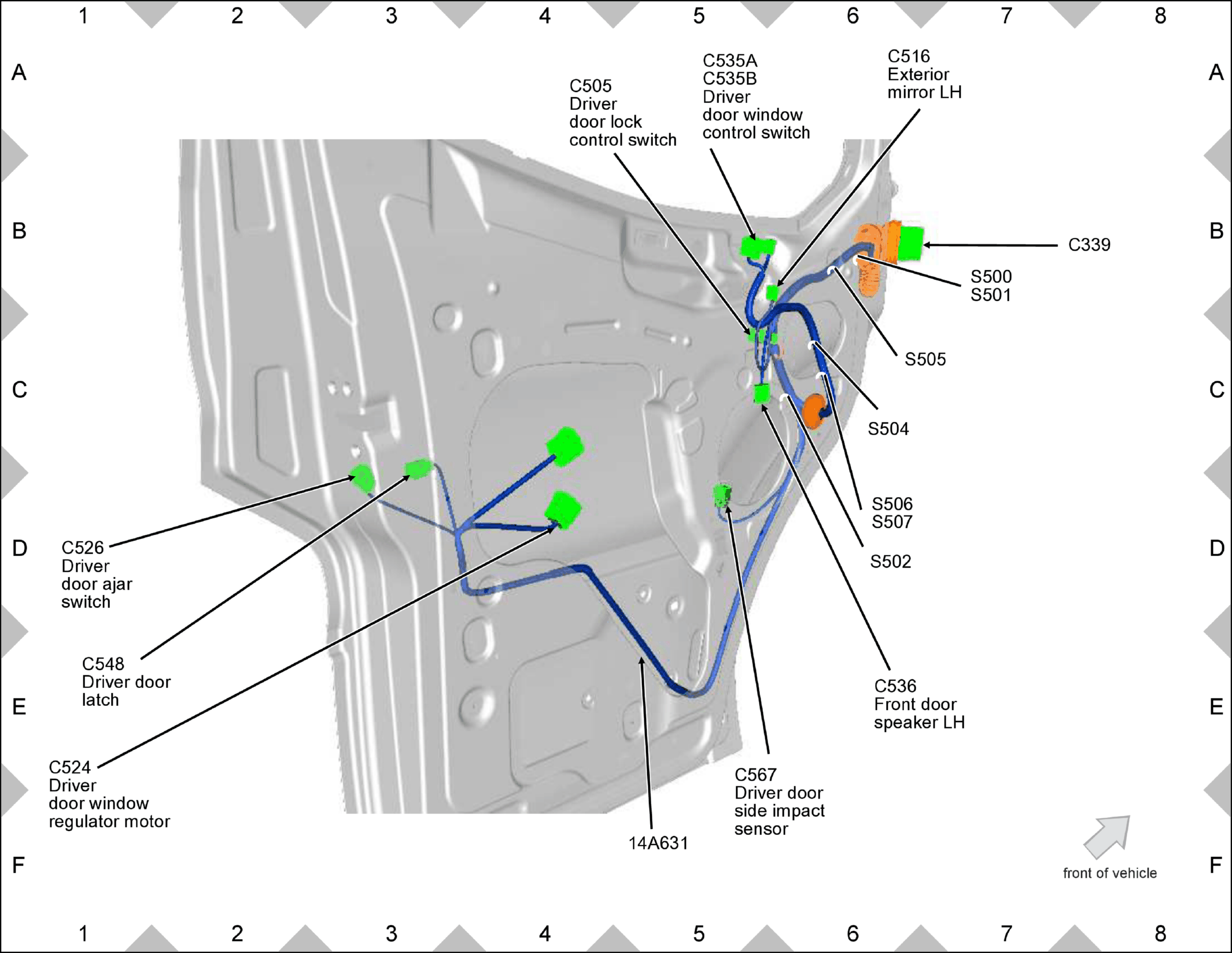

GFDW28843Courtesy of FORD MOTOR COMPANY

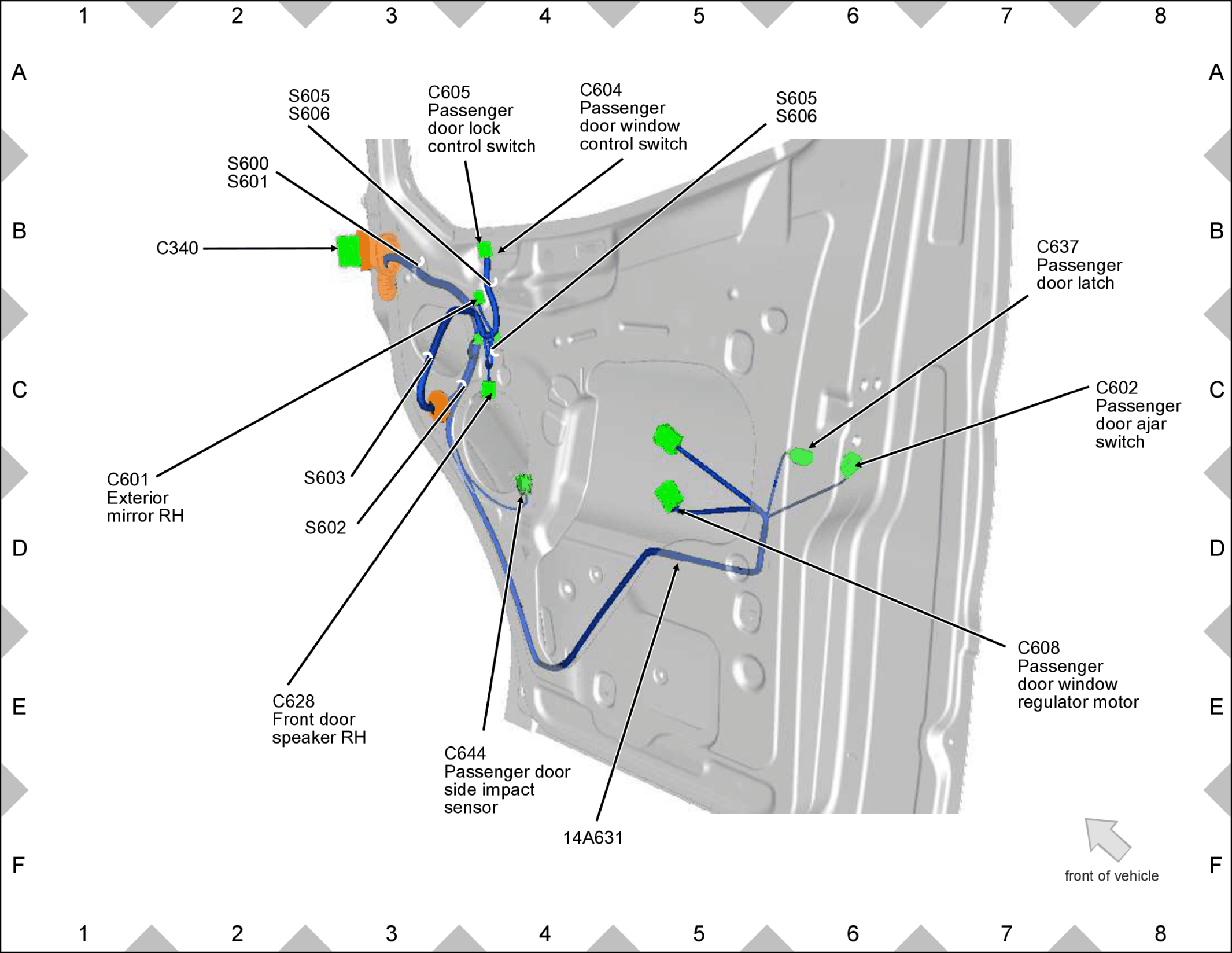

GFDW28844Courtesy of FORD MOTOR COMPANY

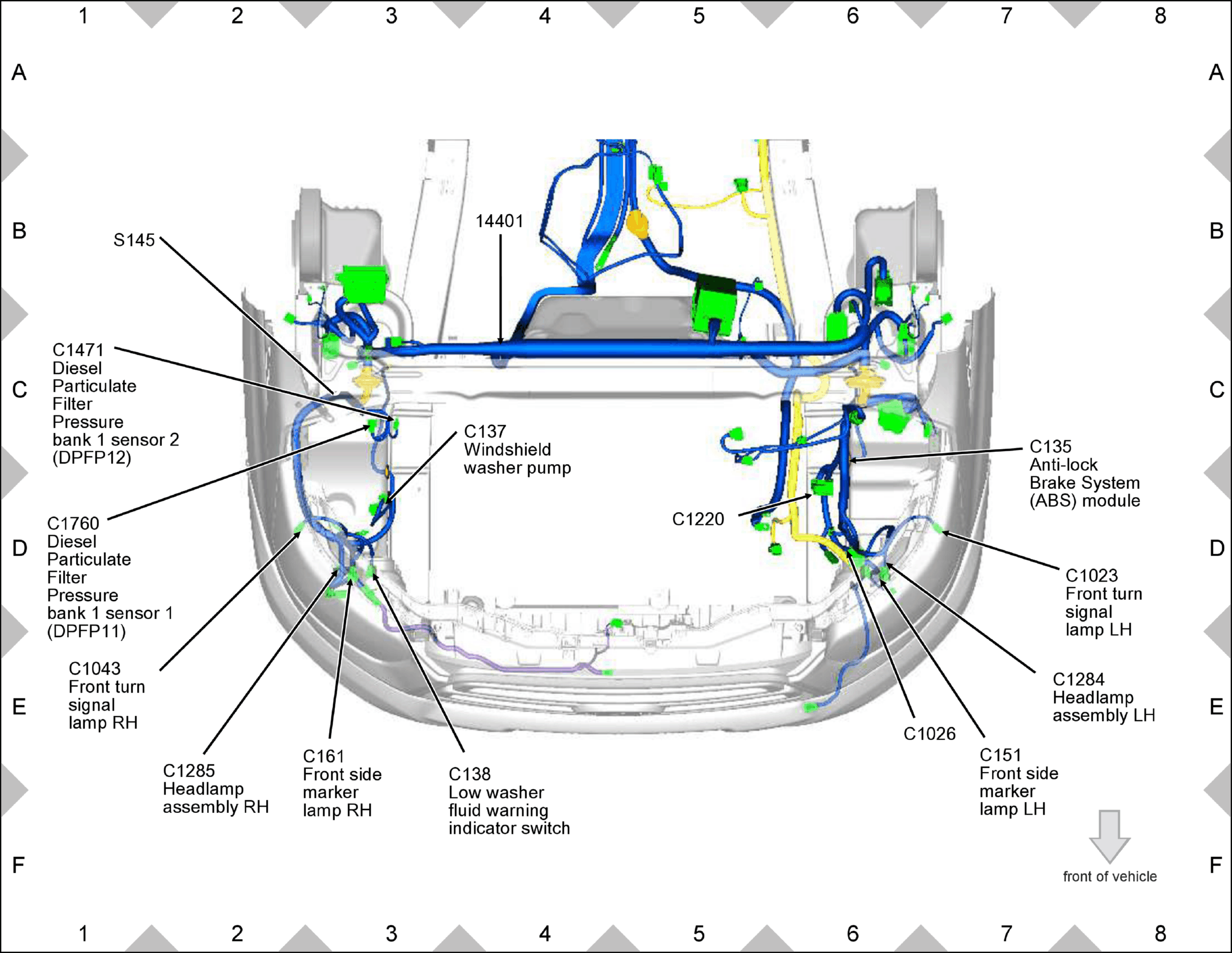

GFDW28845Courtesy of FORD MOTOR COMPANY

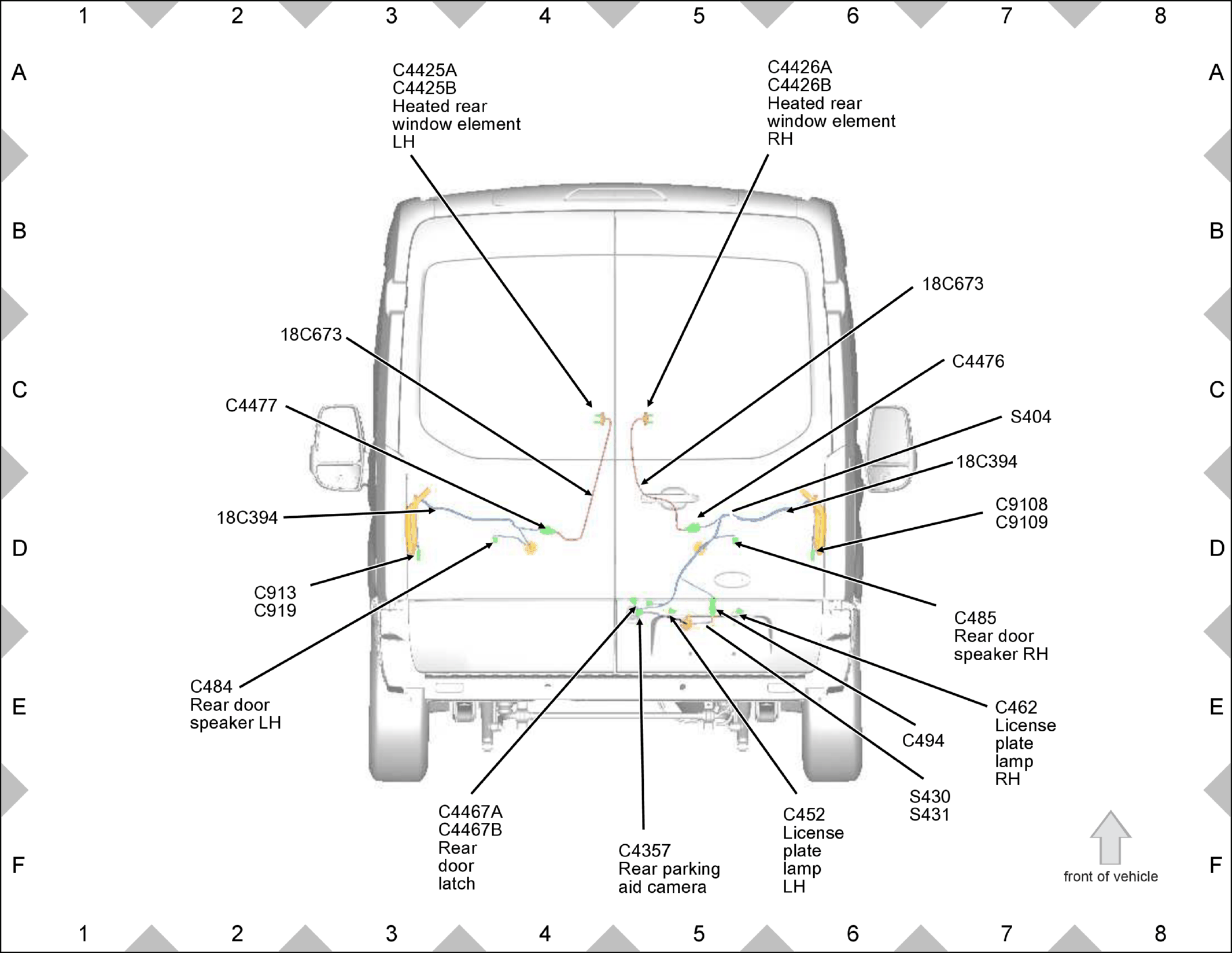

GFDW28846Courtesy of FORD MOTOR COMPANY

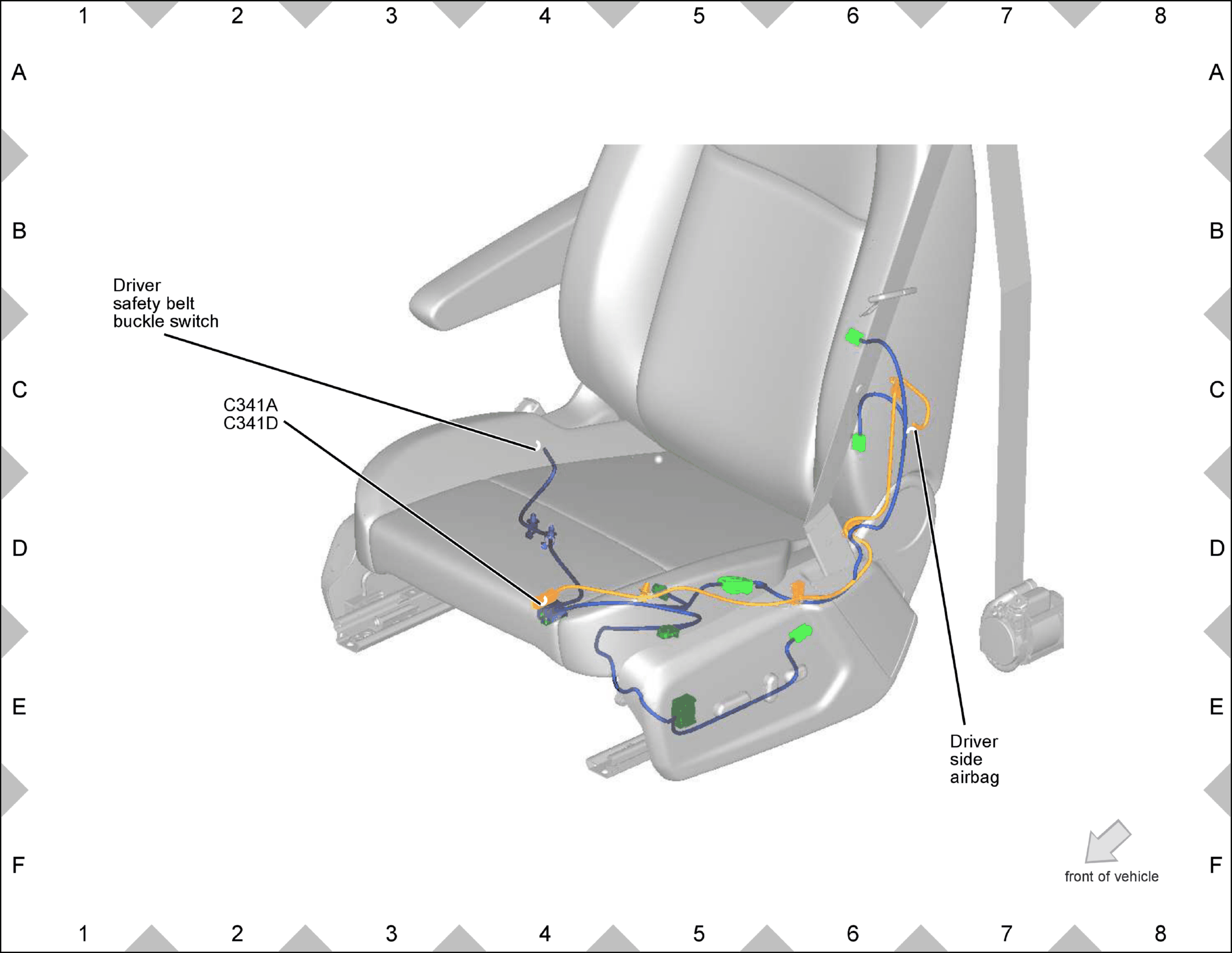

GFDW28847Courtesy of FORD MOTOR COMPANY

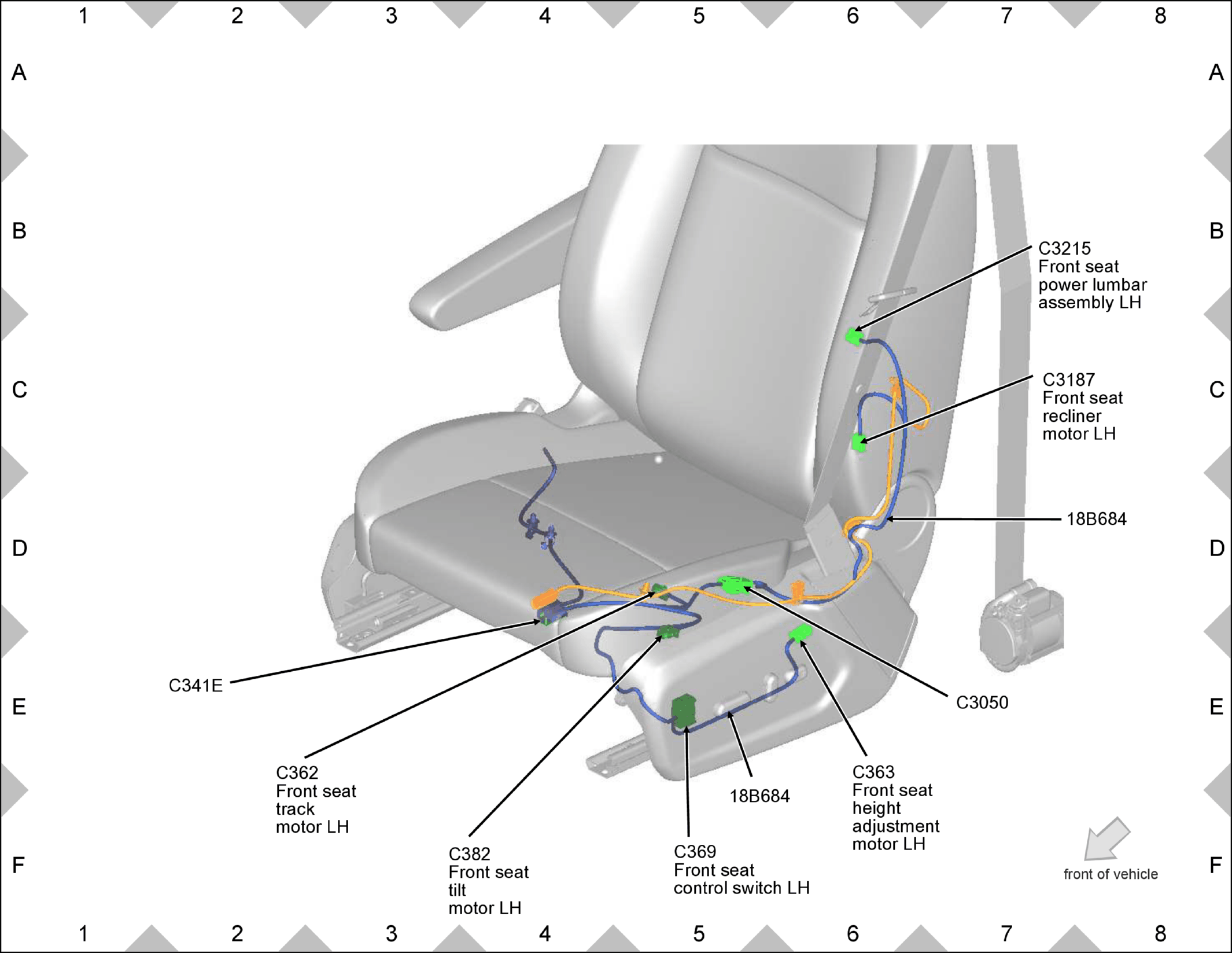

GFDW28848Courtesy of FORD MOTOR COMPANY

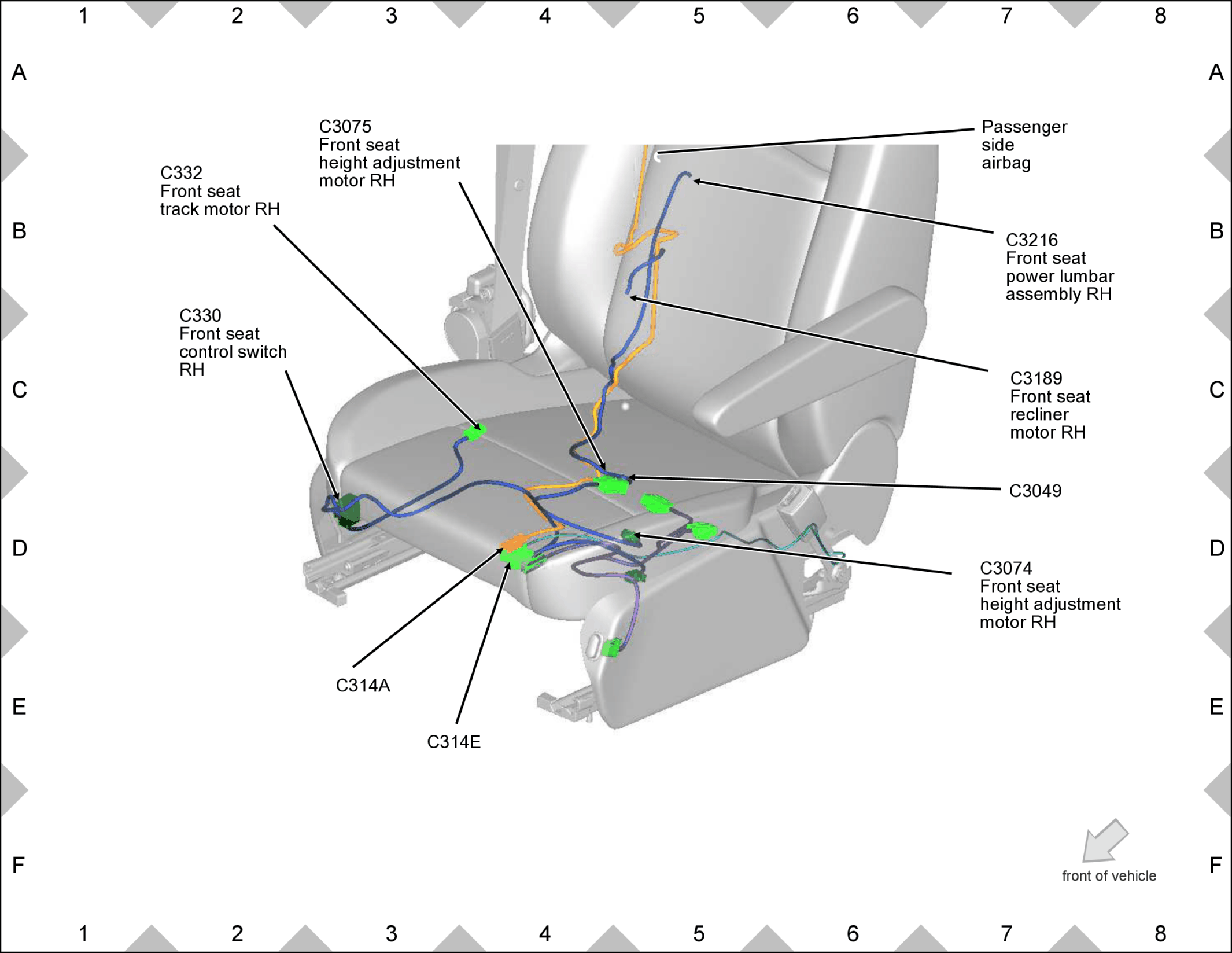

GFDW28849Courtesy of FORD MOTOR COMPANY

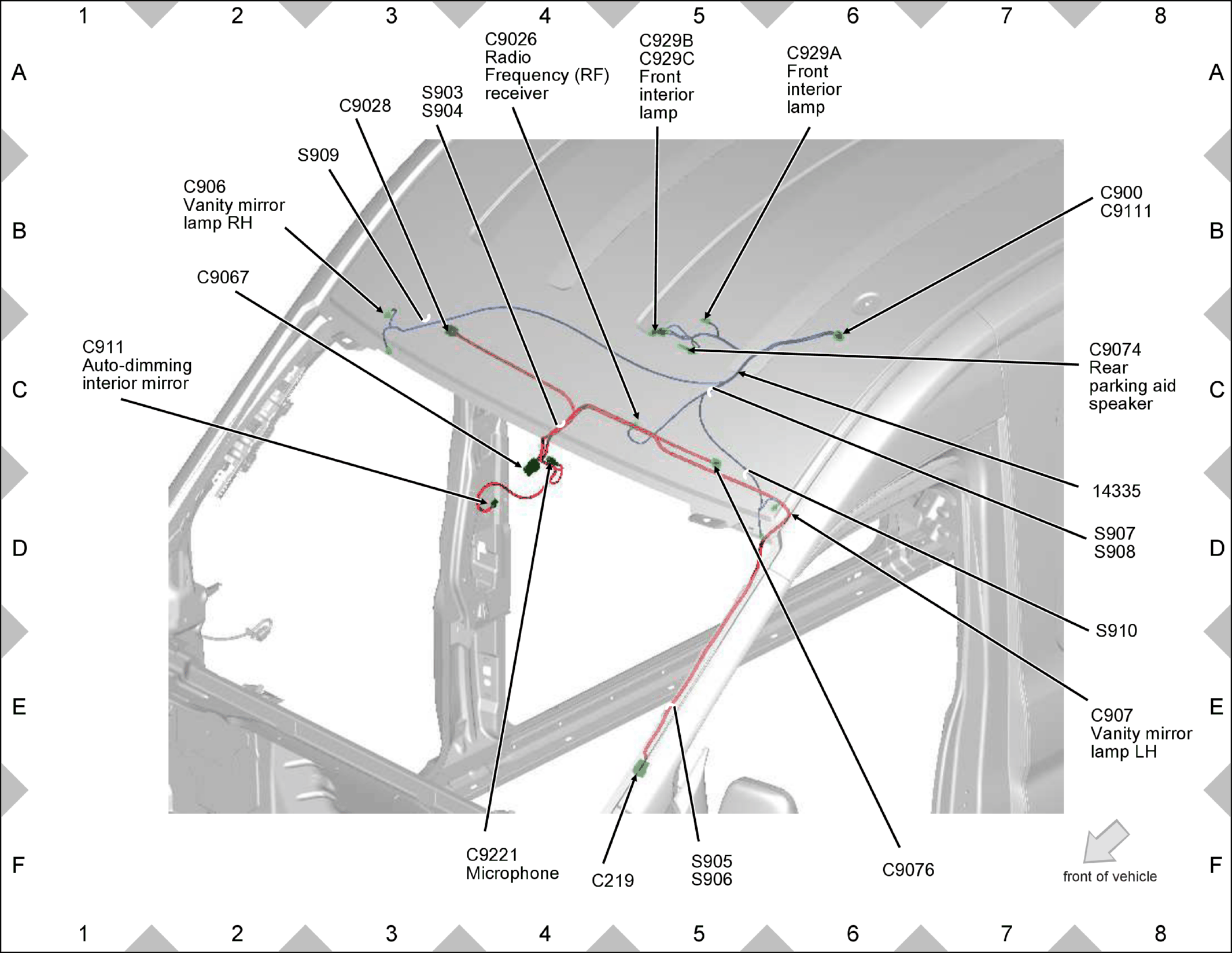

GFDW28850Courtesy of FORD MOTOR COMPANY

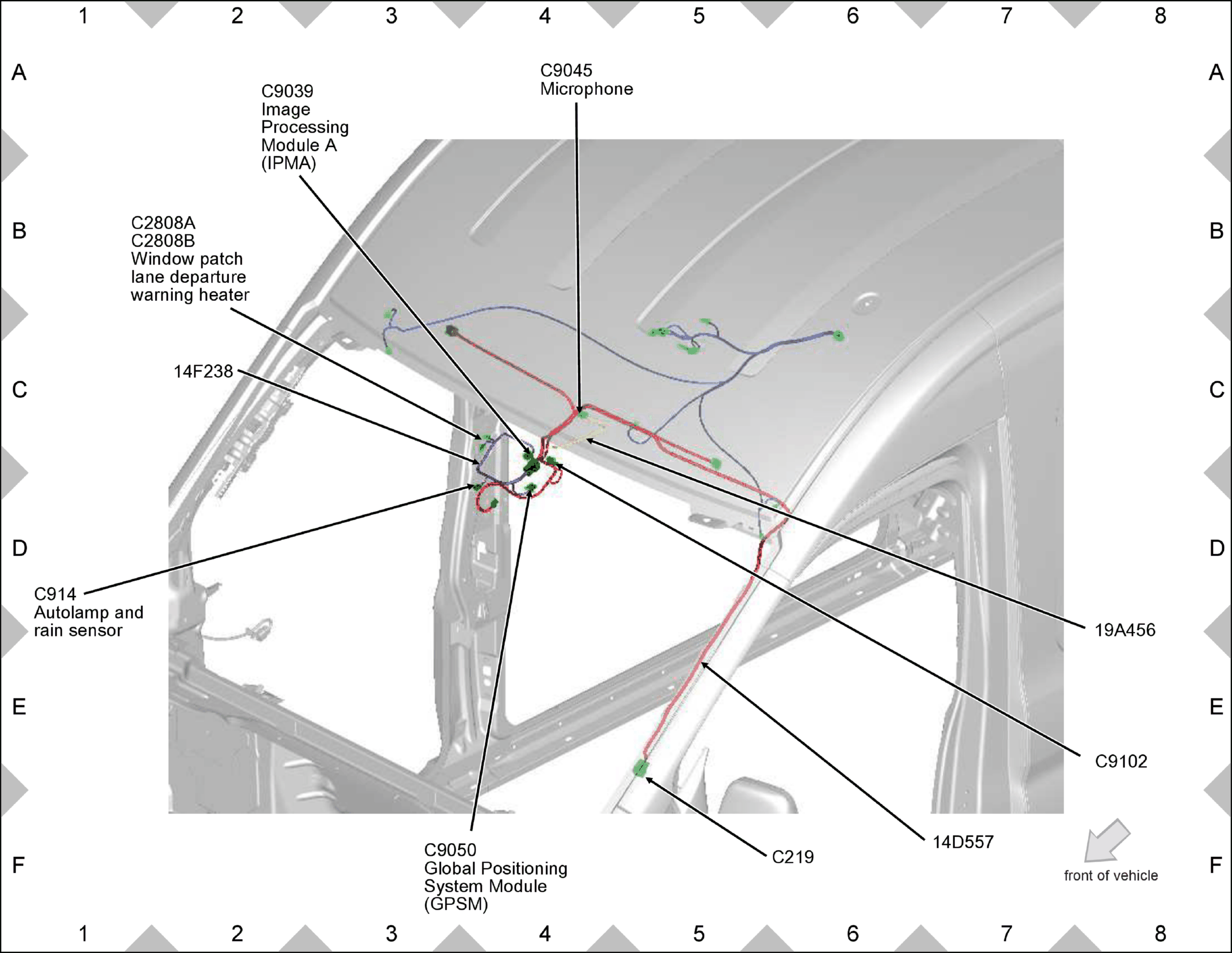

GFDW28851Courtesy of FORD MOTOR COMPANY

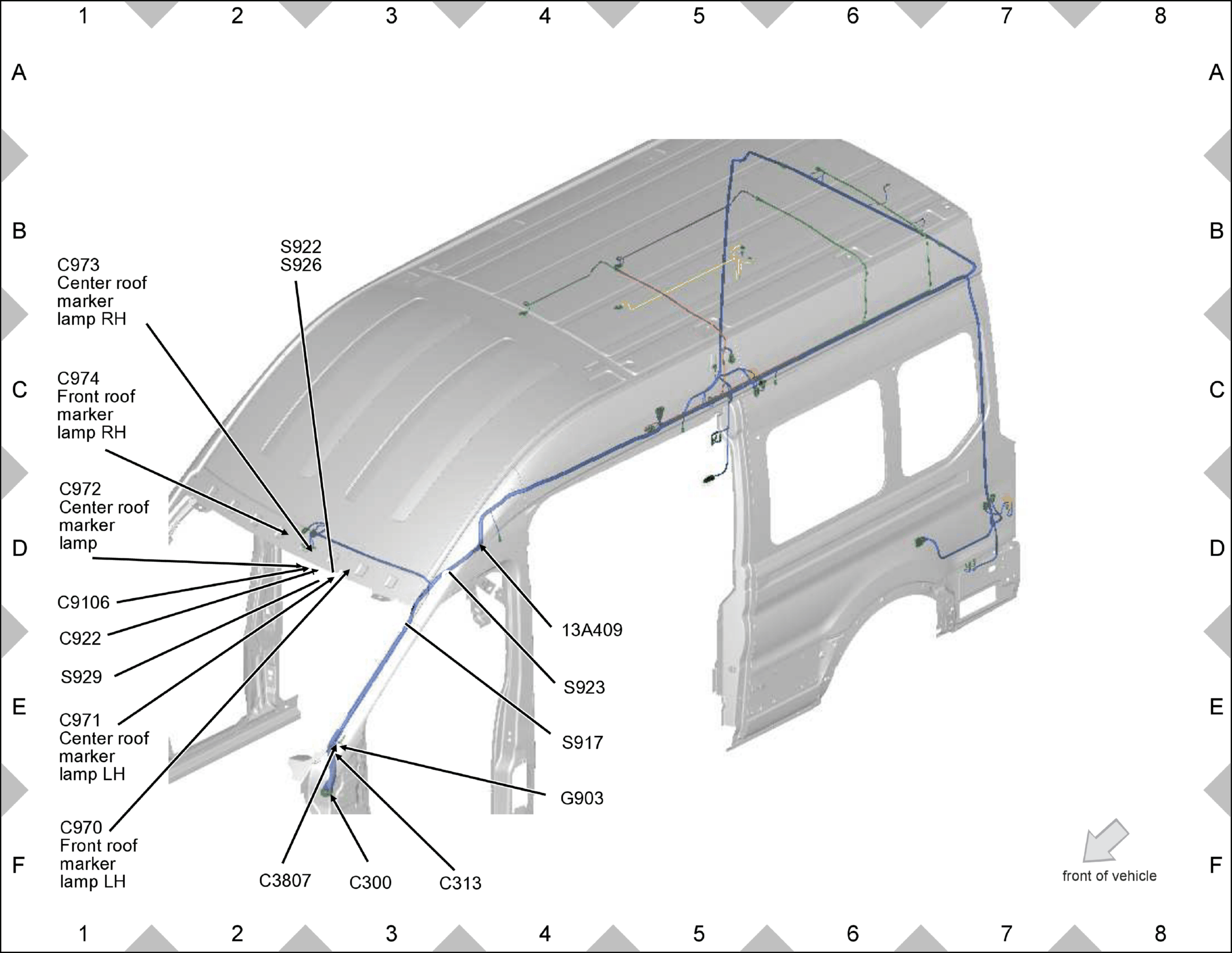

GFDW28852Courtesy of FORD MOTOR COMPANY

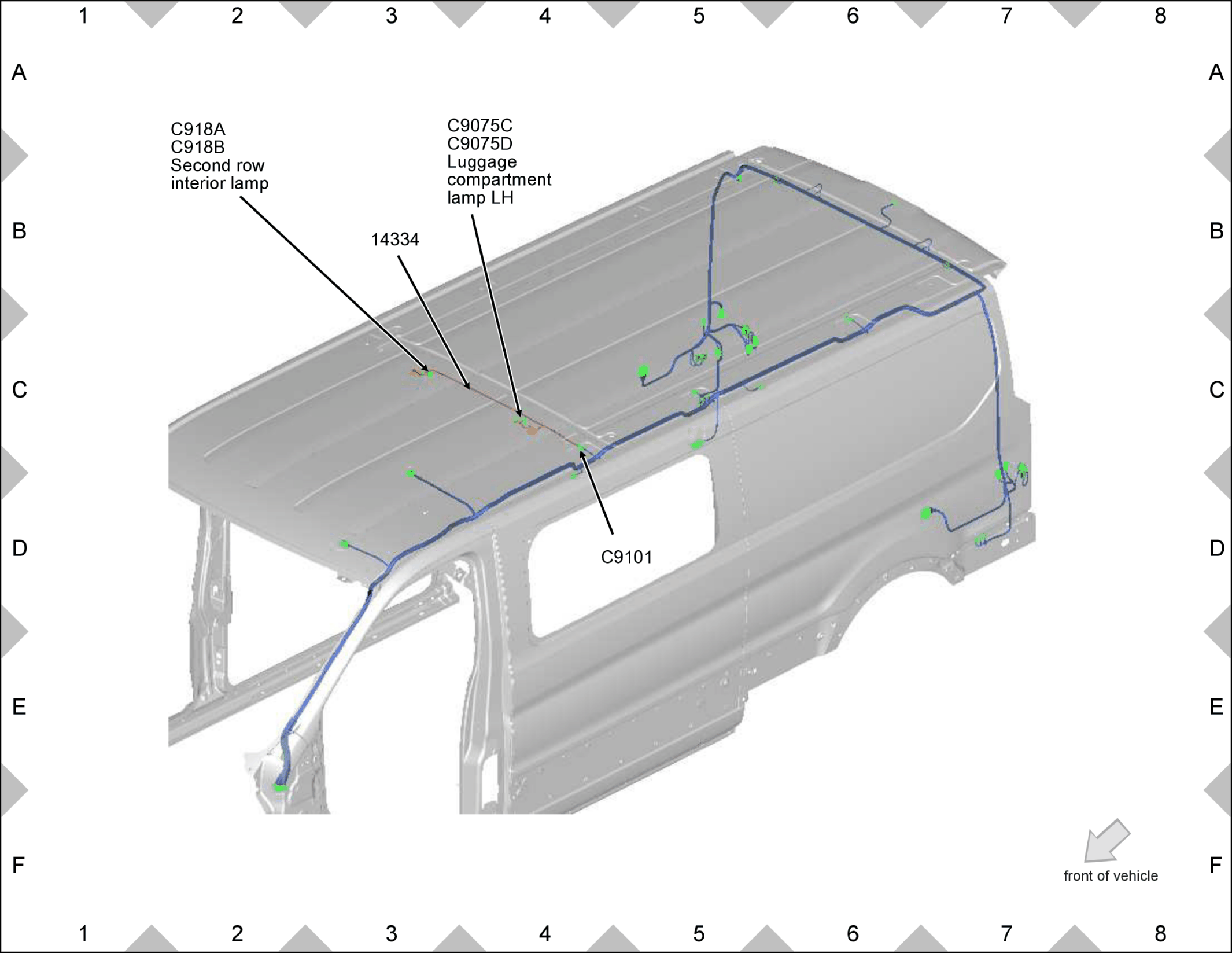

GFDW28853Courtesy of FORD MOTOR COMPANY

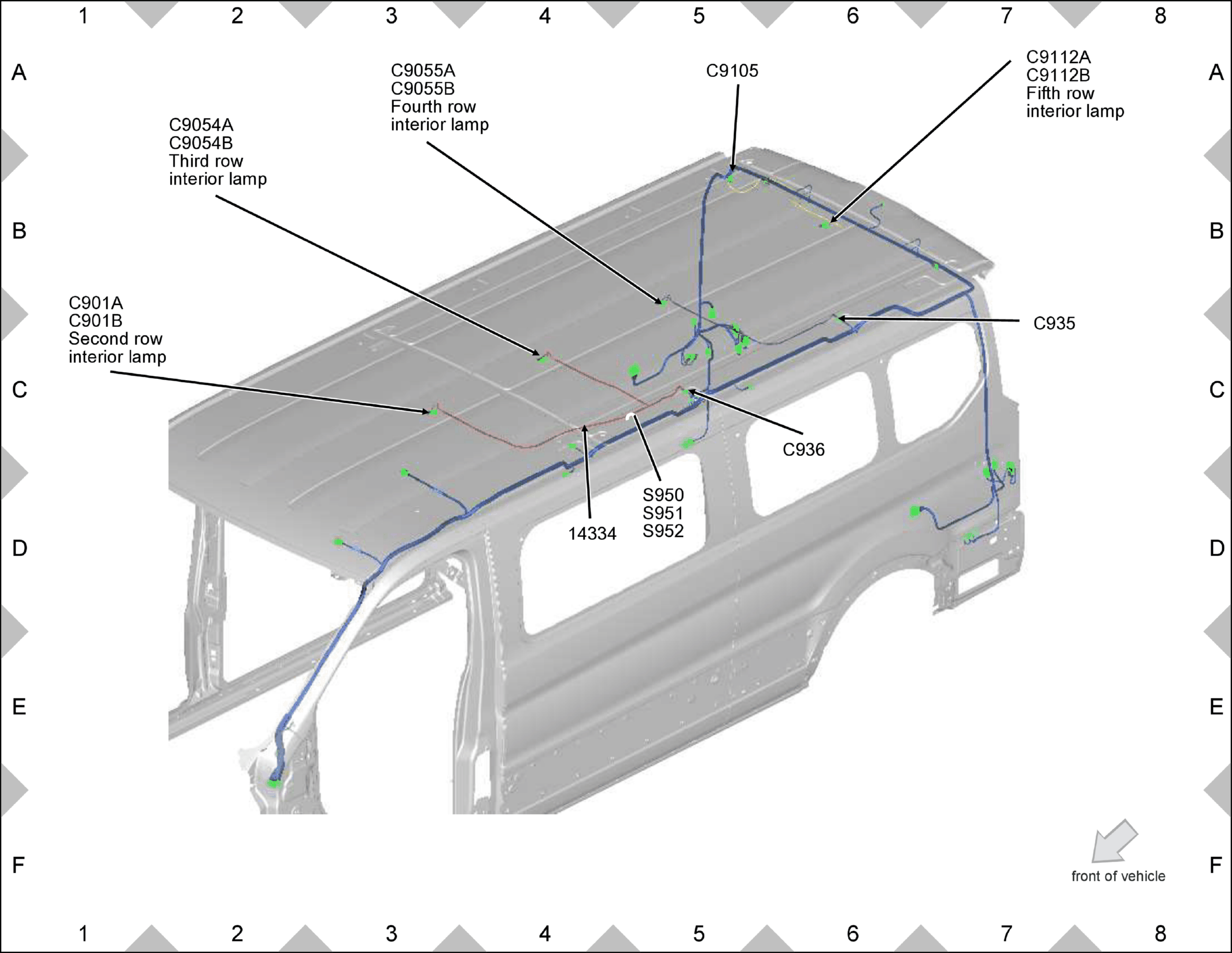

GFDW28854Courtesy of FORD MOTOR COMPANY

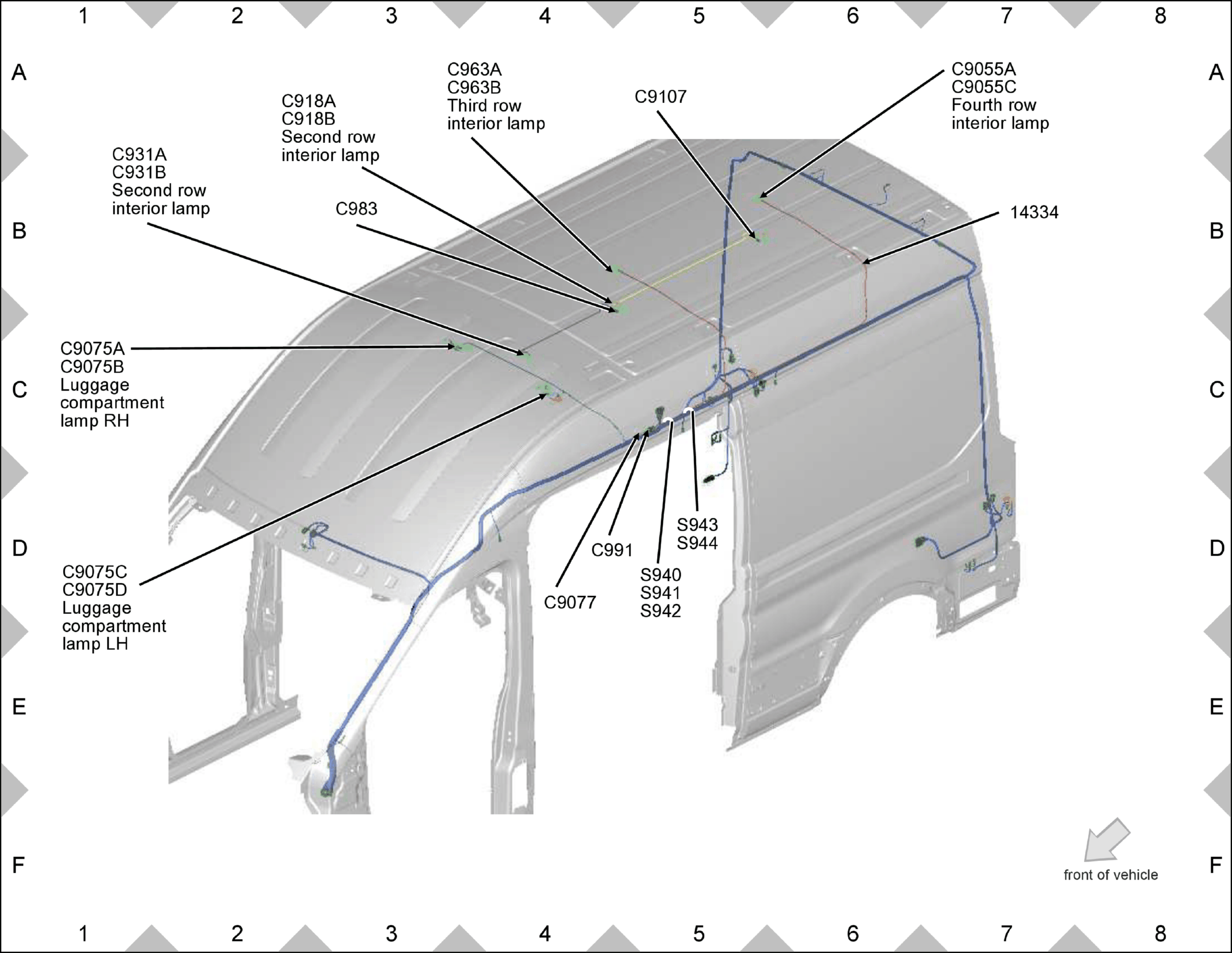

GFDW28855Courtesy of FORD MOTOR COMPANY

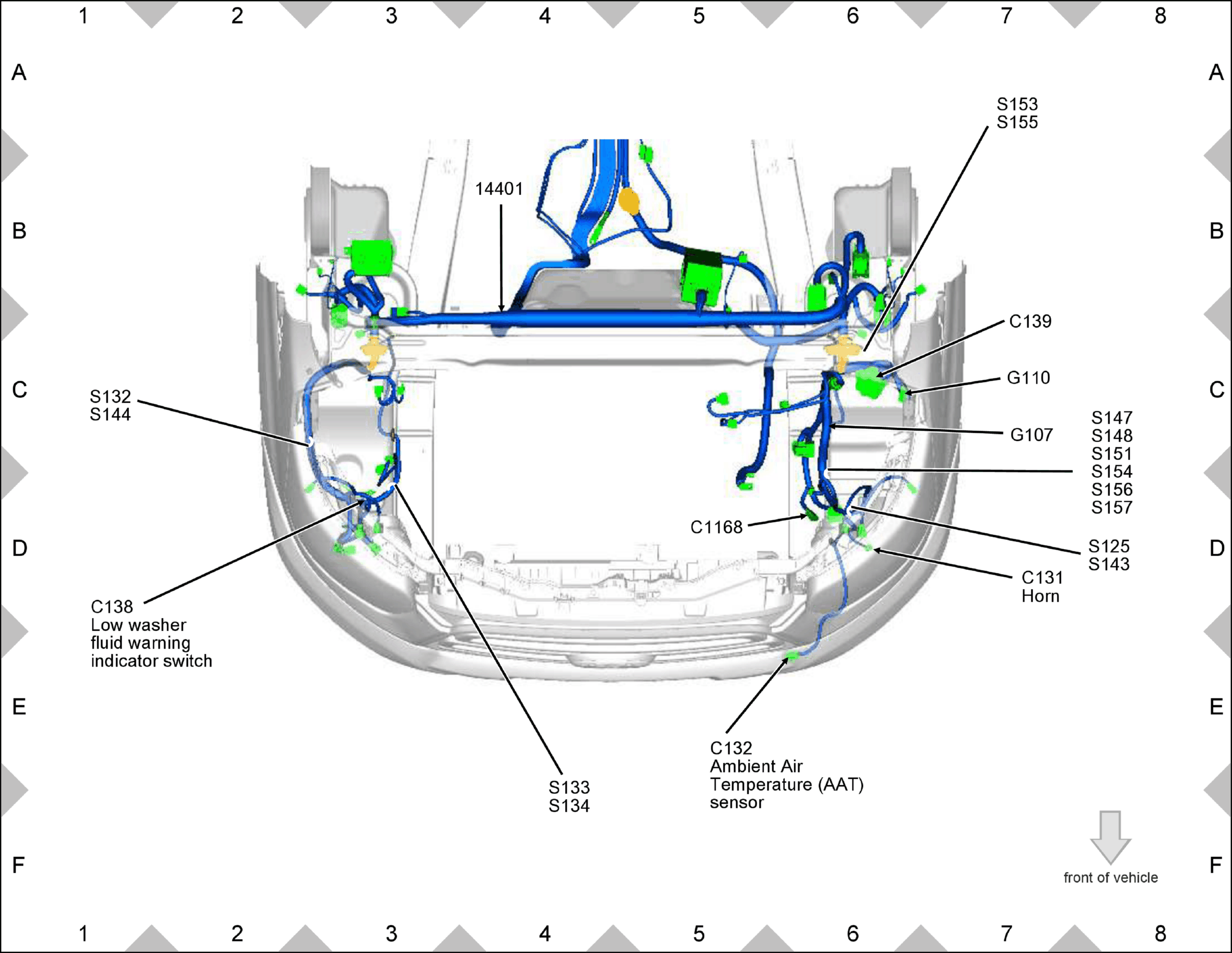

GFDW28856Courtesy of FORD MOTOR COMPANY

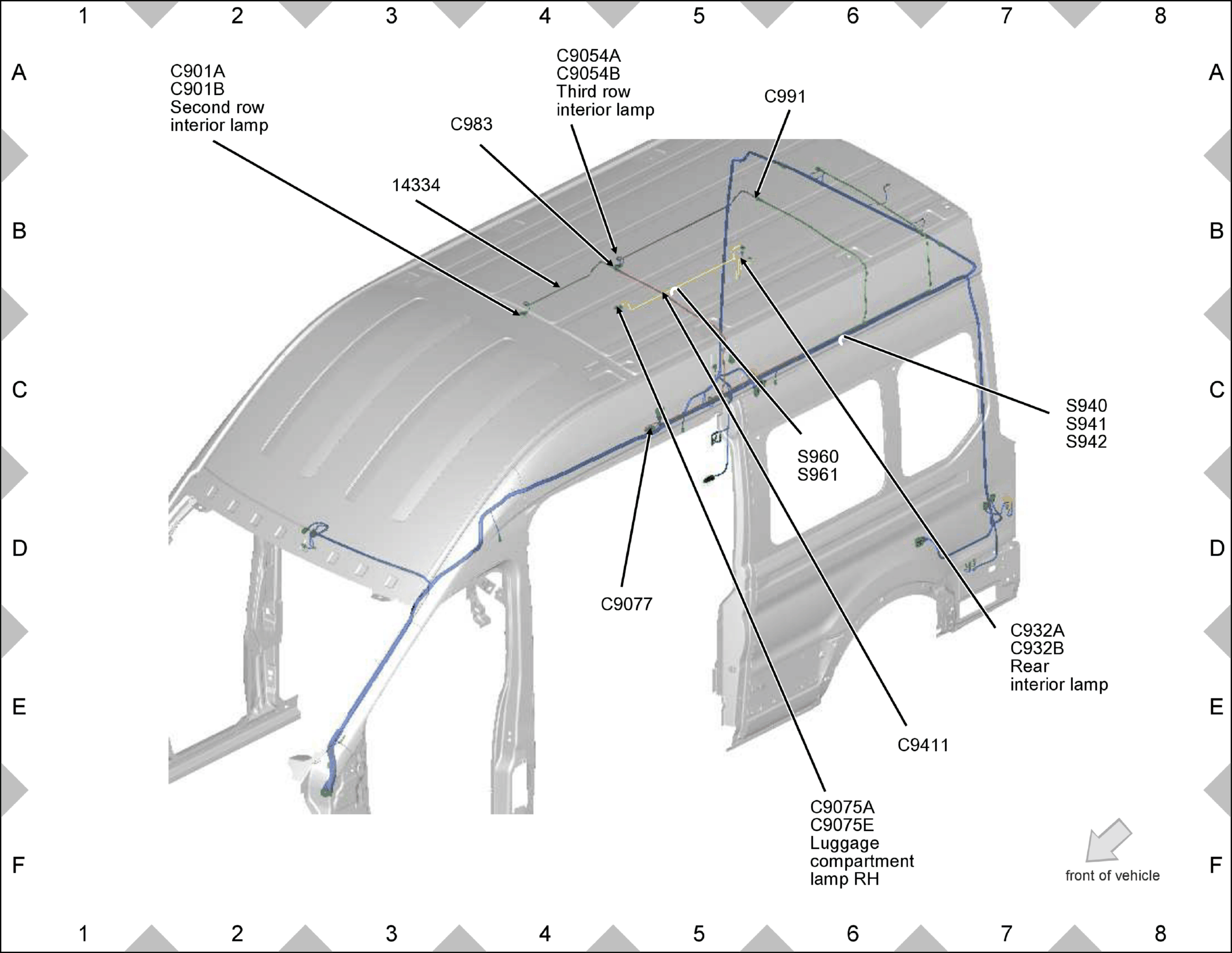

GFDW28857Courtesy of FORD MOTOR COMPANY

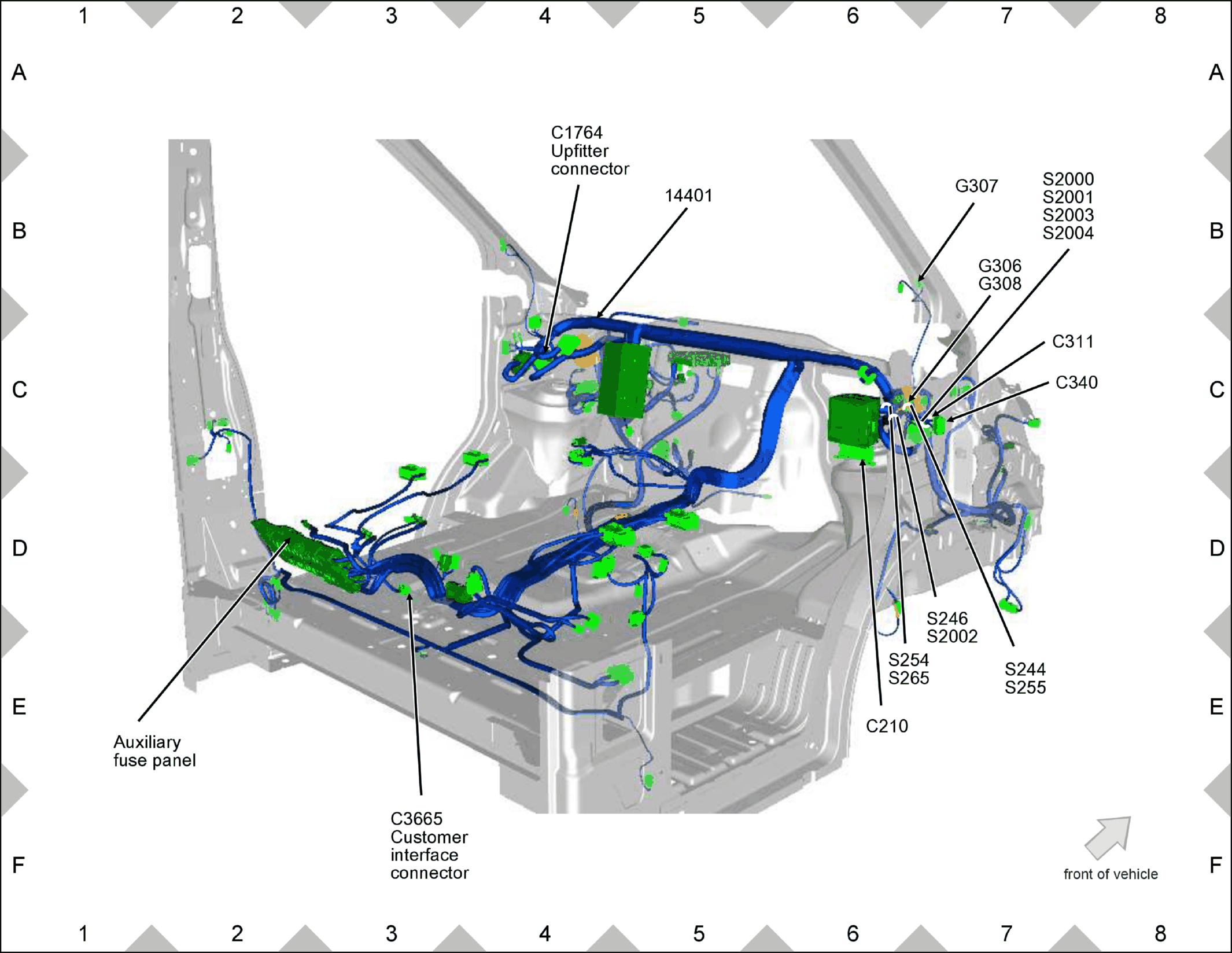

GFDW28858Courtesy of FORD MOTOR COMPANY

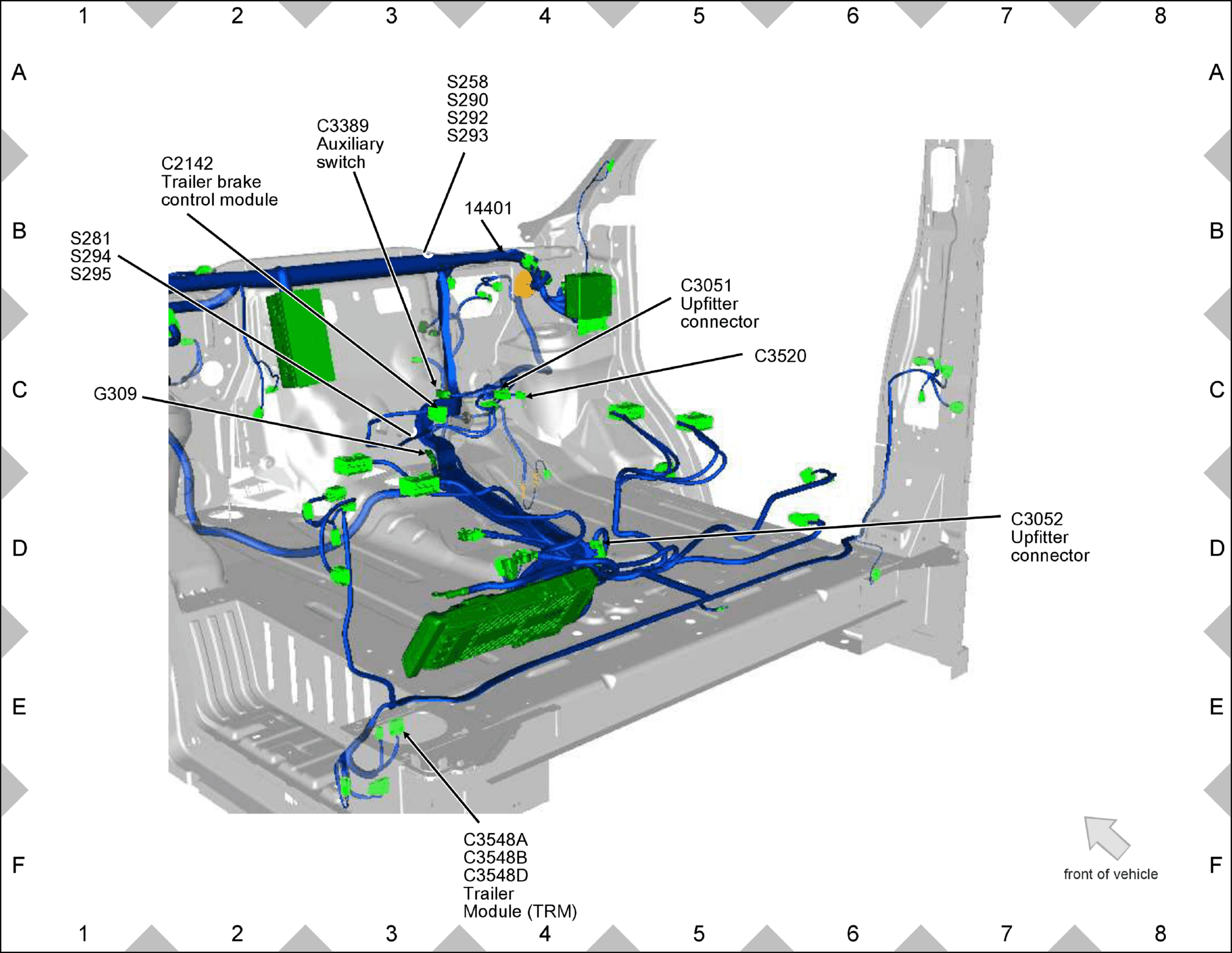

GFDW28859Courtesy of FORD MOTOR COMPANY

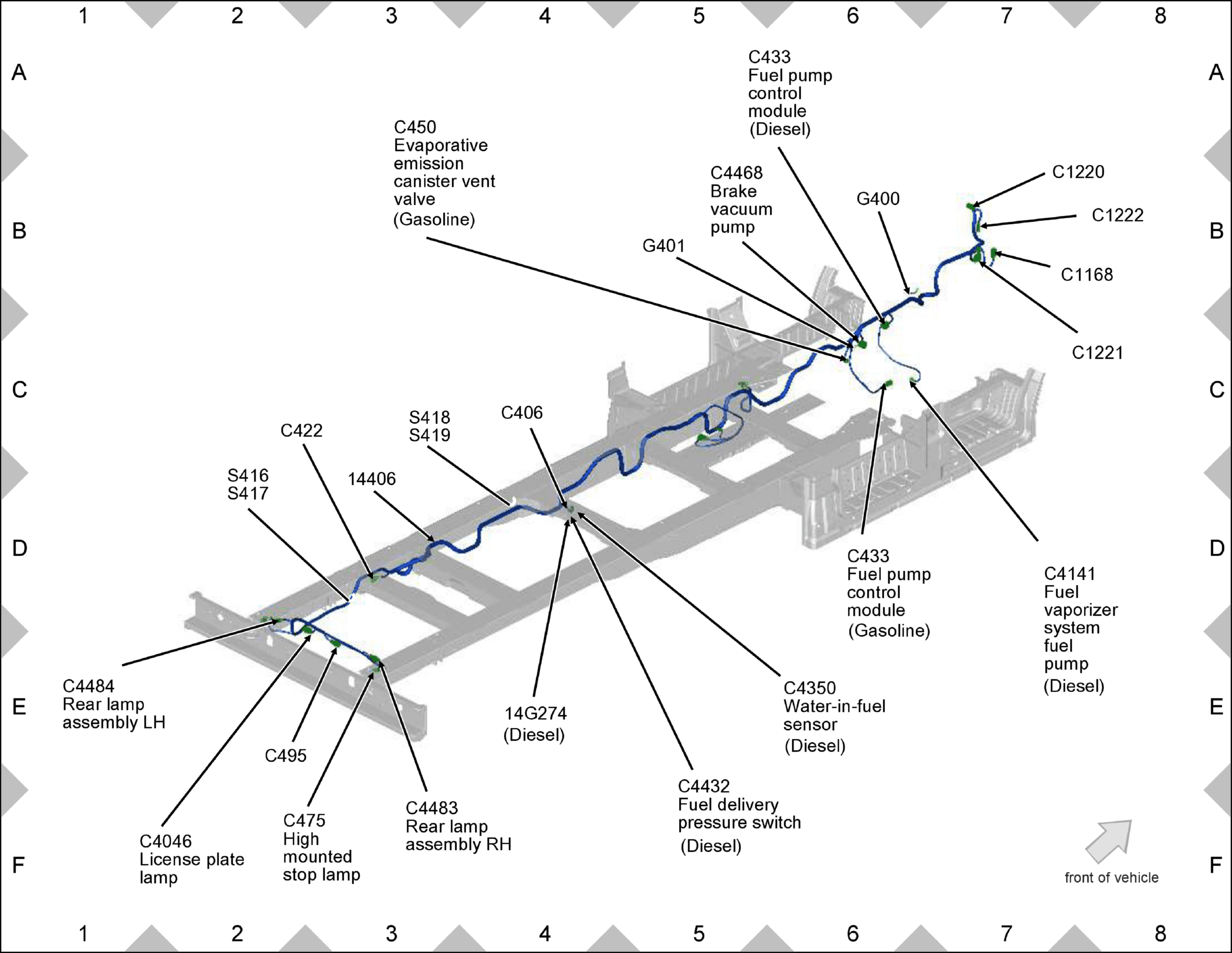

GFDW28860Courtesy of FORD MOTOR COMPANY

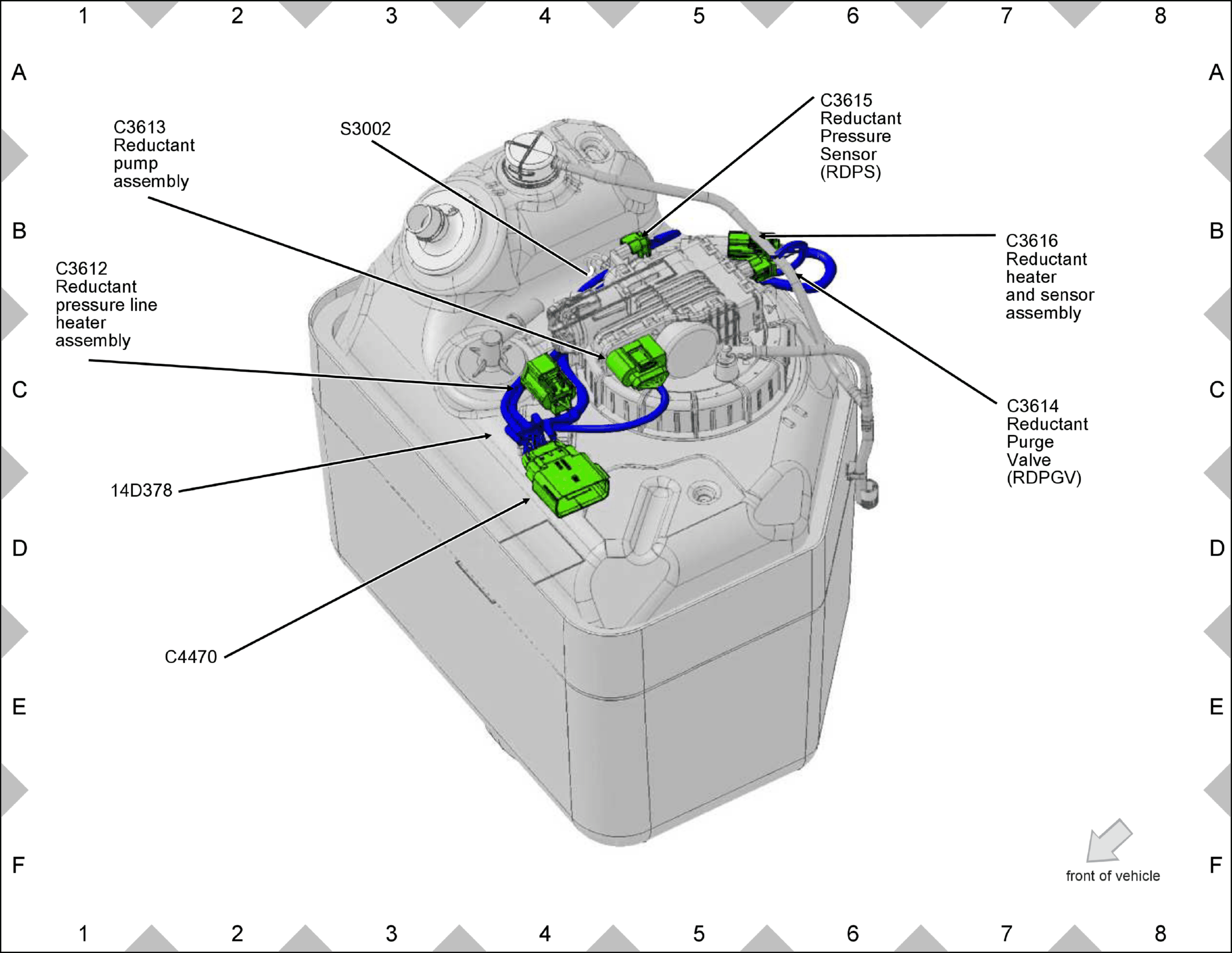

GFDW28861Courtesy of FORD MOTOR COMPANY

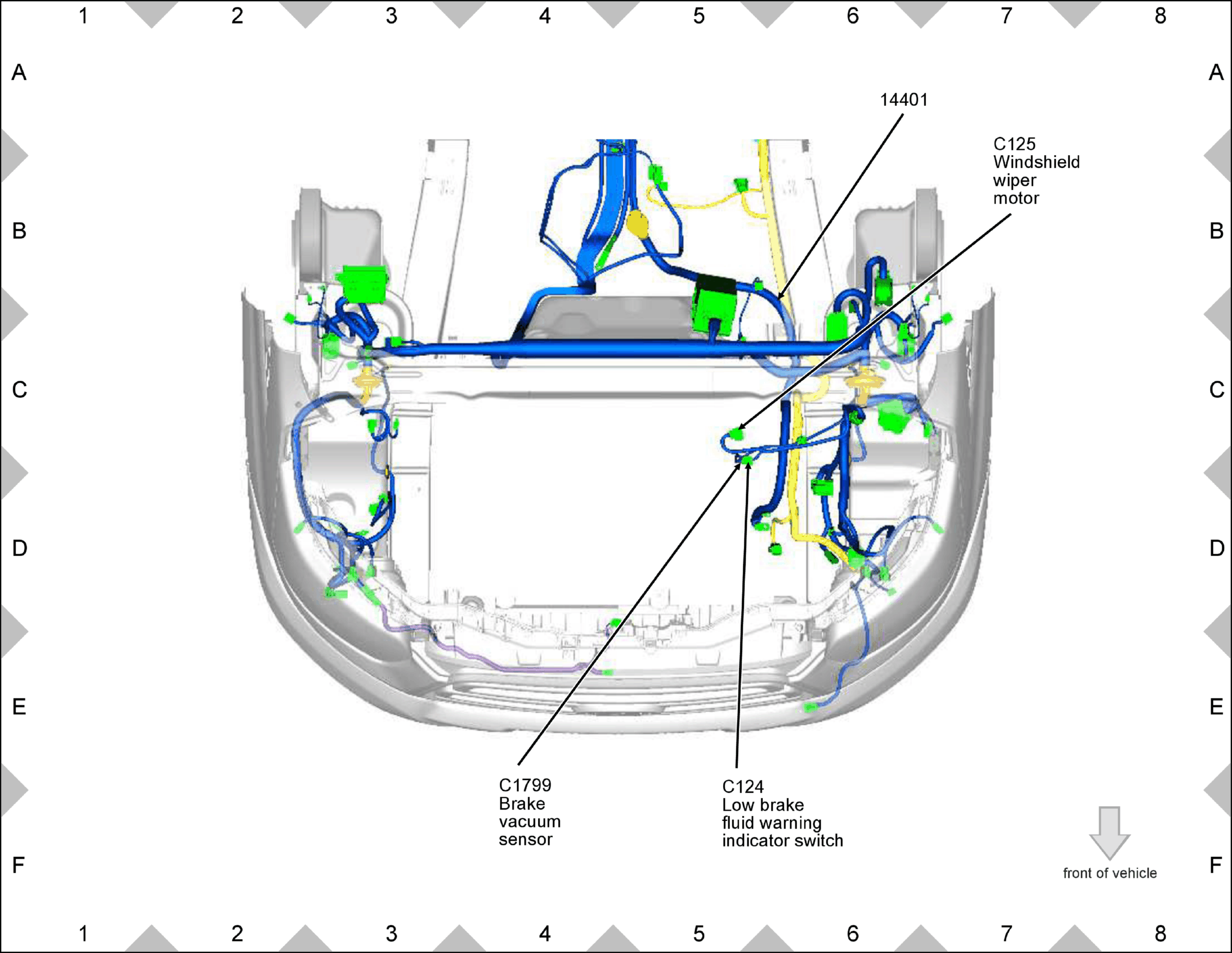

GFDW28862Courtesy of FORD MOTOR COMPANY

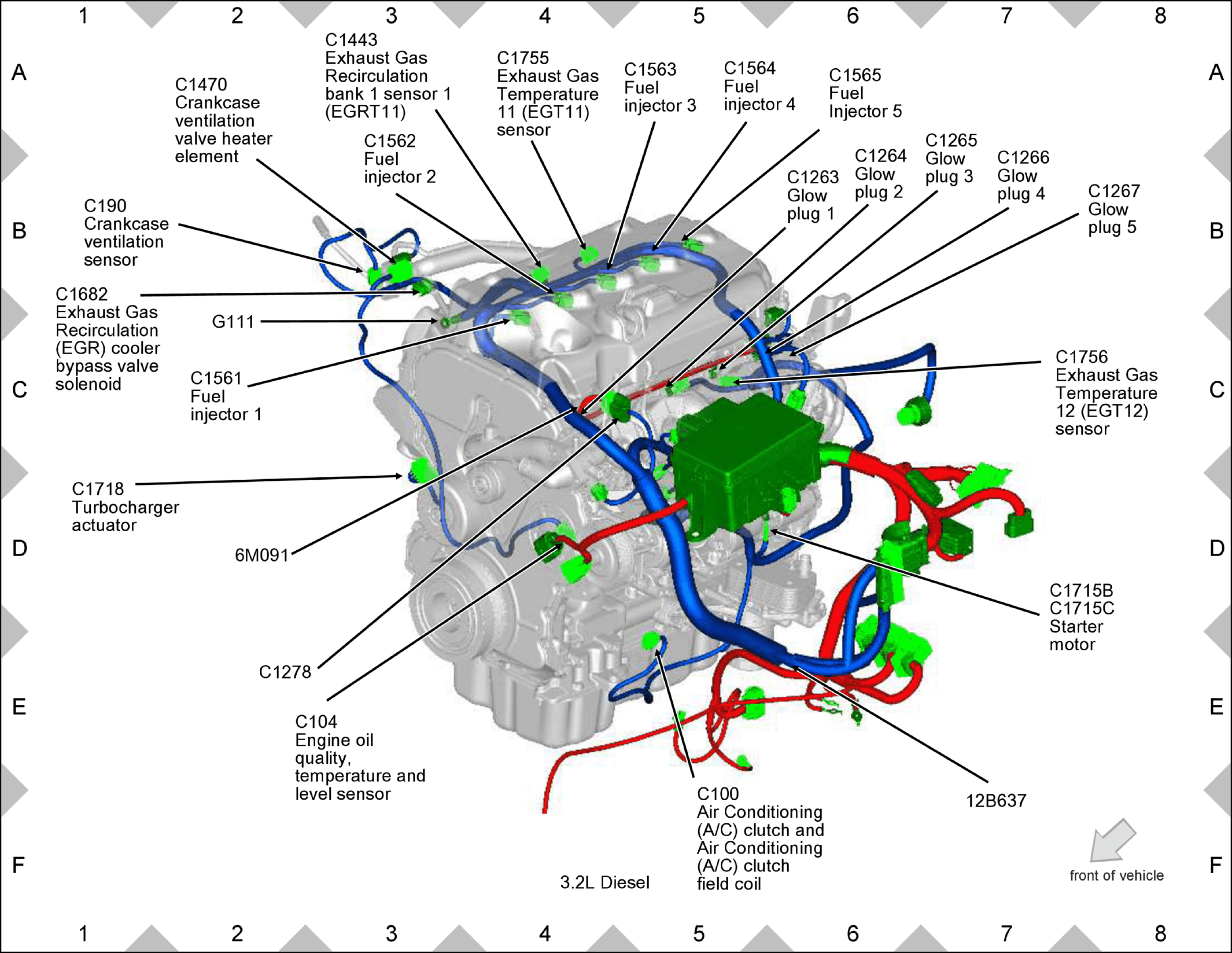

GFDW28863Courtesy of FORD MOTOR COMPANY

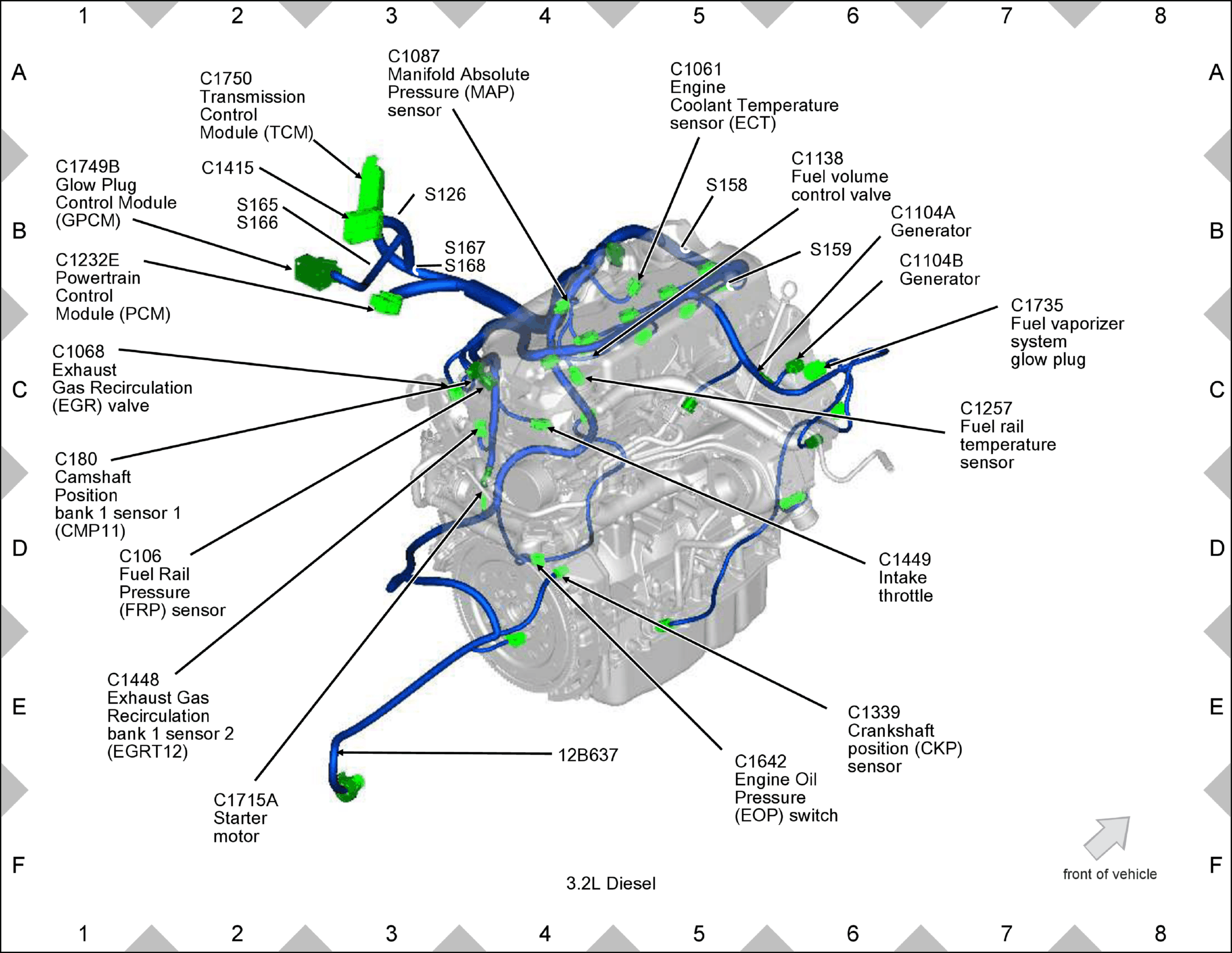

GFDW28864Courtesy of FORD MOTOR COMPANY

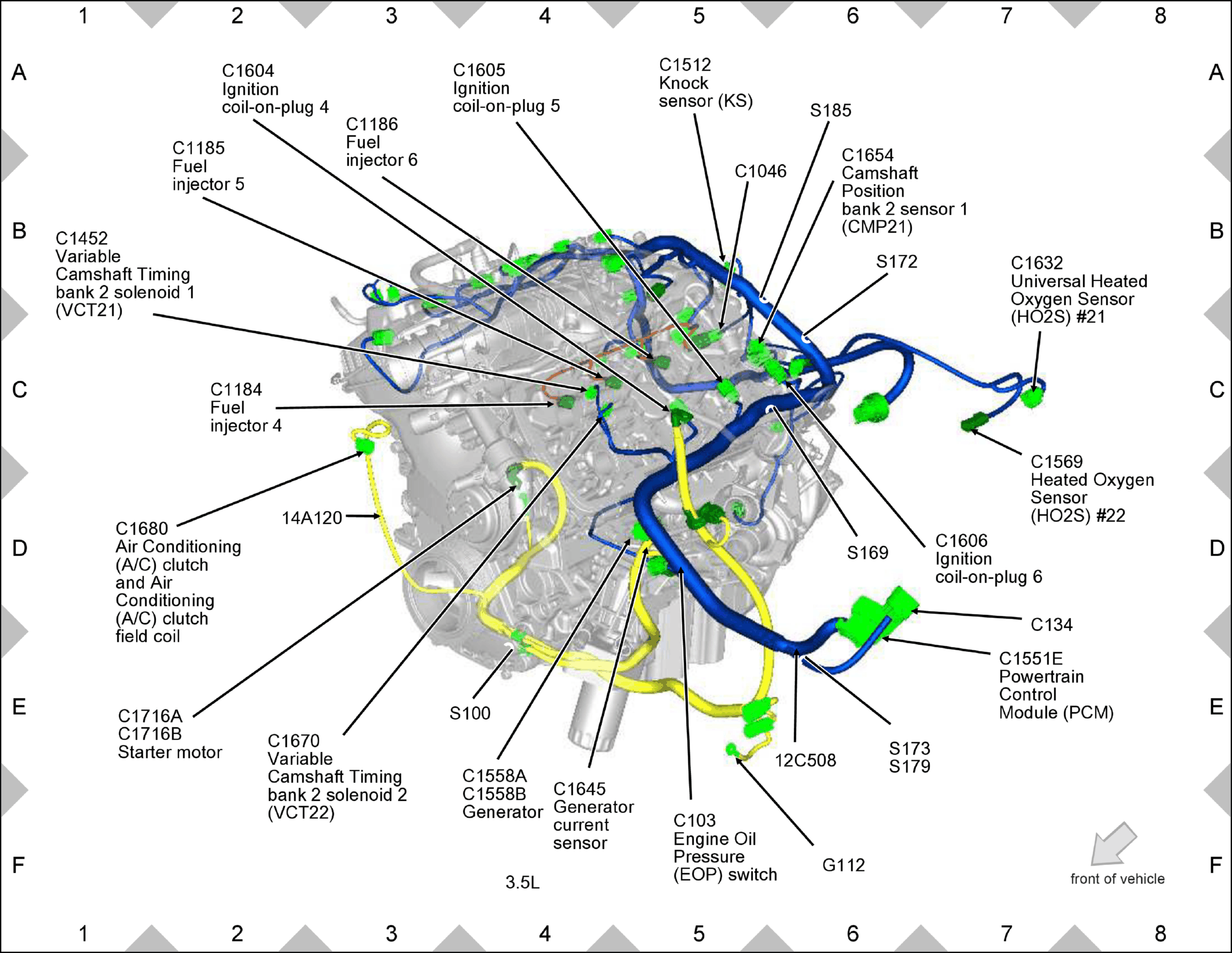

GFDW28865Courtesy of FORD MOTOR COMPANY
