Front Seat Control Switch LH
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Seat Control Switch LH

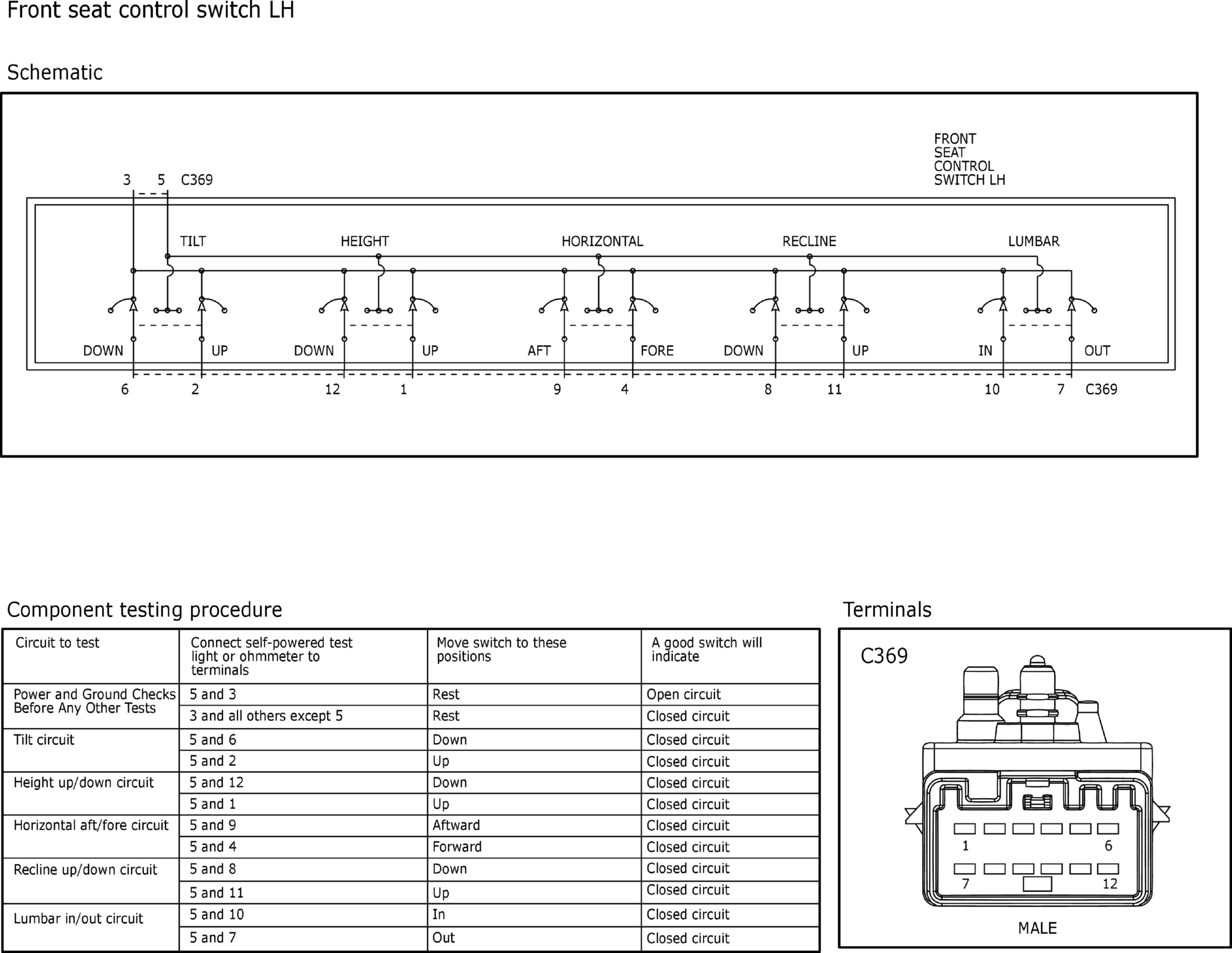

Fig 1: Front Seat Control Switch LH
Courtesy of FORD MOTOR COMPANY
