Passenger Door Window Control Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Passenger Door Window Control Switch

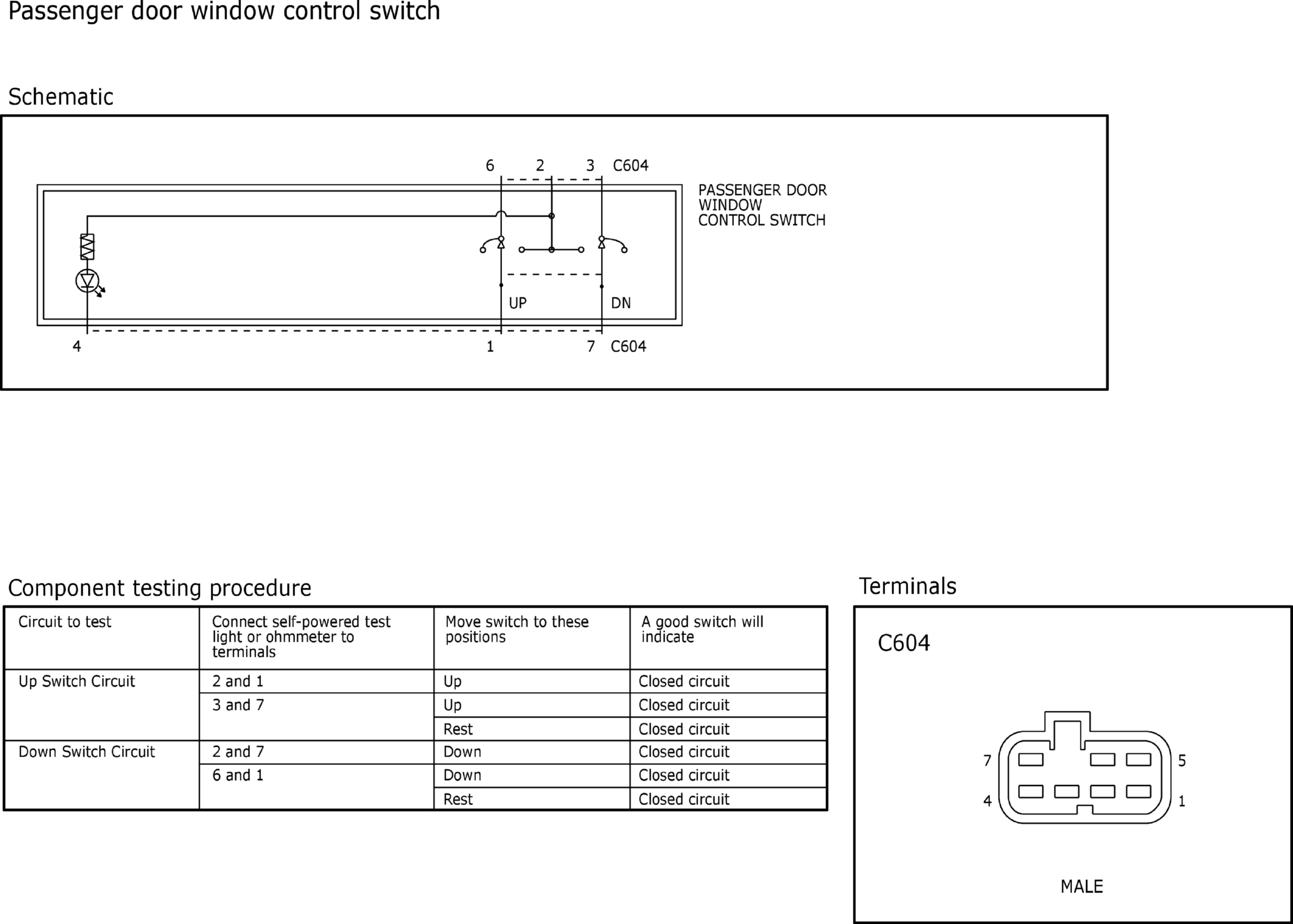

Fig 1: Passenger Door Window Control Switch
Courtesy of FORD MOTOR COMPANY
