Front Strut and Spring Assembly: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Both Sides

1.

Remove the wheel knuckle. Refer to: Wheel Knuckle .

2.

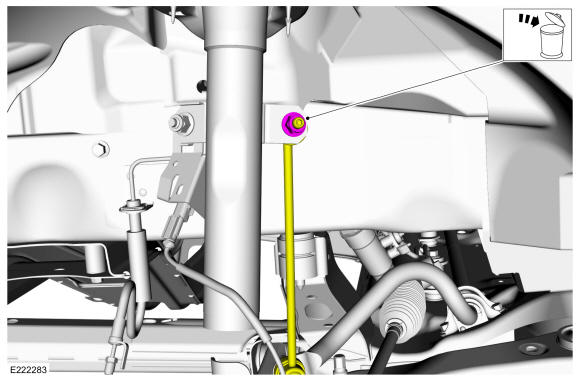

NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

Remove and discard the stabilizer bar link upper nut and position the stabilizer bar link aside.

Torque: 76 lb.ft (103 Nm)

GFD73169

Courtesy of FORD MOTOR COMPANY

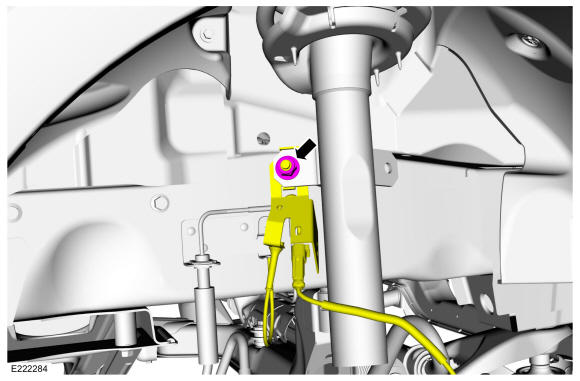

3.

Remove the nut and position the brake wiring support bracket aside.
Torque: 22 lb.ft (30 Nm)

GFD73170

Courtesy of FORD MOTOR COMPANY

4.

Remove the instrument panel console. Refer to: Instrument Panel Console .

Driver Side

5.

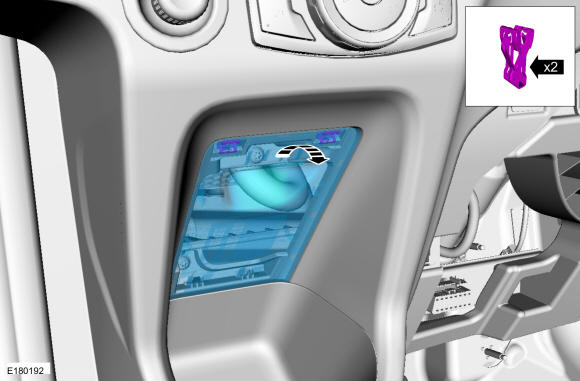

Release the 2 clips and remove the LH side access panel.

GFD73171

Courtesy of FORD MOTOR COMPANY

6.

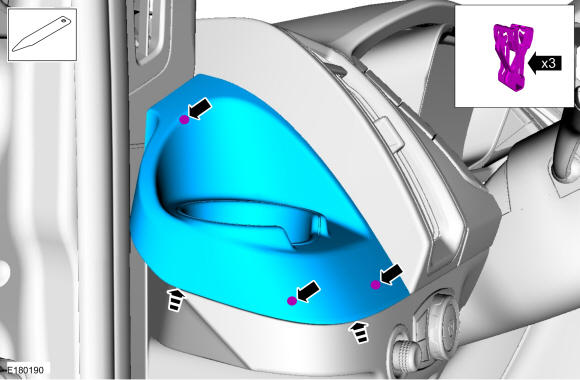

Release the 3 clips and remove the LH cup holder. Use the General Equipment: Interior Trim Remover

GFD73172

Courtesy of FORD MOTOR COMPANY

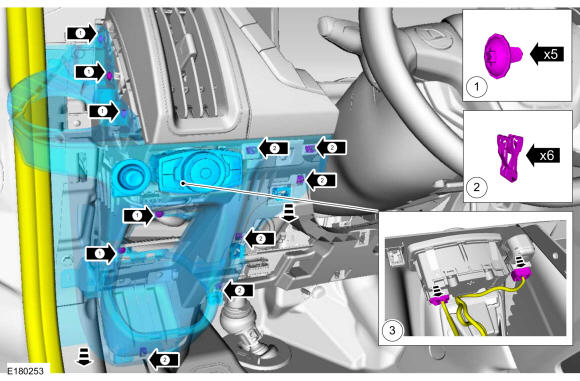

7.
- 1.

  Remove the 5 screws.
  Torque: 18 lb.in (2 Nm)
- 2.

  Release the 6 clips and remove the LH instrument panel finish panel.
- 3.

  Disconnect the 2 electrical connectors.

GFD73173

Courtesy of FORD MOTOR COMPANY

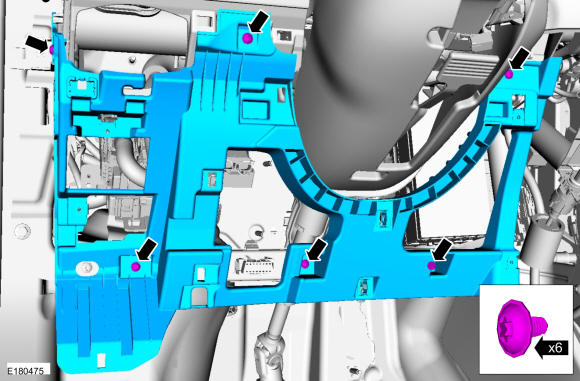

8.

Remove the 6 screws and the lower LH instrument panel close out panel.

GFD73174

Courtesy of FORD MOTOR COMPANY

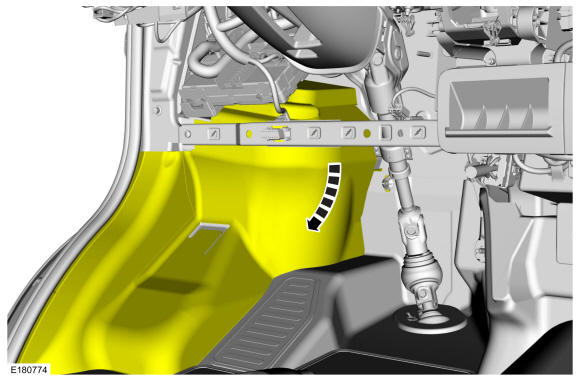

9.

Position aside the LH strut tower sound insulator.

GFD73175

Courtesy of FORD MOTOR COMPANY

10.

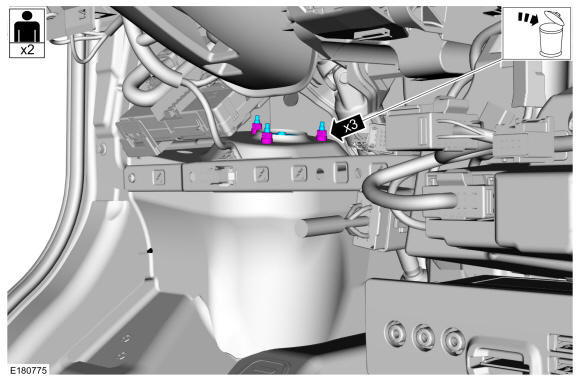

With the help of an assistant, remove the driver side front upper strut and spring assembly nuts and remove the strut and spring assembly.
Torque: 22 lb.ft (30 Nm)

GFD73176

Courtesy of FORD MOTOR COMPANY

Passenger Side

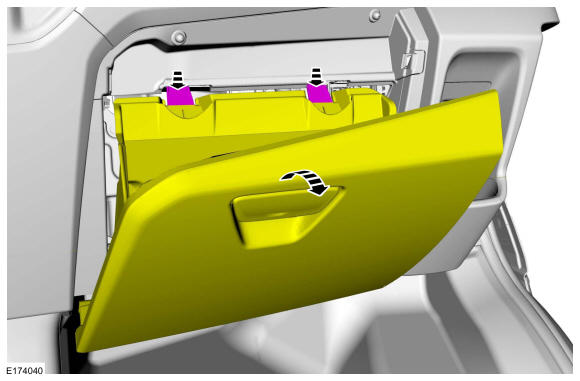

11.

Press the stop tabs downward and fully lower the glove compartment.

GFD73177

Courtesy of FORD MOTOR COMPANY

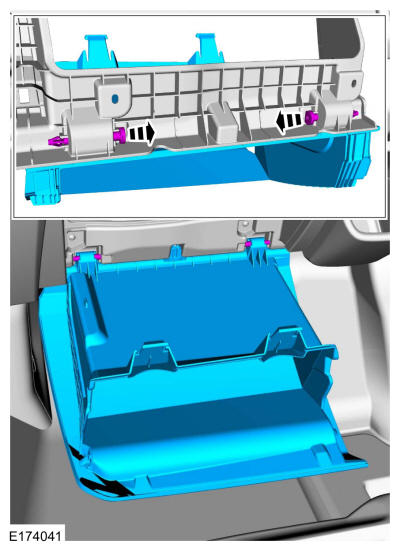

12.

Remove the 2 hinge pins and remove the glove compartment.

GFD73178

Courtesy of FORD MOTOR COMPANY

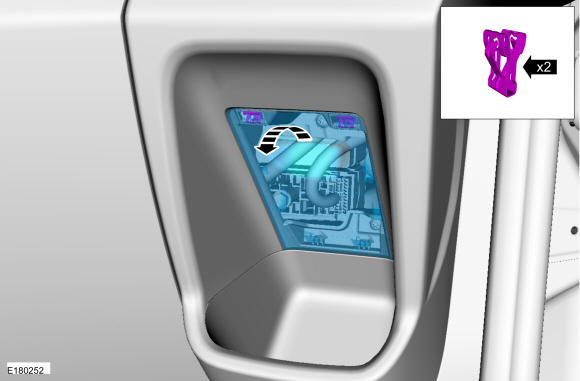

13.

Release the 2 clips and remove the RH side access panel.

GFD73179

Courtesy of FORD MOTOR COMPANY

14.

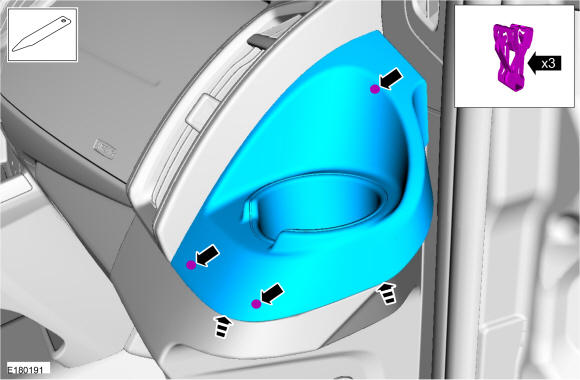

Release the 3 clips and remove the RH cup holder. Use the General Equipment: Interior Trim Remover

GFD73180

Courtesy of FORD MOTOR COMPANY

15.

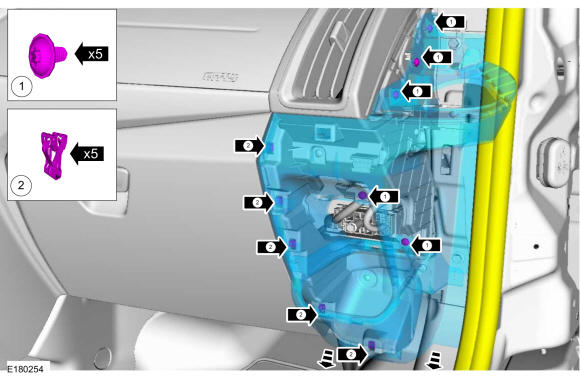

- 1.

  Remove the 5 screws.
  Torque: 18 lb.in (2 Nm)
- 2.

  Release the 5 clips and remove the RH instrument panel finish panel.

GFD73181

Courtesy of FORD MOTOR COMPANY

16.

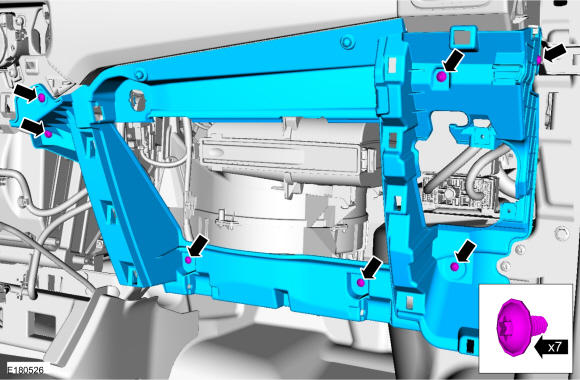

Remove the 7 screws and the lower RH instrument panel close out panel.

GFD73182

Courtesy of FORD MOTOR COMPANY

17.

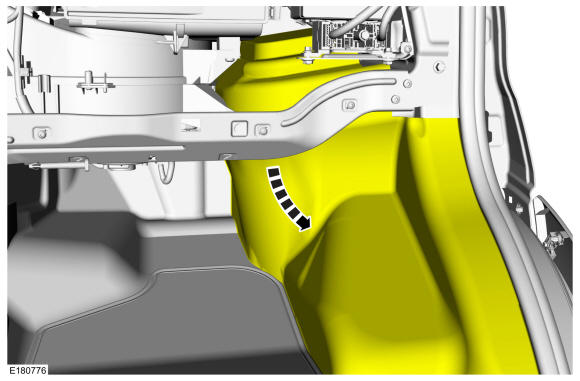

Position aside the RH strut tower sound insulator.

GFD73183

Courtesy of FORD MOTOR COMPANY

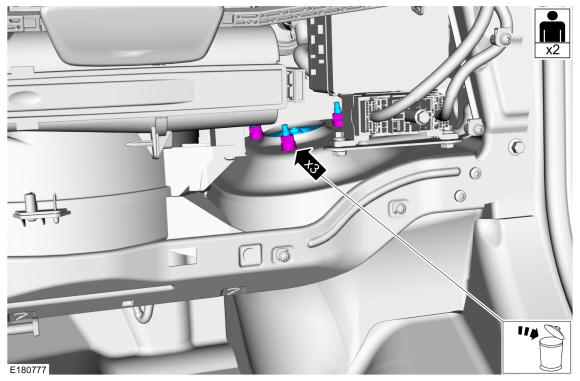

18.

With the help of an assistant, remove the passenger side front upper strut and spring assembly nuts and remove the strut and spring assembly.
Torque: 22 lb.ft (30 Nm)

GFD73184

Courtesy of FORD MOTOR COMPANY
