Connector Repair Procedures

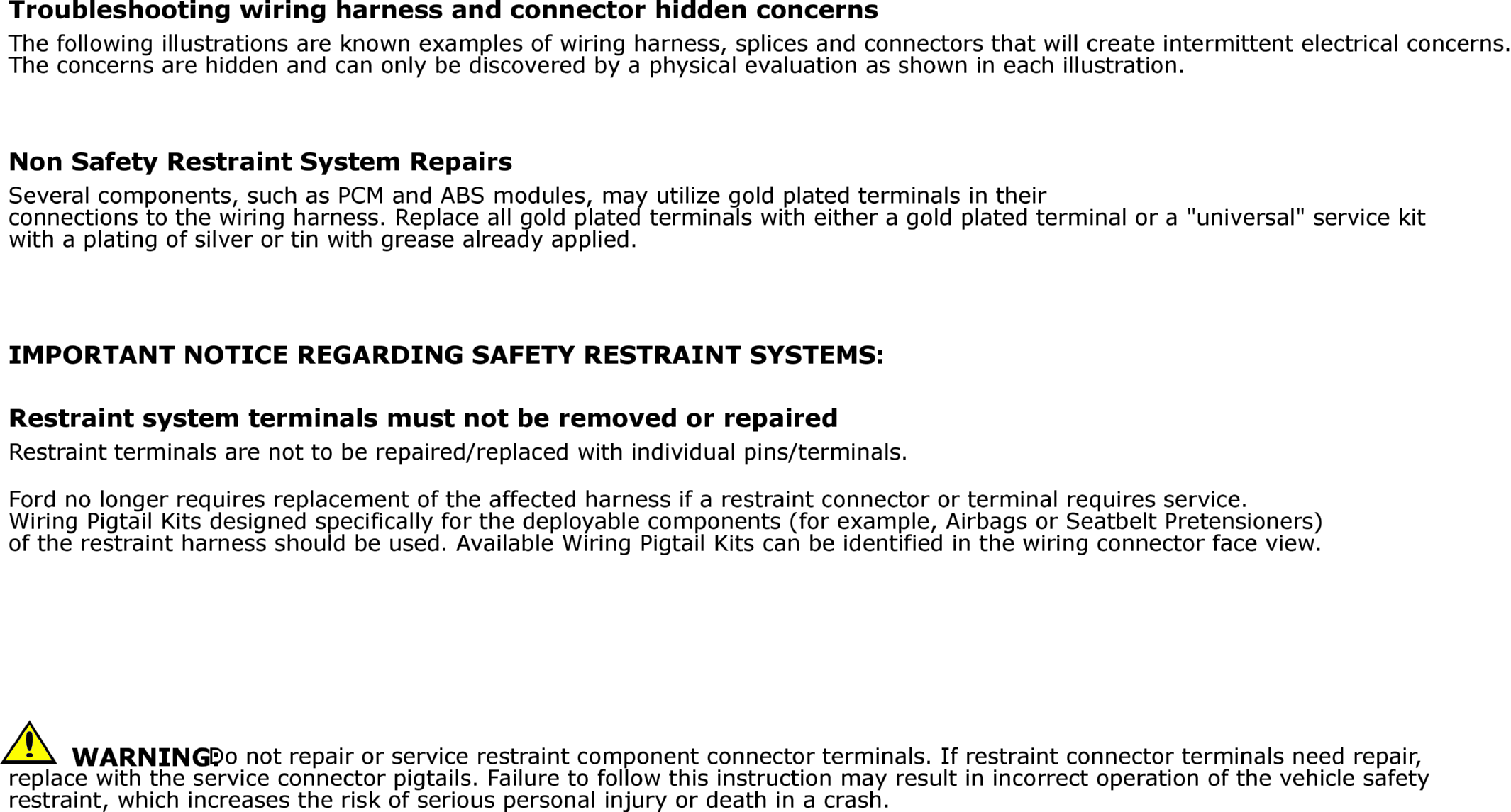

GFDW66822Courtesy of FORD MOTOR COMPANY

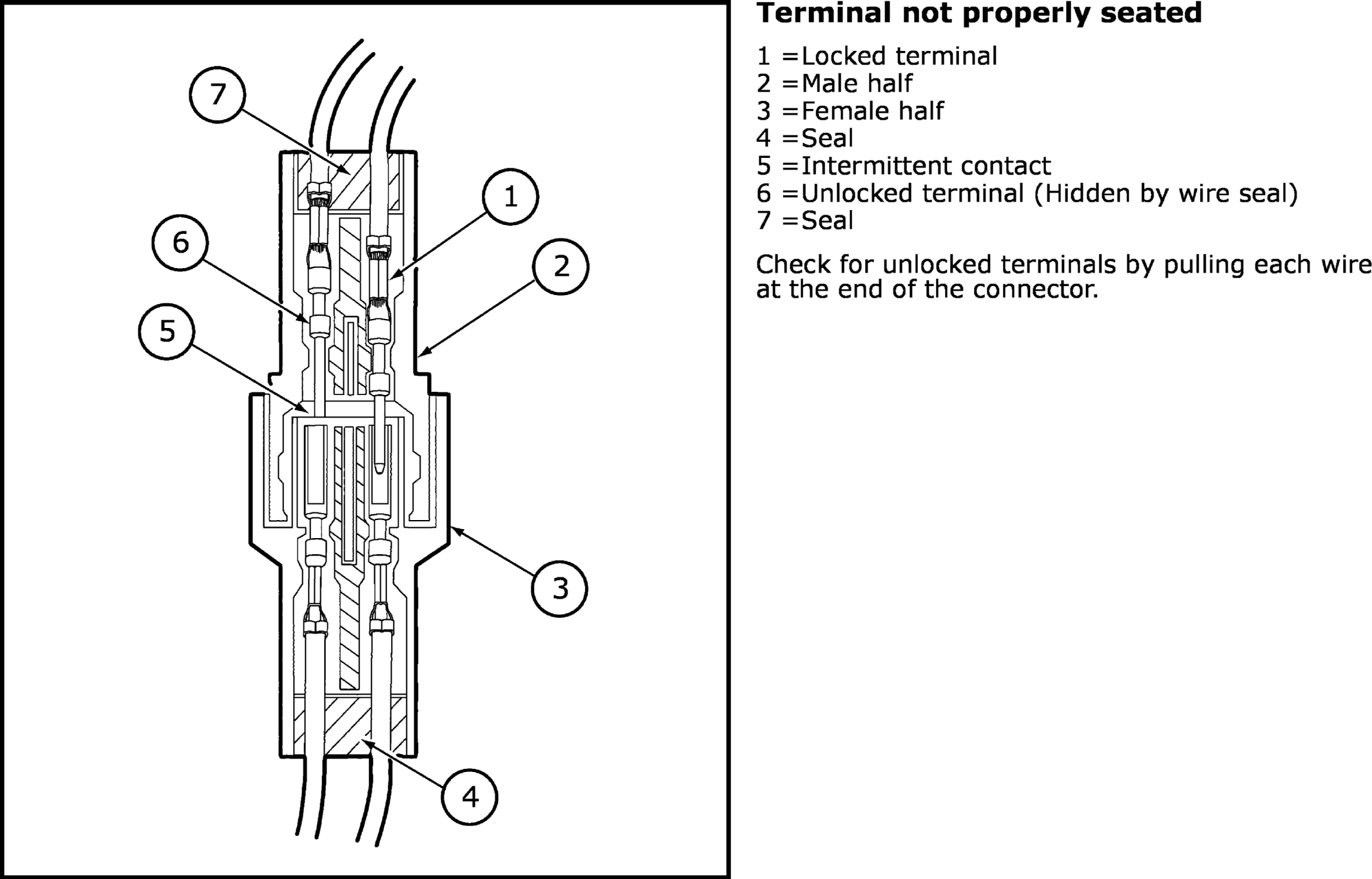

GFDW66823Courtesy of FORD MOTOR COMPANY

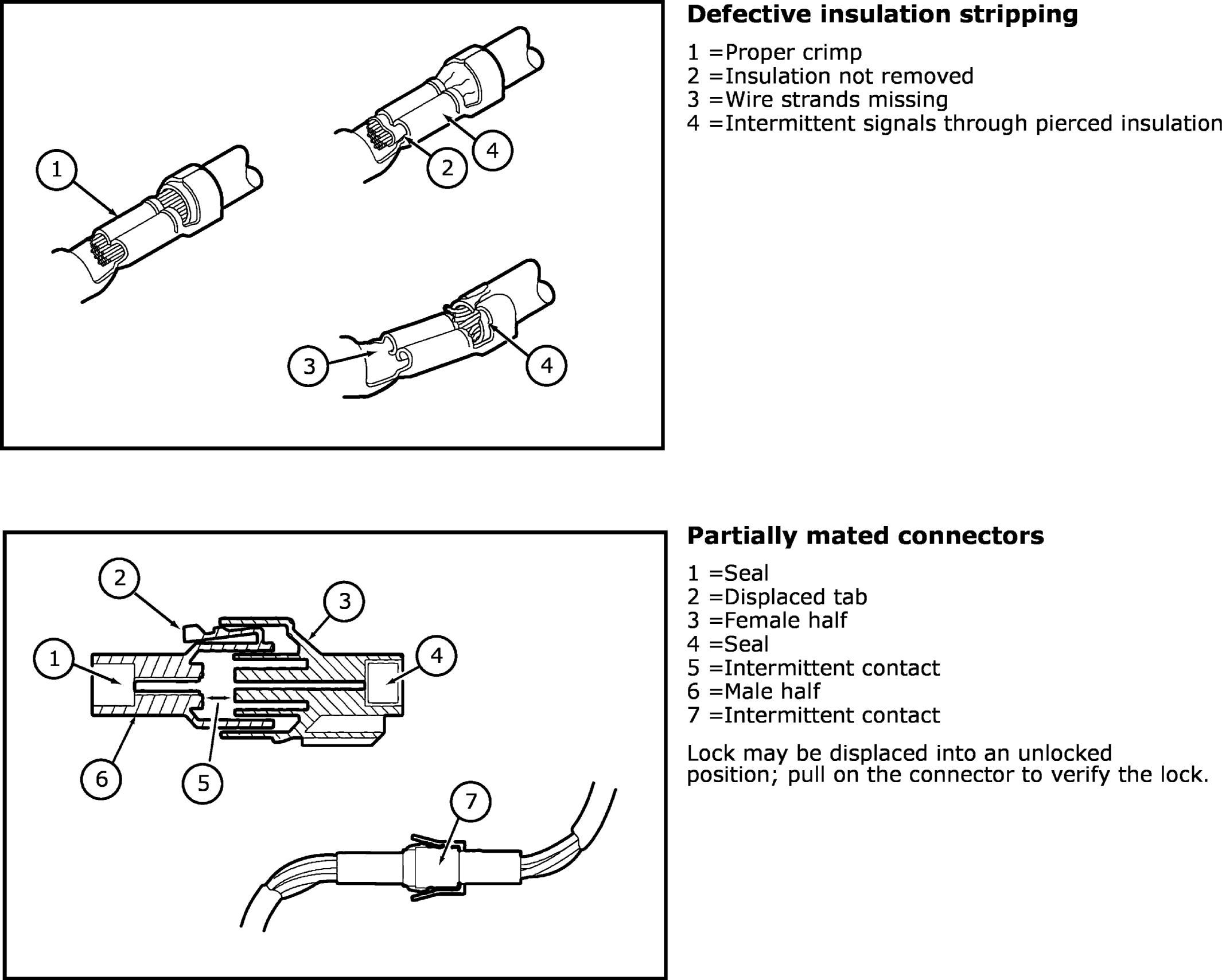

GFDW66824Courtesy of FORD MOTOR COMPANY

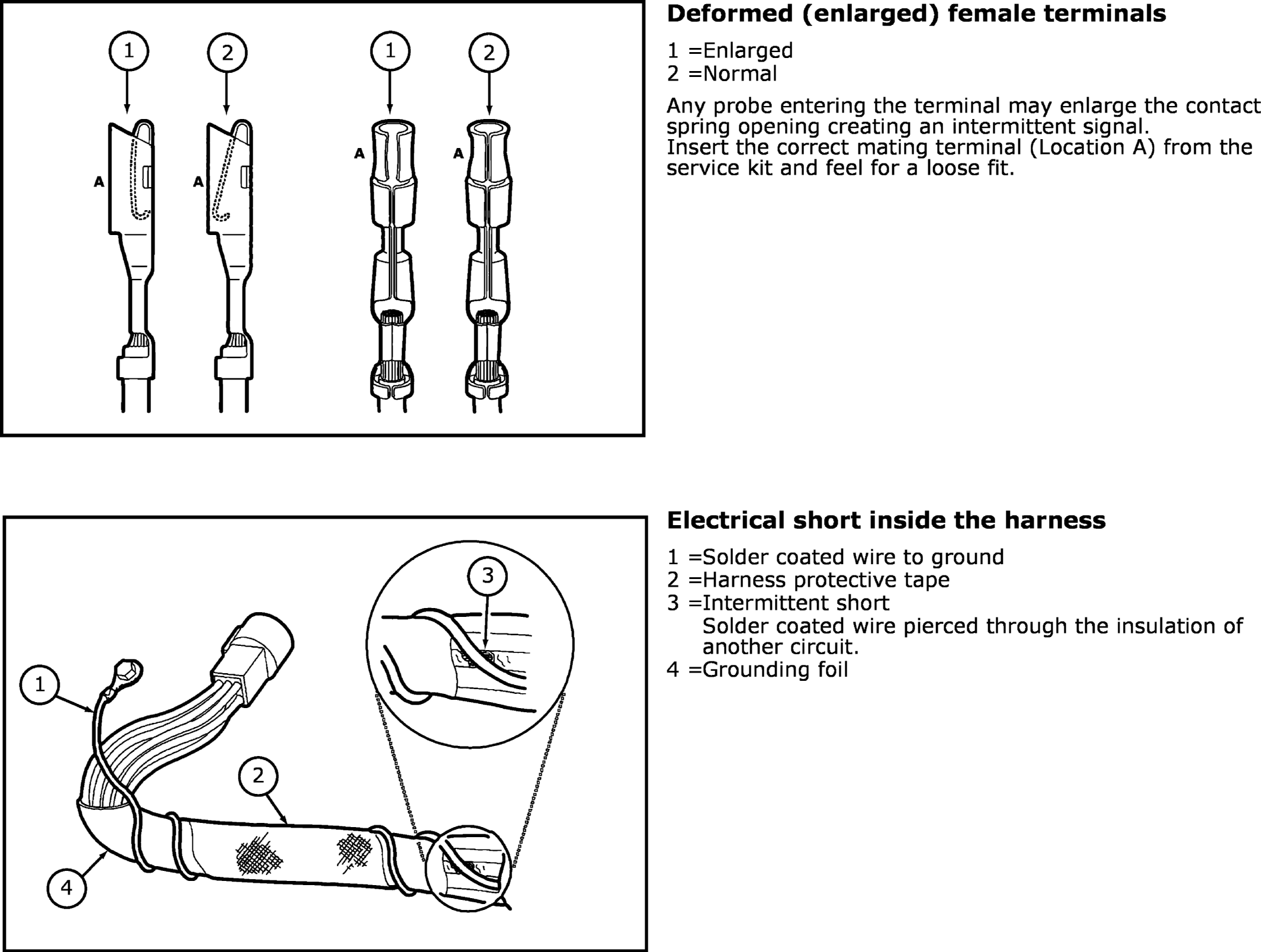

GFDW66825Courtesy of FORD MOTOR COMPANY

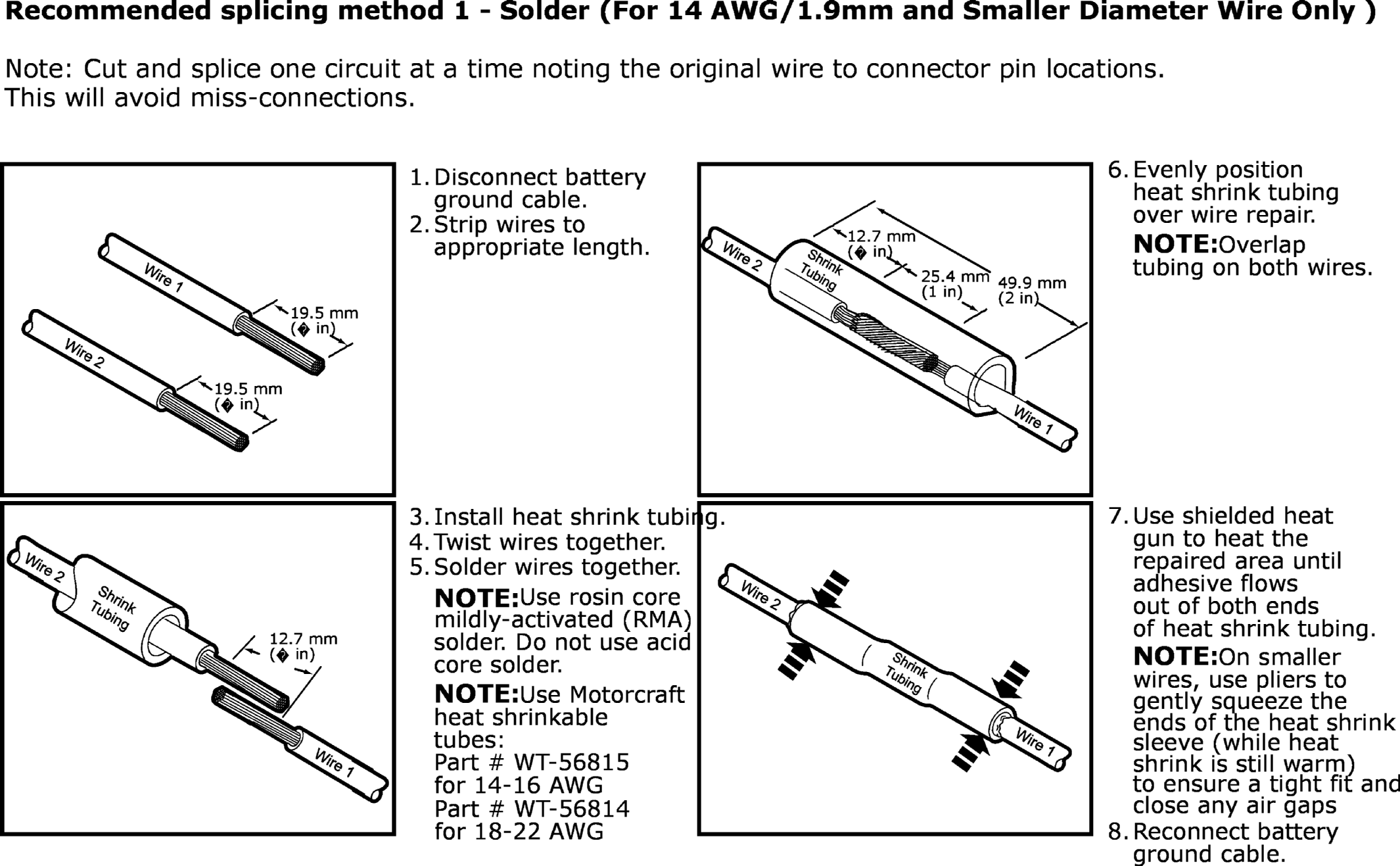

GFDW66826Courtesy of FORD MOTOR COMPANY

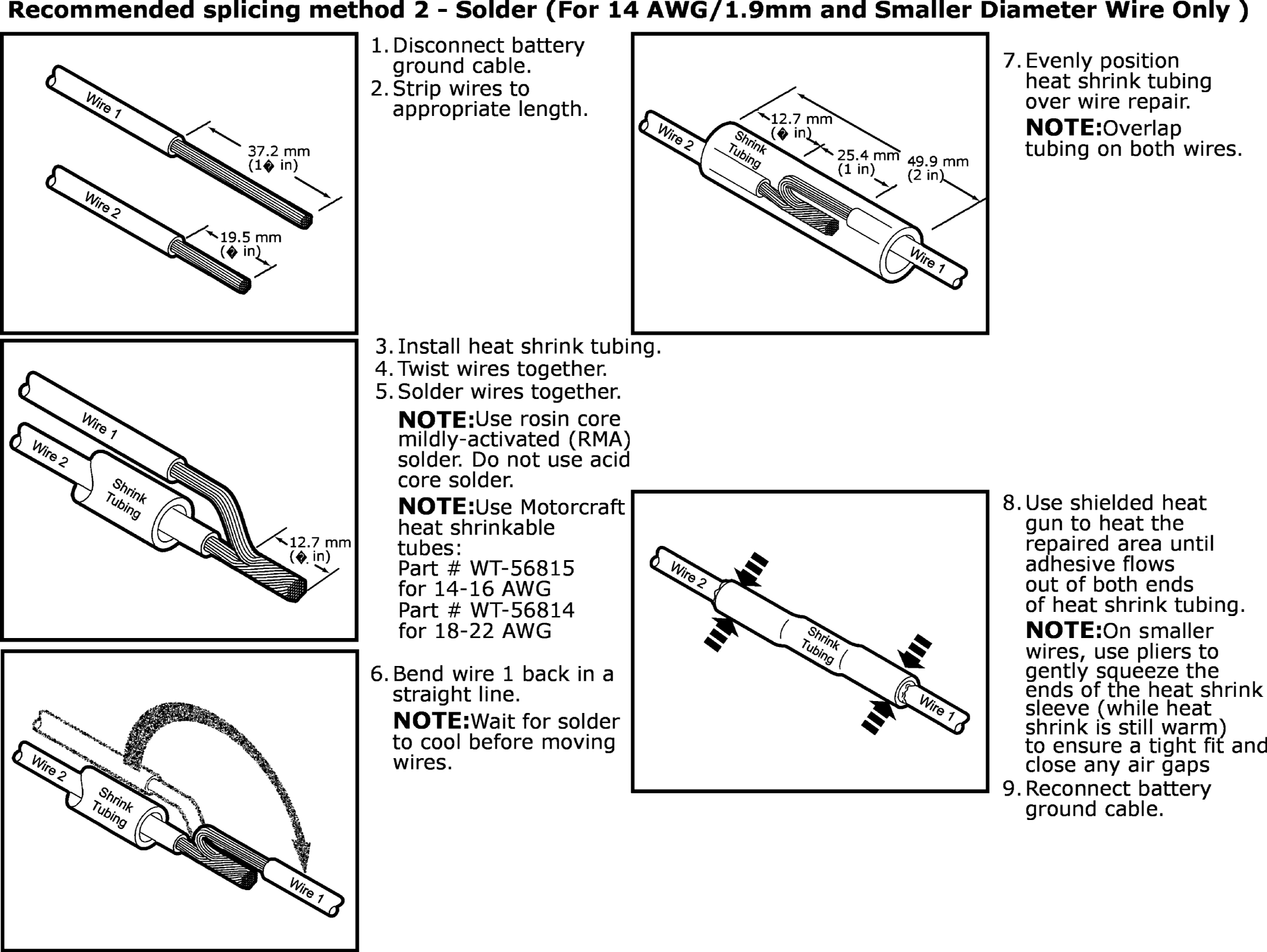

GFDW66827Courtesy of FORD MOTOR COMPANY

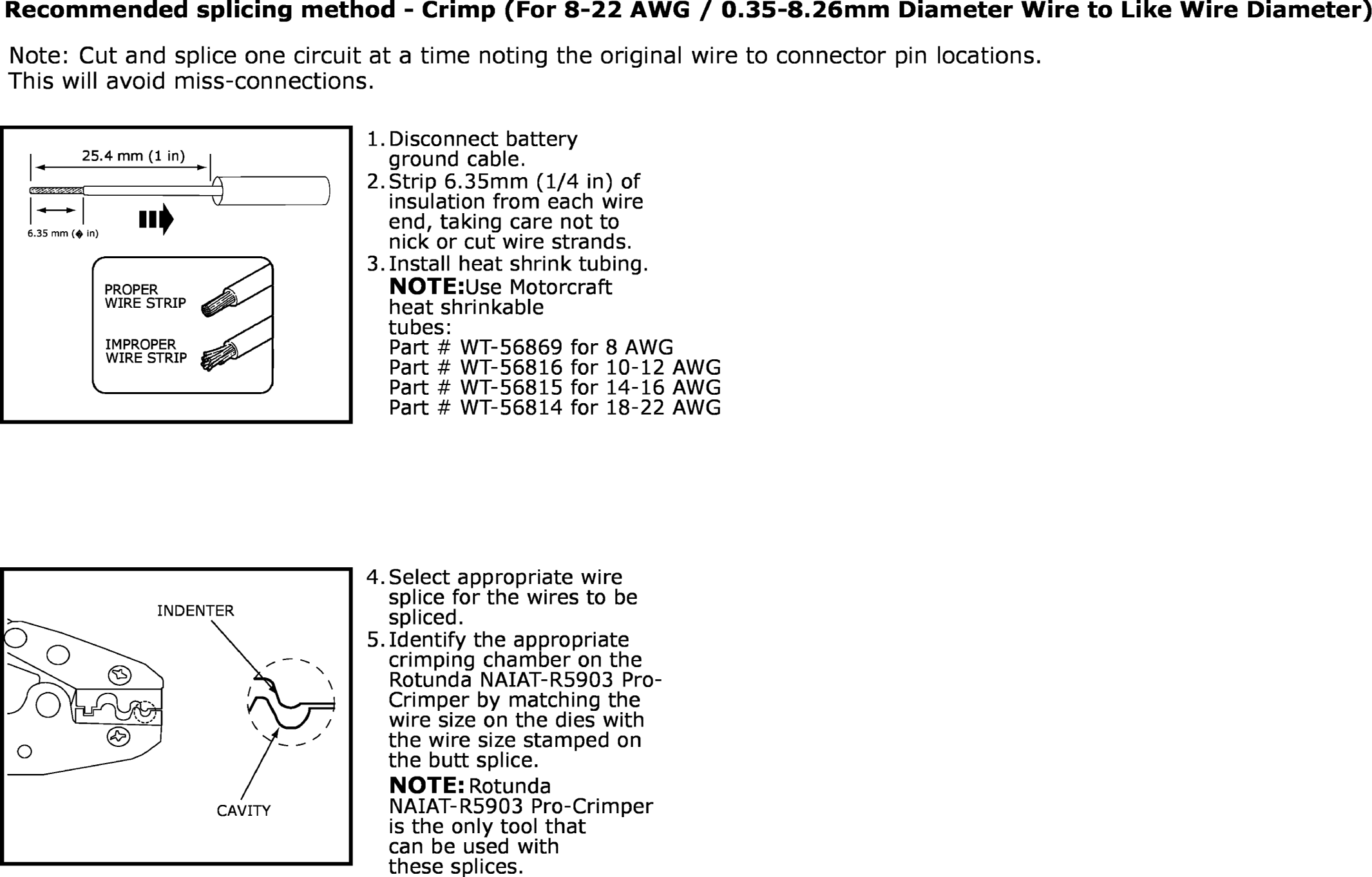

GFDW66828Courtesy of FORD MOTOR COMPANY

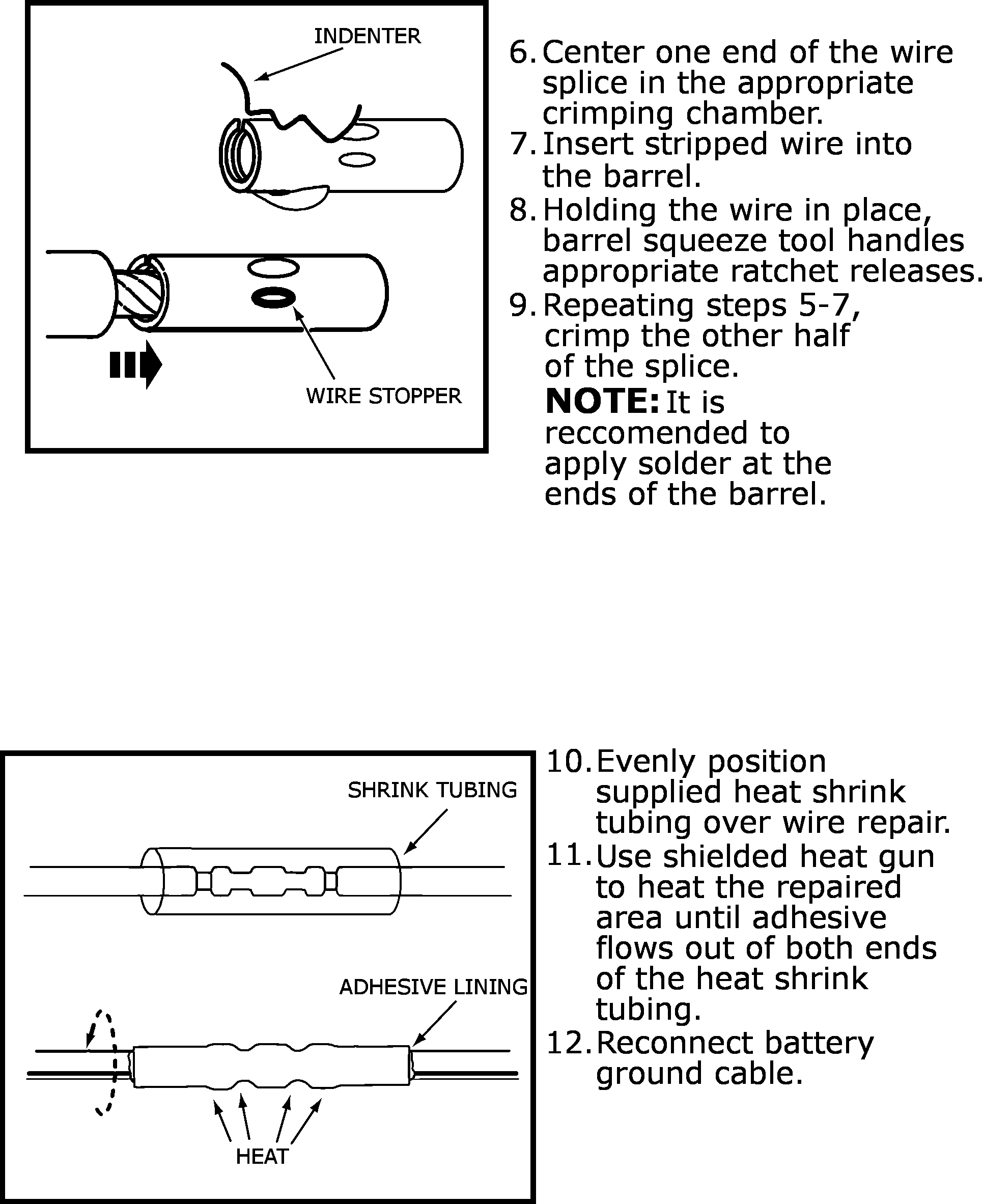

GFDW66829Courtesy of FORD MOTOR COMPANY

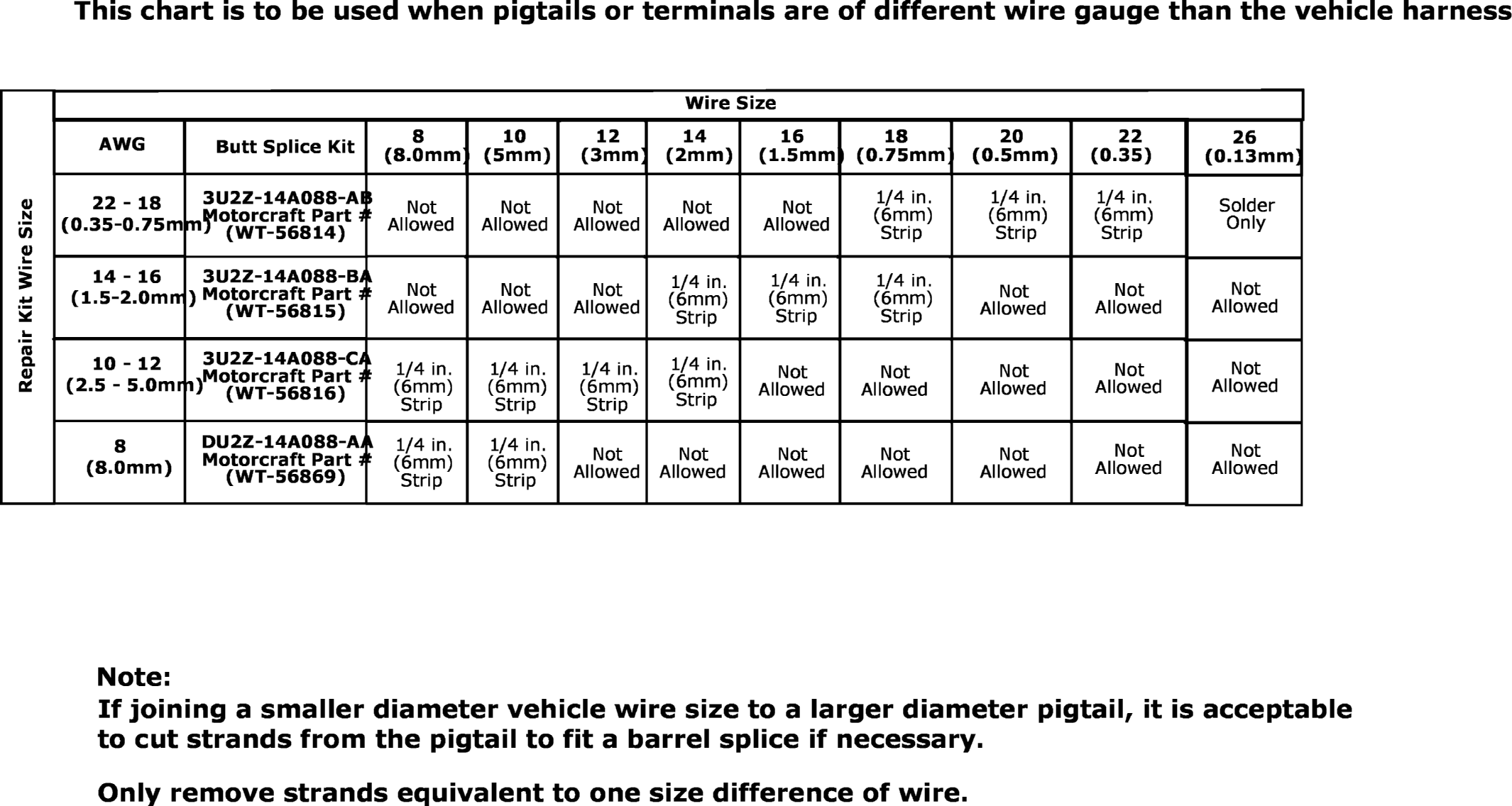

GFDW66830Courtesy of FORD MOTOR COMPANY
