Front Seat Control Switch: Removal
NOTE:
Driver seat shown, passenger seat similar.
- 1.WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
Turn the ignition OFF and wait at least one minute.
- 3.
- 1.

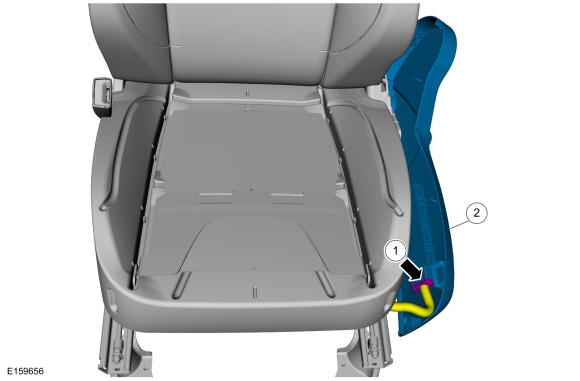

Lift up on the rear of the side shield and pull outward.
- 2.

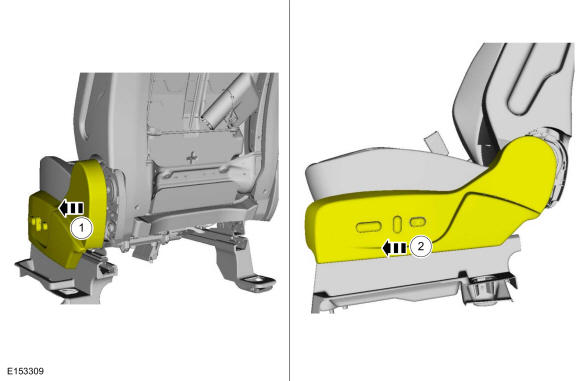

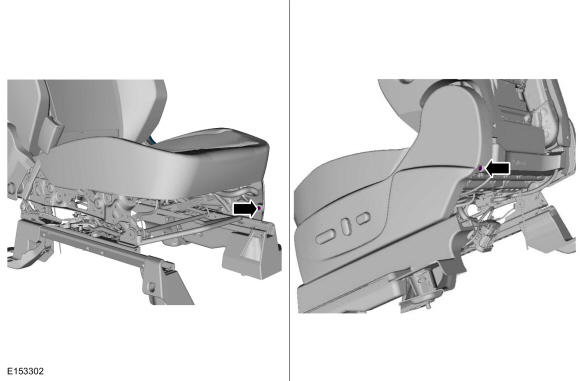

Push the side shield forward and separate it from the seat track.
- 1.
- 5.
- 1.

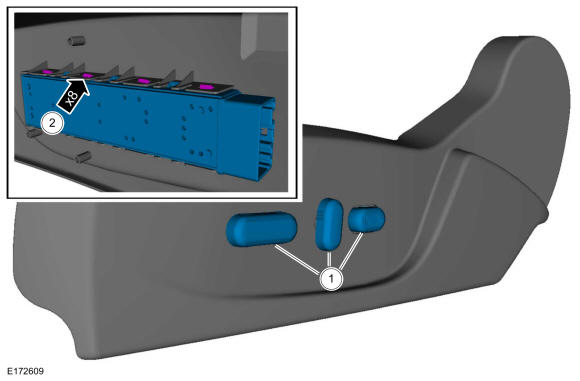

Remove the seat control switch knob(s).
- 2.
Release the retainers and remove the seat control switch.
