Differential Fluid Level Check

Materials

Check

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

• 2.

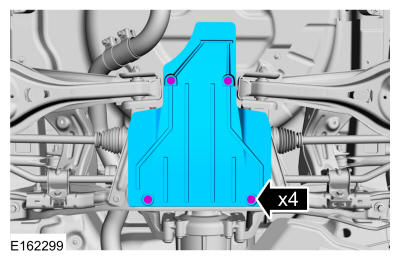

  Remove the retainers and the air deflector.

Courtesy of FORD MOTOR COMPANY

• 3.

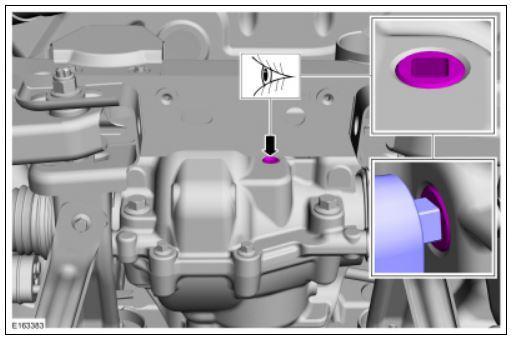

  Remove the filler plug.

Courtesy of FORD MOTOR COMPANY

• 4.

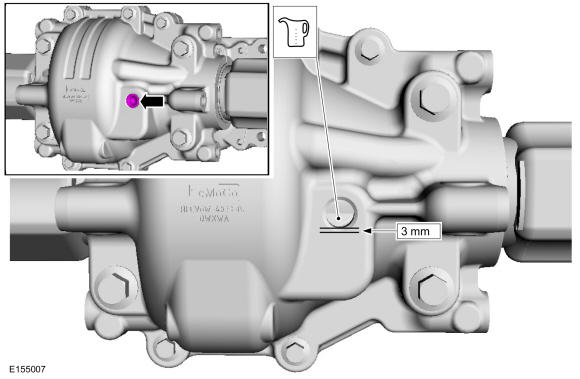

  If empty, fill the rear axle with 0.55L (1.15 pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.

  Material

  : Motorcraft ® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)

  Torque

  : 21 lb.ft (29 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

  Install the air deflector and retainers.

Courtesy of FORD MOTOR COMPANY

• 6.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview
