Front Strut and Spring Assembly: Assembly

1.

To assemble, reverse the disassembly procedure.

2.

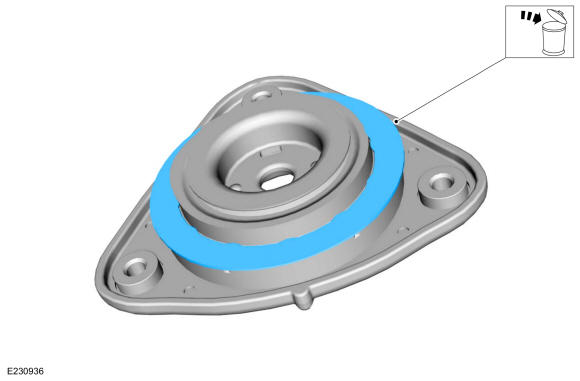

If equipped. Discard the metal reinforcement ring on the spring upper mount bearing plate.

GFD48058

Courtesy of FORD MOTOR COMPANY

3.

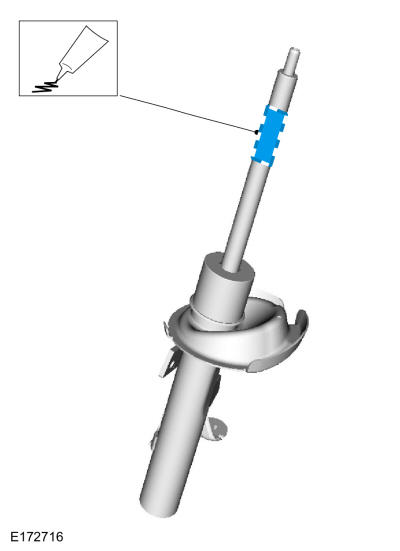

NOTE: Make sure the grease is applied completely around the strut shaft. Do not allow grease to make contact with the strut rod threads.

Liberally apply the specified grease to the length of the strut shaft that makes contact with the jounce bumper plus an additional 15 mm (0.5 in).

Material

Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD48059

Courtesy of FORD MOTOR COMPANY

4.

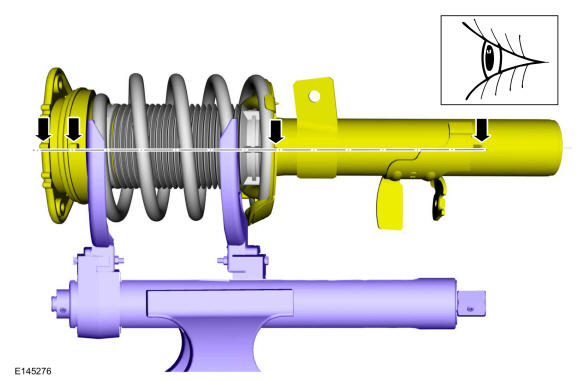

NOTE: Make sure the components are correctly aligned during assembly.

Align the installation marks.

GFD48060

Courtesy of FORD MOTOR COMPANY

5.

Front strut and spring disassembly and assembly procedure.
