Mode Select Switch (MSS): Removal

  1. 1.

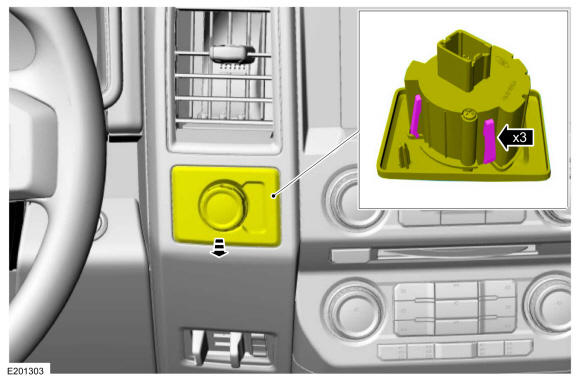

    Carefully pry the MSS from the instrument panel.
GFD41938Courtesy of FORD MOTOR COMPANY

  1. 2.

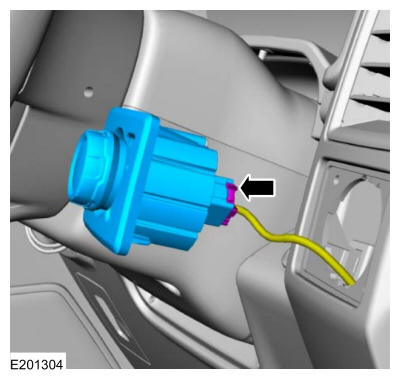

    Disconnect the MSS harness connector and remove the switch.
GFD41939Courtesy of FORD MOTOR COMPANY
