Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

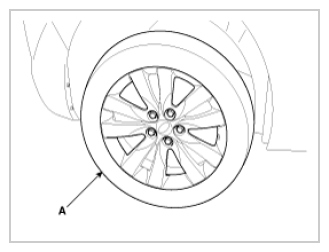

Fig 1: Identifying Front Wheel And Tire From Front Hub
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
Remove the wheel speed sensor (A) bracket from the front strut assembly by loosening the mounting bolts (B).

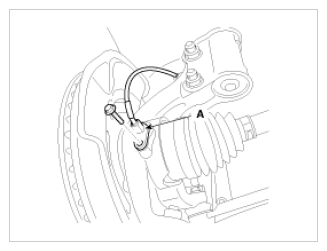

Fig 2: Identifying Wheel Speed Sensor
Courtesy of HYUNDAI MOTOR AMERICA

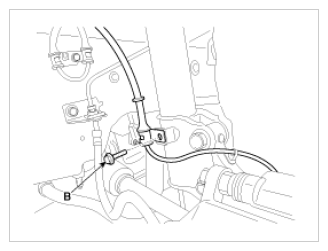

Fig 3: Identifying Wheel Speed Sensor Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stabilizer link (B) from the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3~86.8 lb-ft)

Fig 4: Identifying Stabilizer Link From Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl top cover (A).
(Refer to "FRONT DISC BRAKE ")

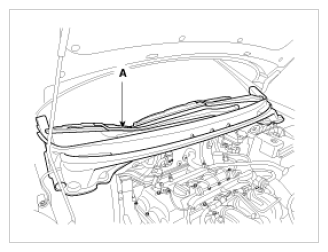

Fig 5: Identifying Cowl Top Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front strut assembly and then loosen the strut mounting nuts (A).
Tightening torque:

44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5~43.4 lb-ft)

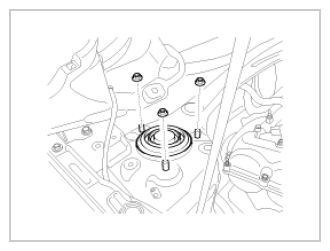

Fig 6: Identifying Strut Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front strut assembly (A) from the knuckle by loosening the bolt & nut.
Tightening torque:

137.3 ~ 156.9 N.m (14.0 ~ 16.0 kgf.m, 101.3 ~ 115.7 lb-ft)

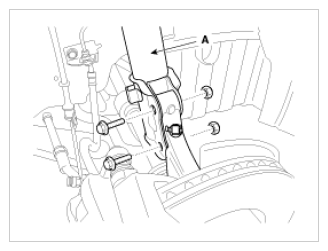

Fig 7: Identifying Front Strut Assembly From Knuckle
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
