Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  2. Remove the front wheel and tire (A) from front hub.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

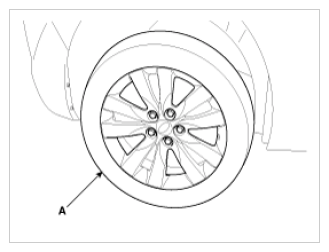

    Fig 1: Identifying Front Wheel And Tire From Front Hub
    G09886397Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
  3. Disconnect the stabilizer link (B) from the front strut assembly (A) after loosening the nut.

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

    Fig 2: Identifying Stabilizer Link From Front Strut Assembly
    G09886398Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the split pin and nut and then disconnect the tie-rod end (A) from the front knuckle.

    Tightening torque:

    23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6 lb-ft)

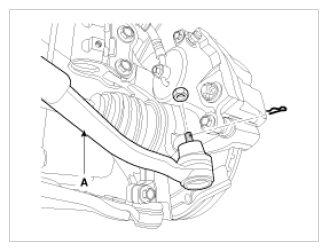

    Fig 3: Identifying Tie-Rod End From Front Knuckle
    G09886399Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt & nut and then remove the lower arm (A).

    Tightening torque:

    78.5 ~ 88.3 N.m (8.0 ~ 9.0 kgf.m, 57.9 ~ 65.1 lb-ft)

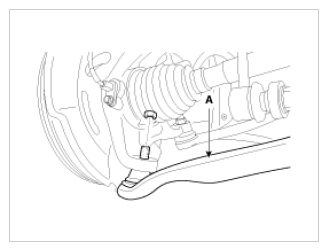

    Fig 4: Identifying Lower Arm
    G09886400Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the bolt and then disconnect the universal joint assembly (A) from the pinion of the steering gear box.

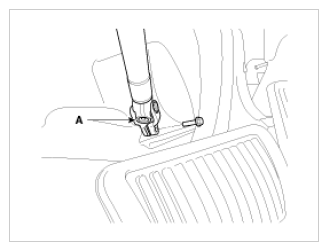

    Fig 5: Identifying Universal Joint Assembly From Pinion Of Steering Gear Box
    G09886401Courtesy of HYUNDAI MOTOR AMERICA
    1. Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    2. Must be replaced with new bolt when assembling.

      (SEAL-LOCK has been processed)

  7. Loosen the bolt & nut and then separate the roll rod stopper (A).

    Tightening torque:

    107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

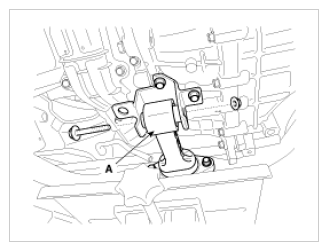

    Fig 6: Identifying Roll Rod Stopper Bolt, Nut
    G09886402Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the muffler rubber hanger (A).

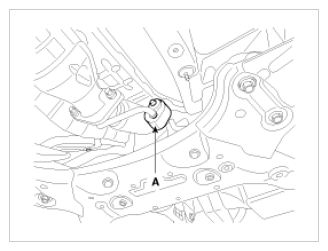

    Fig 7: Identifying Muffler Rubber Hanger
    G09886403Courtesy of HYUNDAI MOTOR AMERICA
  9. Loosen the bolts & nuts and then remove the sub frame (A).

    Tightening torque

    Sub frame mounting bolts & nuts:

    156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

    Sub frame stay mounting bolt

    44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

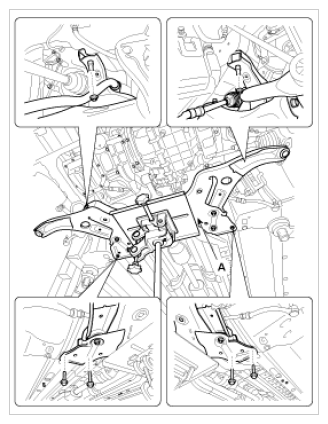

    Fig 8: Identifying Sub Frame Bolts And Nuts
    G09886404Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the front lower arm.

    (Refer to Front Suspension System - "FRONT LOWER ARM ")

  11. Remove the front stabilizer bar.

    (Refer to Front Suspension System - "FRONT STABILIZER BAR ")

  12. Remove the steering gearbox.

    (Refer to "STEERING GEARBOX ")

  13. Installation is the reverse of removal.
  14. Check the wheel Alignment.

    (Refer to "ALIGNMENT ")
