Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to "FRONT BUMPER COVER ")

  3. Disconnect the ambient temperature sensor connector (A).

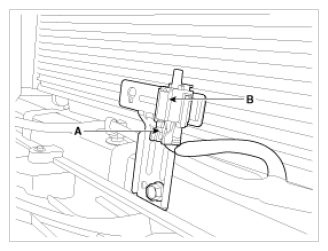

    Fig 1: Identifying Ambient Temperature Sensor And Connector
    G09887911Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ambient temperature sensor (B).
  5. Install in the reverse order of removal.
