Install the intake manifold (A) with a new gasket (B).
Tightening torque:

18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

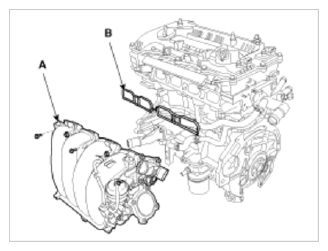

Fig 1: Identifying Intake Manifold And Gasket
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

Fig 2: Intake Manifold Bolts Tightening Sequence
Courtesy of HYUNDAI MOTOR AMERICA
Install the intake manifold stay (A).
Tightening torque:

18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

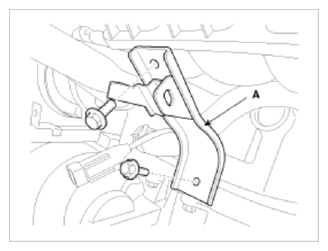

Fig 3: Identifying Intake Manifold Stay
Courtesy of HYUNDAI MOTOR AMERICA
Install the other parts reverse order of removal.
