Power Transfer Unit
- 1.

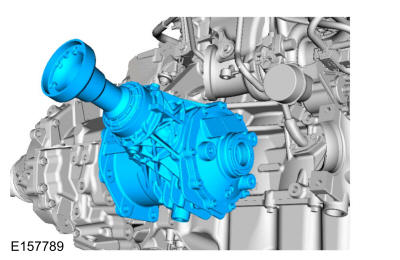

Install the PTU.
- 2.

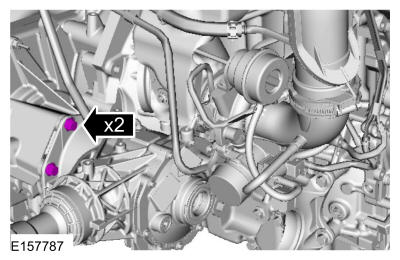

Install the new top PTU bolts.Torque
: 59 lb.ft (80 Nm)
- 3.

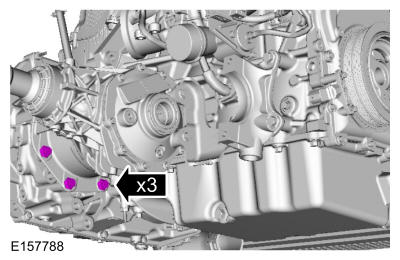

Install the new bottom PTU bolts.Torque
: 59 lb.ft (80 Nm)
- 4.

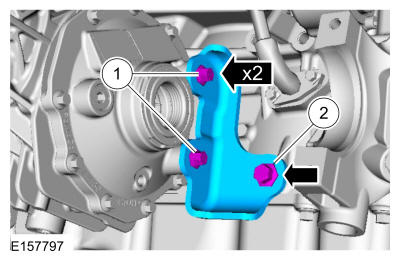

Install the PTU support bracket and the support bracket bolts.Torque:
1: 18 lb.ft (25 Nm)
2: 46 lb.ft (63 Nm)
- 5.

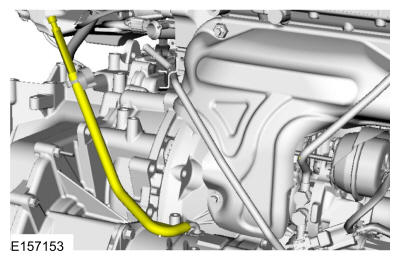

Connect the PTU vent hose.
- 6.
Install the front halfshaft RH. REFER to: FRONT HALFSHAFT RH .
- 7.

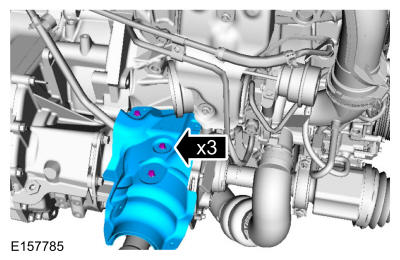

Install the PTU heat shield and heat shield bolts.Torque
: 97 lb.in (11 Nm)
- 8.
Install the catalytic converter. REFER to: CATALYTIC CONVERTER - 1.5L EcoBoost (118kW/160PS) - I4, CATALYTIC CONVERTER - 2.0L EcoBoost (184kW/250PS) - MI4 or CATALYTIC CONVERTER - 2.5L Duratec (125kW/170PS).
- 9.

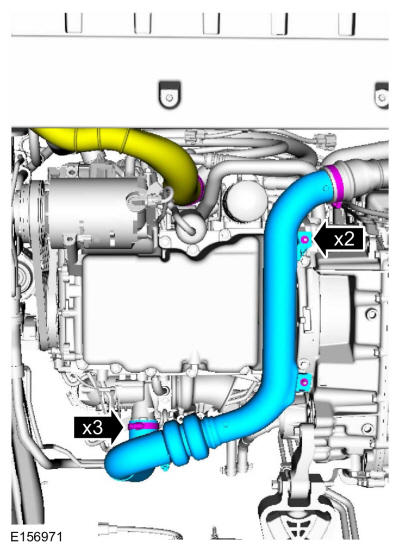

- Install the CAC inlet tube and the clamps and retainers.
- Install the CAC outlet tube and clamp.
- 10.

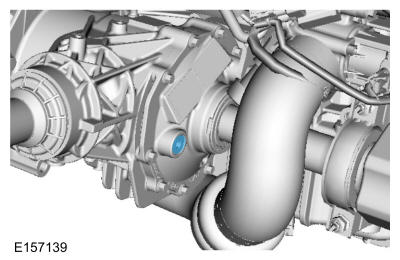

Remove the PTU filler plug.
- 11.
Fill the PTU with clean fluid, level with the fill plug opening.
- 12.
Install the PTU fill plug.Torque
: 33 lb.ft (45 Nm)
- 13.
Install the rear driveshaft. REFER to: REAR DRIVESHAFT .
- 14.

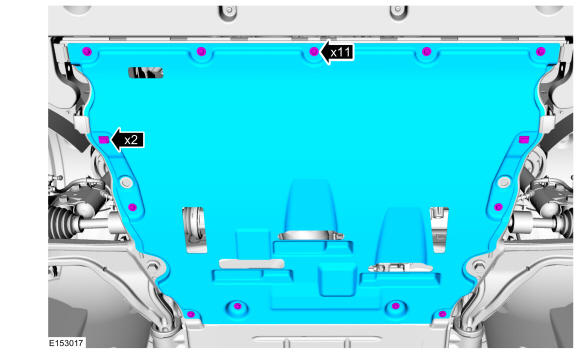

If equipped. Install the underbody shield.
