Multi-Contour Seat Module (SCMG/SCMH): Removal

NOTE: Driver seat shown, passenger seat similar.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current driver seat module [SCMG] or passenger seat module [SCMH] installed. If the current SCMG or SCMH does respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair not

Using a diagnostic scan tool, begin the PMI process for the SCMG or SCMH following the on-screen instructions.

2.

Remove the front seat. Refer to Seat - Front .

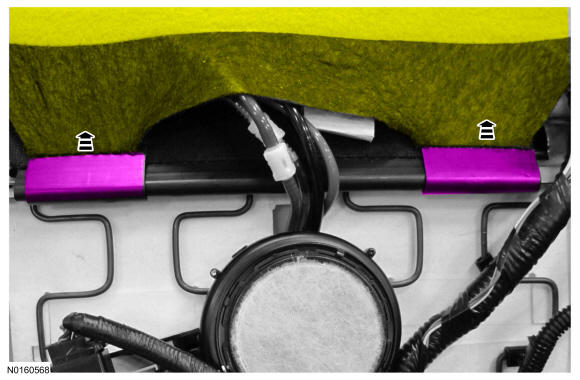

3.

Detach the carpet flap toe-kick from under the seat.

GFD112549

Courtesy of FORD MOTOR COMPANY

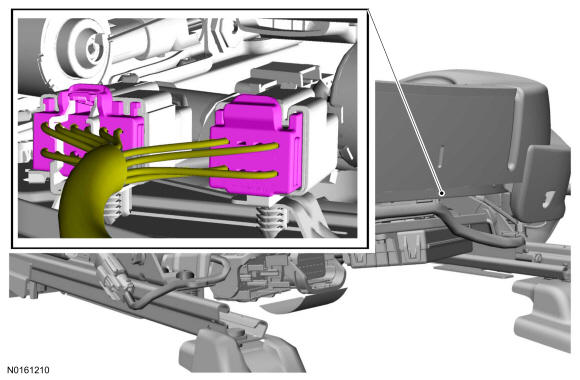

4.

Disconnect the seat control switch electrical connectors from under the seat.

GFD112516

Courtesy of FORD MOTOR COMPANY

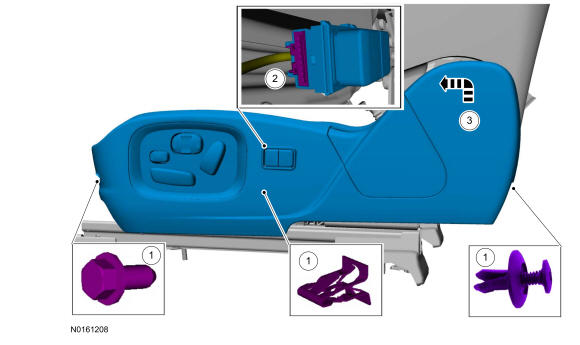

5.

Remove the cushion side shield from the seat cushion.
1. 1.

  Remove the fasteners.
1. 2.

  Disconnect the memory set switch electrical connector.
1. 3.

  Lift and slide forward to remove the cushion side shield.

GFD112517

Courtesy of FORD MOTOR COMPANY

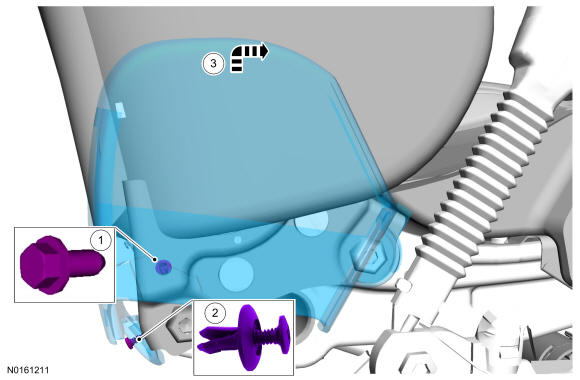

6.

Remove the inboard side shield from the cushion.
1. 1.

  Remove the screw.
1. 2.

  Remove the scrivet.
1. 3.

  Lift and slide the side shield forward to release.

GFD112511

Courtesy of FORD MOTOR COMPANY

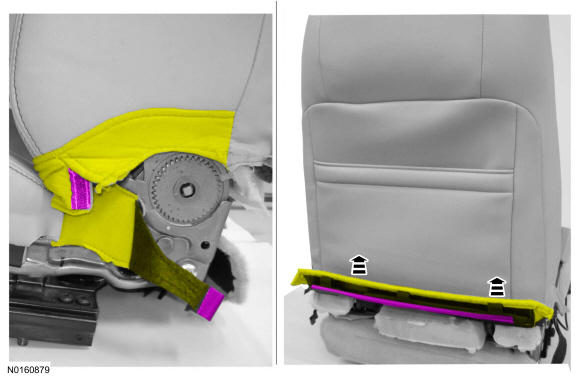

7.

On both sides, release the hook-and-loop strips and clips. Detach the seat backrest cover lower J-clip.

GFD112550

Courtesy of FORD MOTOR COMPANY

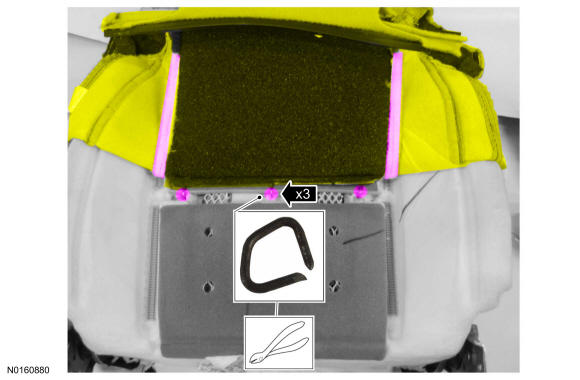

8.

NOTE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

Invert the backrest cover. Separate the backrest cover from the hook-and-loop strips. Using side cutters, remove the first row of hog rings.

GFD112551

Courtesy of FORD MOTOR COMPANY

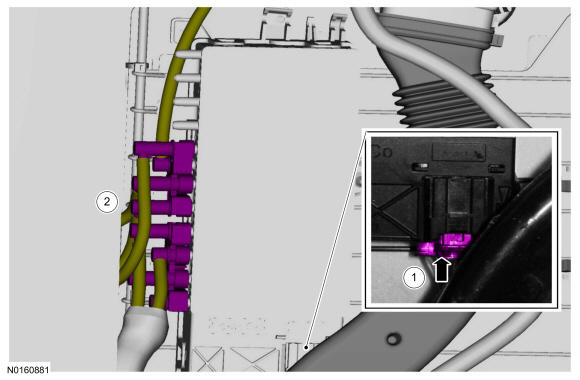

9.

Disconnect the multi-contour seat module.
1. 1.

  Disconnect the electrical connector
1. 2.

  Disconnect the hoses from the Multi-Contour Seat Module.

GFD112552

Courtesy of FORD MOTOR COMPANY

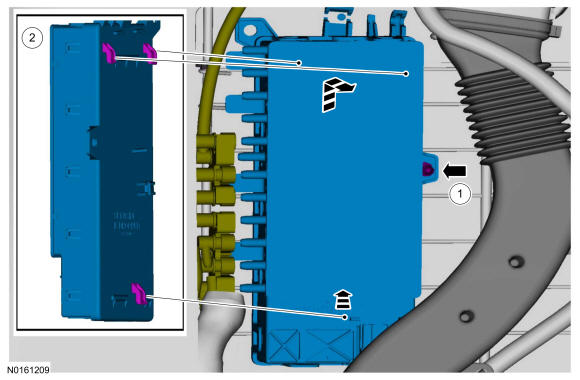

10.

Remove the multi-contour seat module.
1. 1.

  Release the module from the retaining fastener.
1. 2.

  Lift the module and release the hooks attaching it to the lumbar assembly.

GFD112553

Courtesy of FORD MOTOR COMPANY
