Transaxle Case: Assembly

  1. 1.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD83962Courtesy of FORD MOTOR COMPANY

  1. 2.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD83963Courtesy of FORD MOTOR COMPANY

  1. 3.

    Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.
GFD83964Courtesy of FORD MOTOR COMPANY

  1. 4.

    Special Tool(s): Bearing Cup Installer 307-576General Equipment: Shop Press
GFD83965Courtesy of FORD MOTOR COMPANY

  1. 5.

    Special Tools(s): Bearing Cup Installer 307-689
GFD83966Courtesy of FORD MOTOR COMPANY

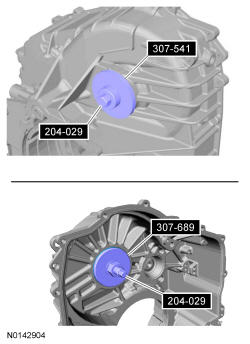

  1. 6.

    Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
GFD83967Courtesy of FORD MOTOR COMPANY
GFD83961Courtesy of FORD MOTOR COMPANY
GFD83960Courtesy of FORD MOTOR COMPANY
GFD83959Courtesy of FORD MOTOR COMPANY

  1. 10.

    • Tighten to 12 Nm (106 lb-in).
GFD83958Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to Torque Converter Housing .
