Rear Climate Control Assembly
>>
Removal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rear Climate Control Assembly: Removal
1.

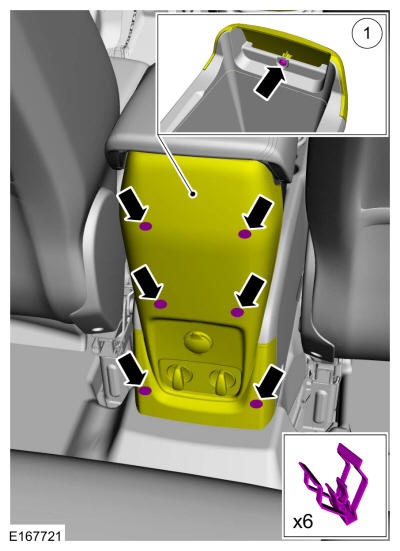

Release the clips and remove the rear floor console finish panel.
1.
Remove the retainer.
Courtesy of FORD MOTOR COMPANY
2.

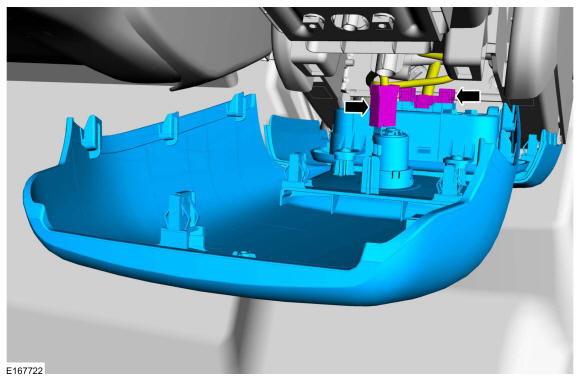

Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY
3.

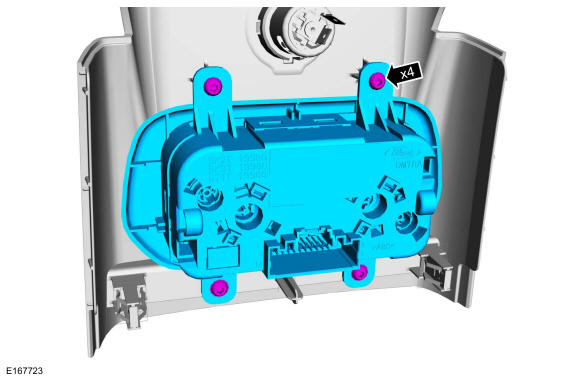

Remove the retainers and the RHVAC control module.
Courtesy of FORD MOTOR COMPANY
