OEM Electrical Wiring Diagram Introduction: Introduction

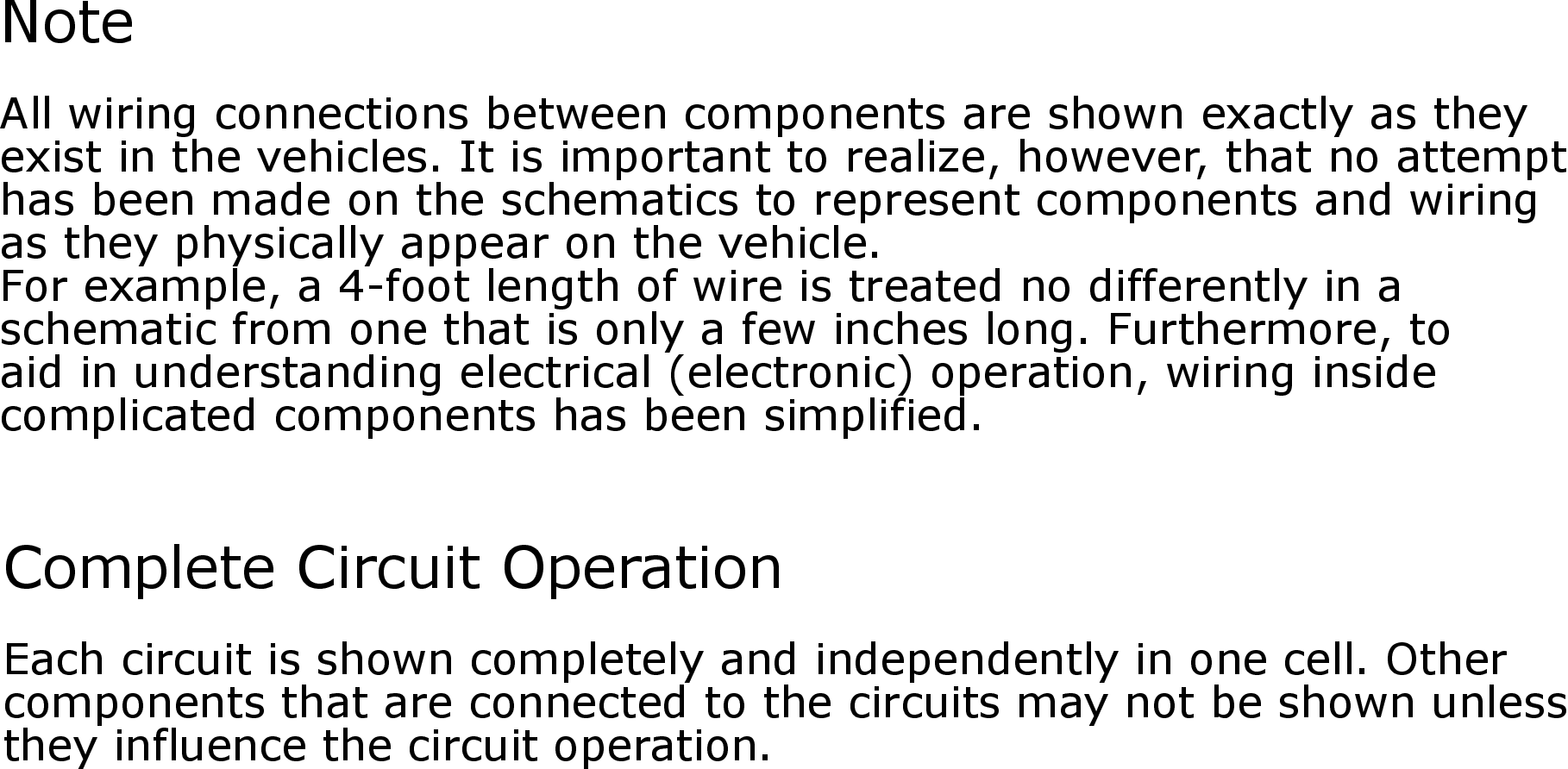

GFDW63426Courtesy of FORD MOTOR COMPANY

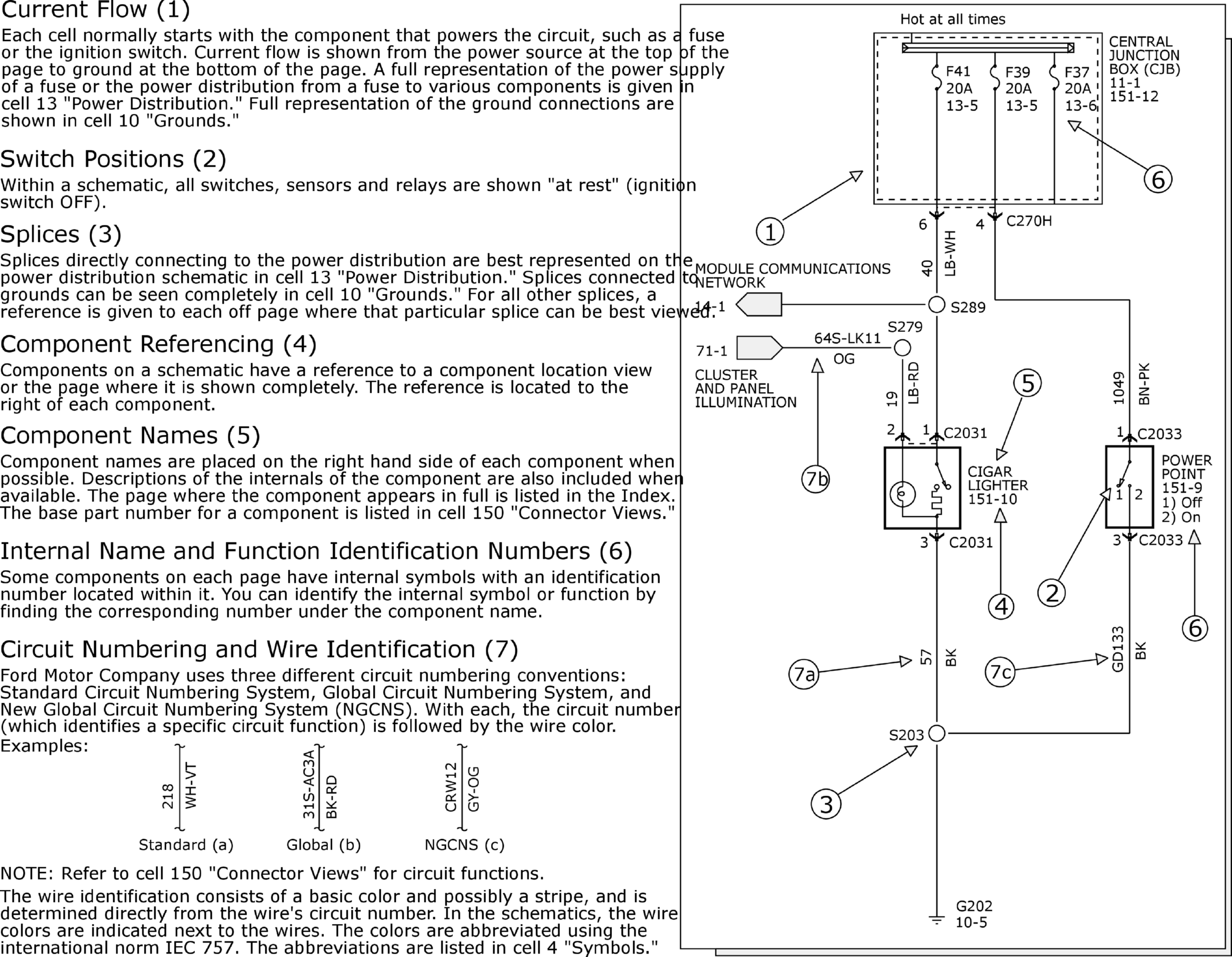

GFDW63427Courtesy of FORD MOTOR COMPANY

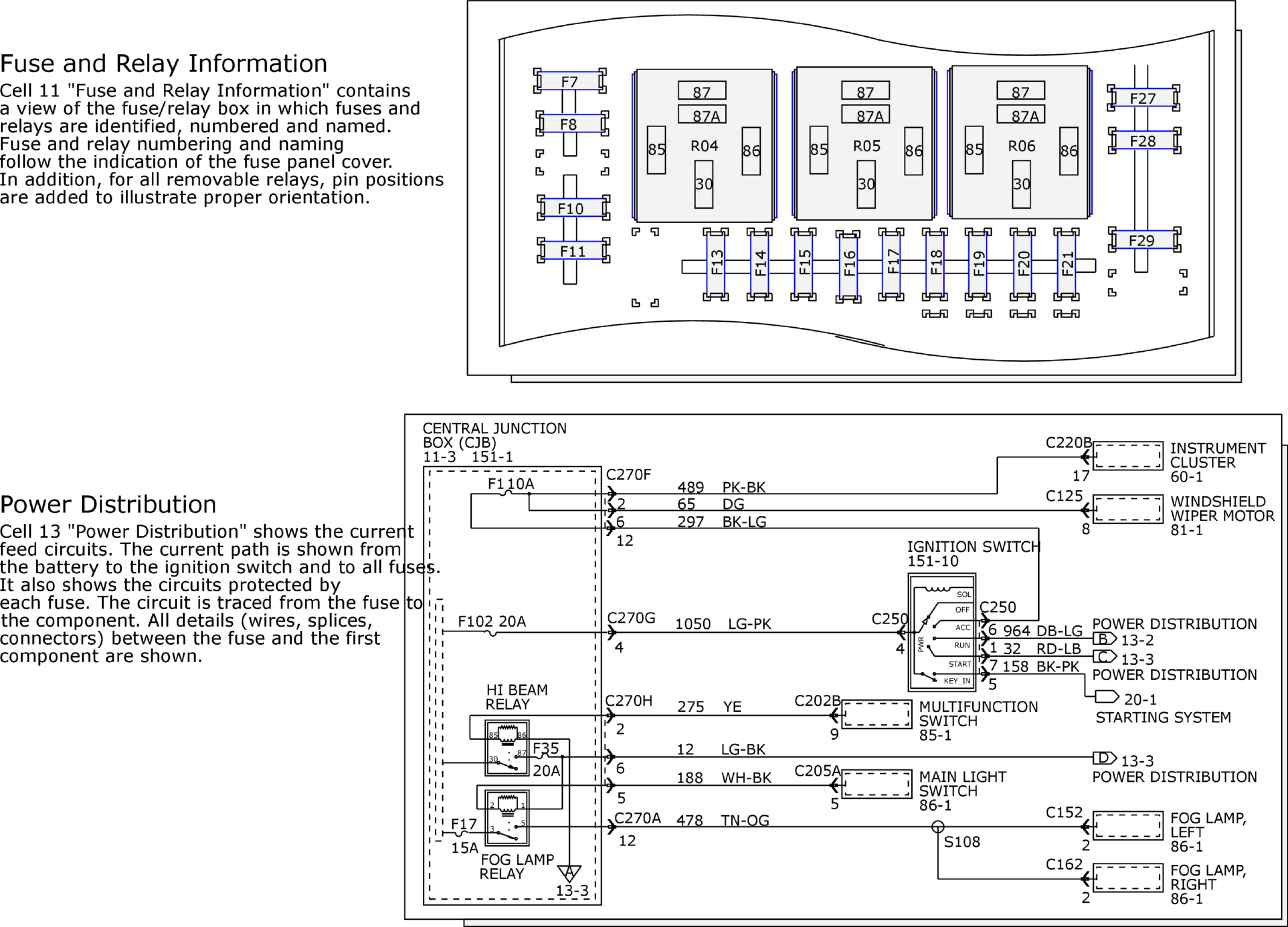

GFDW63428Courtesy of FORD MOTOR COMPANY

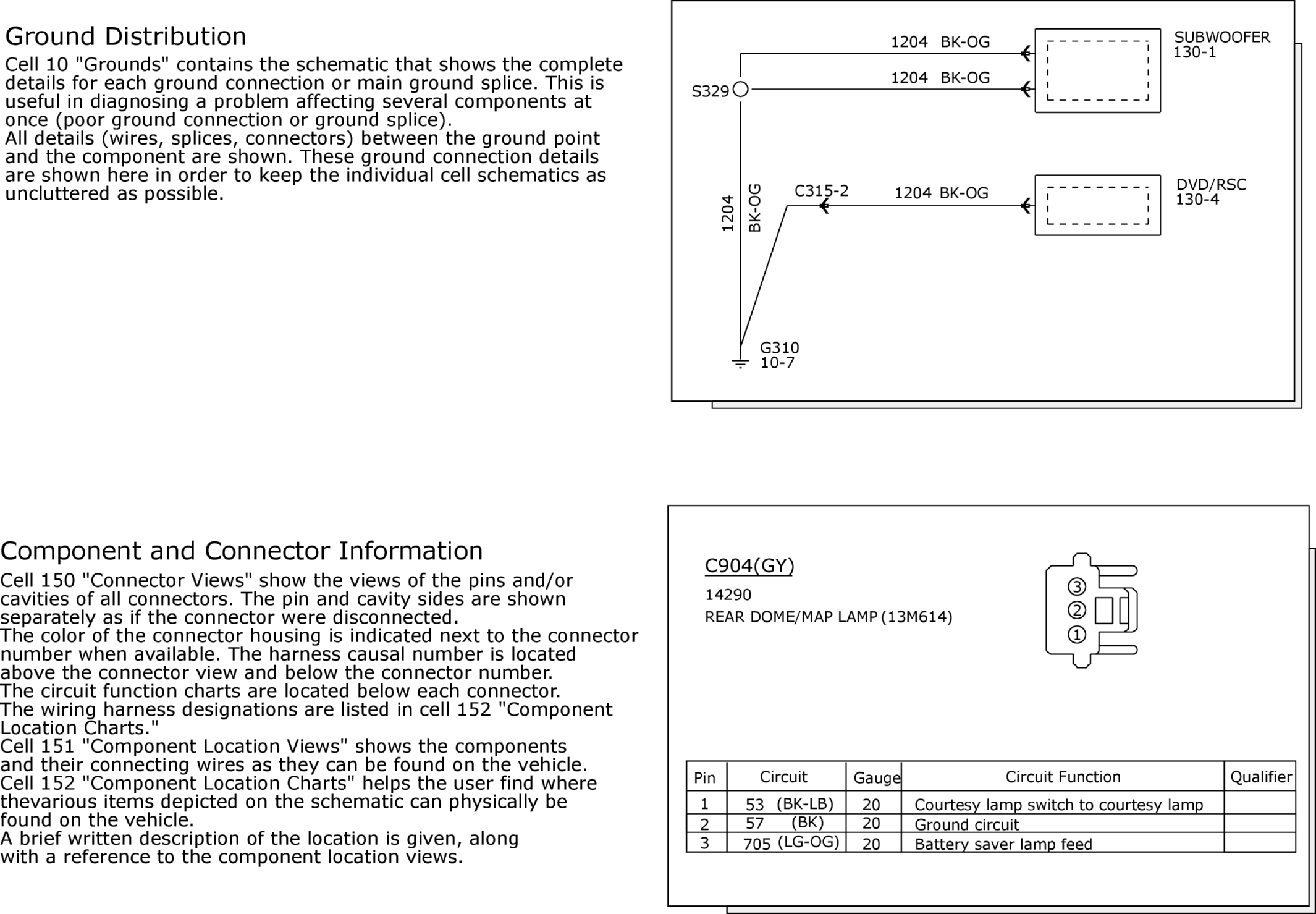

GFDW63429Courtesy of FORD MOTOR COMPANY

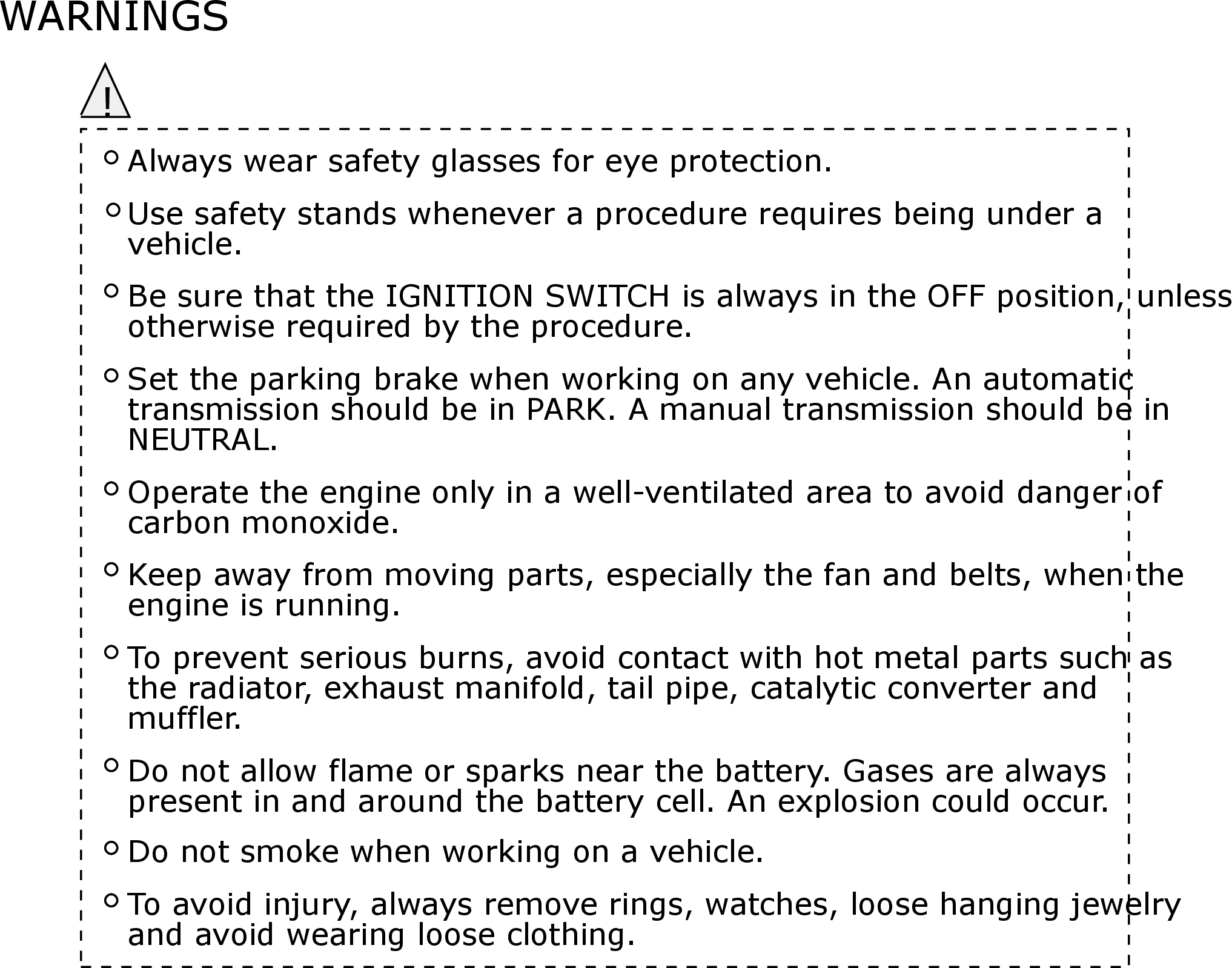

GFDW63430Courtesy of FORD MOTOR COMPANY
