Main Control Valve Body: Removal

  1. 1.

    Remove the main control cover. Refer to: Main Control Cover - 1.6L EcoBoost (110kW/150PS) - Sigma/1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Main Control Cover - 2.5L Duratec (125kW/170PS) .

  1. 2.

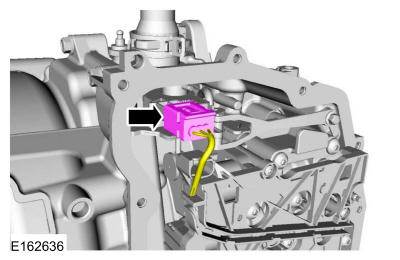

    Disconnect the TR sensor electrical connector.
GFD149766Courtesy of FORD MOTOR COMPANY

  1. 3.

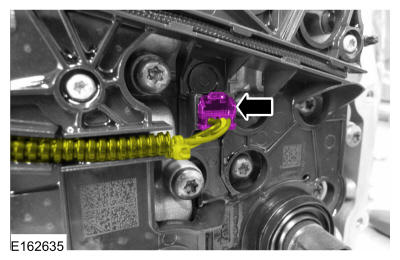

    Disconnect the OSS electrical connector.
GFD149767Courtesy of FORD MOTOR COMPANY

  1. 4.

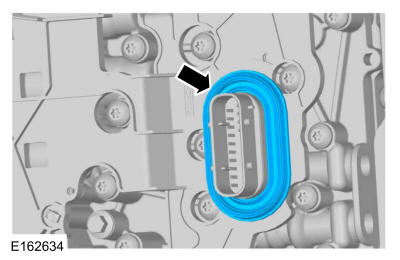

    Remove the rubber grommet.
GFD149768Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Take extra care when handling the components.
    NOTE: Note the different lengths of the bolts.

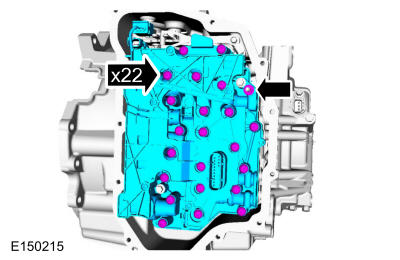

    Remove the nut, the bolts and the main control.

GFD149769Courtesy of FORD MOTOR COMPANY

  1. 6.

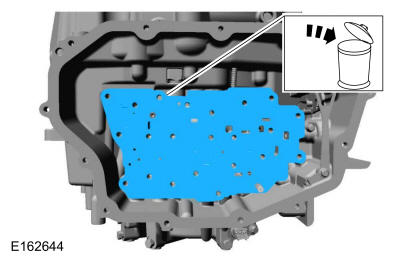

    Remove and discard the main control-to-transmission case separator plate.
GFD149770Courtesy of FORD MOTOR COMPANY

  1. 7.

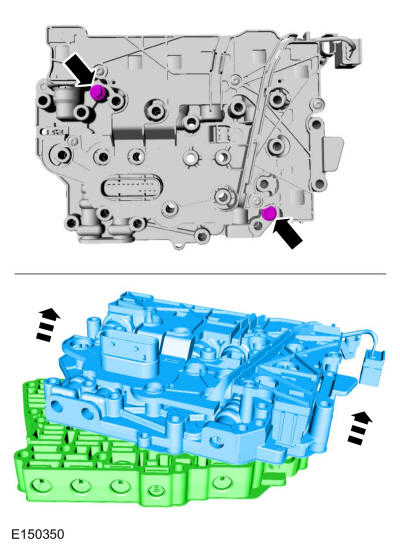

    Remove the bolts and separate the solenoid body assembly from the main control valve body.
GFD149771Courtesy of FORD MOTOR COMPANY

  1. 8.

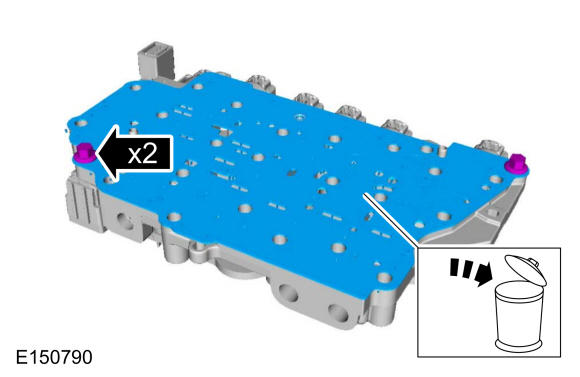

    Remove the 2 bolts and remove and discard the separator plate.
GFD149772Courtesy of FORD MOTOR COMPANY
