Power Fold Seat Module (PFSM): Removal

1.

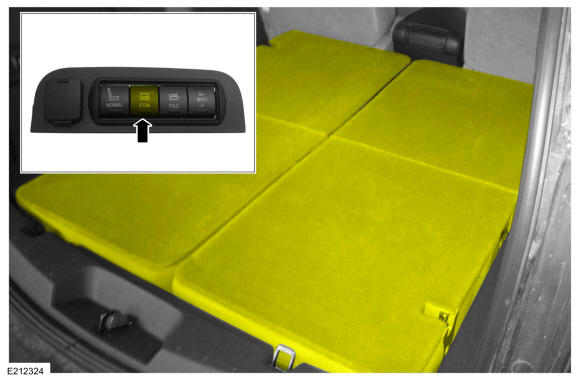

Place the third row seats in the stow position.
- If equipped with inoperative power seat. REFER to: Third Row Folding Seat Manual Override .

GFD127753

Courtesy of FORD MOTOR COMPANY

2.

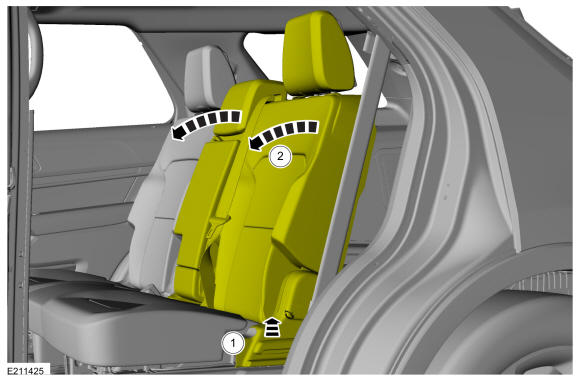

Place the seat backrest to the fold flat position.
1. 1.

  Lift the recliner handle to release the seat backrest.
1. 2.

  Fold the seat to the fold flat position.

GFD125411

Courtesy of FORD MOTOR COMPANY

3.

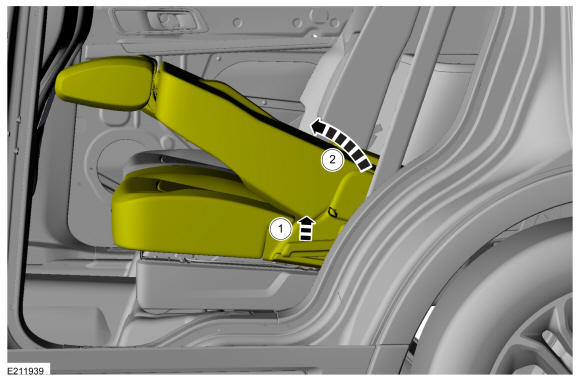

Place the seat in the easy entry position.
1. 1.

  Lift the recline handle to release the seat latches from the floor strikers.
1. 2.

  Flip the seat to the easy entry position.

GFD127754

Courtesy of FORD MOTOR COMPANY

4.

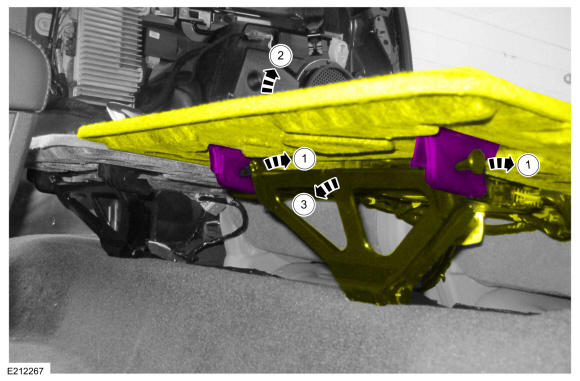

Detach the LH load floor support.
1. 1.

  Push the load floor support in to detach from the load floor.
1. 2.

  Slightly lift the load floor panel.
1. 3.

  Lower the load floor support.

GFD127755

Courtesy of FORD MOTOR COMPANY

5.

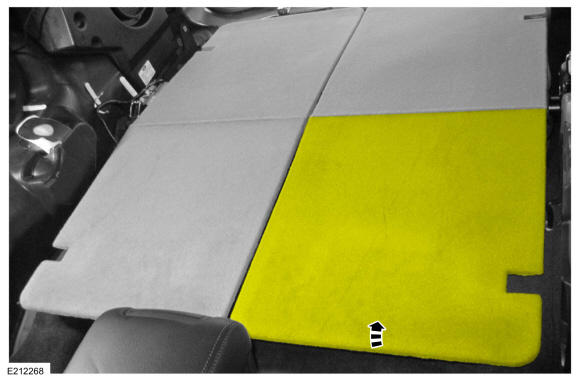

Lift the LH load floor panel.

GFD127756

Courtesy of FORD MOTOR COMPANY

6.

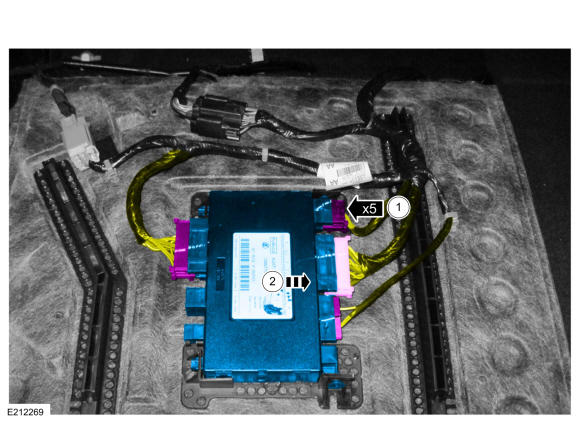

Remove the PFSM.
1. 1.

  Disconnect the electrical connectors.
1. 2.

  Slide the PFSM out of the bracket.

GFD125720

Courtesy of FORD MOTOR COMPANY
