Bearing Inspection

Inspection

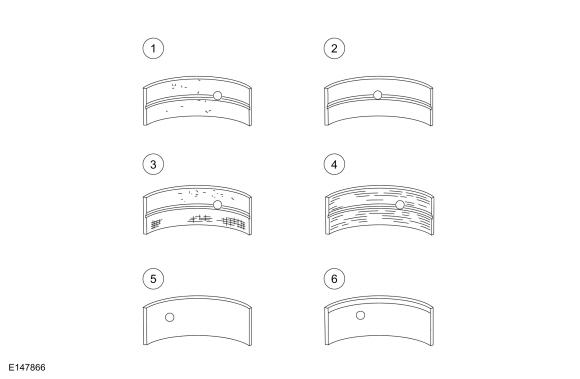

• 1.


  • Cratering - fatigue failure
  • Spot glazing - incorrect seating
  • Scratching - dirty engine oil
  • Base exposed - poor lubrication
  • Both edges worn - journal damaged
  • One edge worn - journal tapered or bearing not seated

Courtesy of FORD MOTOR COMPANY
