Front Strut and Spring Assembly: Installation

1.

To install, reverse the removal procedure.

2.

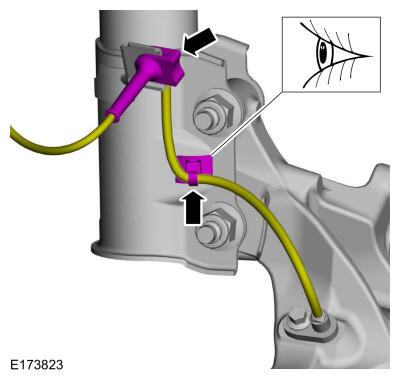

NOTE: Always install a new clip on the new strut due to different design.

Install the clip and connect the wheel speed sensor harness.

GFD138162

Courtesy of FORD MOTOR COMPANY

3.

Check and if necessary align the front end. Refer to: Front Toe Adjustment .
