Cruise-Control Module (C-CM): Removal

Cruise-Control Module (C-CM) or bracket

1. 1.

   If installing a new Cruise-Control Module (C-CM), upload the module configuration information to the scan tool. Refer to Module Configuration .

1. 2.

   With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting .

1. 3.

   Remove the front bumper cover. For additional information, refer to Bumpers .

1. 4.

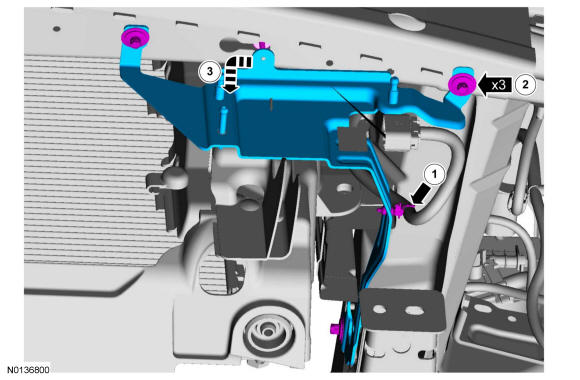

   NOTE: Gently pry to release the C-CM from the ball studs.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: If a ball stud grommet is damaged, install a new grommet.

Courtesy of FORD MOTOR COMPANY

Bracket

1. 6.



Courtesy of FORD MOTOR COMPANY
