Register - Driver Side: Notes

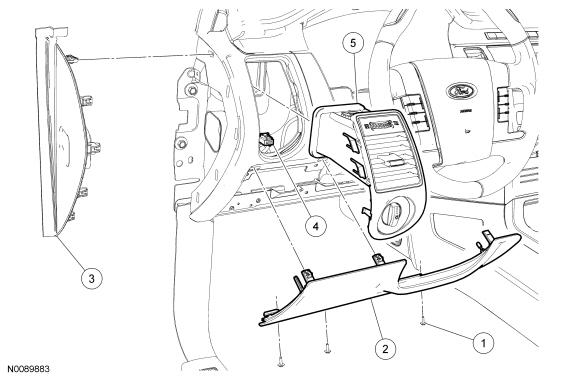

GFD58614Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 N808453 Steering column opening trim panel screw (3 required)
2 7404459 Steering column opening trim panel
3 7404481 LH instrument panel side finish panel
4 - Headlamp switch electrical connector (part of 14401)
5 19893 Driver side register
