Transaxle Case: Assembly

  1. 1.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD58189Courtesy of FORD MOTOR COMPANY

  1. 2.

    Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
GFD58206Courtesy of FORD MOTOR COMPANY

  1. 3.

    Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.
GFD58207Courtesy of FORD MOTOR COMPANY

  1. 4.

    Special Tool(s): Bearing Cup Installer 307-576 General Equipment: Shop Press
GFD58208Courtesy of FORD MOTOR COMPANY

  1. 5.

    Special Tools(s): Bearing Cup Installer 307-689
GFD58209Courtesy of FORD MOTOR COMPANY

  1. 6.

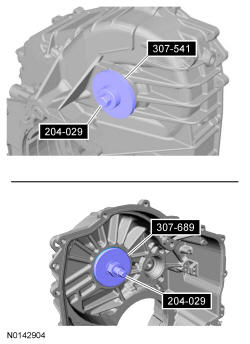

    Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
GFD58210Courtesy of FORD MOTOR COMPANY

  1. 7.

GFD58205Courtesy of FORD MOTOR COMPANY

  1. 8.

GFD58204Courtesy of FORD MOTOR COMPANY

  1. 9.

GFD58203Courtesy of FORD MOTOR COMPANY

  1. 10.

    • Tighten to 12 Nm (106 lb-in).
GFD58202Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to Torque Converter Housing .
