Front Seat Control Switch: Removal

NOTE: LHD driver seat shown, all others similar.
NOTE: Removal steps in this procedure may contain installation details.

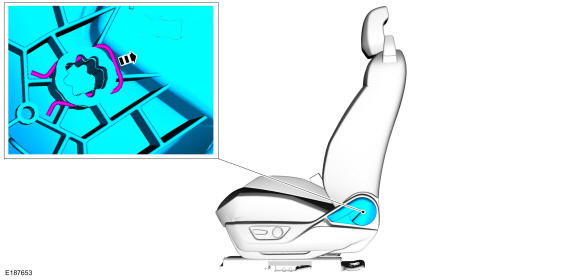

  1. 1.

    Release the retaining clip and remove the front seat recline handle.
GFD132981Courtesy of FORD MOTOR COMPANY

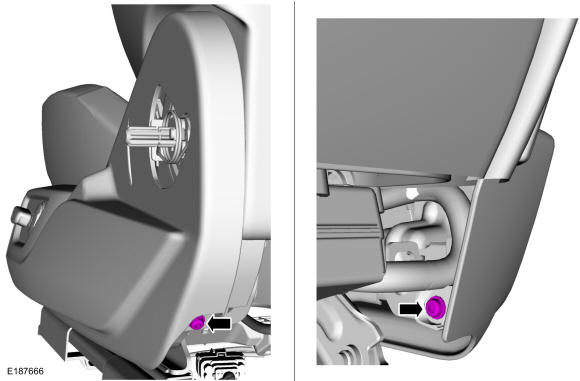

  1. 2.

    Remove the side shield screws.
GFD132983Courtesy of FORD MOTOR COMPANY

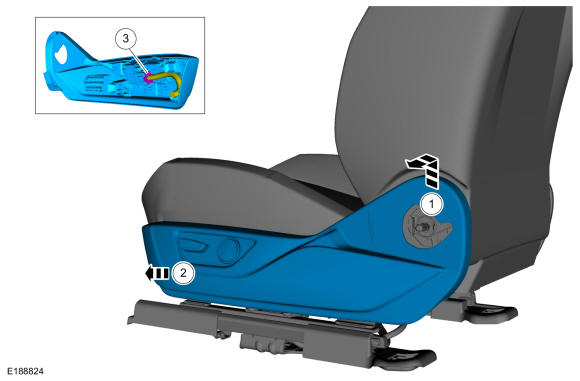

  1. 3.

    Remove the side shield.

    1. 1.

      Lift up on the rear of the side shield and pull outward.

    1. 2.

      Push the side shield forward.

    1. 3.

      Disconnect the electrical connector.
GFD132984Courtesy of FORD MOTOR COMPANY

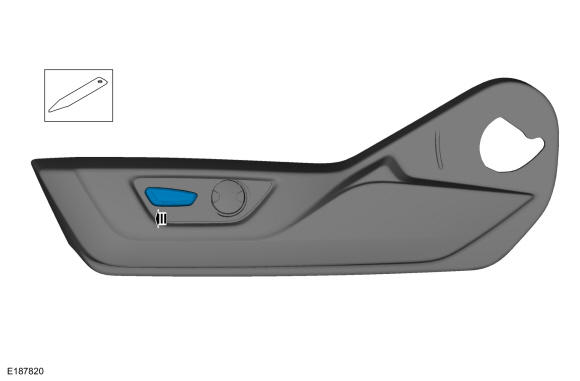

  1. 4.

    Remove the seat control switch knob.
GFD133030Courtesy of FORD MOTOR COMPANY

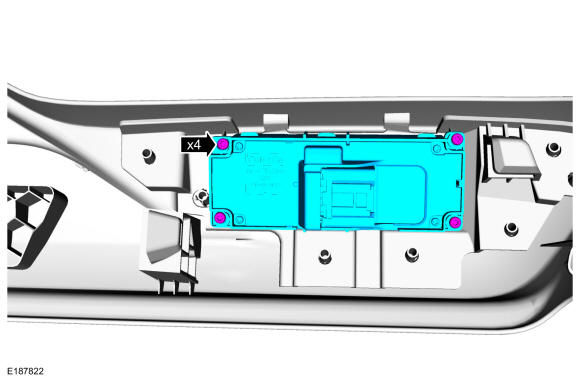

  1. 5.

    Remove the screws and the seat control switch.
GFD133031Courtesy of FORD MOTOR COMPANY
