Throttle Body: Removal

1.

Loosen the Throttle Body (TB) inlet pipe clamp and then position the Throttle Body (TB) inlet pipe aside.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.

Disconnect the Throttle Body (TB) electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

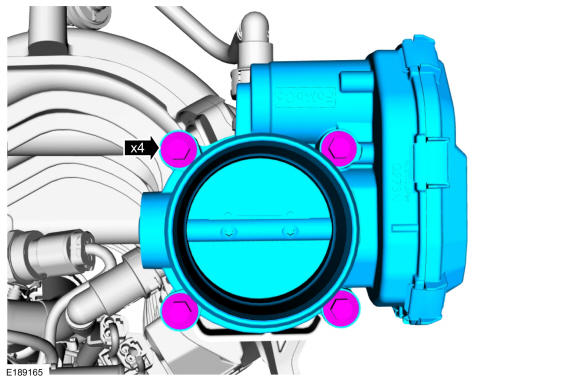

Remove the Throttle Body (TB) retaining bolts and then remove the Throttle Body (TB).

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
