Strut and Spring Assembly: Installation

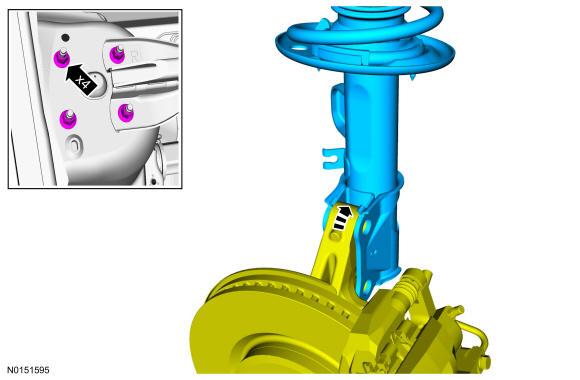

1.
- Tighten to 63 Nm (46 lb-ft).

GFD81546

Courtesy of FORD MOTOR COMPANY

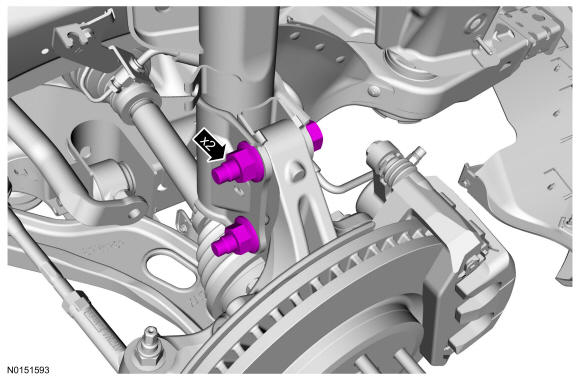

2.
- Tighten to 225 Nm (166 lb-ft).

GFD81547

Courtesy of FORD MOTOR COMPANY

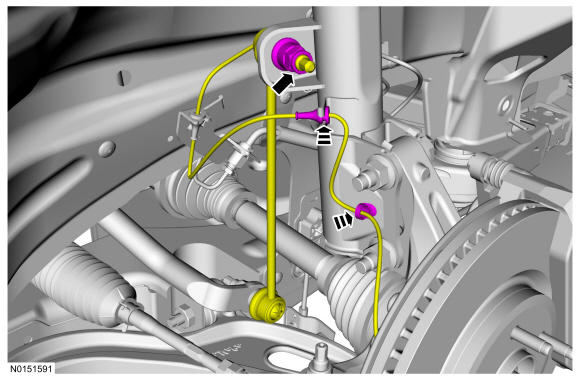

3.
- Tighten to 150 Nm (111 lb-ft).

GFD81548

Courtesy of FORD MOTOR COMPANY

4.

Install the wheel and tire. Refer to Wheels and Tires .

5.

Check front camber adjustment. Refer to Suspension System General Information
