Front Head Restraint Guide Sleeve: Removal

  1. Release the locking tabs and remove the head restraint.
    GFD216389Courtesy of FORD MOTOR COMPANY

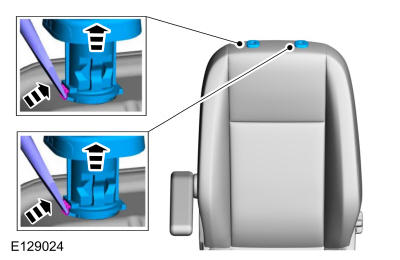

  2. Using flat headed screw driver, release the locking tabs and remove the headrest restraint guide sleeves.
GFD216390Courtesy of FORD MOTOR COMPANY
