Front Door Alignment
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
Inspection
NOTE:
LH side shown, RH side similar.
- 1.

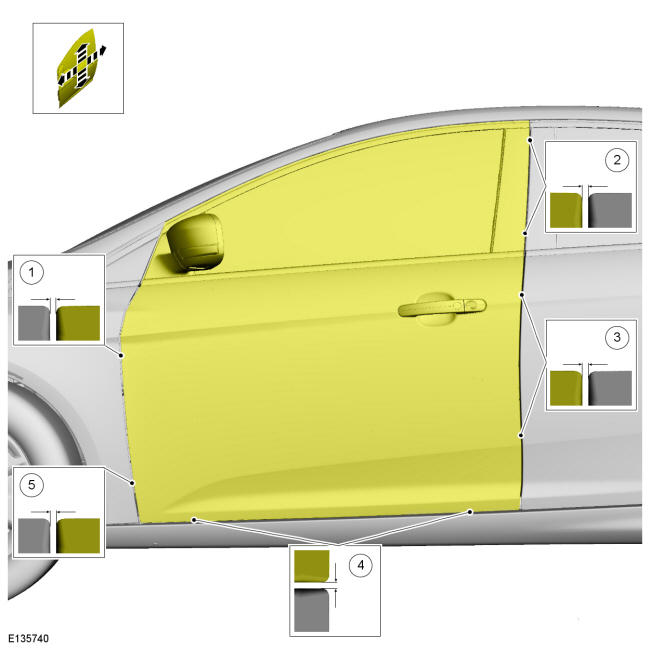

Check body to the front door dimensions.
- 1.
Dimension: 0.1575 ±0.0591in (4 ±1.5mm)
- 2.
Dimension: 0.1772 ±0.0591in (4.5 ±1.5mm)
- 3.
Dimension: 0.1575 ±0.0591in (4 ±1.5mm)
- 4.
Dimension: 0.2087 ±0.0591in (5.3 ±1.5mm)
- 5.
Dimension: 0.1575 ±0.0591in (4 ±1.5mm)
 Courtesy of FORD MOTOR COMPANY
|
Adjustment
Drivers door
- 1.

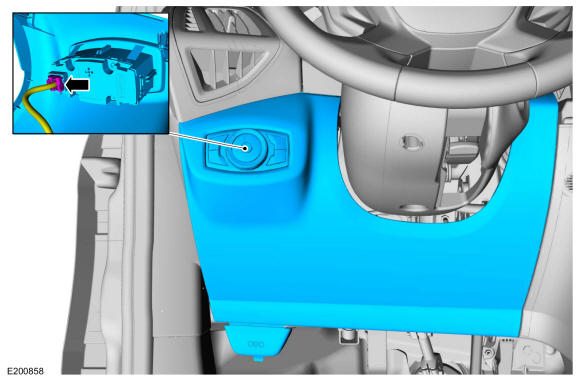

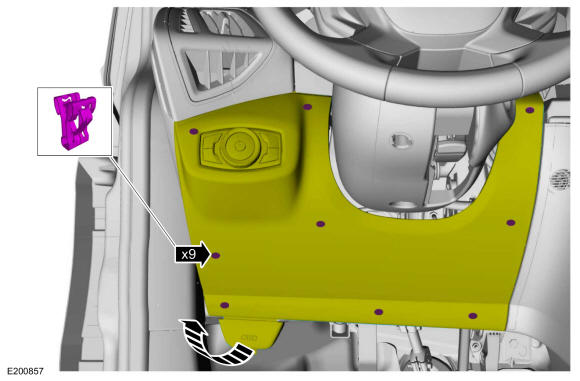

Release the clips and position aside the instrument panel finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

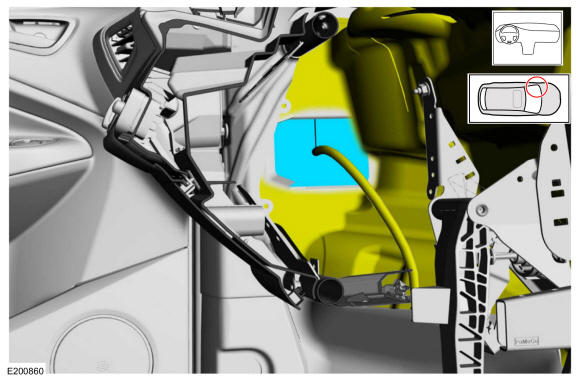

Disconnect the electrical connector and remove the instrument panel finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

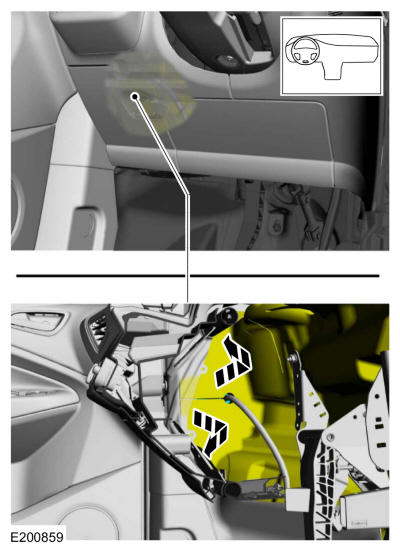

Position aside the LH side inner insulator dash panel.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

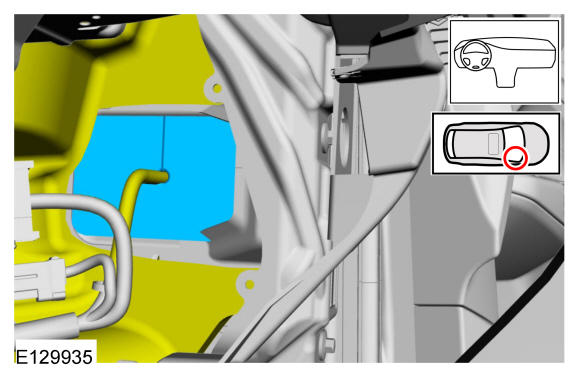

Remove the LH side lower cowl pad.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

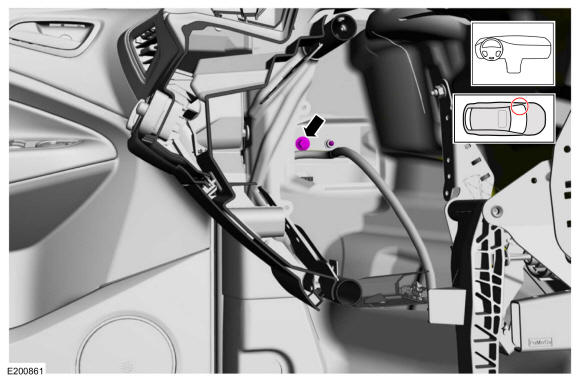

Loosen the bolt.Torque: 26 lb.ft (35 Nm)
 Courtesy of FORD MOTOR COMPANY
|
Passenger Door
- 6.

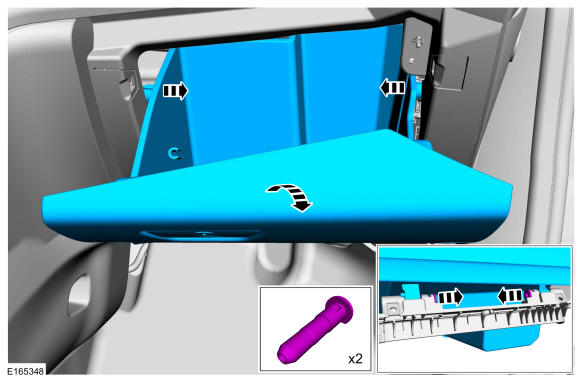

Remove the 2 hinge pins and remove the glove compartment.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

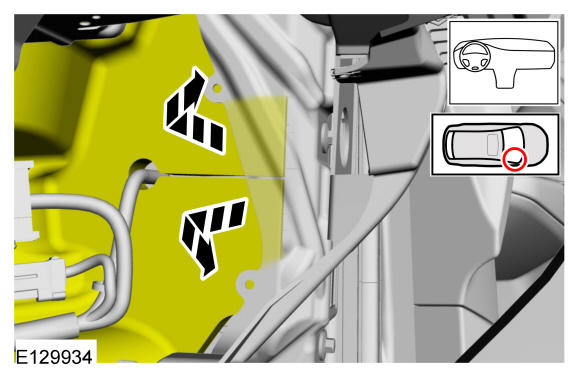

Position aside the inner insulator dash panel.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove the lower cowl pad.
 Courtesy of FORD MOTOR COMPANY
|
- 9.

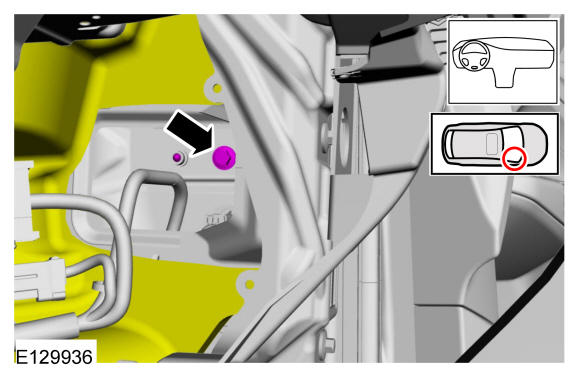

Loosen the bolt.Torque: 26 lb.ft (35 Nm)
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
NOTE:
LH side shown, RH side similar.
- 10.

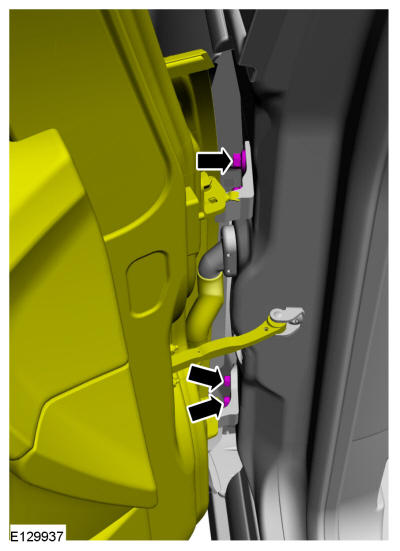

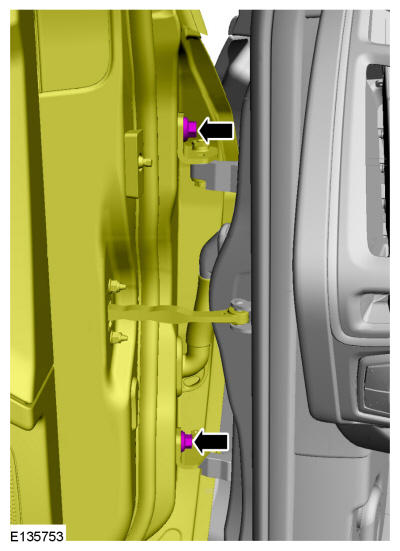

Loosen the bolts enough to permit movement of the front door. Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 11.
Loosen the bolts enough to permit movement of the striker assembly. Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 12.

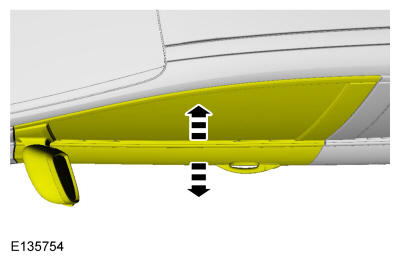

Adjust the front door as shown.
 Courtesy of FORD MOTOR COMPANY
|
- 13.
Adjust the striker assembly as shown.
 Courtesy of FORD MOTOR COMPANY
|
Courtesy of FORD MOTOR COMPANY
|
- 15.
Tighten the bolts.Torque: 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
|
Inspection
NOTE:
LH side shown, RH side similar.
- 1.

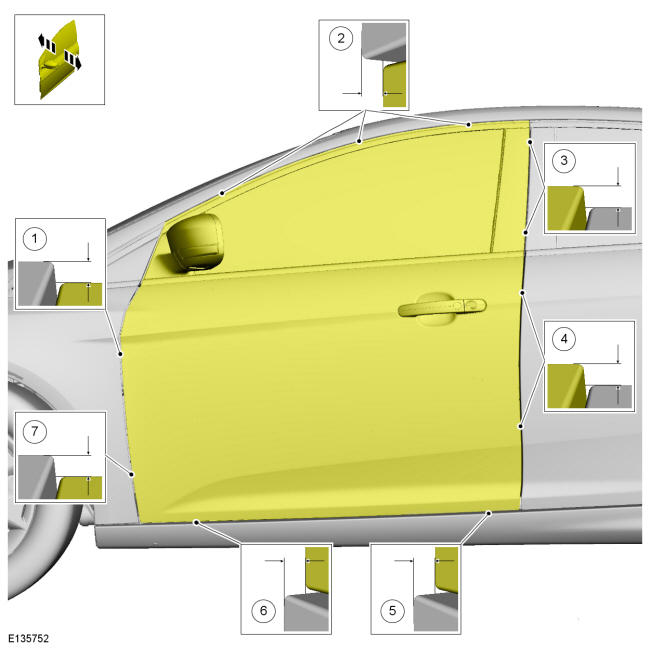

Check body to the front door dimensions.
- 1.
Dimension: 0.0394-0.0394/+0.0551in (1-1/+1.4mm)
- 2.
Dimension: 0.0984 ±0.0591in (2.5 ±1.5mm)
- 3.
Dimension: 0.0000 ±0.0591in (±1.5mm)
- 4.
Dimension: 0.0000-0.0630/+0.0394in (-1.6/+1mm)
- 5.
Dimension: 0.2520 ±0.0591in (6.4 ±1.5mm)
- 6.
Dimension: 0.3228 ±0.0591in (8.2 ±1.5mm)
- 7.
Dimension: 0.0394-0.0394/+0.0551in (1-1/+1.4mm)
 Courtesy of FORD MOTOR COMPANY
|
Adjustment
NOTE:
LH side shown, RH side similar.
- 1.
Loosen the bolts enough to permit movement of the front door. Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Loosen the bolts enough to permit movement of the striker assembly. Loosen: 2 turn(s)
Courtesy of FORD MOTOR COMPANY
|
- 3.

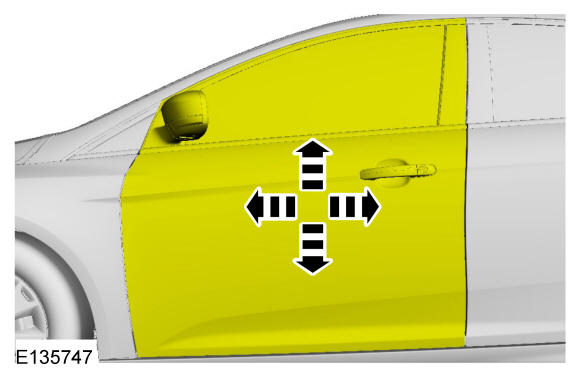

Adjust the front door as shown.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

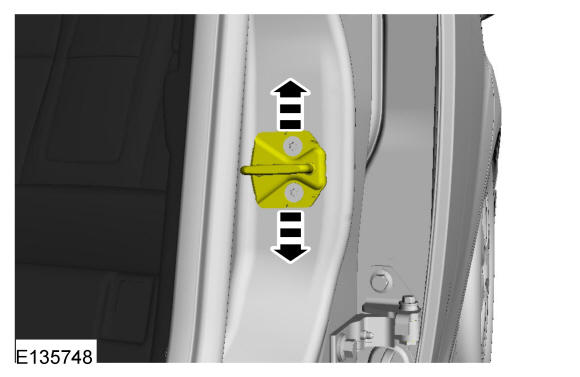

Adjust the striker assembly as shown.
 Courtesy of FORD MOTOR COMPANY
|
Courtesy of FORD MOTOR COMPANY
|
- 6.
Tighten the bolts.Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
|
