Liftgate Alignment

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

Check

1.

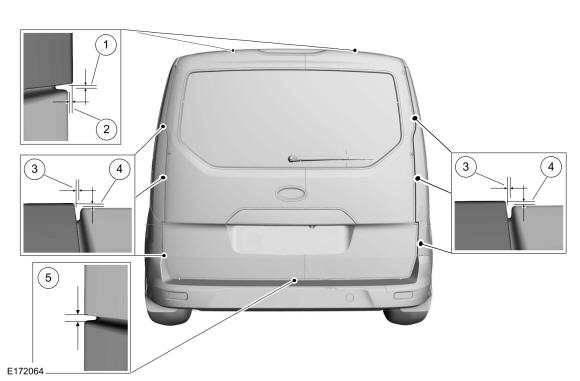

Check the liftgate-to-body dimensions.
- 1.

  Dimension: 0.2756 ±0.0591in (7 ±1.5mm)
- 2.

  Dimension: 0.0591 ±0.0551in (1.5 ±1.4mm)
- 3.

  Dimension: 0.1575 ±0.0787in (4 ±2mm)
- 4.

  Dimension: 0.0787 ±0.0591in (2 ±1.5mm)
- 5.

  Dimension: 0.2362 ±0.1575in (6 ±4mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1.

NOTE: This step requires the aid of another technician.

On both sides.

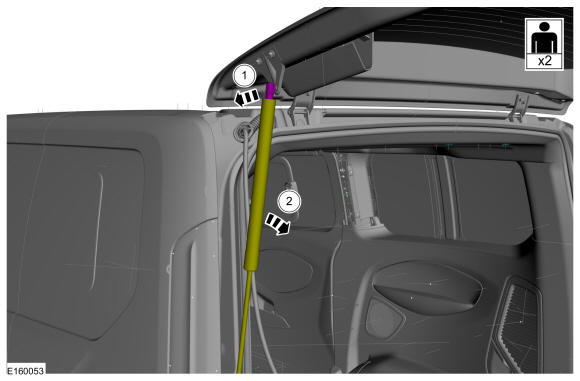

- 1.

  Remove the clip.
- 2.

  Position aside the liftgate strut.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: This step requires the aid of another technician.

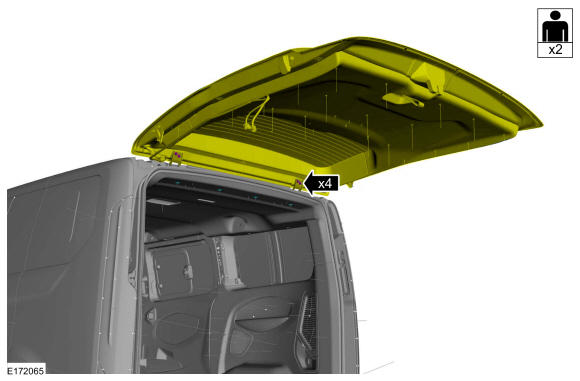

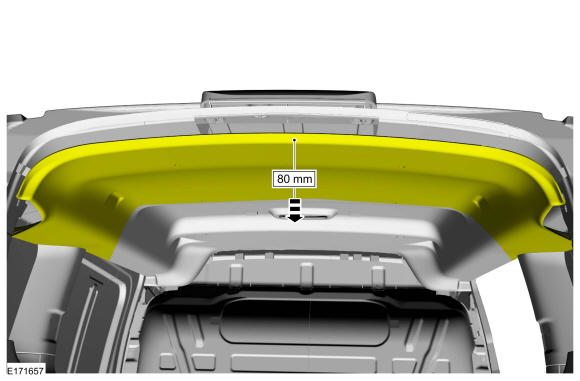

Loosen the bolts enough to permit movement of the liftgate. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

3.

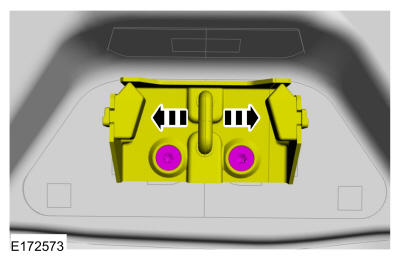

Loosen the liftgate striker bolts. Loosen: 1 turn(s)

Courtesy of FORD MOTOR COMPANY

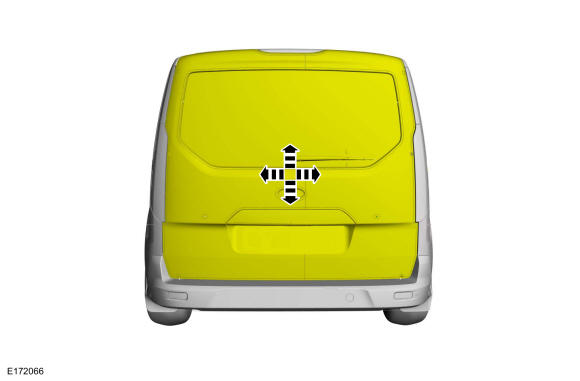

4.

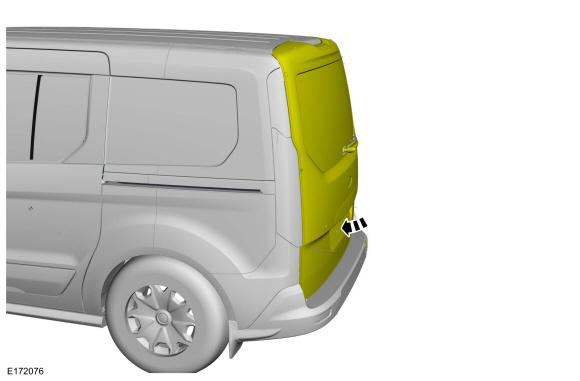

Adjust the liftgate to specification.

Courtesy of FORD MOTOR COMPANY

5.

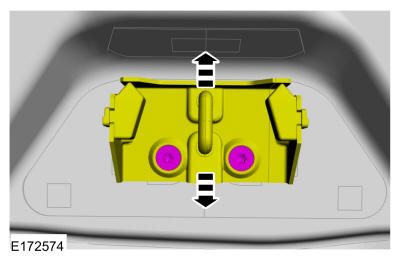

Adjust the liftgate striker.

Courtesy of FORD MOTOR COMPANY

6.

Tighten the liftgate striker bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

7.

NOTE: This step requires the aid of another technician.

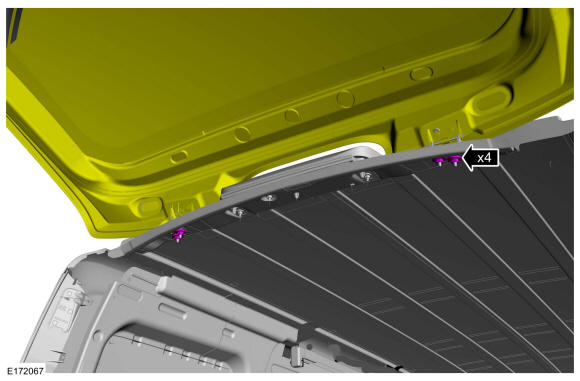

Tighten the bolts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

8.

Check the area for paintwork damage and repair if necessary.

9.

NOTE: This step requires the aid of another technician.

On both sides.
- 1.

  Install the strut.
- 2.

  Install the clip.

Courtesy of FORD MOTOR COMPANY

Check

1.

Check the body-to-liftgate dimensions.
- 1.

  Dimension: 0.2756 ±0.0591in (7 ±1.5mm)
- 2.

  Dimension: 0.0591 ±0.0551in (1.5 ±1.4mm)
- 3.

  Dimension: 0.1575 ±0.0787in (4 ±2mm)
- 4.

  Dimension: 0.0787 ±0.0591in (2 ±1.5mm)
- 5.

  Dimension: 0.2362 ±0.1575in (6 ±4mm)
