Front Disc Brake: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

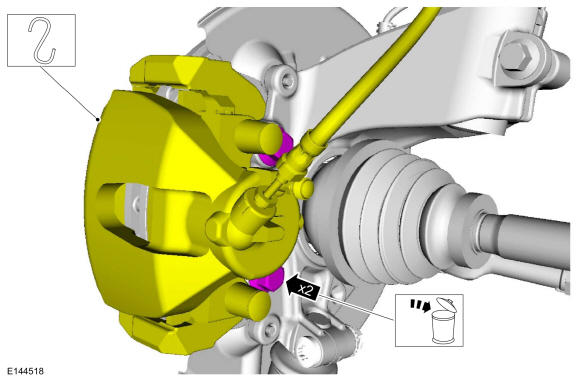

NOTE: Make sure that no load is placed on the brake hose.

Remove the bolts and position the brake caliper and anchor plate aside.

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

3.

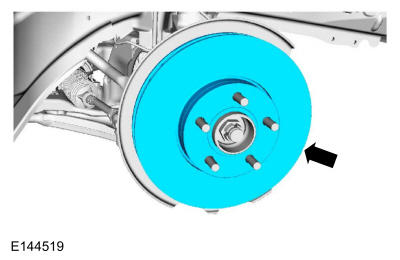

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY
