Rear Wheel Speed Sensor: Installation
-

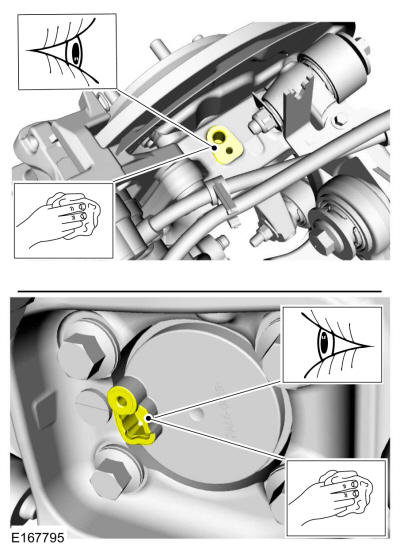

NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.
Clean and inspect the sensor housing cavity.
-

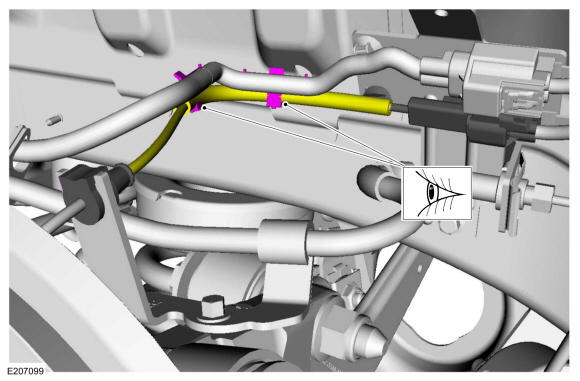

NOTE: Use the white stripe on rear wheel speed sensor harness for orientation purposes, making sure the harness is not twisted during installation. Make sure the clips and plastic ties on the EPB wiring harness are correctly aligned with the tape on the wheel speed sensor harness.
To install, reverse the removal procedure.
