Ambient Lighting Module: Removal

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel lower trim panel. Refer to: Instrument Panel Lower Trim Panel .
Remove the floor console finish panel. Refer to: Floor Console .

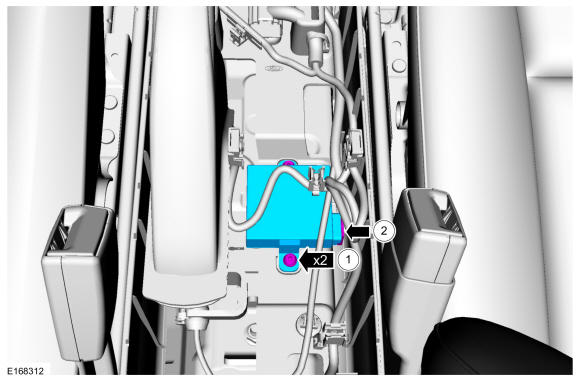

Remove the ambient lighting module.
1. Remove the screws.
2. Disconnect the electrical connector.
