Radio Transceiver Module (RTM): Removal

WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the RTM following the on-screen instructions.
Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .

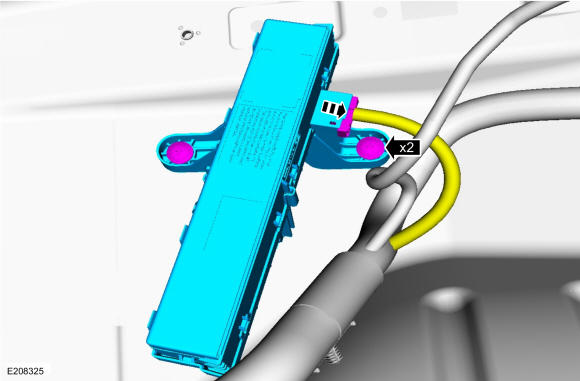

Remove the screws and the RTM
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

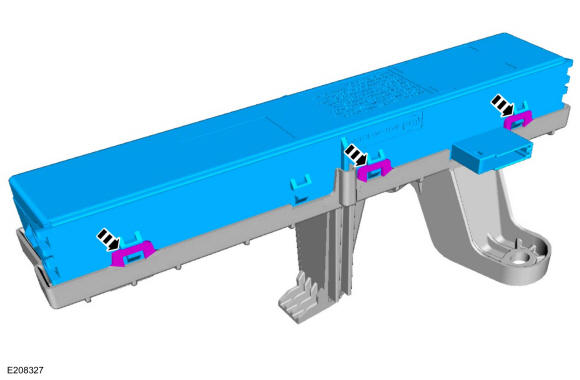

Release the tabs and remove the RTM from the bracket.

Courtesy of FORD MOTOR COMPANY
