Transmission Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Check

1. Start the engine.

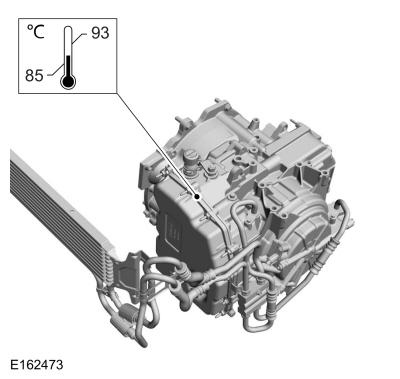

2. With the engine running in PARK make sure the transmission is at normal operating temperature 85-93° C (185-199° F).

   Temperature: 185 °F (85 °C)

   Temperature: 199 °F (93 °C)

   Courtesy of FORD MOTOR COMPANY

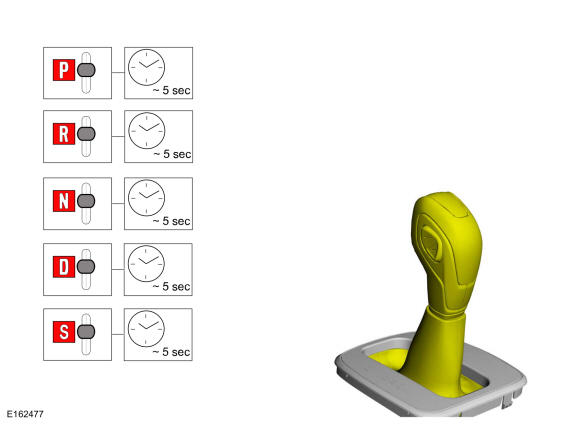

3. Slowly select each gear position, stopping in each position and allowing the transmission to engage.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Make sure that the selector lever and the gearshift mechanism are in the PARK (P) position.

   With the engine running, position the selector lever in the PARK (P) position.

   Courtesy of FORD MOTOR COMPANY

5. With the vehicle in NEUTRAL, position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

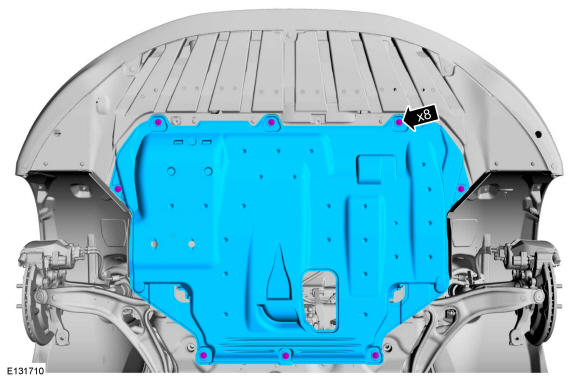

6. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

7. Courtesy of FORD MOTOR COMPANY

   NOTE: Be prepared to collect escaping fluid.

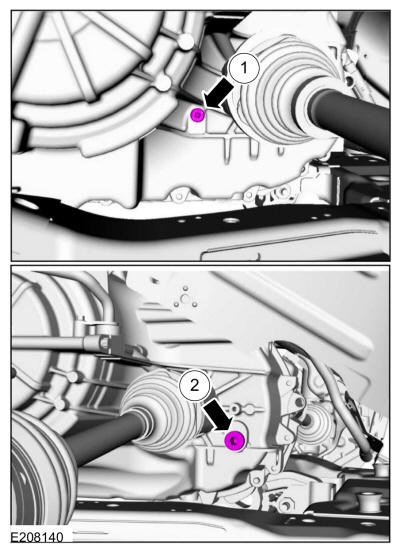

   With the vehicle on a level hoist, the engine running in PARK and the transmission fluid at normal operating temperature 85-93°C (185-199°F), remove the oil leveling plug and allow the transmission fluid to drain until it is even with the oil leveling plug hole.

   1. Standard transmission case (M10 plug)
   2. Fuel economy transmission case (M20 plug)

   Courtesy of FORD MOTOR COMPANY

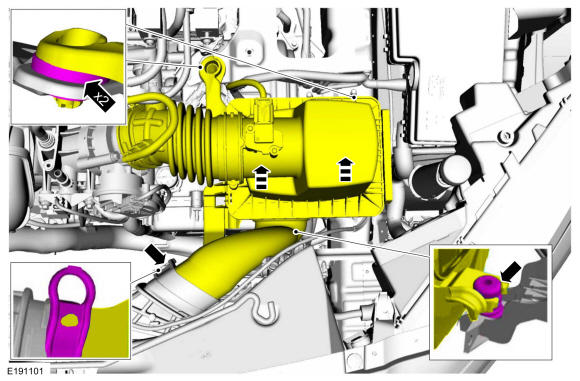

8. Release the inlet pipe lock, detach the mounts and position the air cleaner aside.

   Courtesy of FORD MOTOR COMPANY

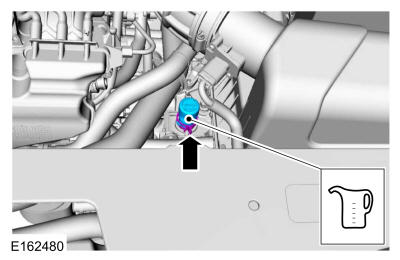

9. If the transmission fluid is not even with the oil leveling plug hole, remove the transmission vent cap and add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole. Refer to: Specifications .

   Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

   Courtesy of FORD MOTOR COMPANY

10. Install the oil leveling plug.
    1. Standard transmission case (M10 plug)

       Torque: 71 lb.in (8 Nm)

    2. Fuel economy transmission case (M20 plug)

       Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

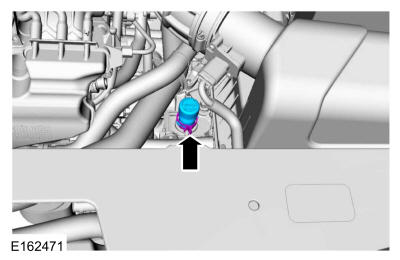

12. Install the transmission vent cap.

    Courtesy of FORD MOTOR COMPANY

13. Position the air cleaner, attach to the mounts and lock the inlet pipe lock.

Courtesy of FORD MOTOR COMPANY
