Component Testing

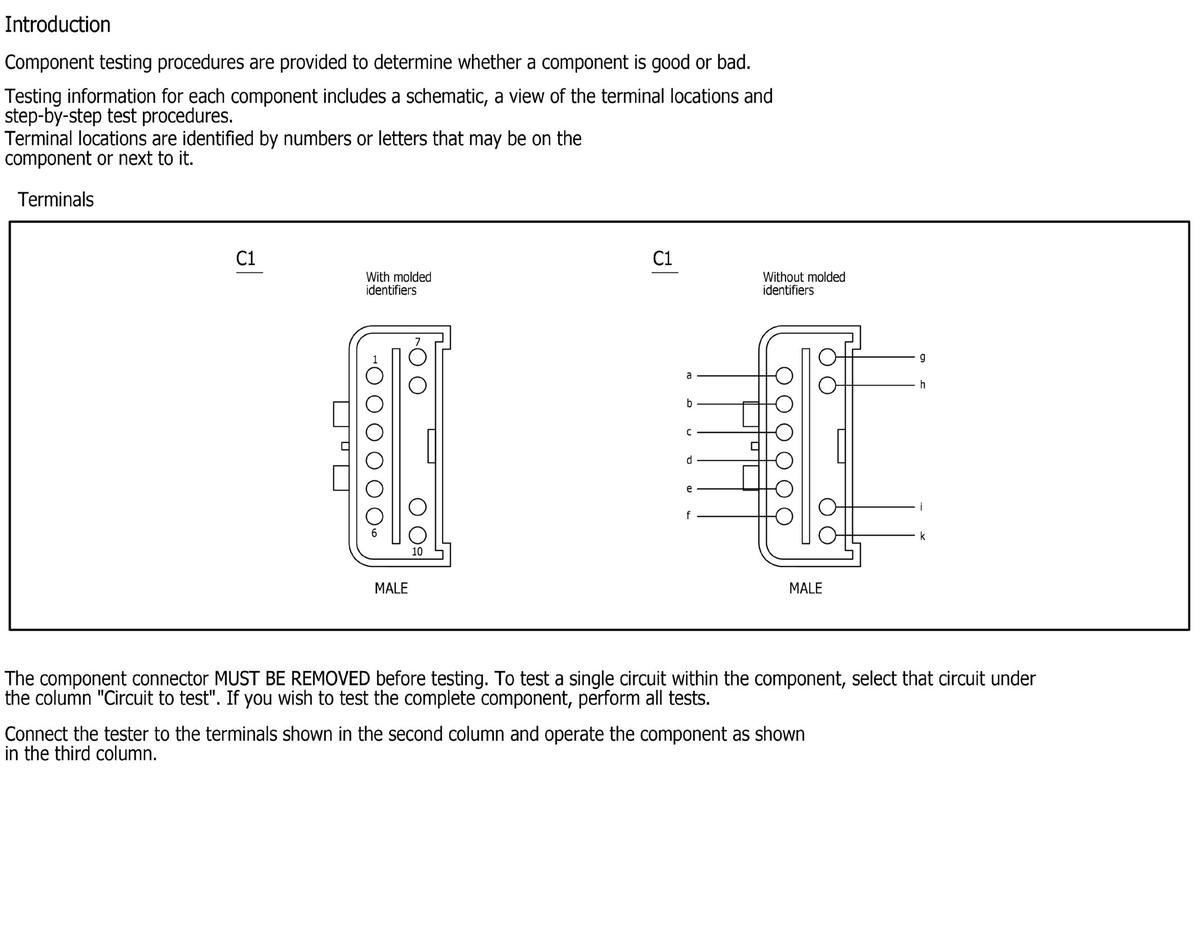

Fig 1: Component Testing Introduction
GFDWR52400Courtesy of FORD MOTOR COMPANY

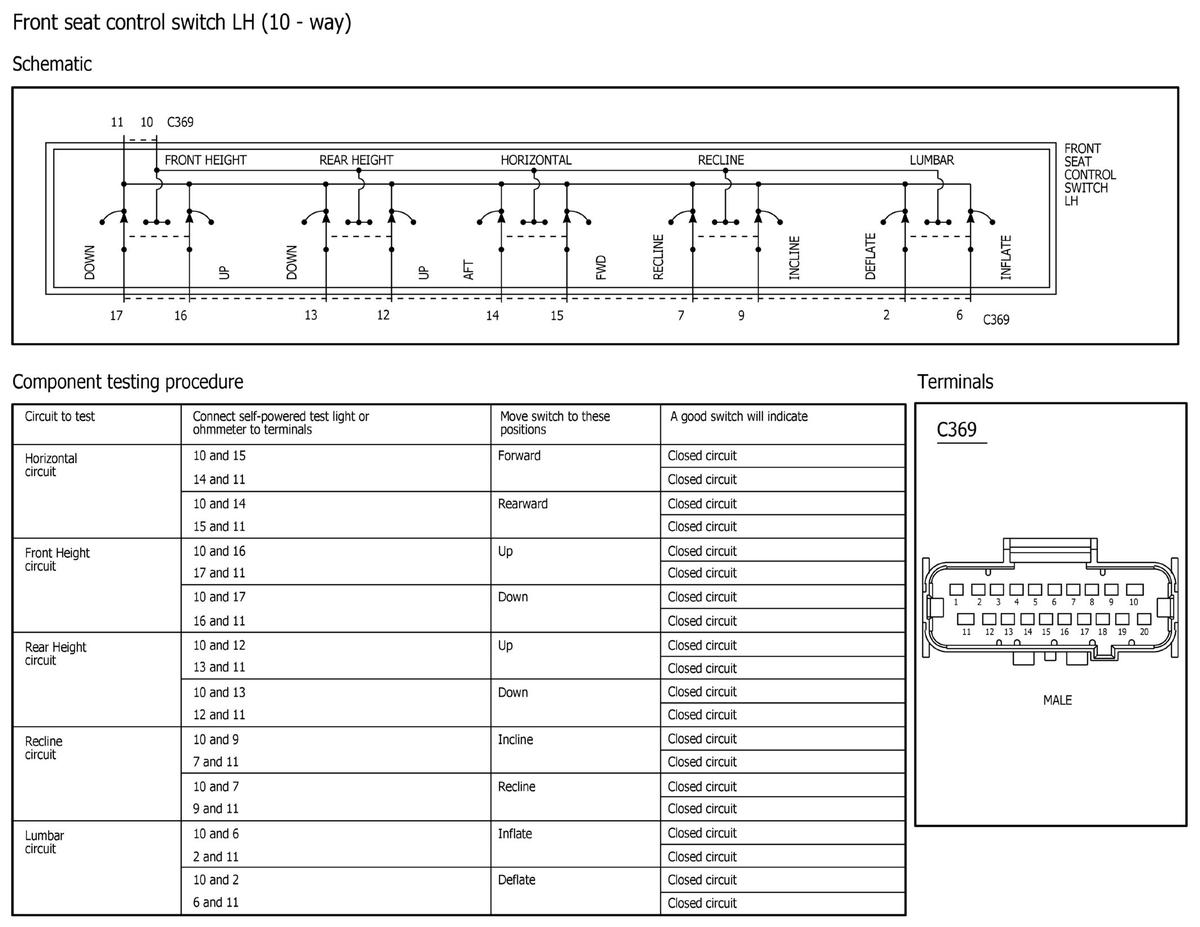

Fig 2: Front Seat Control Switch LH (10-Way) Component Testing
GFDWR52392Courtesy of FORD MOTOR COMPANY

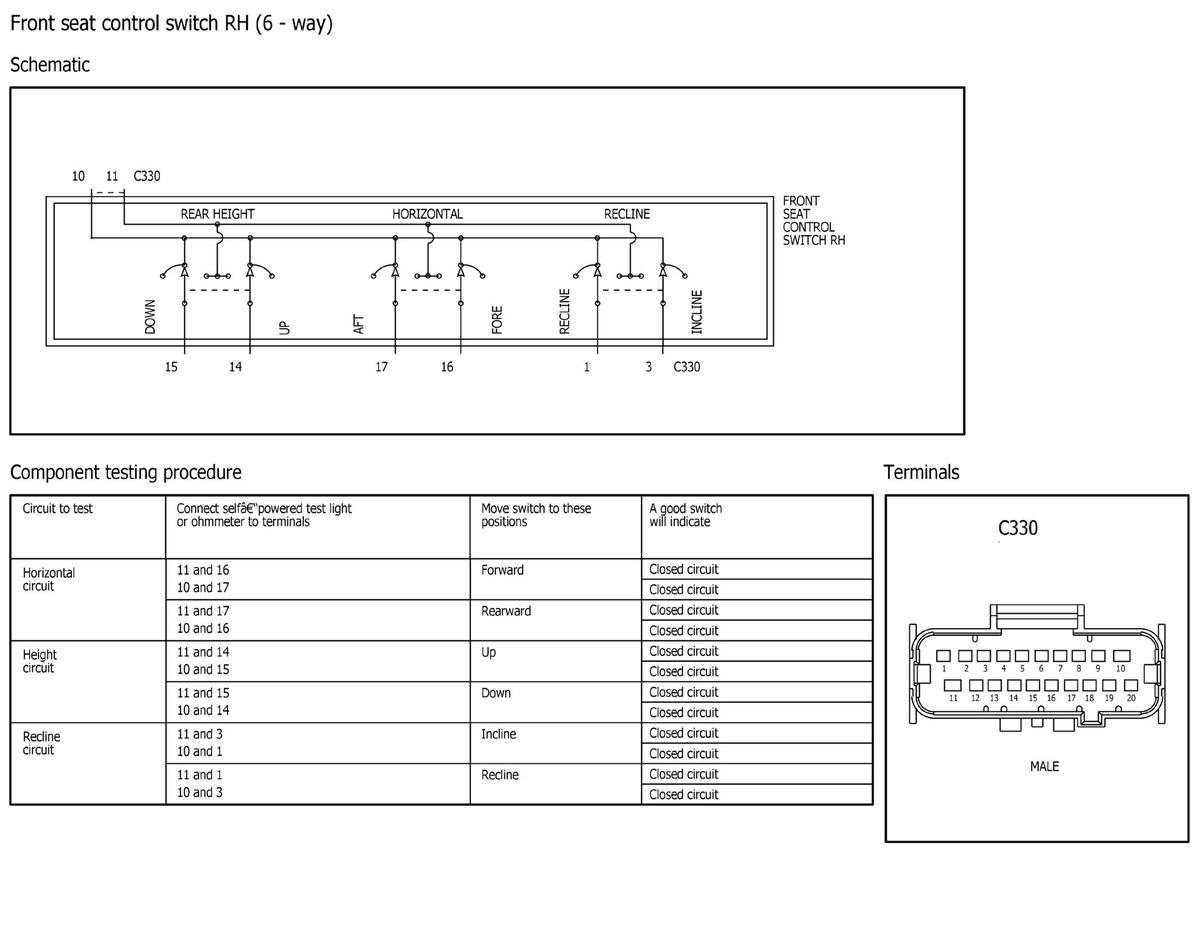

Fig 3: Front Seat Control Switch RH (6 - Way) Component Testing
GFDWR52398Courtesy of FORD MOTOR COMPANY

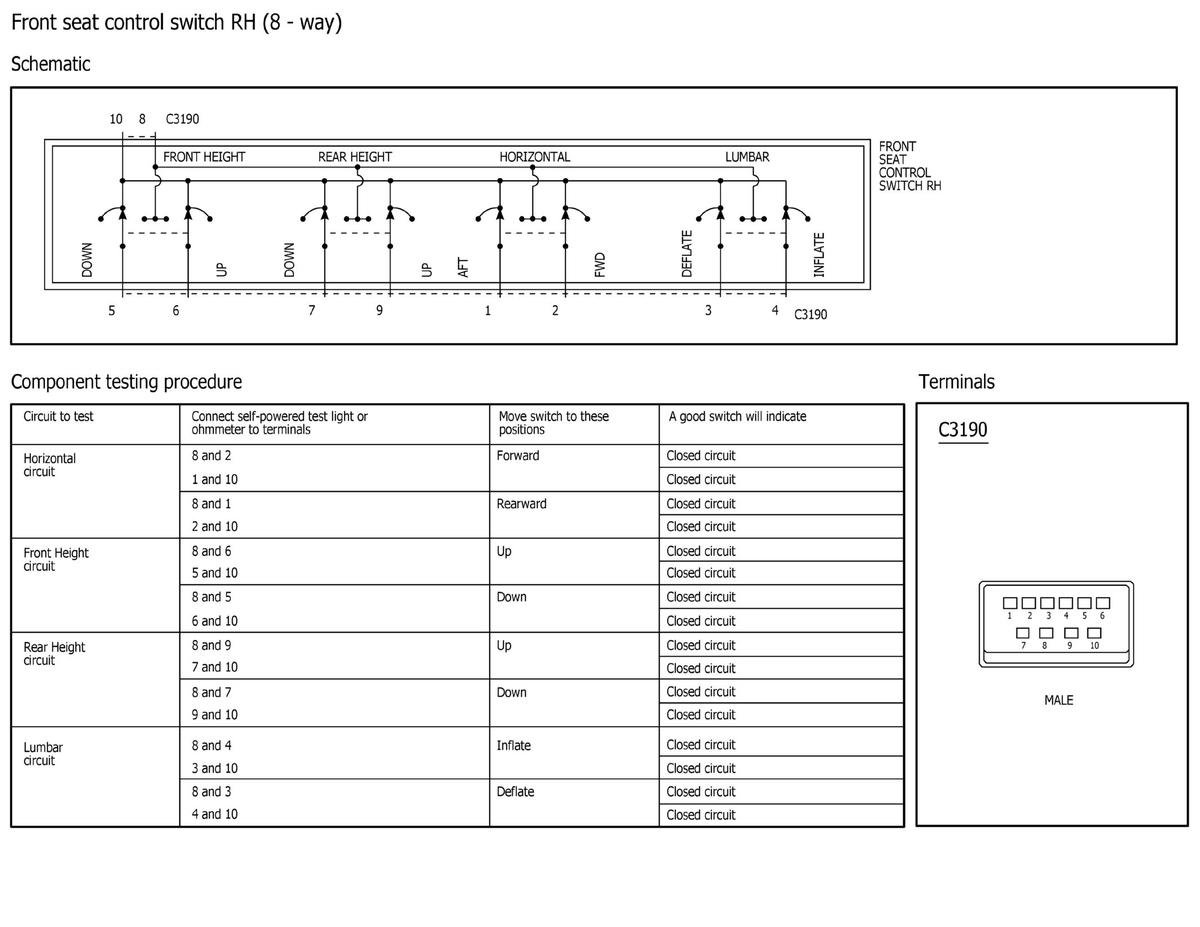

Fig 4: Front Seat Control Switch RH (8-Way) Component Testing
GFDWR52401Courtesy of FORD MOTOR COMPANY

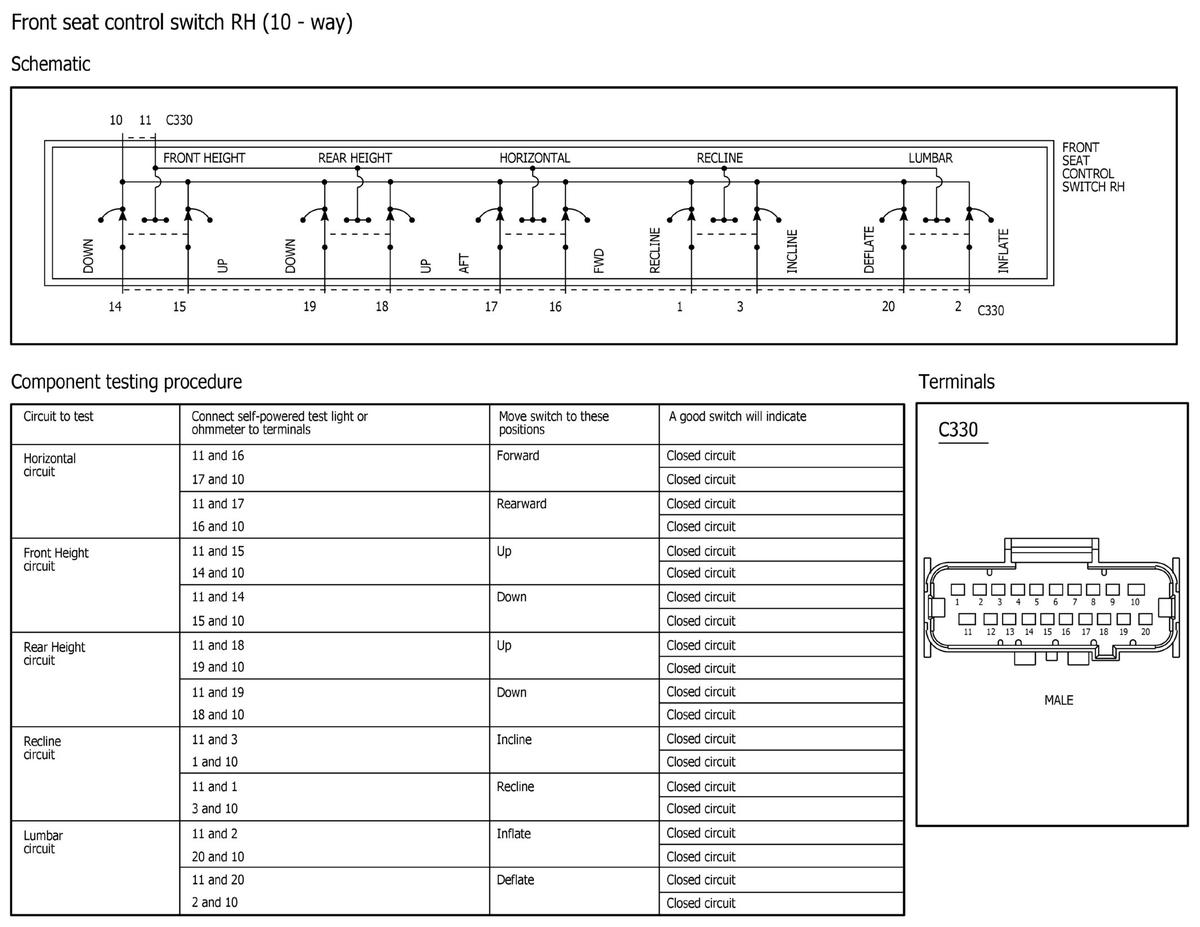

Fig 5: Front Seat Control Switch RH (10-Way) Component Testing
GFDWR52404Courtesy of FORD MOTOR COMPANY

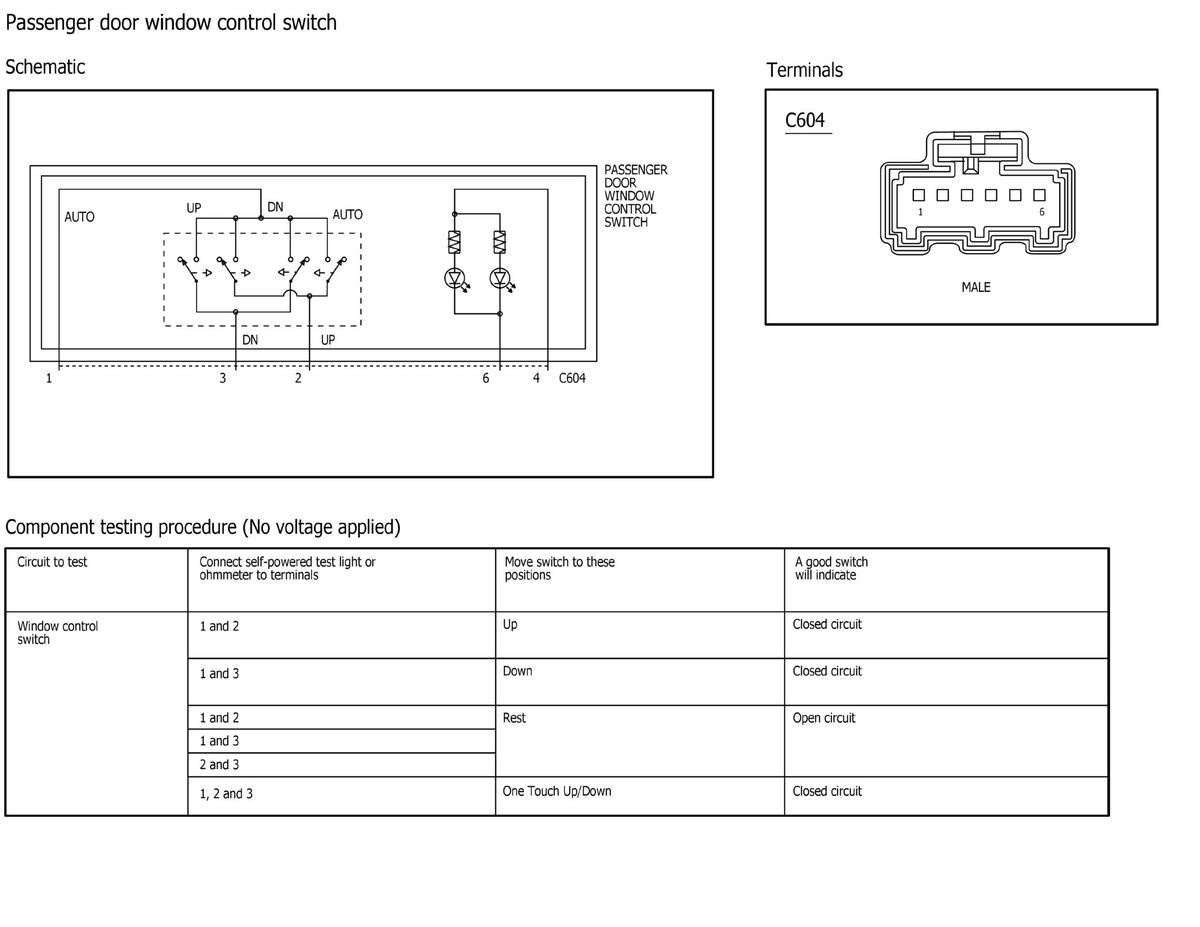

Fig 6: Passenger Door Window Control Switch Component Testing
GFDWR52399Courtesy of FORD MOTOR COMPANY

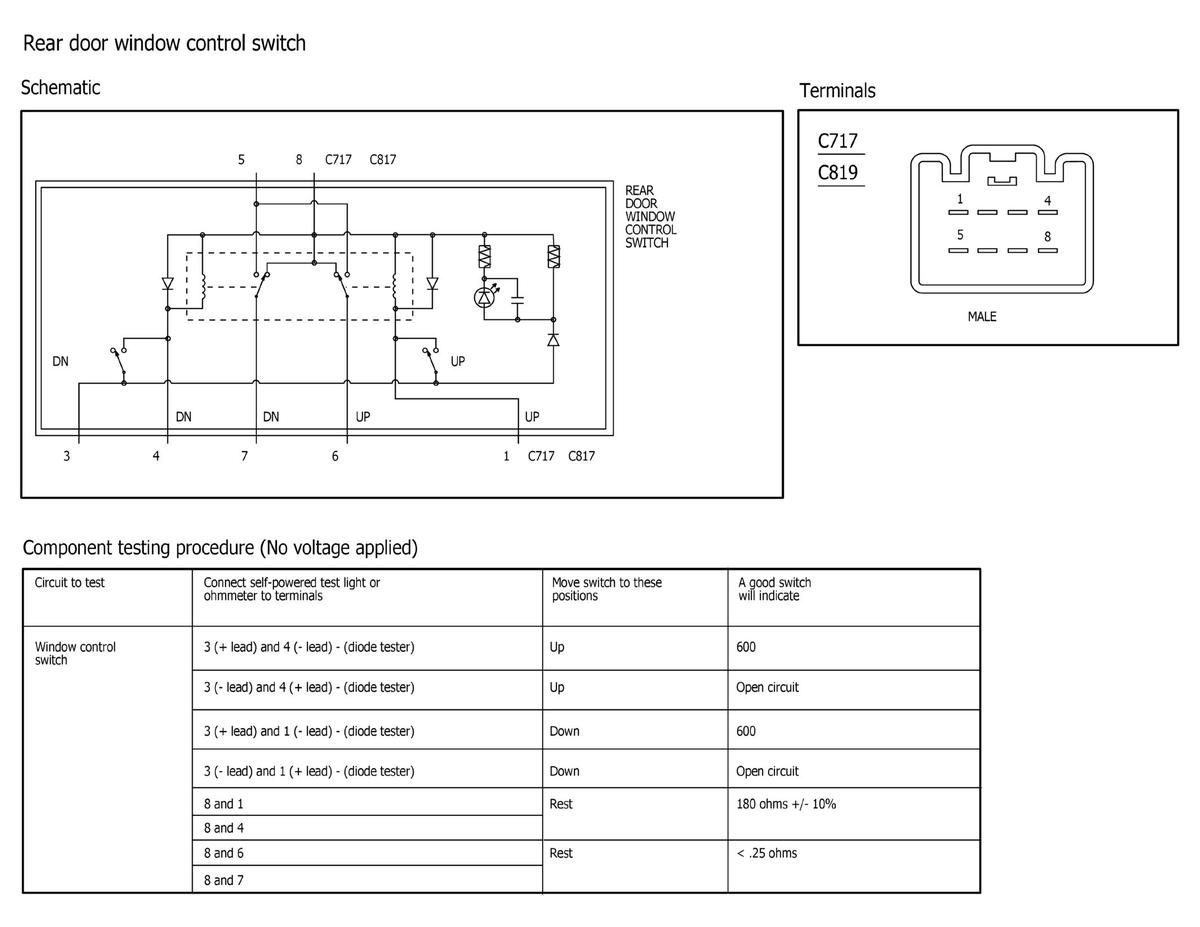

Fig 7: Rear Door Window Control Switch Component Testing
GFDWR52397Courtesy of FORD MOTOR COMPANY

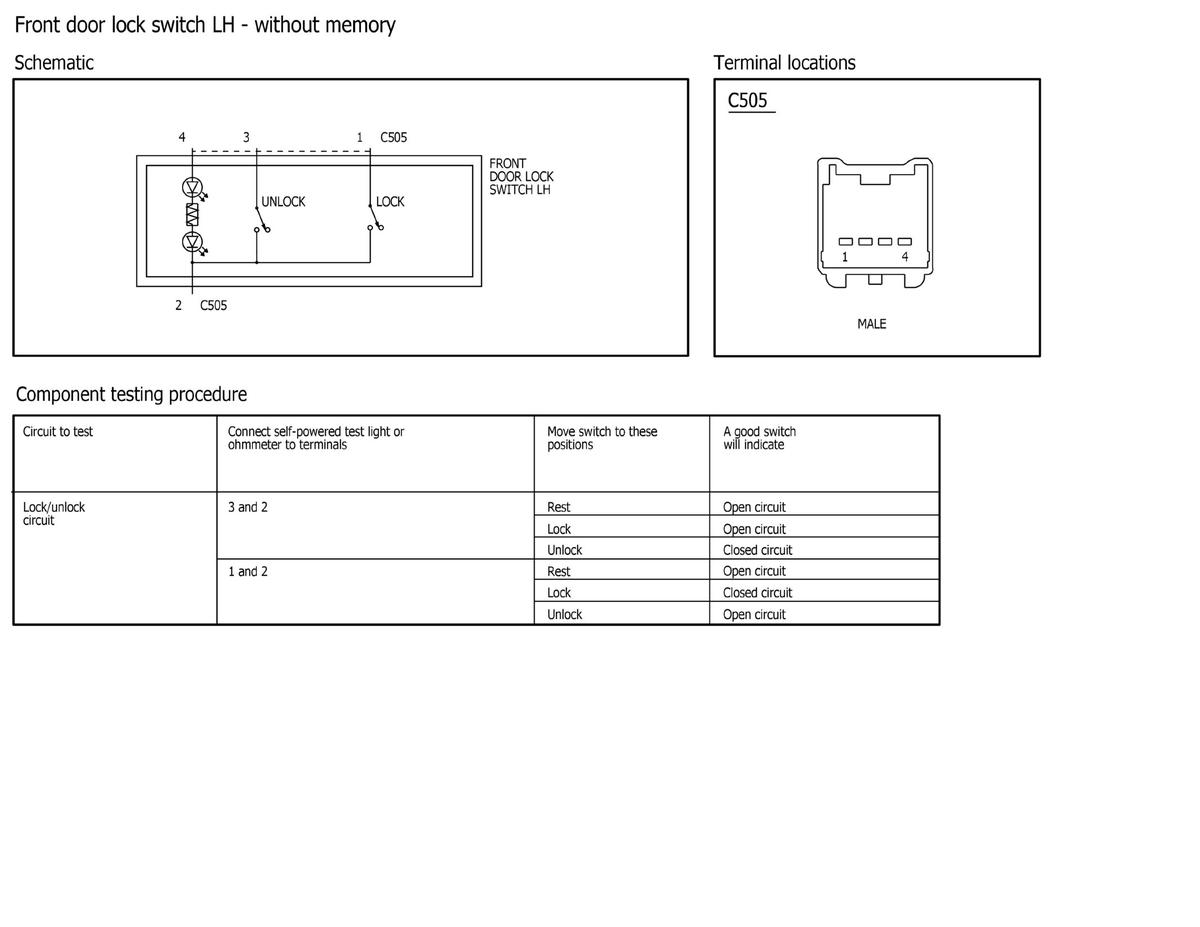

Fig 8: Front Door Lock Switch LH (Without Memory) Component Testing
GFDWR52395Courtesy of FORD MOTOR COMPANY

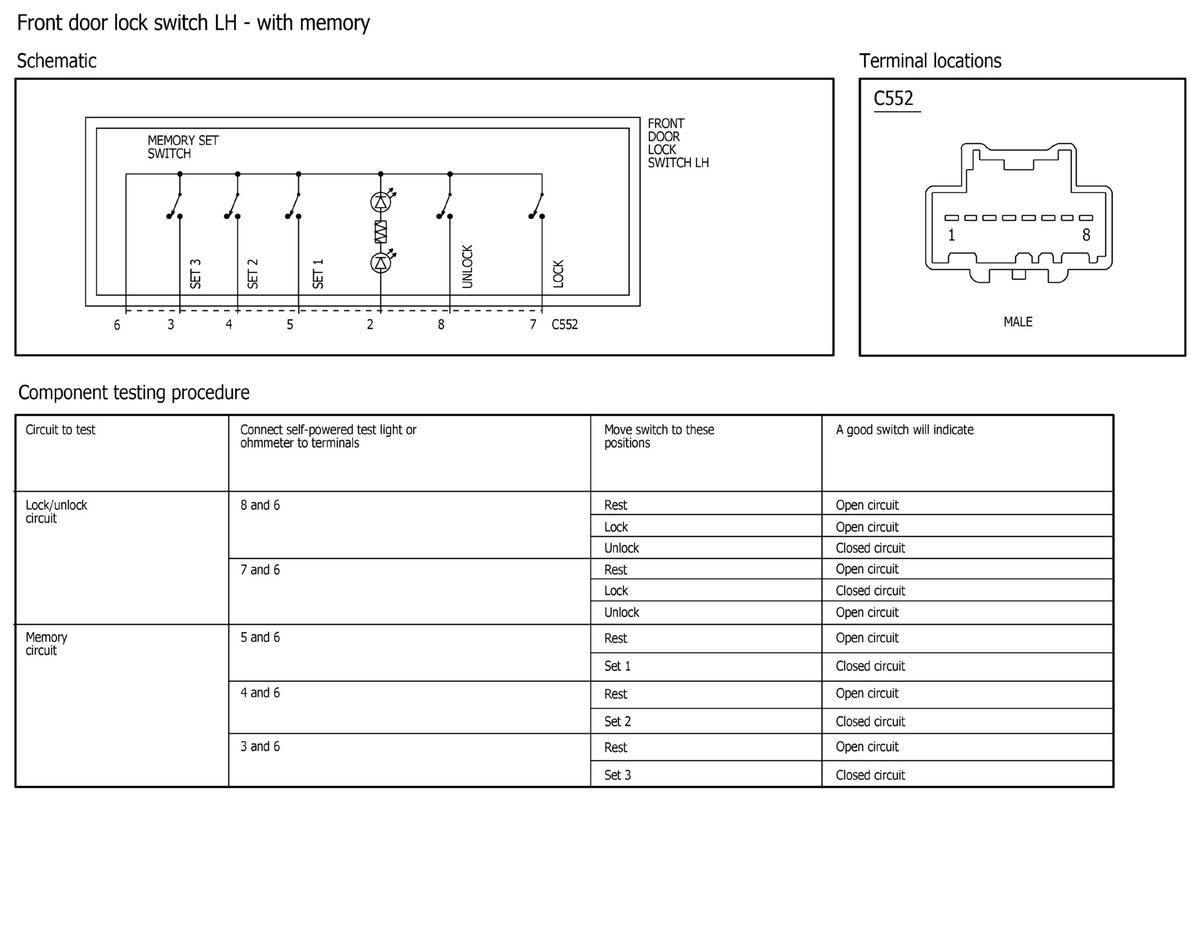

Fig 9: Front Door Lock Switch LH (With Memory) Component Testing
GFDWR52394Courtesy of FORD MOTOR COMPANY

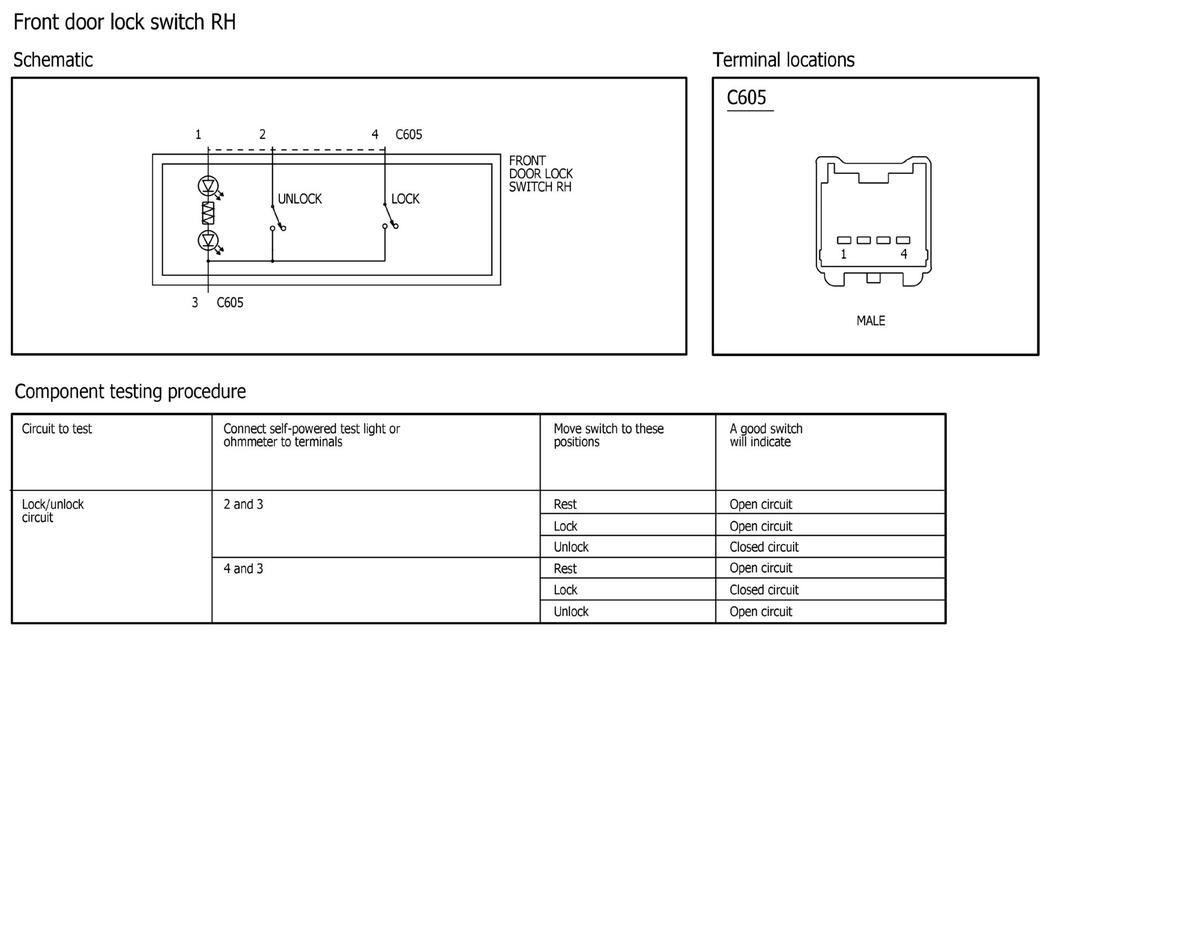

Fig 10: Front Door Lock Switch RH Component Testing
GFDWR52405Courtesy of FORD MOTOR COMPANY

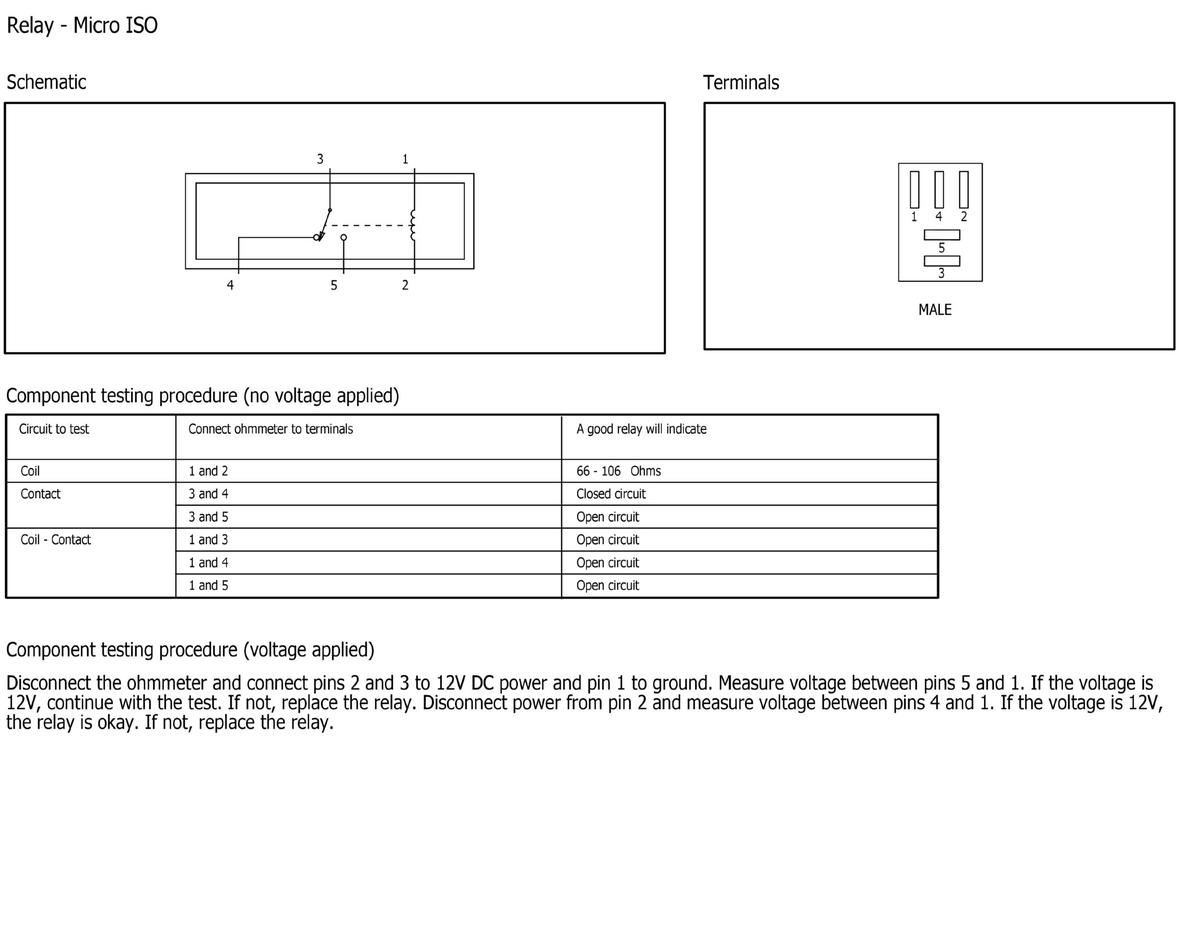

Fig 11: Relay - Micro ISO Component Testing
GFDWR52402Courtesy of FORD MOTOR COMPANY

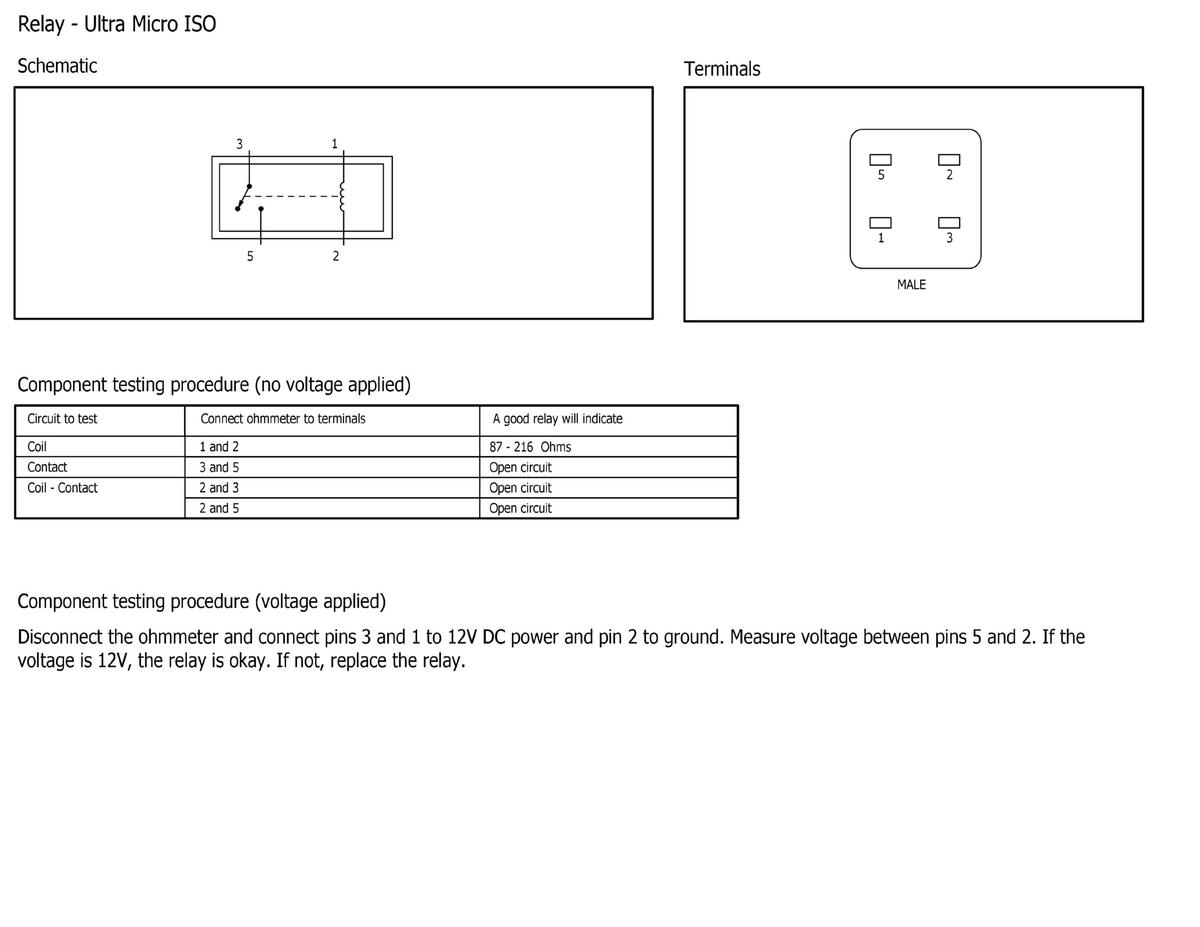

Fig 12: Relay - Ultra Micro ISO Component Testing
GFDWR52396Courtesy of FORD MOTOR COMPANY

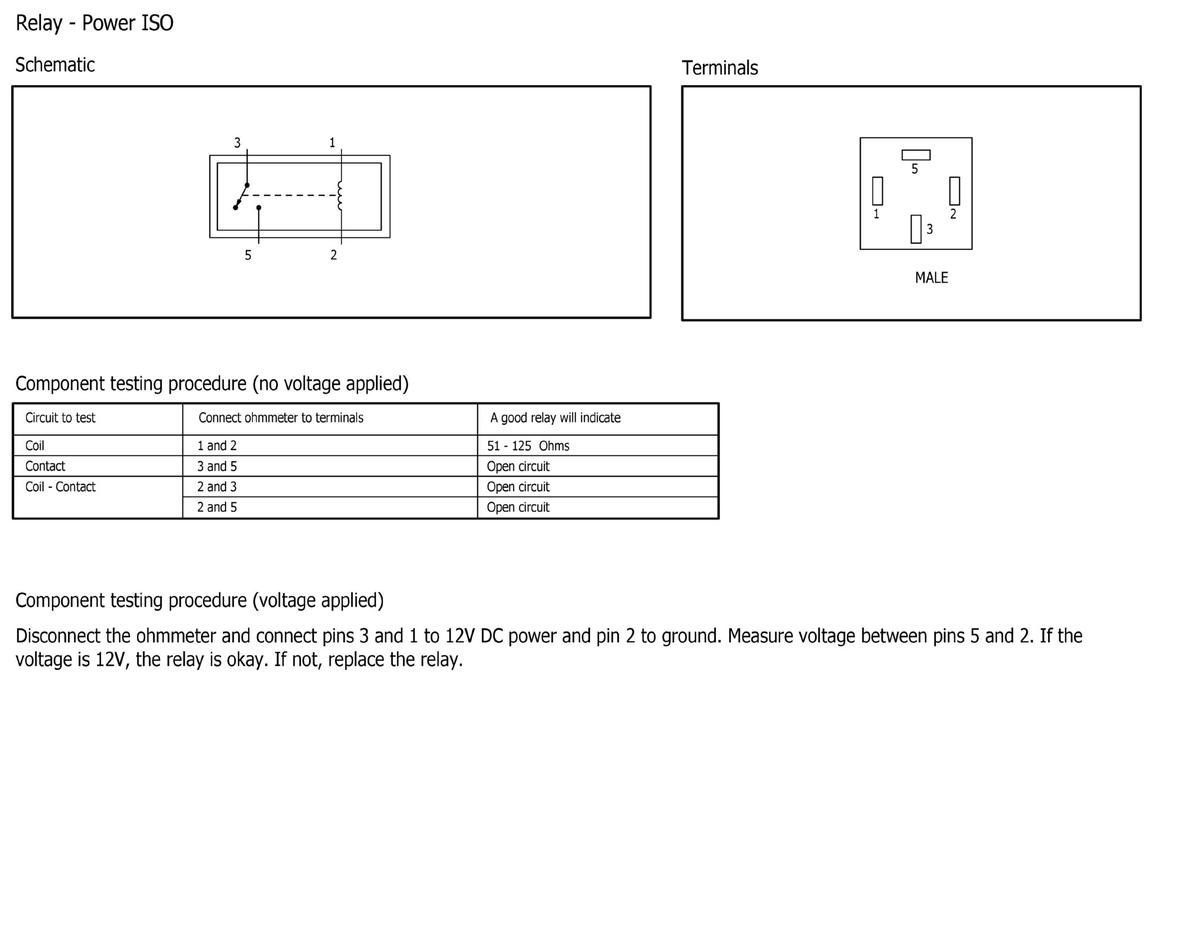

Fig 13: Relay - Power ISO Component Testing
GFDWR52393Courtesy of FORD MOTOR COMPANY

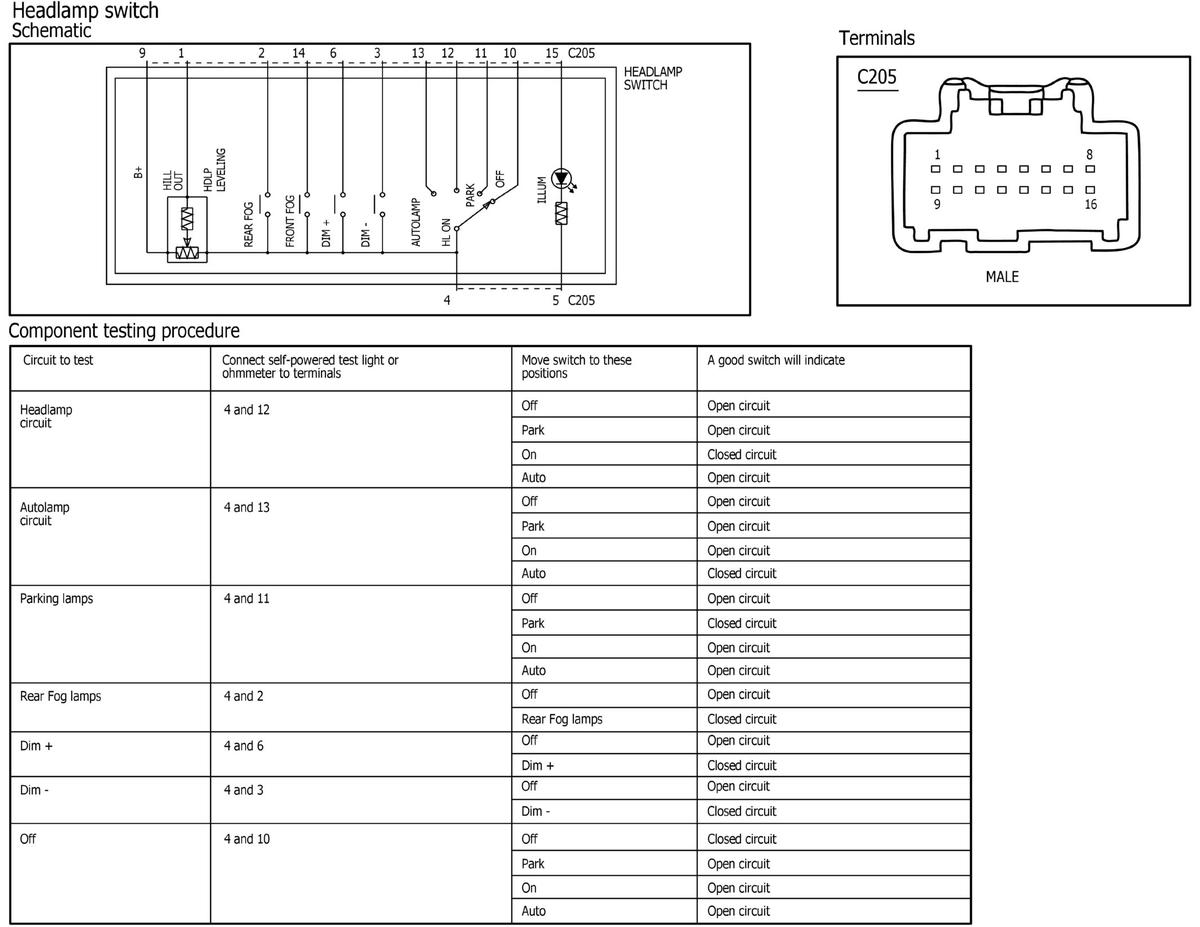

Fig 14: Headlamp Switch Component Testing
GFDWR52403Courtesy of FORD MOTOR COMPANY
