Electronic Engine Controls - Component Location: Notes

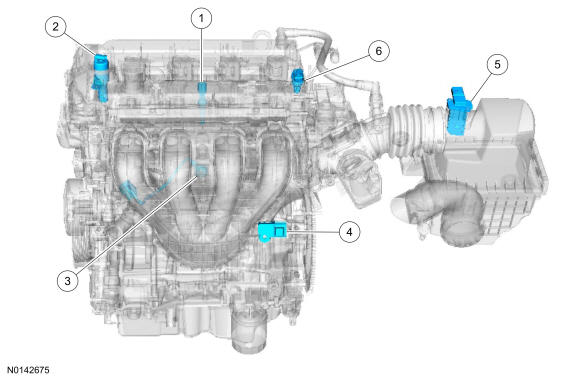

GFD353887Courtesy of FORD MOTOR COMPANY
Item Description
1 CHT sensor
2 VCT oil control solenoid
3 KS sensor
4 MAPT sensor
5 MAF sensor
6 CMP sensor
