Component Testing

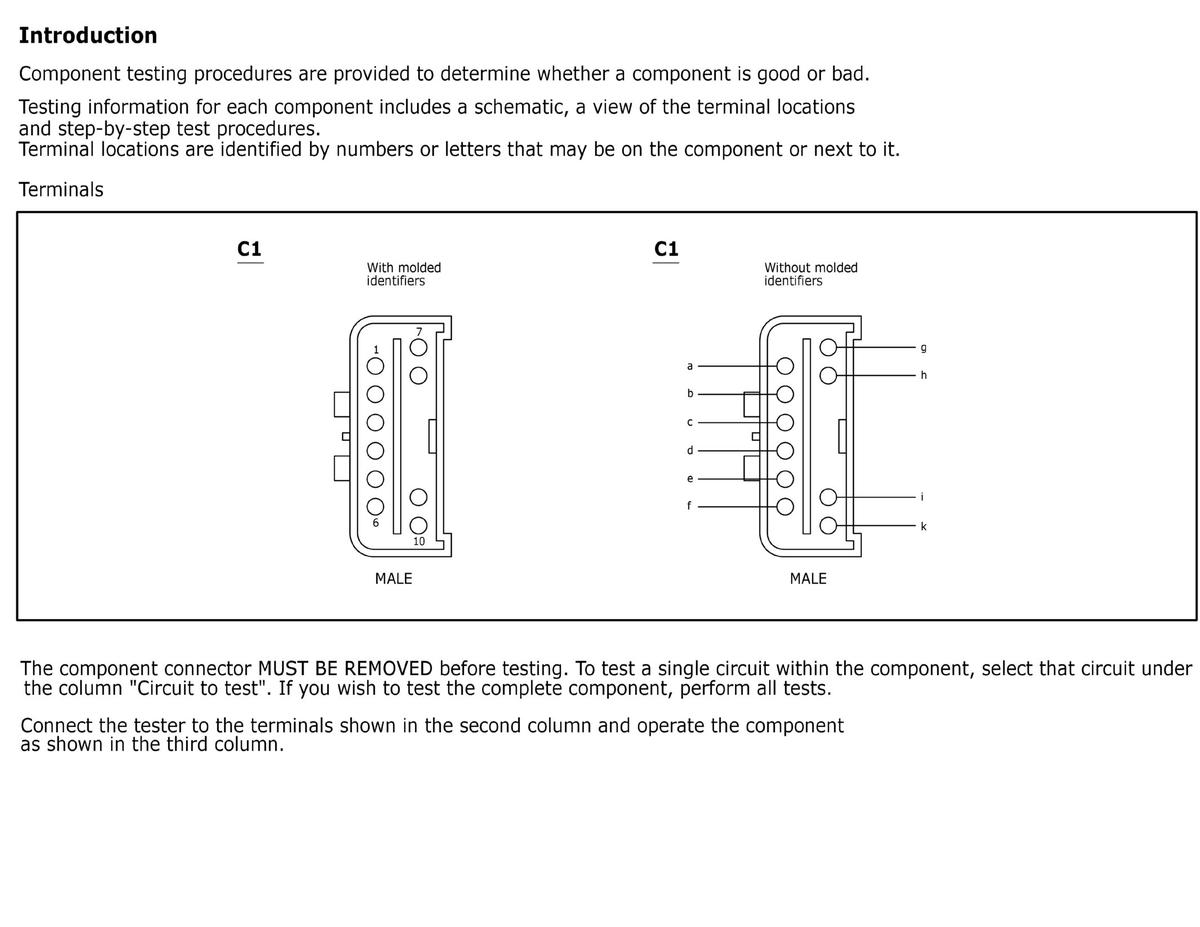

Fig 1: Component Testing Introduction
GFDWR91804Courtesy of FORD MOTOR COMPANY

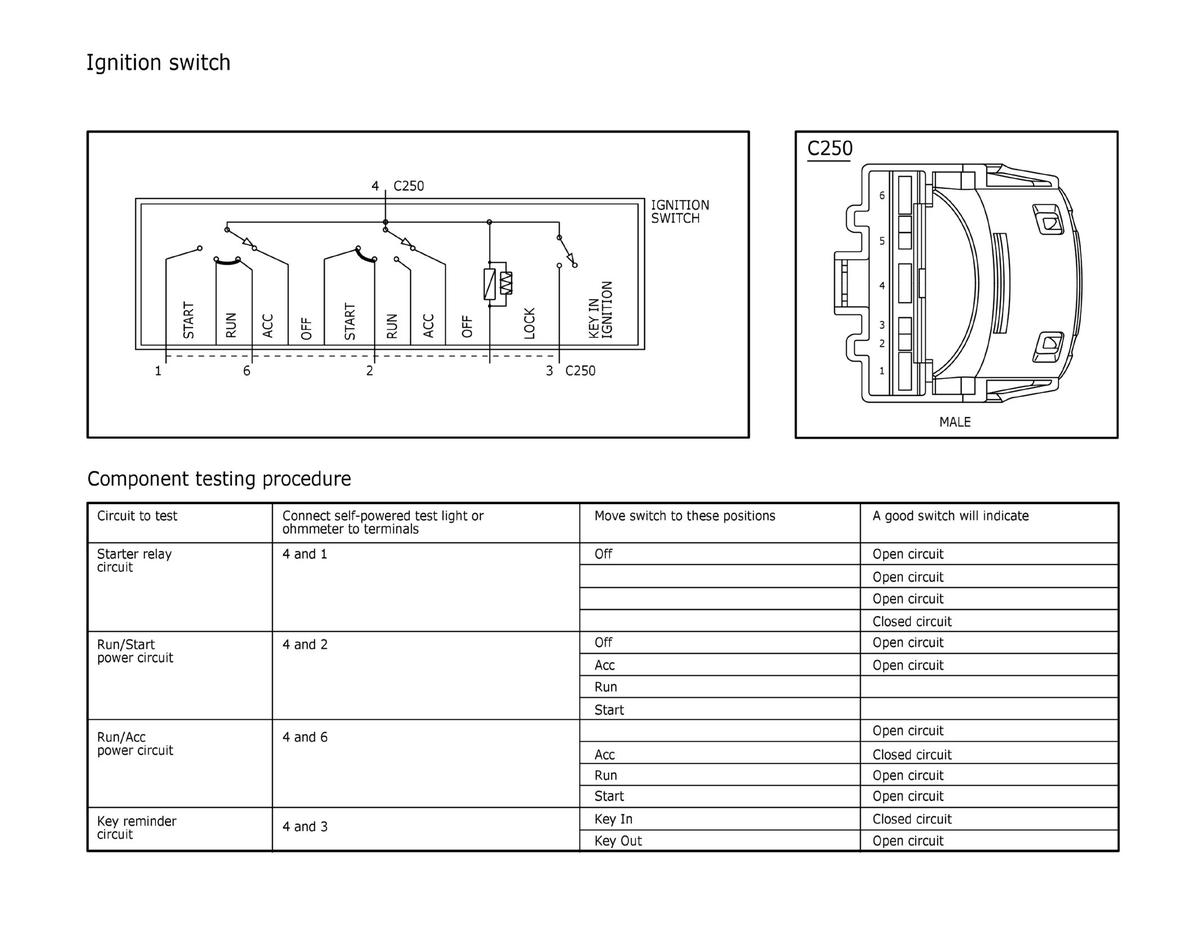

Fig 2: Ignition Switch Component Testing
GFDWR91798Courtesy of FORD MOTOR COMPANY

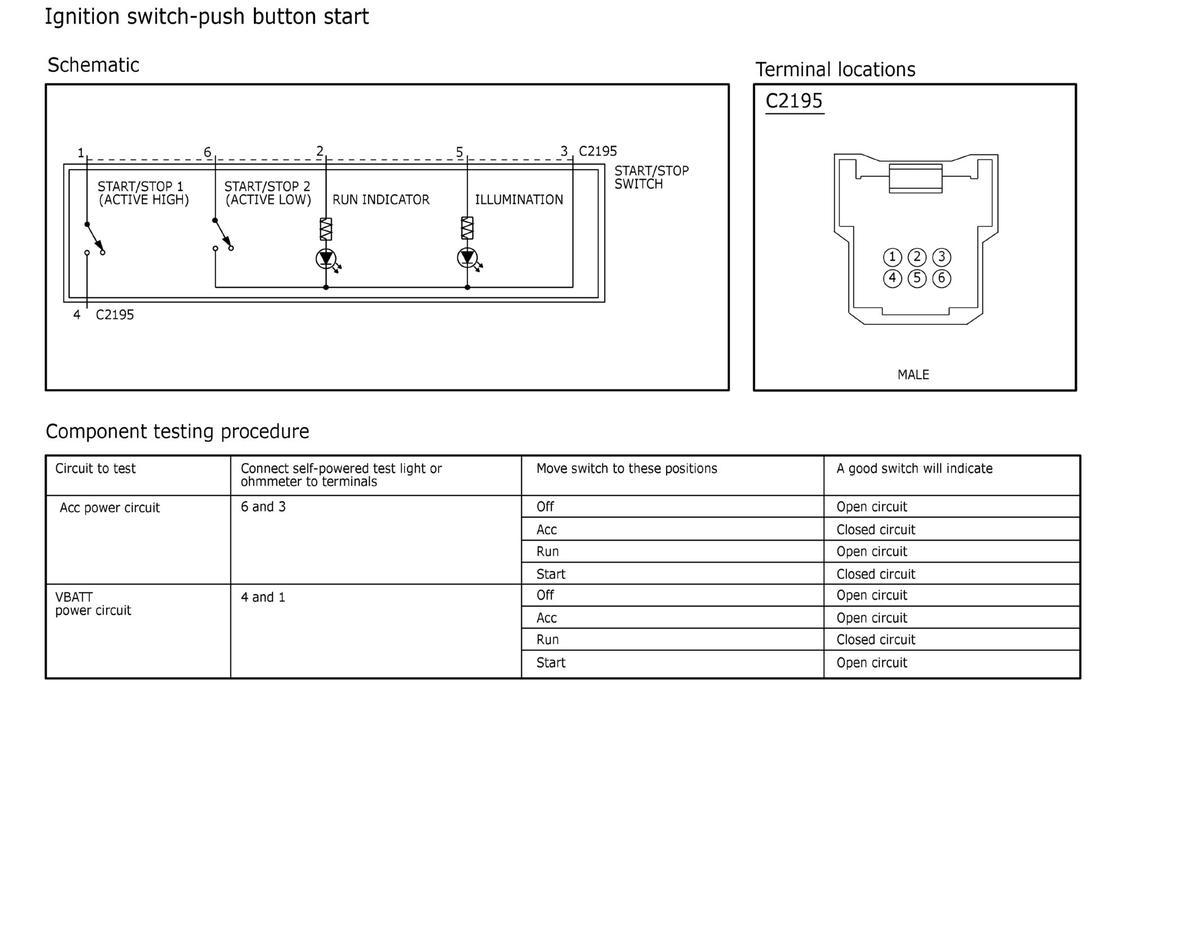

Fig 3: Ignition Switch - Push Button Start Component Testing
GFDWR91802Courtesy of FORD MOTOR COMPANY

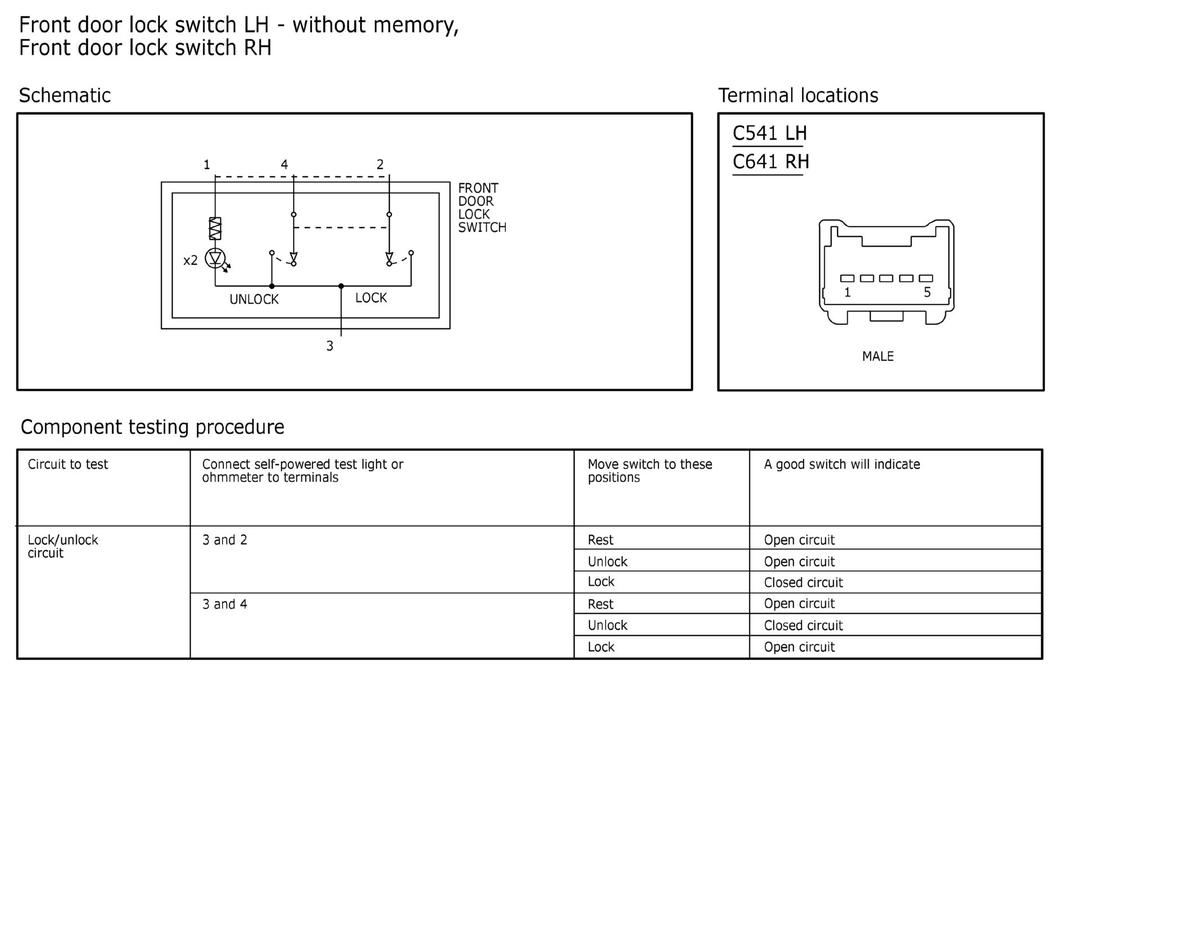

Fig 4: Front Door Lock Switch LH - Without Memory, Front Door Lock Switch RH Component Testing
GFDWR91805Courtesy of FORD MOTOR COMPANY

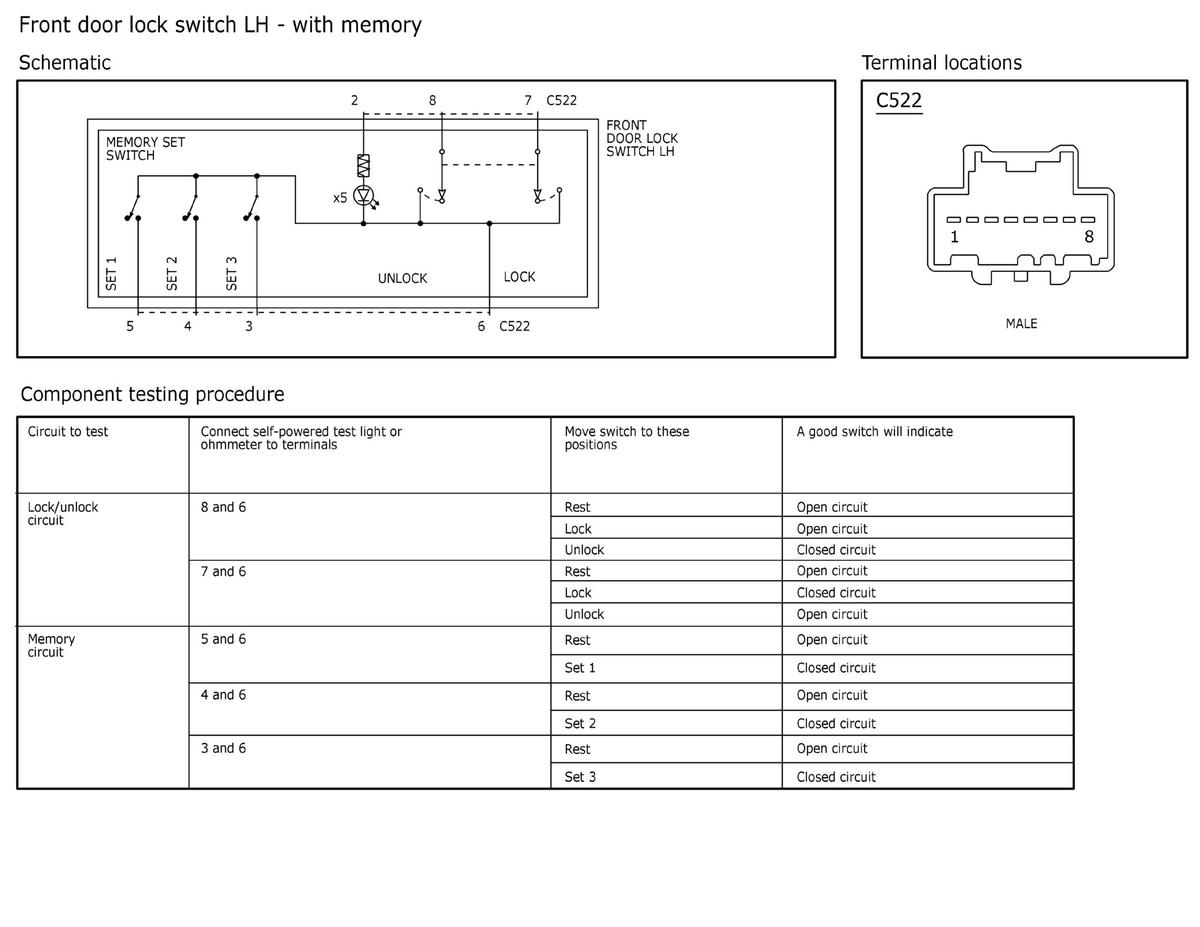

Fig 5: Front Door Lock Switch LH - With Memory Component Testing
GFDWR91806Courtesy of FORD MOTOR COMPANY

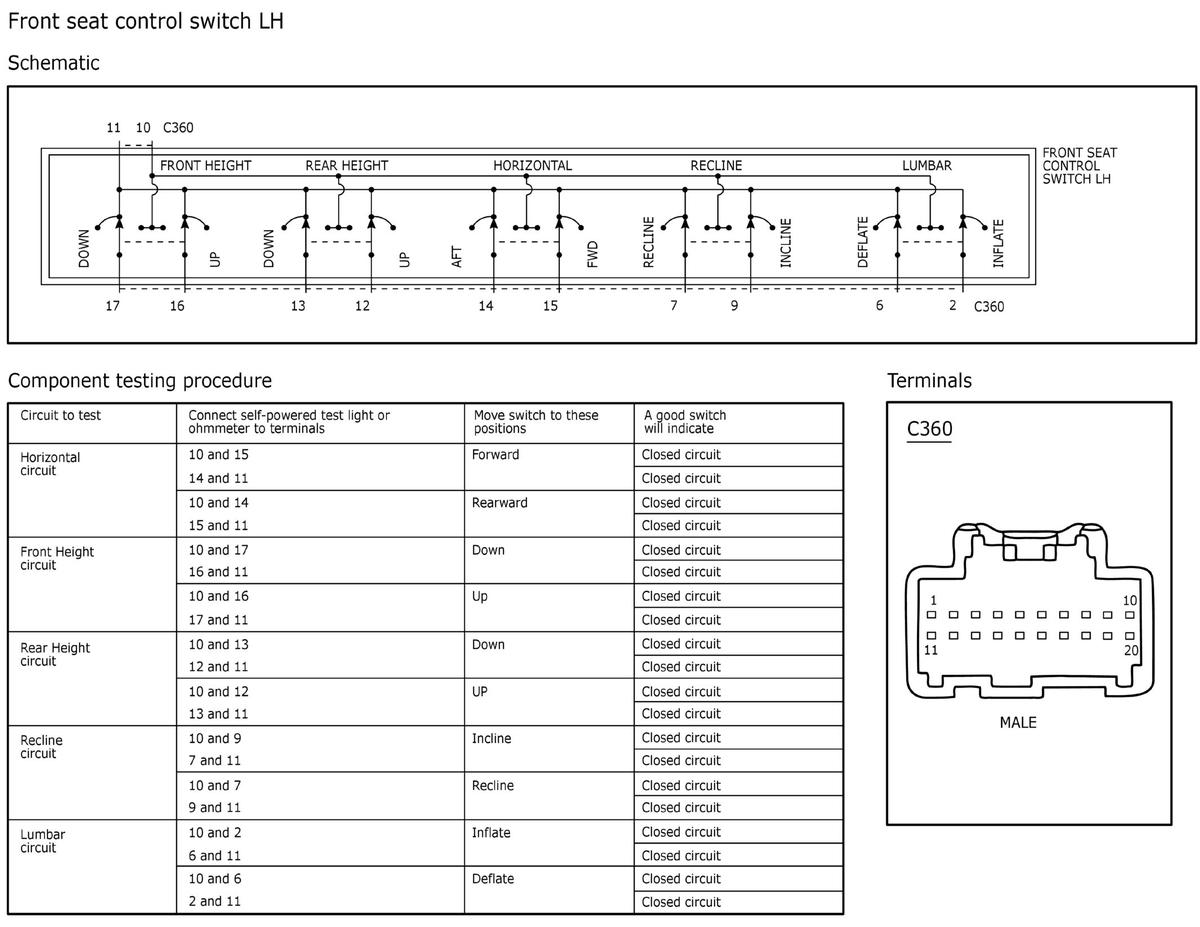

Fig 6: Front Seat Control Switch LH Component Testing
GFDWR91803Courtesy of FORD MOTOR COMPANY

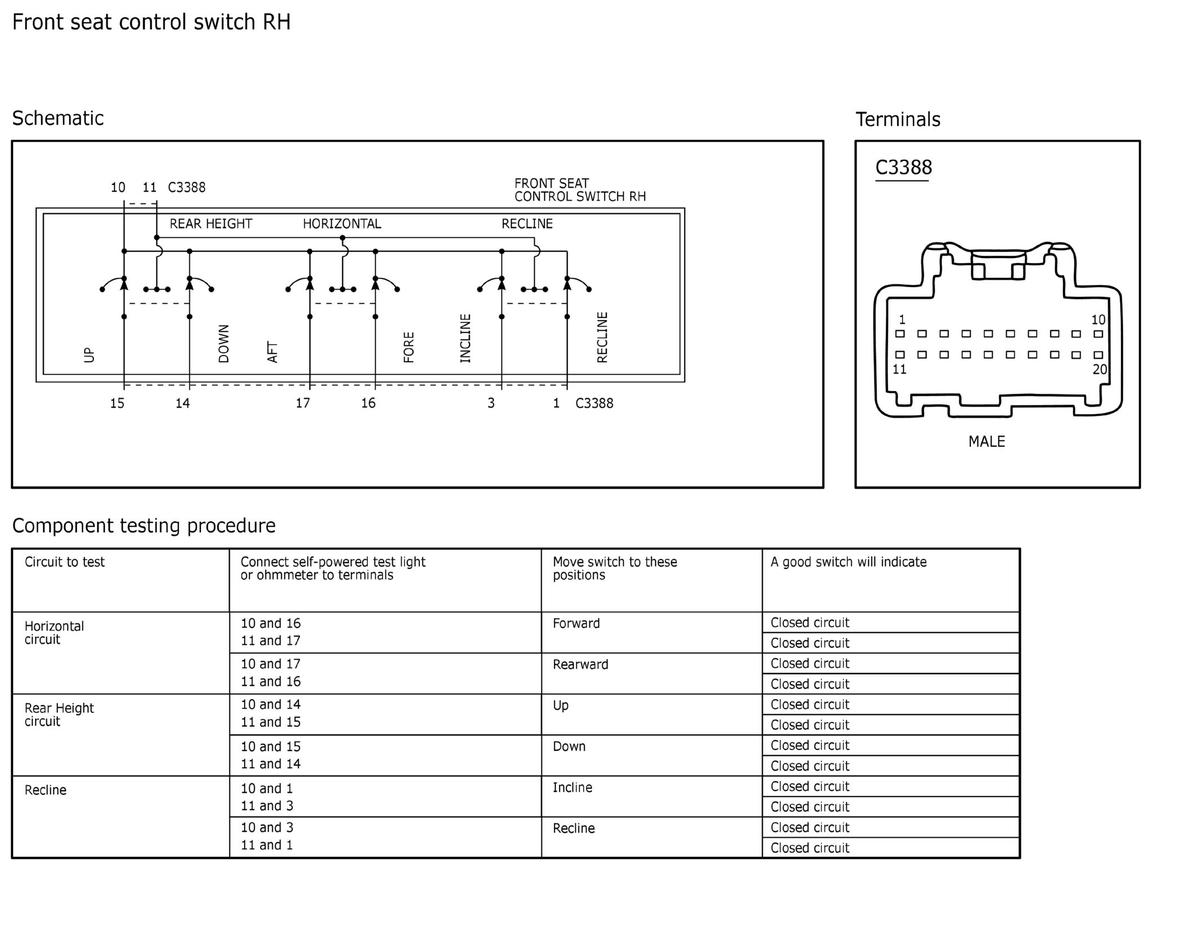

Fig 7: Front Seat Control Switch RH Component Testing
GFDWR91801Courtesy of FORD MOTOR COMPANY

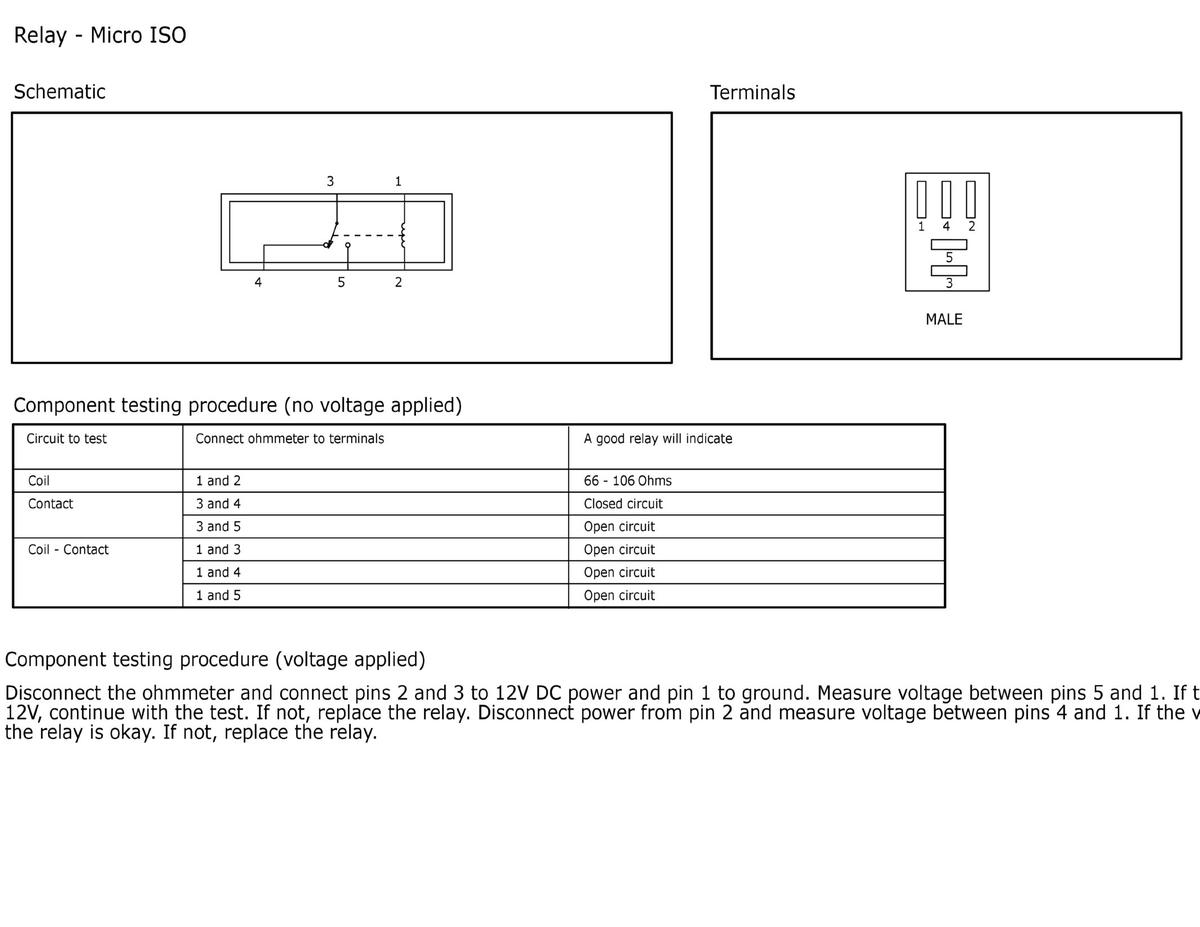

Fig 8: Relay - Micro ISO Component Testing
GFDWR91800Courtesy of FORD MOTOR COMPANY

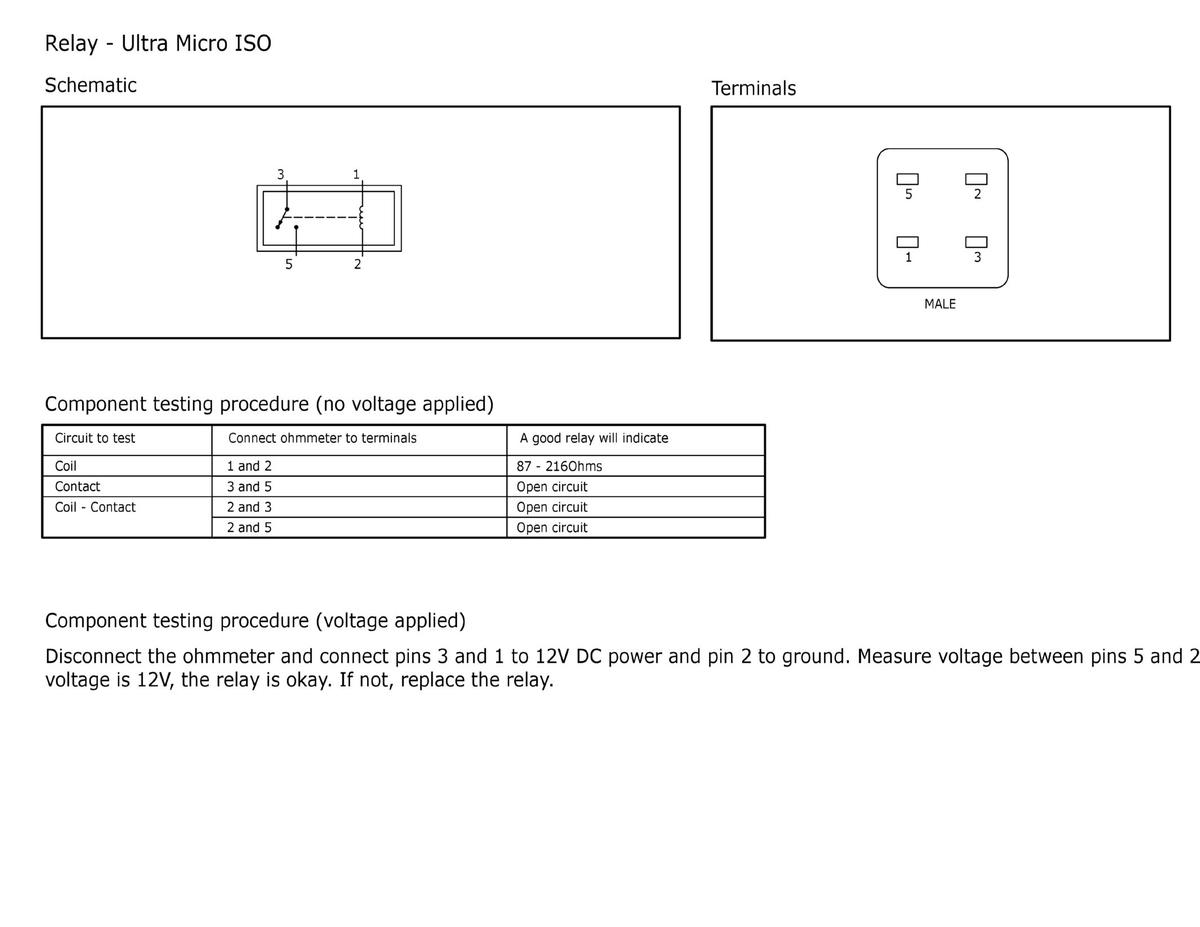

Fig 9: Relay - Ultra Micro ISO Component Testing
GFDWR91799Courtesy of FORD MOTOR COMPANY

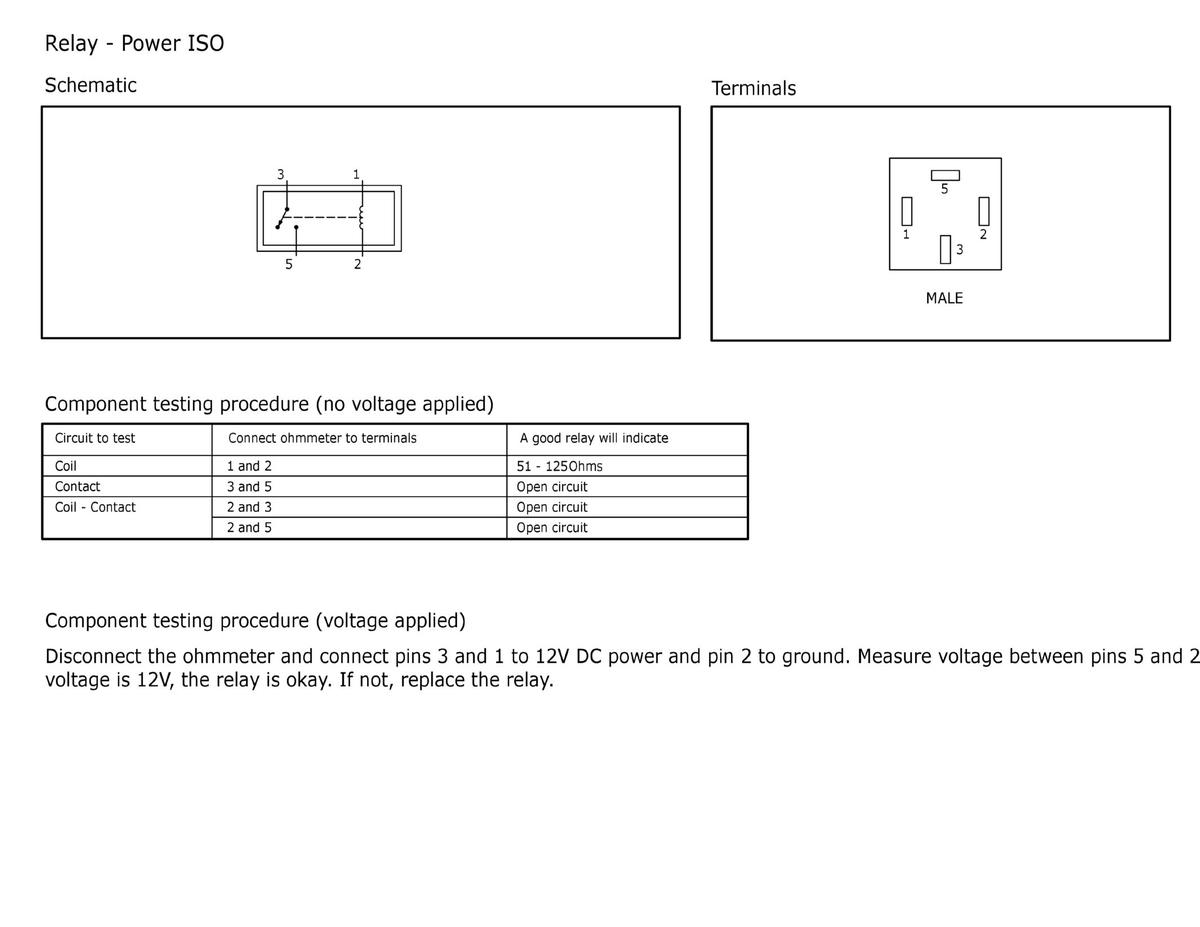

Fig 10: Relay - Power ISO Component Testing
GFDWR91807Courtesy of FORD MOTOR COMPANY
