Cruise Control Module (CCM): Installation

To install, reverse the removal procedure.

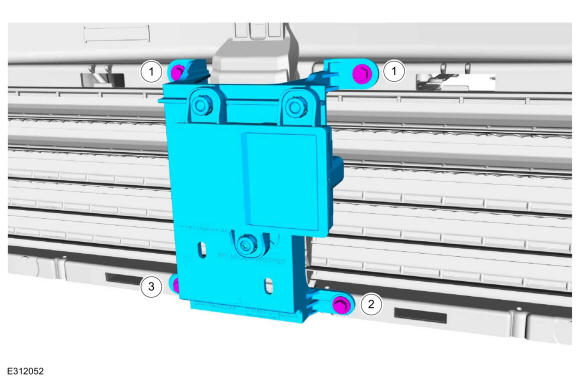

Install the screws in the following sequence
1. Install the CCM bracket screws.
  Torque: 33 lb.in (3.7 Nm)
2. Install the CCM bracket screw.
  Torque: 33 lb.in (3.7 Nm)
3. Install the CCM bracket screw.
  Torque: 33 lb.in (3.7 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
Align the CCM. Refer to: Cruise Control Radar Alignment .
