Powertrain Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Adjustment

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

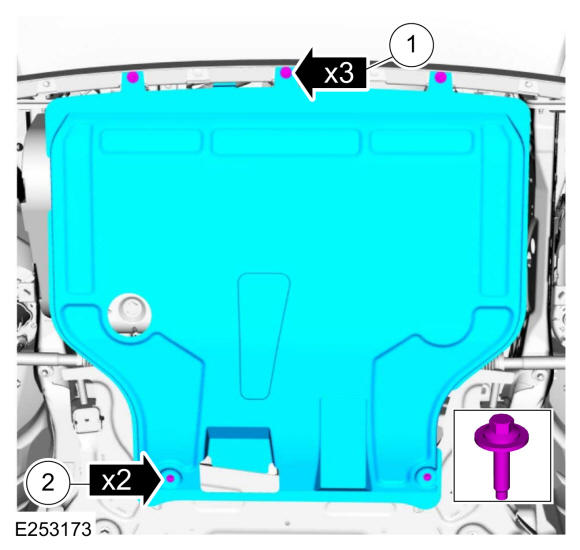

2. If equipped. Remove the bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

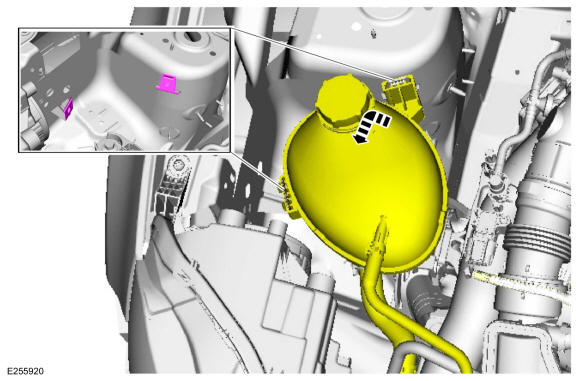

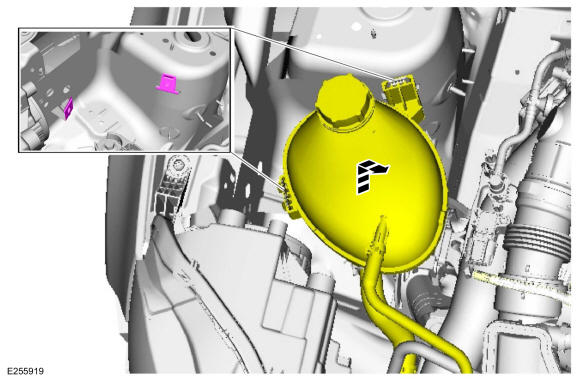

3. Position the degas bottle aside.

   Courtesy of FORD MOTOR COMPANY

4. Remove the battery. Refer to: Battery .

   1.5L Duratec, 1.0L GTDI and 6F15 Automatic Transmission

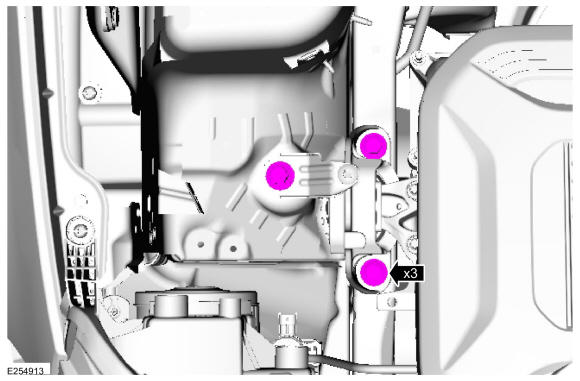

5. Loosen, but do not remove the transmission mounting assembly nuts.

   Courtesy of FORD MOTOR COMPANY

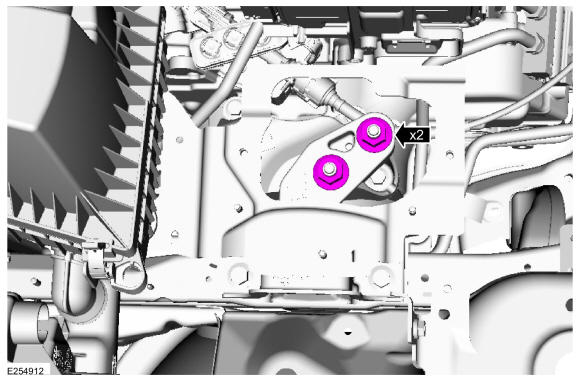

6. Loosen, but do not remove the engine mount bolts.

   Courtesy of FORD MOTOR COMPANY

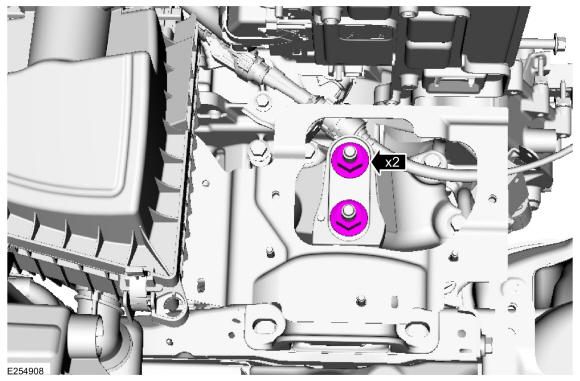

7. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

   1.5L Duratec and 6F35 Automatic Transmission

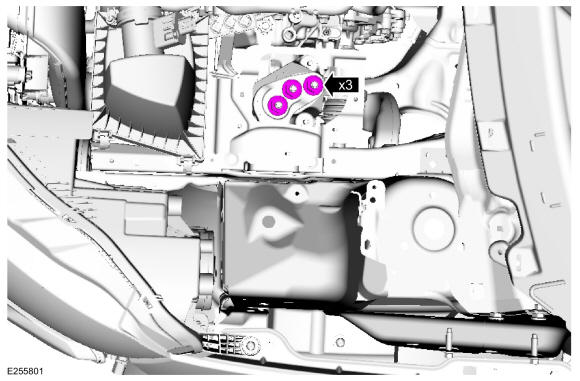

8. Loosen, but do not remove the transmission mounting assembly nuts.

   Courtesy of FORD MOTOR COMPANY

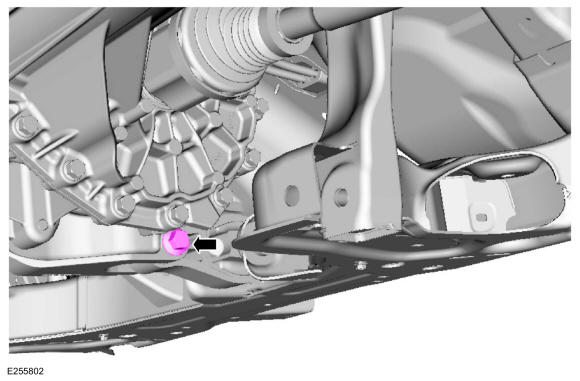

9. Loosen, but do not remove the engine mount bolt.

   Courtesy of FORD MOTOR COMPANY

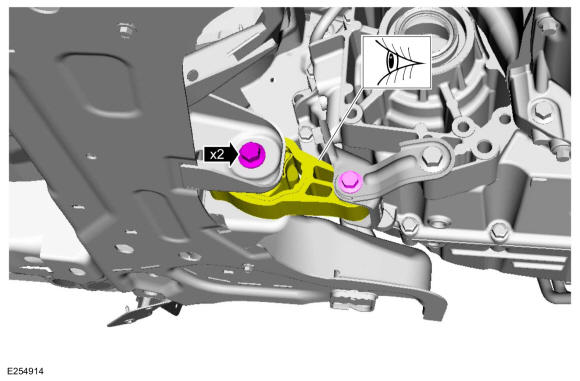

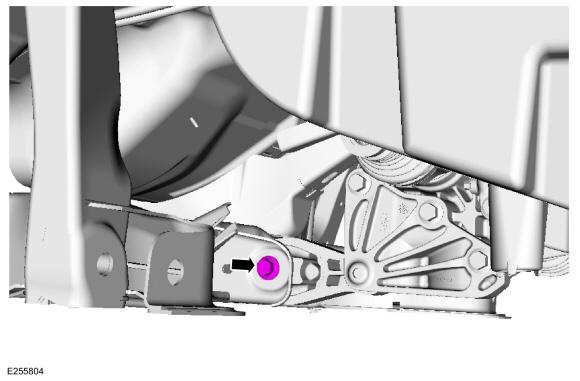

10. Loosen, but do not remove the roll restrictor bolt.

    Courtesy of FORD MOTOR COMPANY

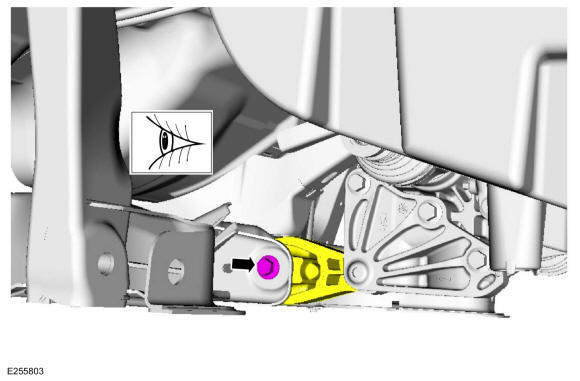

11. Loosen, but do not remove the roll restrictor bolt. Verify that the roll restrictor is loose.

    Courtesy of FORD MOTOR COMPANY

    2.0L

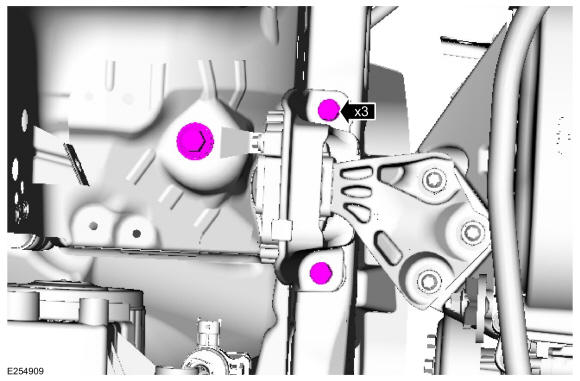

12. Loosen, but do not remove the transmission mounting assembly nuts.

    Courtesy of FORD MOTOR COMPANY

13. Loosen, but do not remove the engine mount bolts.

    Courtesy of FORD MOTOR COMPANY

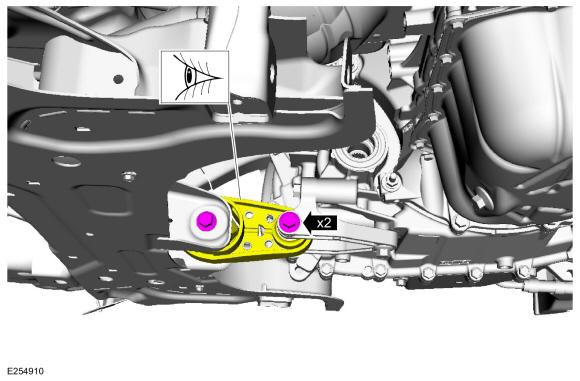

14. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

15. Install the battery. Refer to: Battery .
16. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

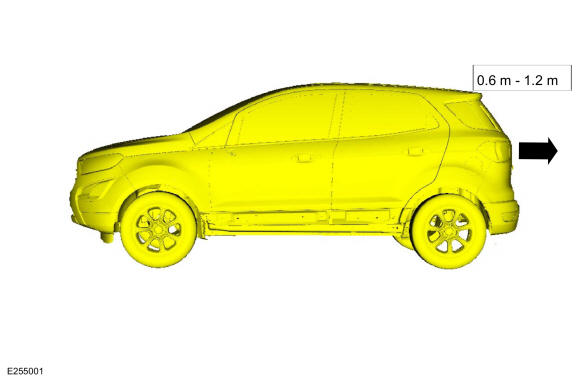

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

17. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

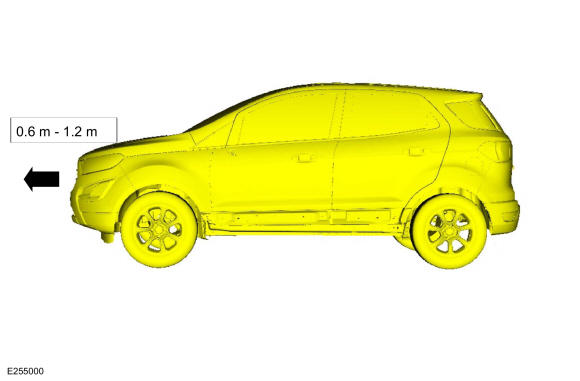

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

18. Remove the battery. Refer to: Battery .
19. Raise and support the vehicle. Refer to: Jacking and Lifting - Overview .

    1.5L Duratec, 1.0L GTDI and 6F15 Automatic Transmission

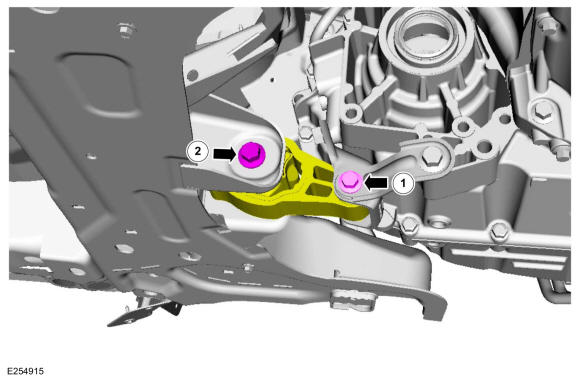

20. 1. Tighten the roll restrictor bolt.

       Torque:

       52 lb.ft (70 Nm)

    2. Tighten the roll restrictor bolt.

       Torque:

       81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Tighten the transmission mounting assembly nuts.

    Torque:

    103 lb.ft (140 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Tighten the engine mount bolts.

    Torque:

    35 lb.ft (47.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    1.5L Duratec and 6F35 Automatic Transmission

23. Tighten the roll restrictor bolt.

    Torque:

    81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Tighten the roll restrictor bolt.

    Torque:

    52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Tighten the engine mount bolt.

    Torque:

    35 lb.ft (47.5 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Tighten the transmission mounting assembly nuts.

    Torque:

    103 lb.ft (140 Nm)

    Courtesy of FORD MOTOR COMPANY

    2.0L

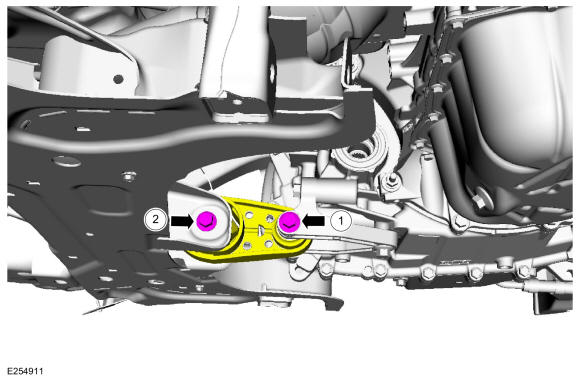

27. 1. Tighten the roll restrictor bolt.

       Torque:

       52 lb.ft (70 Nm)

    2. Tighten the roll restrictor bolt.

       Torque:

       85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Tighten the transmission mounting assembly nuts.

    Torque:

    103 lb.ft (140 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Tighten the engine mount bolts.

    Torque:

    35 lb.ft (47.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

30. Position back the degas bottle.

    Courtesy of FORD MOTOR COMPANY

31. Install the battery. Refer to: Battery .
32. If equipped. Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

33. Test the system for normal operation.
